8-28 — CHASSIS ELECTRICAL (#30857) — 142 parça

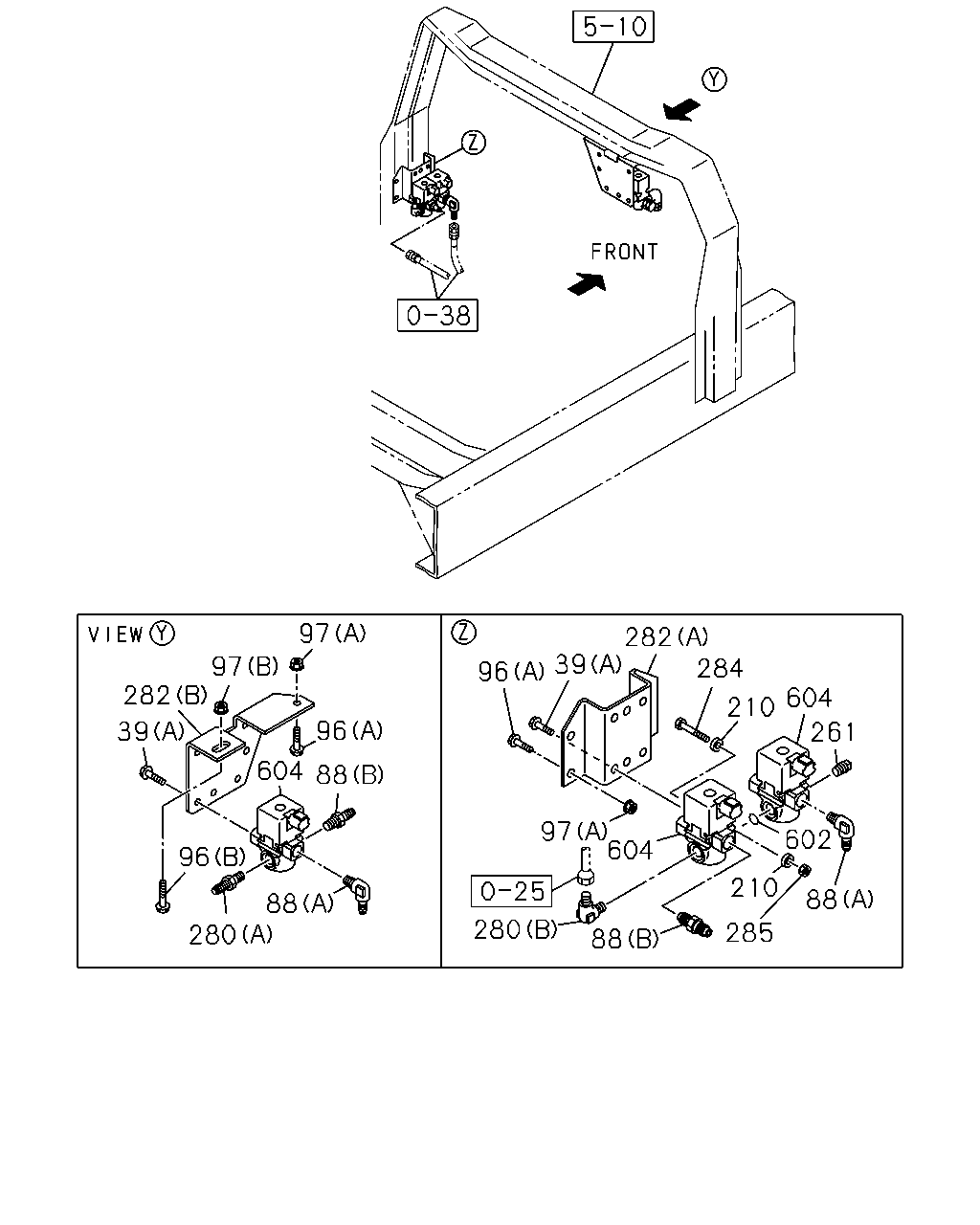

97 282 284 39 97 282 96 604 210 96 39 261 604 88 602 210 97 604 96 88 88 280 285 280 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0604-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0604-0706
39	BOLT; BRKT,MAG VLV EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0604-0706
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0707-
39	BOLT; BRKT,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	0707-
88	CONNECTOR; MAG VLV (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0604-0706
88	CONNECTOR; MAG VLV EXC. MIXER TRUCK<RA2> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0604-0706
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0707-
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) (B) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0707-
88	CONNECTOR; MAG VLV (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0604-0706
88	CONNECTOR; MAG VLV EXC. MIXER TRUCK<RA2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0604-0706
88	CONNECTOR; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0707-
88	CONNECTOR; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0707-
96	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28650-825-0	05	1	0604-
96	BOLT; BRKT FIX (B) M10X25 FLANGE	0-28651-025-0	01	1	0604-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0604-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-110-0	01	1	0604-
97	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	01	1	0604-
210	WASHER; PL,BRKT EXC. MIXER TRUCK<RA2>	1-82569-266-0	02	1	0604-0706
210	WASHER; PL,BRKT EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2>	1-82569-266-0	02	1	0707-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV EXC. MIXER TRUCK<RA2> PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> PT1/4	9-99204-513-0	01	1	0707-
280	CONNECTOR; IN,MAG VLV (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0604-0706
280	CONNECTOR; IN,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0707-
280	CONNECTOR; IN,MAG VLV EXC. MIXER TRUCK<RA2> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0604-0706
280	CONNECTOR; IN,MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0707-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0604-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0604-0706
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B)	1-82569-277-2	01	1	0707-
282	BRACKET; MAG VLV (D)	1-82569-421-0	01	1	0604-
282	BRACKET; MAG VLV EXC. MIXER TRUCK<RA2> (A)	1-82569-290-0	01	1	0604-0706
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A)	1-82569-290-0	01	1	0707-
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0604-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	0604-
284	BOLT; MAG VLV EXC. MIXER TRUCK<RA2> M6X50 FLANGE	0-28050-650-0	01	1	0604-0706
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M6X50 FLANGE	0-28050-650-0	01	1	0707-
285	NUT; MAG VLV EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91180-106-0	01	1	0604-0706
285	NUT; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M6 FLANGE	0-91180-106-0	01	1	0707-
602	GASKET; MAG VLV EXC. MIXER TRUCK<RA2> ID=16.8	9-09565-117-0	01	1	0604-0706
602	GASKET; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> ID=16.8	9-09565-117-0	01	1	0707-
604	VALVE; MAG,ENG CONT	1-82563-871-2	01	1	0604-0706
604	VALVE; MAG,ENG CONT EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2>	1-82563-871-2	02	1	0707-
604	VALVE; MAG,ENG CONT EXC. MIXER TRUCK<RA2>	1-82563-871-2	02	1	0604-0706
604	VALVE; MAG,ENG CONT ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN>	1-82563-871-2	01	1	0707-

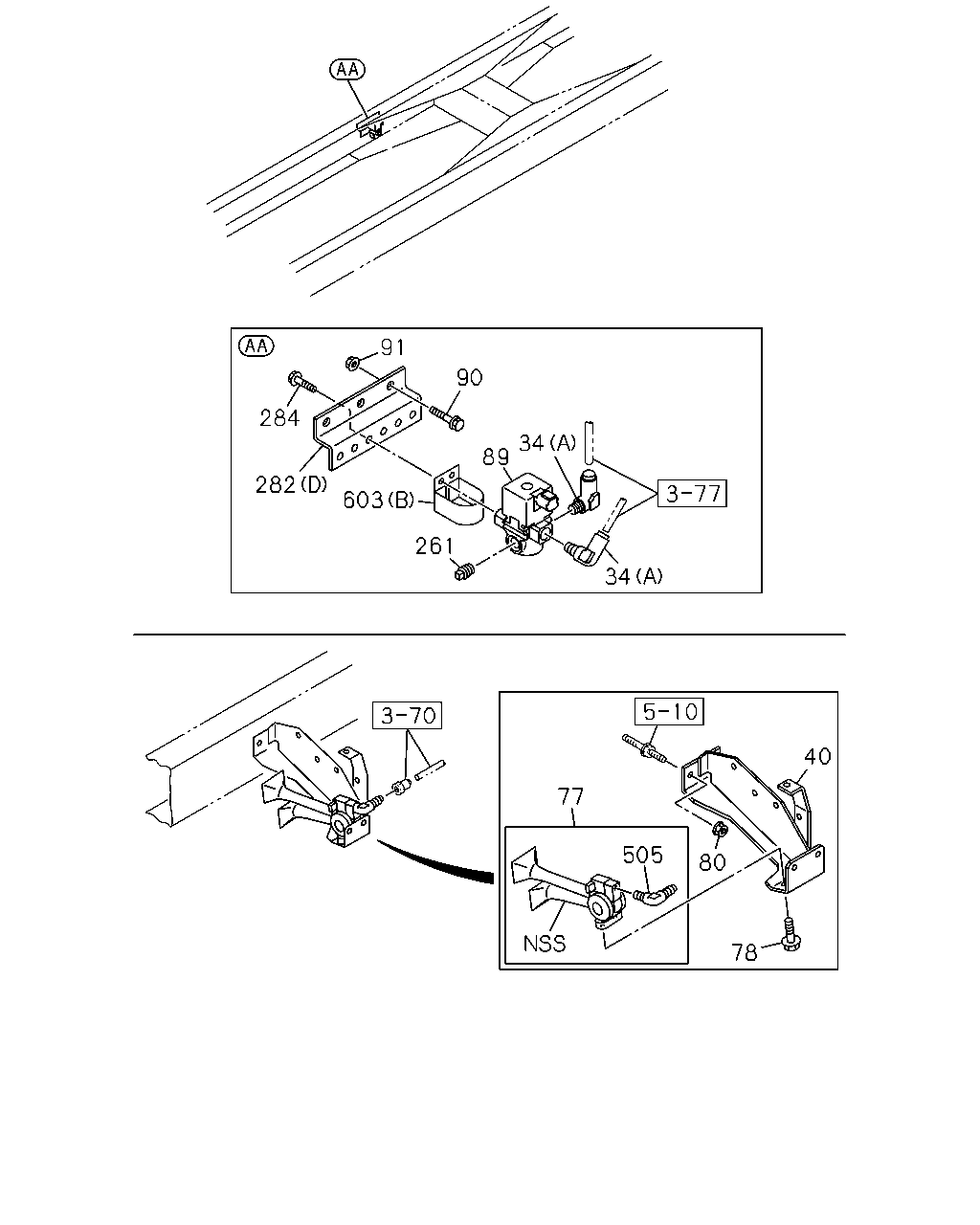

91 90 284 34 89 282 603 261 34 40 77 505 80 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0604-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0604-
40	BRACKET; MAG VLV	1-53457-199-0	01	1	0604-
77	HORN ASM	1-83430-041-2	01	1	0604-
78	BOLT; AIR HORN M8X20 FLANGE	0-28650-820-0	02	1	0604-
80	NUT; MAG VLV M12 FLANGE	0-91180-212-0	02	1	0604-
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0604-1205
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-
90	BOLT; MAG VLV M8X40 FLANGE	0-28650-840-0	02	1	0604-
91	NUT; MAG VLV M8 FLANGE	0-91180-108-0	02	1	0604-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV EXC. MIXER TRUCK<RA2> PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> PT1/4	9-99204-513-0	01	1	0707-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0604-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0604-0706
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B)	1-82569-277-2	01	1	0707-
282	BRACKET; MAG VLV (D)	1-82569-421-0	01	1	0604-
282	BRACKET; MAG VLV EXC. MIXER TRUCK<RA2> (A)	1-82569-290-0	01	1	0604-0706
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A)	1-82569-290-0	01	1	0707-
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0604-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	0604-
284	BOLT; MAG VLV EXC. MIXER TRUCK<RA2> M6X50 FLANGE	0-28050-650-0	01	1	0604-0706
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M6X50 FLANGE	0-28050-650-0	01	1	0707-
505	JOINT; AIR HORN	1-83439-006-0	01	1	0604-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0604-0706
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	0707-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0707-
603	PROTECTOR; MAG VLV (B)	1-47471-044-0	01	1	0604-0706

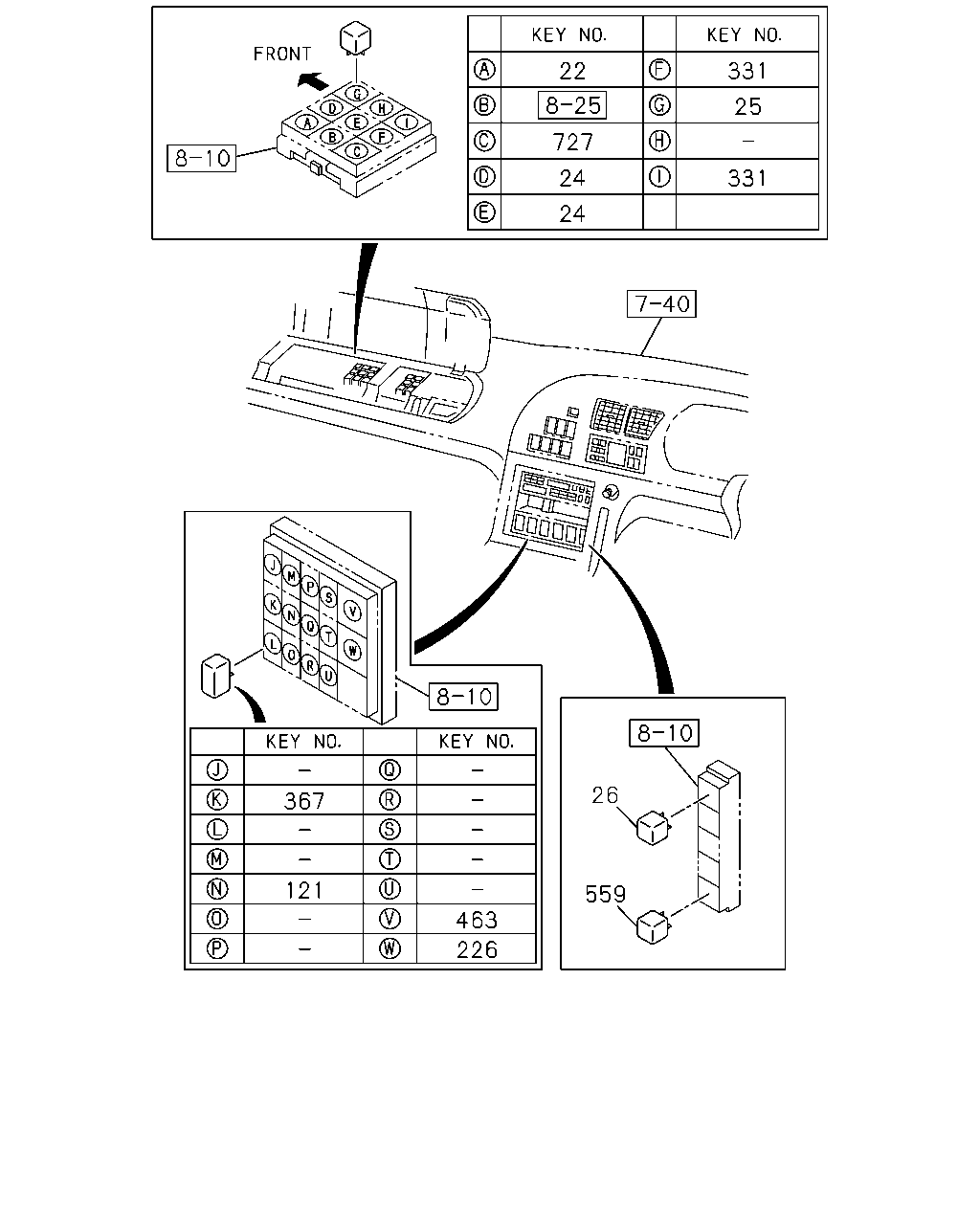

22 331 25 727 24 331 24 26 367 121 559 463 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	RELAY; STOP LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0604-
24	RELAY; LIGHTING 24V 12.5A PANASONIC	8-97262-933-0	02	1	0604-
25	RELAY; TAIL LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0604-
26	RELAY; CONSENT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0604-
121	RELAY; PARKING BRK 24V 10A PANASONIC	8-97173-035-1	01	1	0604-
226	RELAY; EXH BRK 24V 12.5A PANASONIC	8-97262-933-0	01	1	0604-
331	RELAY; A/C AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC	8-97262-933-0	02	1	0604-
367	RELAY; NEUTRAL 24V 10A PANASONIC	8-97173-035-1	01	1	0604-
463	RELAY; ABS SIGNAL 24V 10A PANASONIC	8-97173-035-1	01	1	0604-
559	RELAY; MAG VLV 24V 12.5A PANASONIC	8-97262-933-0	01	1	0604-0706
559	RELAY; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0707-
727	RELAY; START CUT 24V 12.5A PANASONIC	8-97262-933-0	01	1	0604-0706
727	RELAY; START CUT ENGINE CONTROL COMMON RAIL(Q4R) 24V 12.5A PANASONIC	8-97262-933-0	01	1	0707-

34 33 261 39 282 34 41 603 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	VALVE; MAG,PTO CONT TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82563-871-2	01	1	0604-
34	CONNECTOR; MAG VLV,INL PORT TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	02	1	0604-
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0604-
39	BOLT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M8X35 FLANGE	0-28650-835-0	02	1	0604-
39	BOLT; BRKT,MAG VLV (A) M8X20 FLANGE	0-28650-820-0	02	1	0604-0706
39	BOLT; BRKT,MAG VLV EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0604-0706
39	BOLT; BRKT,MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A) M8X20 FLANGE	0-28650-820-0	02	1	0707-
39	BOLT; BRKT,MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28650-820-0	02	1	0707-
41	NUT; BRKT,MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	0604-
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV EXC. MIXER TRUCK<RA2> PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0604-0706
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> PT1/4	9-99204-513-0	01	1	0707-
261	PLUG; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> PT1/4	9-99204-513-0	01	1	0707-
282	BRACKET; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (C)	1-47471-175-0	01	1	0604-
282	BRACKET; MAG VLV (B)	1-82569-277-2	01	1	0604-0706
282	BRACKET; MAG VLV ENGINE CONTROL COMMON RAIL(Q4R) EURO3 SPECIFICATION<NJX>,EURO2 SPECIFICATION<THN> (B)	1-82569-277-2	01	1	0707-
282	BRACKET; MAG VLV (D)	1-82569-421-0	01	1	0604-
282	BRACKET; MAG VLV EXC. MIXER TRUCK<RA2> (A)	1-82569-290-0	01	1	0604-0706
282	BRACKET; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> (A)	1-82569-290-0	01	1	0707-
284	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0604-
284	BOLT; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28650-820-0	02	1	0604-
284	BOLT; MAG VLV EXC. MIXER TRUCK<RA2> M6X50 FLANGE	0-28050-650-0	01	1	0604-0706
284	BOLT; MAG VLV EURO3 SPECIFICATION<NJX> ENGINE CONTROL COMMON RAIL(Q4R) EXC. MIXER TRUCK<RA2> M6X50 FLANGE	0-28050-650-0	01	1	0707-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0604-0706
603	PROTECTOR; MAG VLV (A)	1-47471-046-0	01	1	0707-
603	PROTECTOR; MAG VLV TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	1-47471-046-0	01	1	0707-
603	PROTECTOR; MAG VLV (B)	1-47471-044-0	01	1	0604-0706

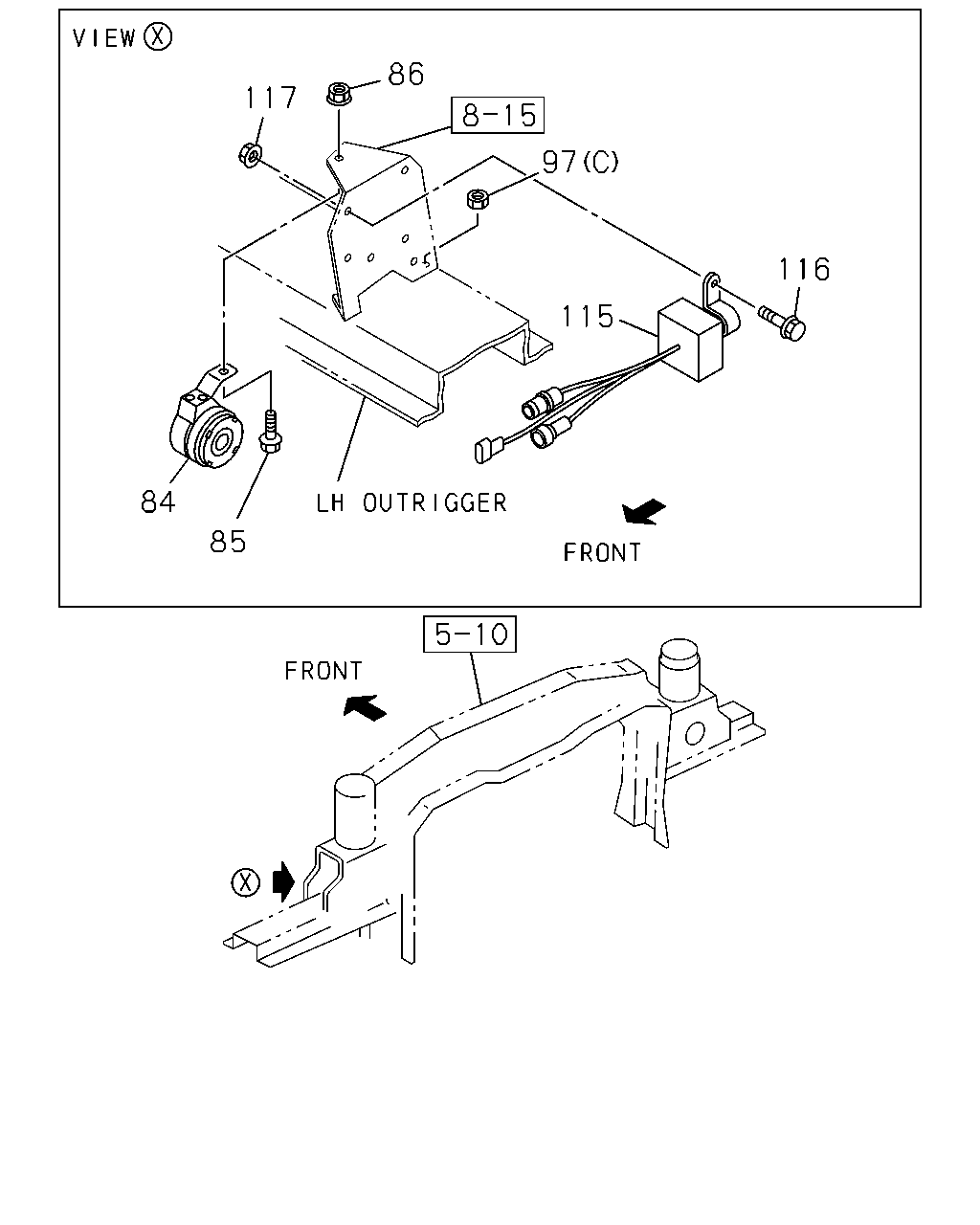

86 117 97 116 115 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
84	BUZZER; POWER CAB TILT METRO DENSO	1-83460-097-0	01	1	0604-0612
84	BUZZER; POWER CAB TILT METRO DENSO	8-98069-860-0	01	1	0701-
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0604-
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0604-
97	NUT; BRKT FIX (A) M8 FLANGE	0-91180-108-0	05	1	0604-
97	NUT; BRKT FIX (B) M10 FLANGE	0-91180-110-0	01	1	0604-
97	NUT; BRKT FIX (C) M10 FLANGE	0-91180-210-0	01	1	0604-
115	RELAY; POWER CAB TILT UNIT NIKKO	1-81171-075-1	01	1	0604-
116	BOLT; RELAY FIX M8X16 FLANGE	0-28050-816-0	02	1	0604-
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0604-

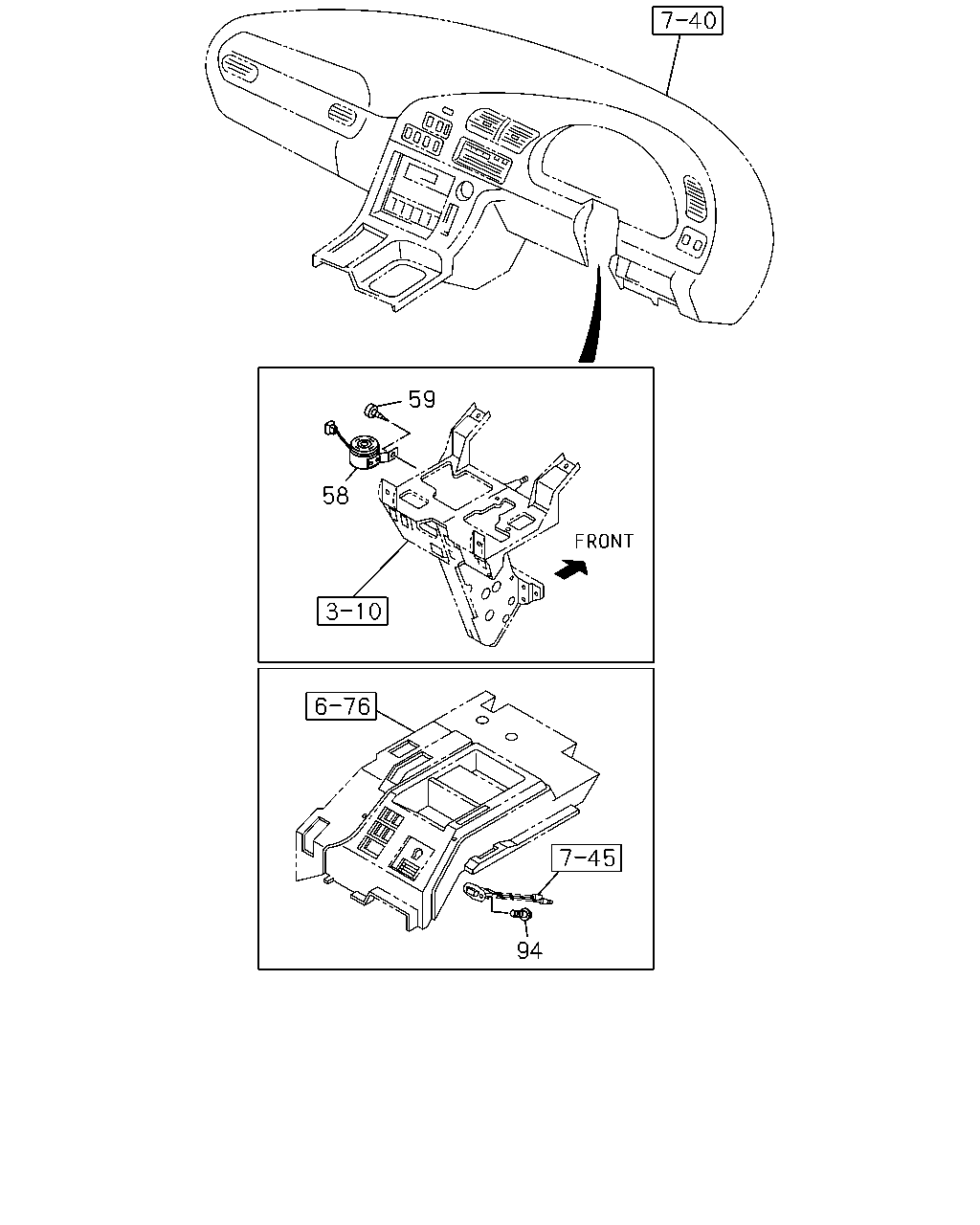

59 58 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	1-83460-075-0	01	1	0604-0612
58	BUZZER; AIR PRESSURE WARNING METRO DENSO	8-98069-859-0	01	1	0701-
59	SCREW; BUZZER M5X14	8-94279-325-0	01	1	0604-
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74110-510-0	02	1	0604-0604
94	SCREW; CONSENT TO BLIND PNL M5X10 TAPPING W/PL WASHER	0-74160-510-0	02	1	0605-

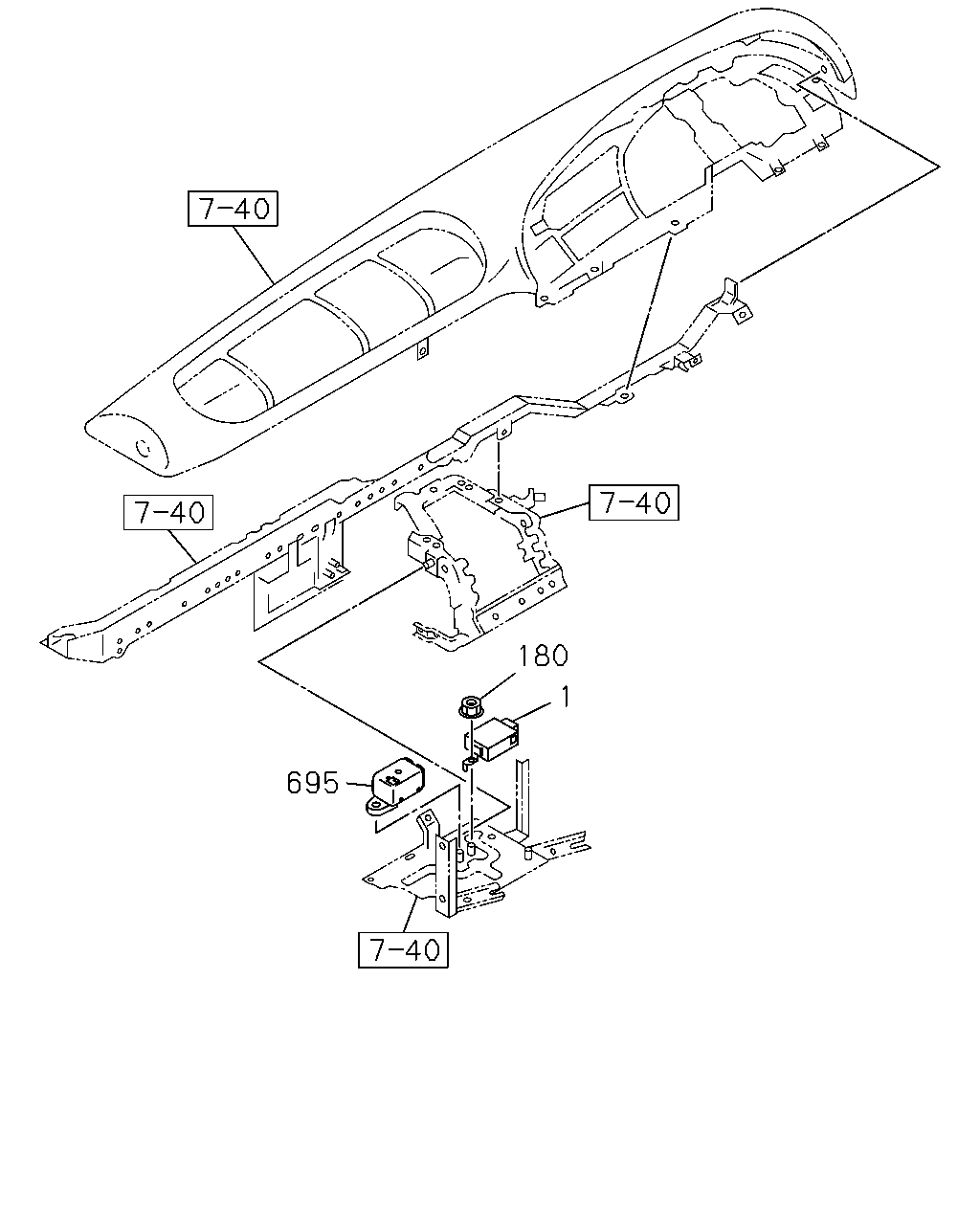

180 1 695

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	UNIT; FLASHER	1-83470-060-1	01	1	0604-
180	NUT; FLASHER UNIT M6 FLANGE	0-91180-106-0	01	1	0604-
695	ALARM; OVER HEAT	1-83460-051-1	01	1	0604-
