◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#30856) — 51 parça

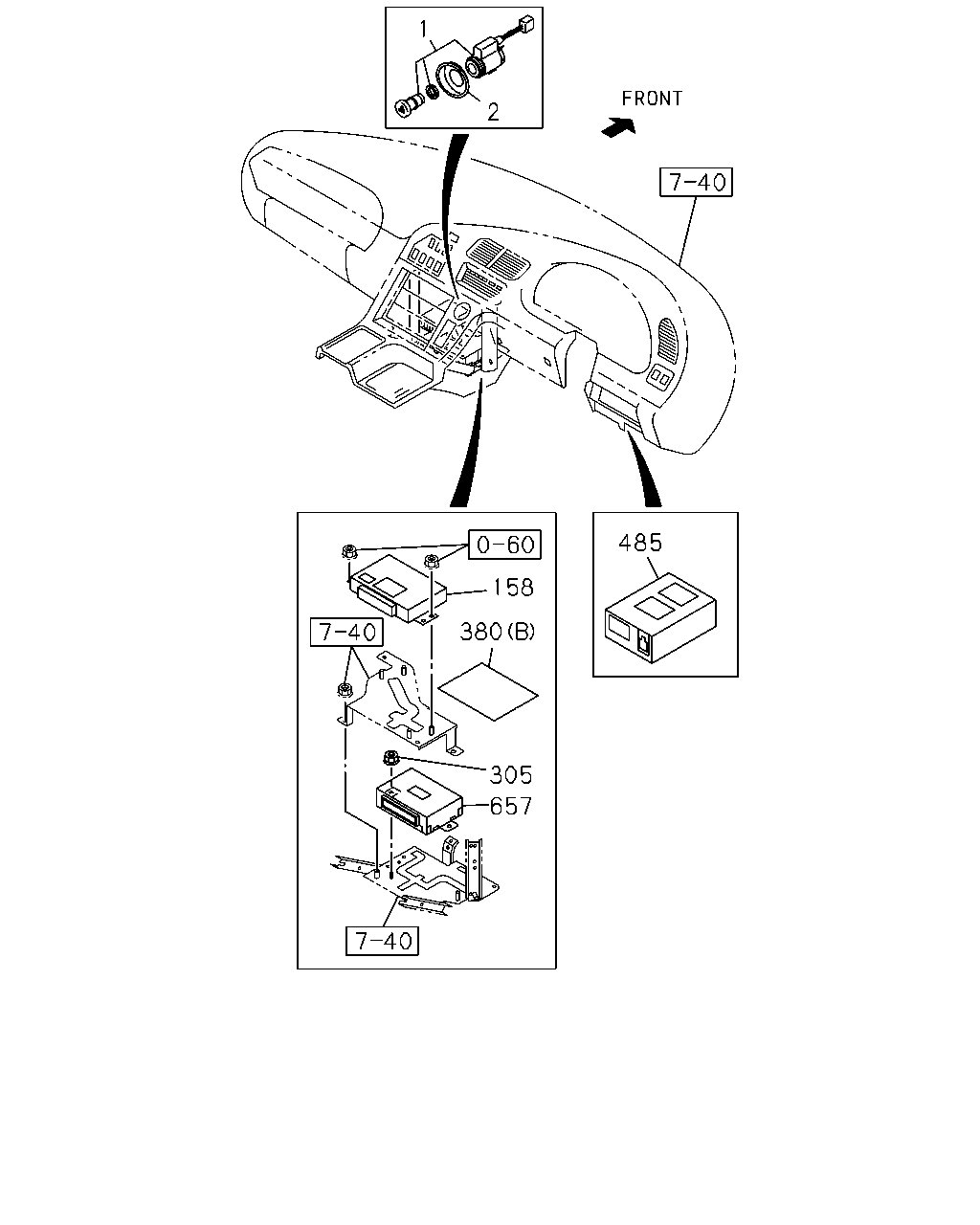

çizim 89882
1 2 485 158 380 305 657
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0604-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0604-
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE11.00-20-16 LUG INDONESIA(5H9) 		1-80119-245-1 01 1 0704-0803
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE11.00R20-16 SPECIAL MIDDLE EAST(89R) 		1-80119-245-1 01 1 0804-0903
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE11.00R20-16 RIBLUG OFF ROAD(5N4),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		1-80119-245-1 01 1 0904-1201
158 CONTROLLER; ABS
TIRE FRT 11R22.5-16 RIB RR 11R22.5-16 LUG(20X), TIRE11.00R20-16 RIBLUG OFF ROAD(5N4),TIRE 11.00R20-16 SPECIAL MIDDLE EAST(89R) 		8-98196-721-0 01 1 1202-
158 CONTROLLER; ABS
TIRE 12R22.5-152/148L RIB LUG(5A7) 		1-80119-223-2 01 1 0704-1201
158 CONTROLLER; ABS
TIRE 12R22.5-152/148L RIB LUG(5A7) 		8-98196-712-0 01 1 1202-
158 CONTROLLER; ABS 1-80119-245-1 01 1 0604-0604
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0604-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0604-
380 SEAL
EXC. ENGINE CONTROL COMMON RAIL(Q4R) (D) OD=25 BLACK 		1-76798-019-0 02 1 0707-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0604-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0604-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (C) OD=25 BLACK 		1-76798-019-0 04 1 0604-
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0604-1008
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-179-0 01 1 0604-1112
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-175-0 01 1 1201-

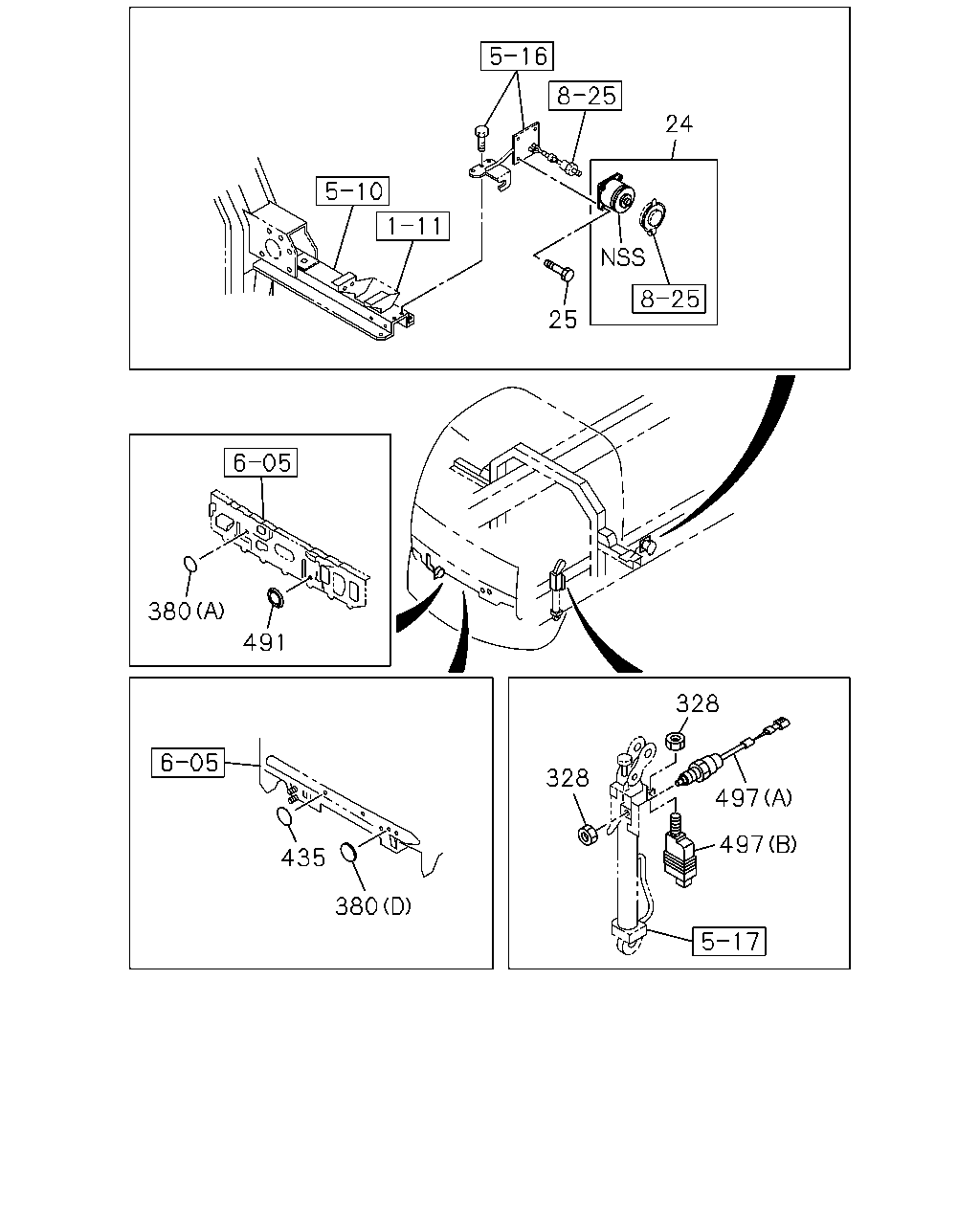

çizim 89883
24 25 380 491 328 328 497 497 435 380
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0604-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 0604-
328 NUT
M16 		0-91111-516-0 02 1 0604-
380 SEAL
EXC. ENGINE CONTROL COMMON RAIL(Q4R) (D) OD=25 BLACK 		1-76798-019-0 02 1 0707-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0604-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0604-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (C) OD=25 BLACK 		1-76798-019-0 04 1 0604-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0604-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0604-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0604-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0604-
çizim 106075
234
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0604-1301
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302-

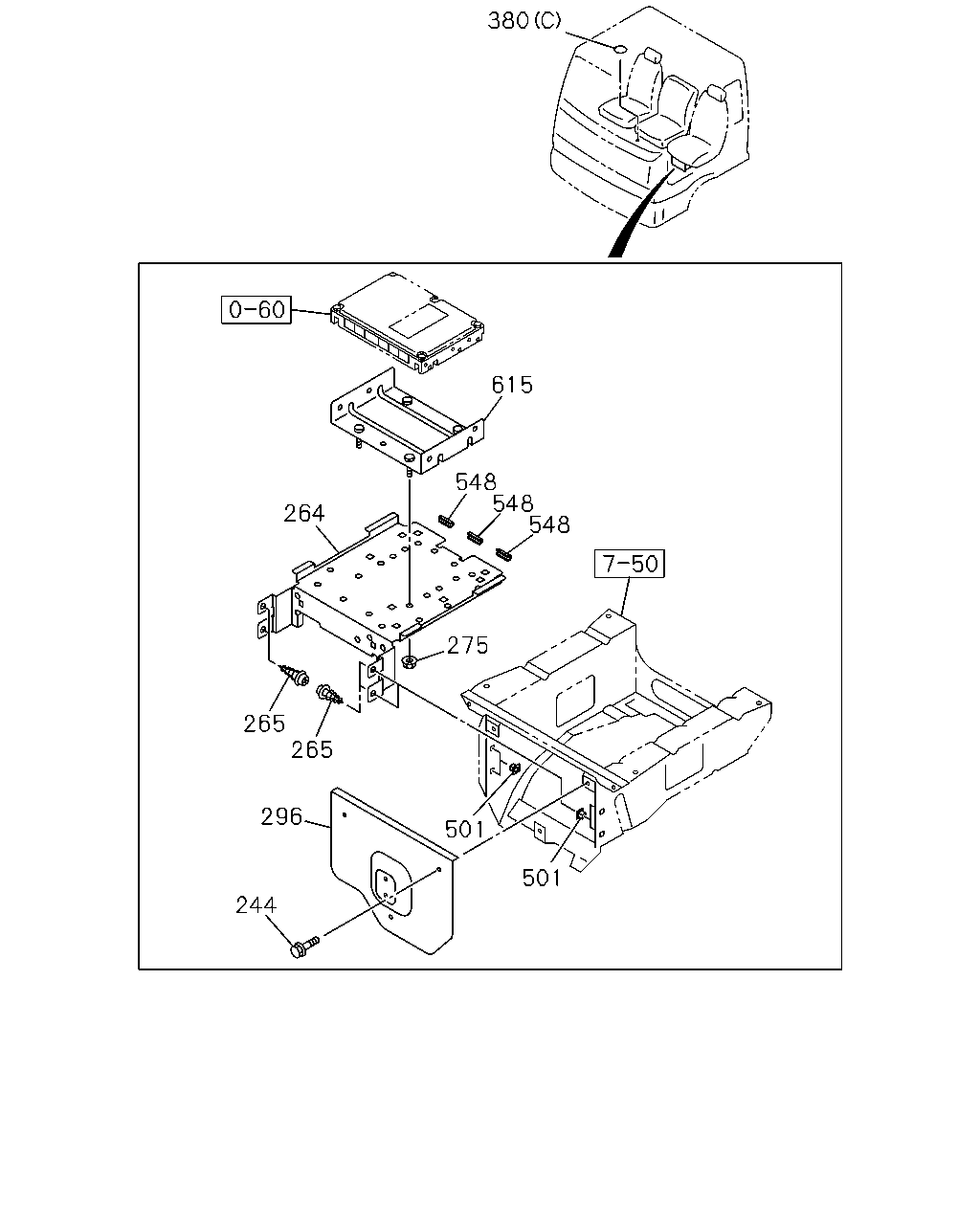

çizim 106211
380 615 548 548 548 264 275 265 265 296 501 501 244
BalonParca AdiParca NoAdetTipApplied Date
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0604-0703
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704-
264 BRACKET; CONT UNIT 8-97589-038-5 01 1 0604-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0604-
275 NUT; BRKT
M6 FLANGE 		0-91180-106-0 04 1 0604-0706
275 NUT; BRKT
ENGINE CONTROL COMMON RAIL(Q4R) M6 FLANGE 		0-91180-106-0 04 1 0707-
296 COVER; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>,MEMORY SYSTEM RUNNING CONDITION<NCR> 		8-97589-670-1 01 1 0604-
296 COVER; CONT UNIT
EXC. MEMORY SYSTEM RUNNING CONDITION,WO/ECU<EAG>, MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-75558-523-4 01 1 0604-
380 SEAL
EXC. ENGINE CONTROL COMMON RAIL(Q4R) (D) OD=25 BLACK 		1-76798-019-0 02 1 0707-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0604-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0604-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (C) OD=25 BLACK 		1-76798-019-0 04 1 0604-
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0604-
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0604-0908
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
615 BRACKET; ECU,SEAT STAND 8-97375-194-2 01 1 0604-0706
615 BRACKET; ECU,SEAT STAND
ENGINE CONTROL COMMON RAIL(Q4R) 		8-97375-194-2 01 1 0707-
