8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#30855) — 45 parça
◀

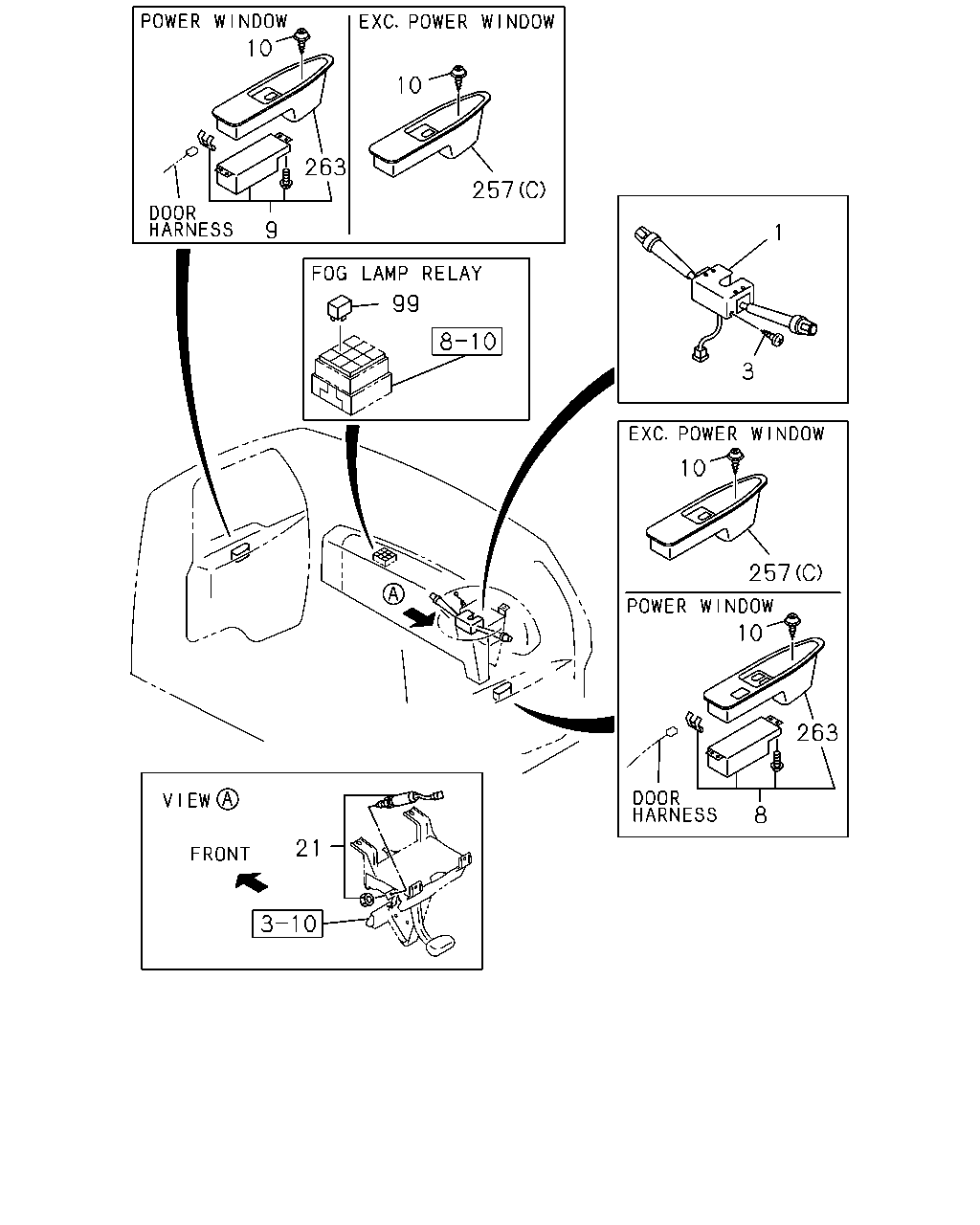

[825A] CAB SIDE NO.1 (15 parça)

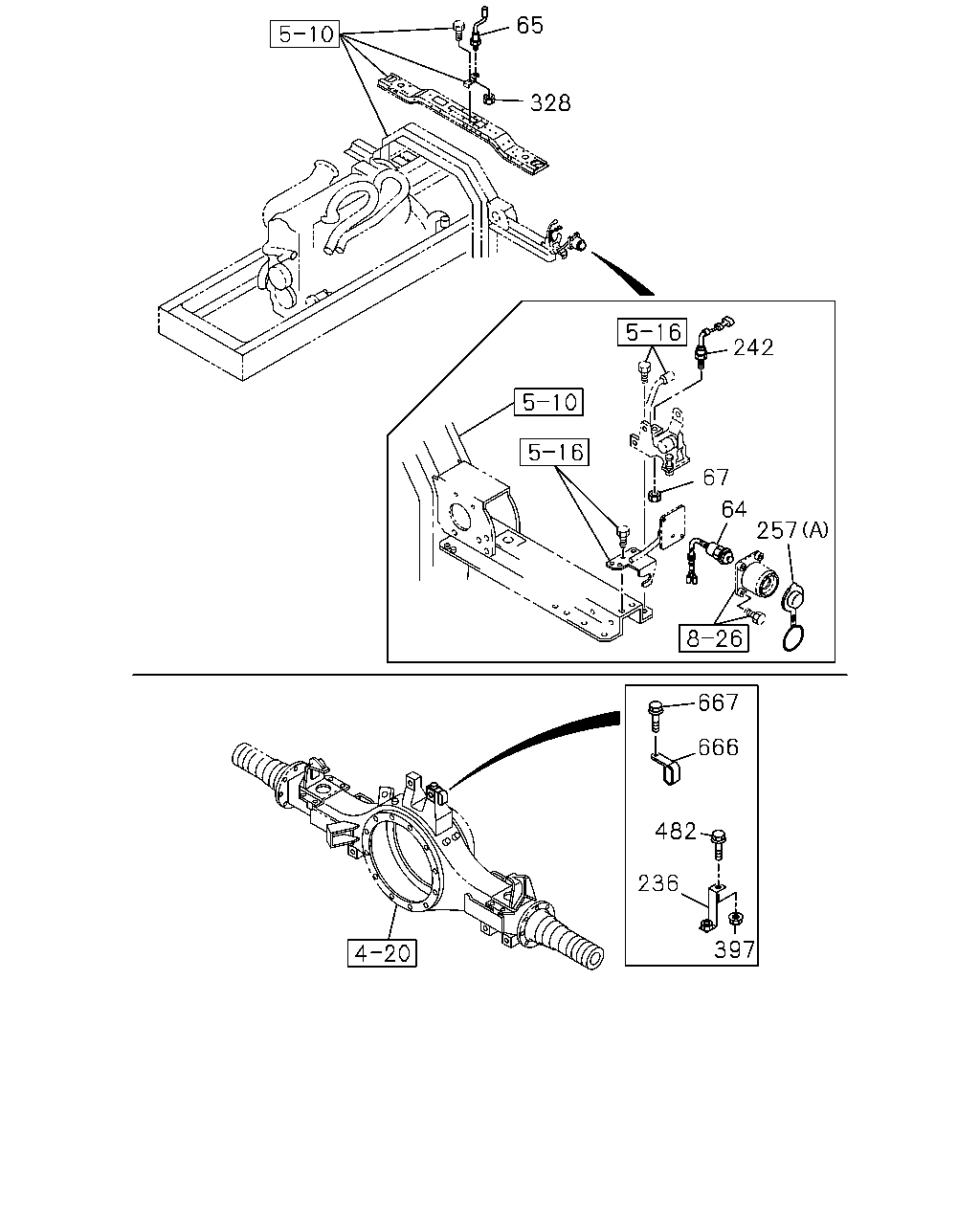

[825A] FRAME SIDE (15 parça)

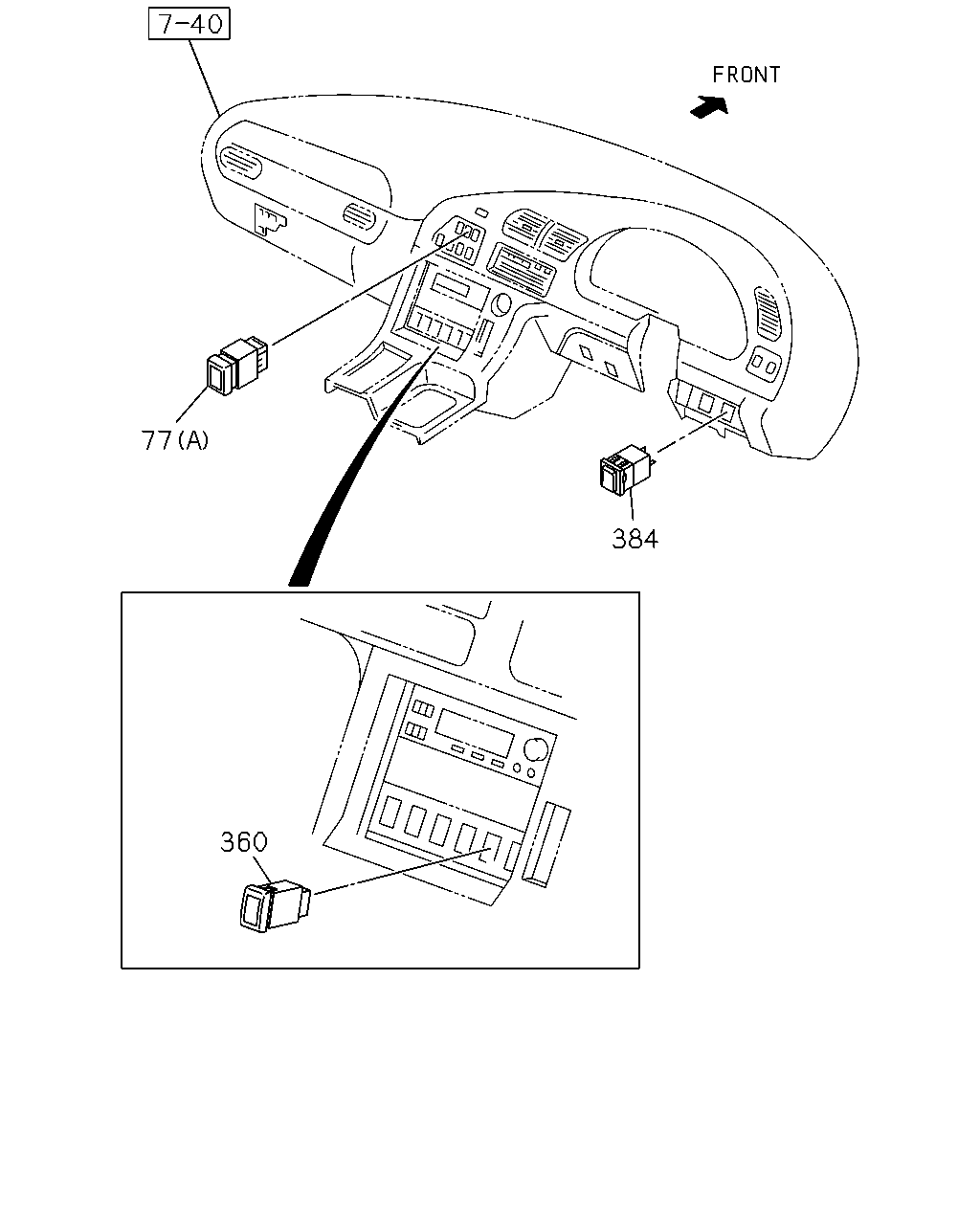

[825A] CAB SIDE NO.2 (6 parça)

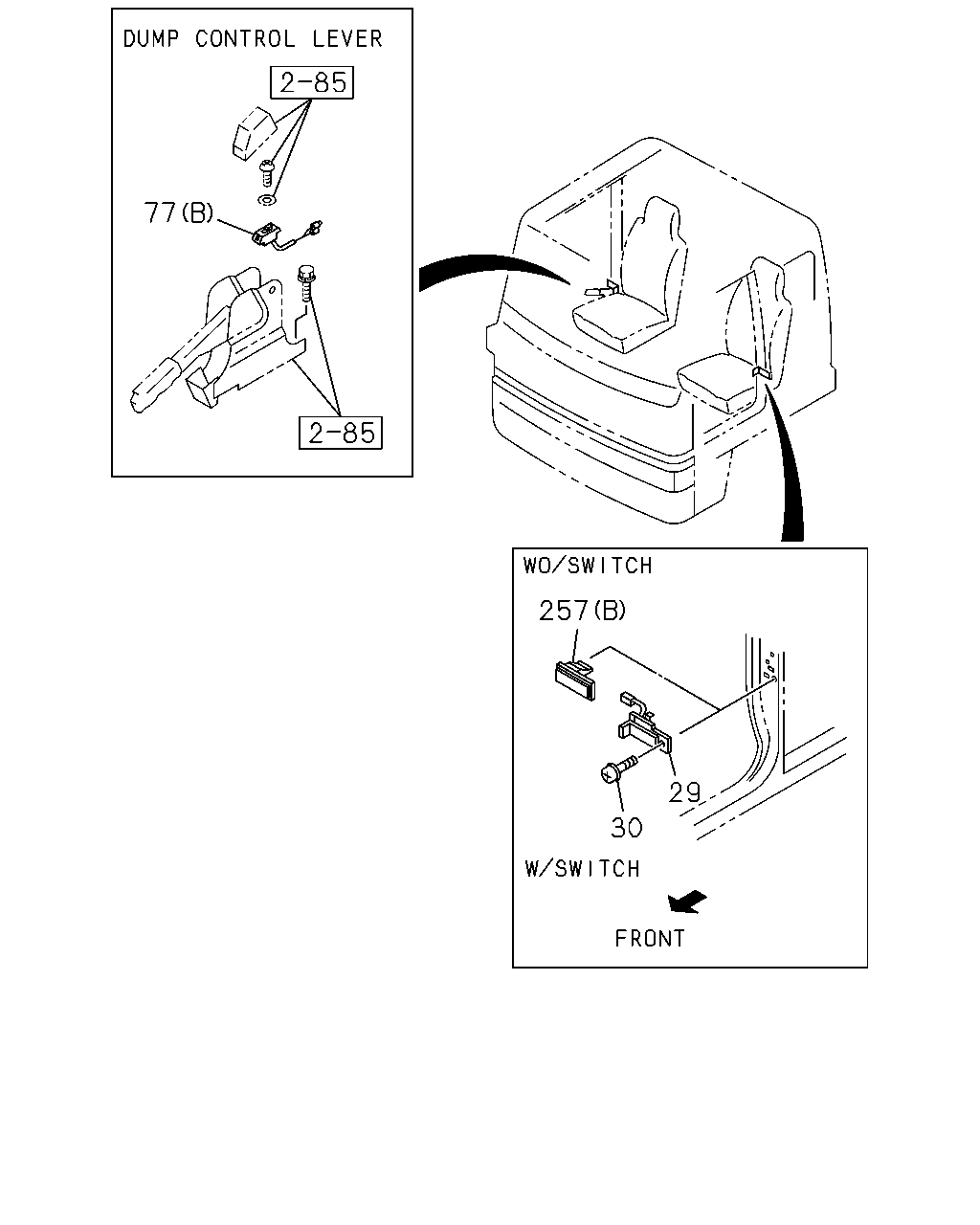

[825A] CAB SIDE NO.3 (9 parça)
▶
10
10
263
257
9
1
99
3
10
257
10
263
8
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-715-0
01
1
0604-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0604-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
8
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> DRIVER
1-82380-166-2
01
1
0604-
9
SWITCH; POWER WINDOW
AUTO DOOR LOCK<AU4> PASSENGER
1-82380-167-1
01
1
0604-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74310-516-0
02
1
0604-0604
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
0604-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0604-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0604-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0604-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0604-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0604-
263
COVER; SW
AUTO DOOR LOCK<AU4> DRIVER
1-82385-005-2
01
1
0604-
263
COVER; SW
AUTO DOOR LOCK<AU4> PASSENGER
1-82385-006-3
01
1
0604-
65
328
242
67
64
257
667
666
482
236
397
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-108-0
01
1
0604-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0604-
67
NUT; SW,CAB TILT
M16 H=18.5
1-09409-013-0
01
1
0604-
236
BRACKET; AXLE HARNESS,RR
WHEEL BASE 5900MM(59W)
1-46147-101-0
01
1
0604-
242
SWITCH
STAMP NO
1-82380-126-0
01
1
0604-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0604-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0604-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0604-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0604-
328
NUT; SW
M16
0-91110-516-0
01
1
0604-
397
NUT; BRKT FIX
WHEEL BASE 5900MM(59W) M8 FLANGE
0-91180-108-0
01
1
0604-
482
BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X35 FLANGE
0-28650-835-0
01
1
0604-1109
482
BOLT; BRKT
WHEEL BASE 5900MM(59W) M8X40 FLANGE
0-28650-840-0
01
1
1110-
666
CLIP; AXLE HARNESS
ID=11X2 L=20
1-09700-871-0
03
1
0604-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0604-
77
384
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-82340-413-0
01
1
0604-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A)
1-82340-413-0
01
1
0604-
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
0604-
360
SWITCH ASM; DIFF LK
1-82340-677-0
01
1
0604-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0604-0706
384
SWITCH; IDLING CONT,ELEC
ENGINE CONTROL COMMON RAIL(Q4R)
1-82350-213-1
01
1
0707-
77
257
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
01
1
0604-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0604-
77
SWITCH; PTO
MIXER TRUCK<RA2> PTO CONTROL OPERATION CAB BACK<TBZ> (A)
1-82340-413-0
01
1
0604-
77
SWITCH; PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP TRUCK<RA1> (A)
1-82340-413-0
01
1
0604-
77
SWITCH; PTO
DUMP CONTROL LEVER<RC4> (B)
1-82380-112-0
01
1
0604-
257
COVER; HOLE,SW
(A)
1-82389-008-0
01
1
0604-
257
COVER; HOLE,SW
(B)
8-94229-914-1
01
1
0604-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-011-2
01
1
0604-
257
COVER; HOLE,SW
EXC. AUTO DOOR LOCK<AU4> (C)
1-82389-012-2
01
1
0604-
