◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#30852) — 356 parça
çizim 89576
16 51 81 104 171 206 212 305 16 104 111 171 369 14 14 16 48 194 212 16 51 142 162 194 208
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(A) L=250 		1-09707-126-0 02 1 0604-
14 CLIP; BAND,HARNESS
(B) L=350 		1-09707-183-0 02 1 0604-
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 0707-1208
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0604-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0604-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0604-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0607-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0604-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0604-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		9-09525-032-0 01 1 0604-0606
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		9-09525-035-0 02 1 0604-0606
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0604-0606
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0604-
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0604-
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0604-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0604-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0604-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0604-0606
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (I) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0604-
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0604-
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0604-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0604-
16 CLIP; HARNESS
(N) ID=31 L=35 		1-09700-329-1 01 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (N) ID=31 L=35 		1-09700-329-1 01 1 0707-
16 CLIP; HARNESS
(AG) ID=28 L=58 		1-09700-400-0 03 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AG) ID=28 L=58 		1-09700-400-0 03 1 0707-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0604-0606
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0607-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0604-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0604-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0604-1002
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0604-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0604-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0604-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0604-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0604-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0604-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0604-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0604-
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0604-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0604-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0604-
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0604-0606
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0604-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0604-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0604-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0604-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0604-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0604-
48 CLIP; FRAME HARNESS
DUMP TRUCK<RA1> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0604-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0604-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0604-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0604-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0604-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0604-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0604-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0604-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0604-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0604-
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0604-0710
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0604-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 02 1 0604-1207
142 CLIP; HARNESS,ENG
L=180 		8-98216-427-0 02 1 1208-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 0604-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0604-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0604-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 01 1 1203-
194 CLIP; BAND
(A) L=180 		1-09707-162-1 01 1 0604-1001
194 CLIP; BAND
(B) L=350 		1-09707-183-0 02 1 0604-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0604-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0604-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0604-
212 CLIP; HORN HARNESS
(D) ID=19 L=32 		1-09701-235-0 01 1 0604-
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 02 1 0604-
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0604-
212 CLIP; HORN HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0604-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0604-
369 CLIP; BAND EDS HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> L=250 		5-09707-030-1 01 1 0707-
çizim 89579
5 224 1 1 1 178 178 178 178 178 178 510 530 292
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 OD=48.1 L=50 		5-09360-835-0 01 1 0604-0704
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 OD=48.1 L=25 		1-09337-052-0 01 1 0705-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0604-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0604-
178 GROMMET; HARNESS
(B) W/SLIT ID=24 OD=30 T=22 		1-09332-104-0 01 1 0604-
178 GROMMET; HARNESS
(D) ID=32 OD=40 T=23 		1-09332-112-0 01 1 0604-
178 GROMMET; HARNESS
(B) WO/SLIT ID=24 OD=30 T=22 		1-09332-126-0 02 1 0604-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0604-0801
178 GROMMET; HARNESS
(F) ID=15 OD=20 T=26 		1-09332-132-0 01 1 0802-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 0604-
178 GROMMET; HARNESS
(C) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0604-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0604-
292 CAP; RUBBER
ENGINE CONTROL COMMON RAIL(Q4R) EURO2 SPECIFICATION<THN> 		1-82691-239-0 02 1 0707-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 0604-0706
510 GROMMET; SCREW
ENGINE CONTROL COMMON RAIL(Q4R) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0707-
530 SEAL; HARNESS
180X40 		1-72498-019-1 04 1 0604-0706
530 SEAL; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) 180X40 		1-72498-019-1 04 1 0707-
530 SEAL; HARNESS
180X40 		1-72498-019-1 08 1 0604-
530 SEAL; HARNESS
100X40 		1-72498-022-1 01 1 0604-
çizim 89614
119 64 524 219 294 340 515 294 515 423
BalonParca AdiParca NoAdetTipApplied Date
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0604-0706
64 SCREW; CLIP
ENGINE CONTROL COMMON RAIL(Q4R) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0707-
119 SCREW; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> M5X14 W/PL WASHER 		8-94447-551-0 02 1 0604-
219 NUT
M8 FLANGE 		0-91180-108-0 14 1 0807-
219 NUT
M8 FLANGE 		0-91180-108-0 15 1 0604-0806
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0807-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0604-0606
219 NUT
EXC. MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 01 1 0604-0606
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0604-0606
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-0806
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0607-0806
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0807-
294 NUT
MAL6 M/T<X9G> (B) M10 FLANGE 		0-91180-210-0 02 1 0604-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0604-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 06 1 0604-0605
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0606-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0604-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0604-
515 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 03 1 0604-
515 NUT; BRKT
(B) M10 FLANGE 		0-91180-110-0 02 1 0604-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0604-

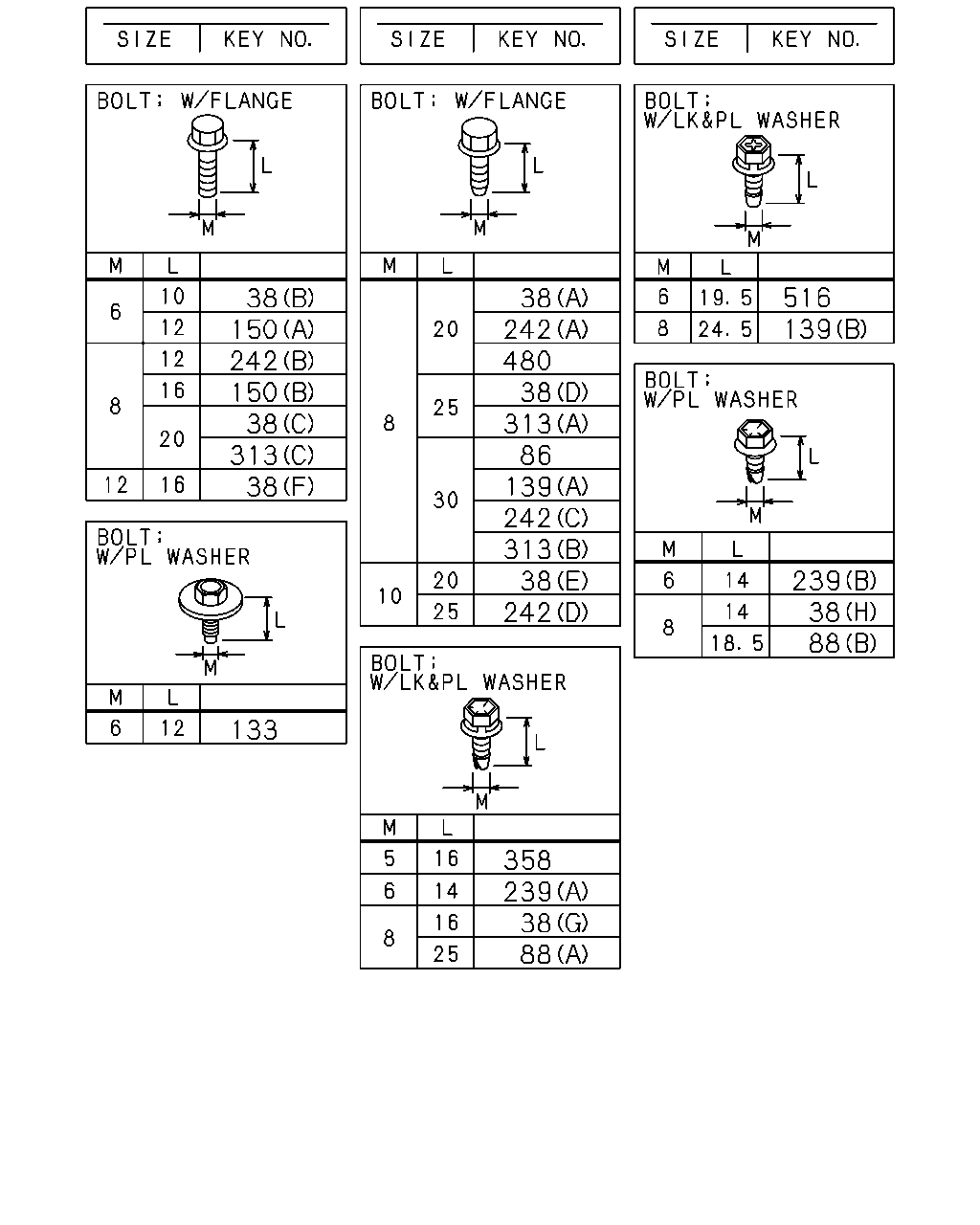

çizim 89728
516 139 38 150 242 150 38 313 38 38 242 480 38 313 86 139 242 313 38 242 239 38 88 133 358 239 38 88
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-0606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-0606
38 BOLT; CLIP,HARNESS
MIXER TRUCK<RA2> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0604-0606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0607-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0807-
38 BOLT; CLIP,HARNESS
MAL6 M/T<X9G> (A) M8X20 FLANGE 		0-28650-820-0 03 1 0604-
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (A) M8X20 FLANGE 		0-28650-820-0 04 1 0604-
38 BOLT; CLIP,HARNESS
(B) M6X10 FLANGE 		0-28050-610-0 01 1 0604-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0604-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0604-0606
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0607-0806
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0807-
38 BOLT; CLIP,HARNESS
(D) M8X25 FLANGE 		0-28650-825-0 02 1 0604-
38 BOLT; CLIP,HARNESS
(E) M10X20 FLANGE 		0-28751-020-0 01 1 0604-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0604-1105
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0604-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0604-
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0604-1007
88 BOLT; DOOR HARNESS EARTH
AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0604-1007
88 BOLT; DOOR HARNESS EARTH
EXC. AUTO DOOR LOCK<AU4> (B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0604-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 08 1 0604-0605
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 06 1 0606-
139 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0604-0904
139 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
150 BOLT; CLIP
EURO2 SPECIFICATION<THN> (B) M8X16 FLANGE 		0-28050-816-0 01 1 0707-
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0604-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0604-1208
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1209-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0604-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28050-812-0 01 1 0604-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0604-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0604-
242 BOLT; BRKT,HARNESS
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0604-
242 BOLT; BRKT,HARNESS
EXC. MIXER TRUCK<RA2> (C) M8X30 FLANGE 		0-28650-830-0 01 1 0604-0606
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 04 1 0604-
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 01 1 0604-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0604-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0604-
313 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0604-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0604-
480 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0604-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0604-

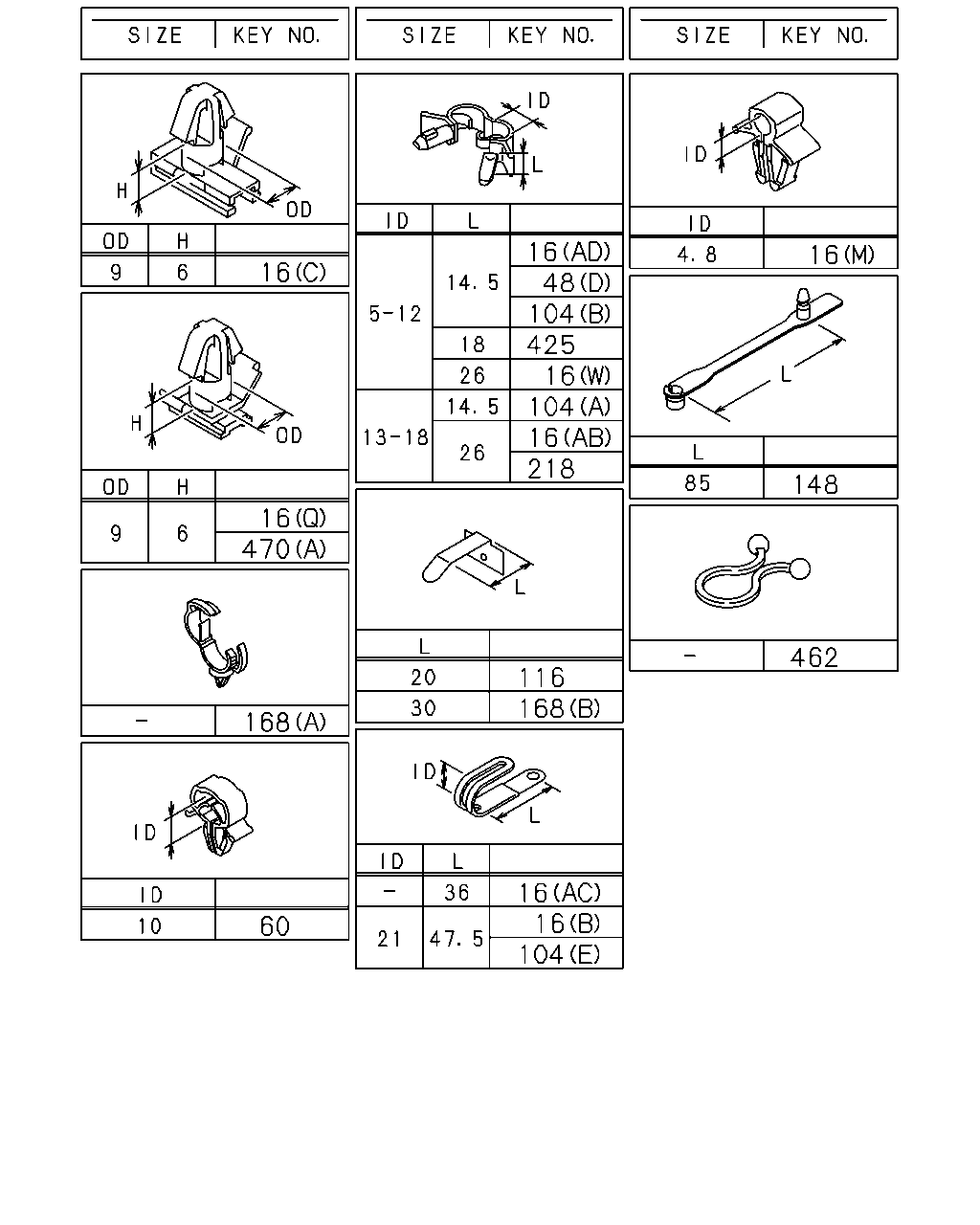

çizim 90028
16 48 104 425 16 104 16 218 16 16 148 16 470 462 116 168 168 16 16 104 60
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 0707-1208
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0604-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0604-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0604-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0607-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0604-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0604-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		9-09525-032-0 01 1 0604-0606
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		9-09525-035-0 02 1 0604-0606
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0604-0606
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0604-
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0604-
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0604-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0604-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0604-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0604-0606
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (I) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0604-
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0604-
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0604-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0604-
16 CLIP; HARNESS
(N) ID=31 L=35 		1-09700-329-1 01 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (N) ID=31 L=35 		1-09700-329-1 01 1 0707-
16 CLIP; HARNESS
(AG) ID=28 L=58 		1-09700-400-0 03 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AG) ID=28 L=58 		1-09700-400-0 03 1 0707-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0604-0606
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0607-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0604-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0604-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0604-1002
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0604-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0604-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0604-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0604-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0604-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0604-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0604-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0604-
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0604-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0604-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0604-
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0604-0606
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0604-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0604-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0604-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0604-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0604-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0604-
48 CLIP; FRAME HARNESS
DUMP TRUCK<RA1> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0604-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0604-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0604-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0604-
104 CLIP; HEADLAMP HARNESS
(A) ID=13-18 L=14.5 		1-09709-290-0 06 1 0604-
104 CLIP; HEADLAMP HARNESS
(B) ID=5-12 L=14.5 		1-09987-221-0 04 1 0604-
104 CLIP; HEADLAMP HARNESS
(C) L=250 		5-09707-030-1 02 1 0604-
104 CLIP; HEADLAMP HARNESS
(D) L=140 		5-09707-031-1 06 1 0604-
104 CLIP; HEADLAMP HARNESS
(E) ID=21 L=47.5 		8-94178-108-0 02 1 0604-0710
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0604-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 01 1 0604-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0604-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0604-
218 CLIP; BAND,RR COMB
WHEEL BASE 5300MM(53W) DUMP TRUCK<RA1> ID=13-18 L=26 		1-09709-293-0 08 1 0604-
218 CLIP; BAND,RR COMB
WHEEL BASE 5900MM(59W) ID=13-18 L=26 		1-09709-293-0 06 1 0604-
425 CLIP; MODULATOR
ID=5-12 L=18 		1-09709-287-0 01 1 0604-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0604-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0604-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0604-
çizim 90052
312 312 312 312 312 312 312
BalonParca AdiParca NoAdetTipApplied Date
312 BRACKET; CLIP HARNESS
MAL6 M/T<X9G> (G) 		1-47476-932-0 01 1 0607-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-479-0 01 1 0604-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-284-0 01 1 0604-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-285-0 01 1 0604-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-440-0 01 1 0604-0706
312 BRACKET; CLIP HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (D) 		1-82698-440-0 01 1 0707-
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0604-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-82698-443-0 01 1 0604-
çizim 90054
53 53 53 53 59 211 211 312 334 334 335 342 342 375
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
(A) 		1-47479-537-0 08 1 0604-
53 BRACKET; HARNESS
(B) 		1-82698-382-0 01 1 0604-0806
53 BRACKET; HARNESS
(D) 		8-98124-778-0 01 1 0807-
53 BRACKET; HARNESS
(C) 		1-82698-469-0 01 1 0604-
59 BRACKET; FRAME HARNESS 1-82698-531-0 01 1 0604-
211 BRACKET; AXLE HARNESS
(A) 		1-82698-588-0 02 1 0604-0605
211 BRACKET; AXLE HARNESS
(B) L=95 		1-82699-085-0 02 1 0604-
312 BRACKET; CLIP HARNESS
MAL6 M/T<X9G> (G) 		1-47476-932-0 01 1 0607-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-479-0 01 1 0604-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-284-0 01 1 0604-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-285-0 01 1 0604-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-440-0 01 1 0604-0706
312 BRACKET; CLIP HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (D) 		1-82698-440-0 01 1 0707-
312 BRACKET; CLIP HARNESS
(E) L=195.5 		1-82698-502-0 01 1 0604-
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-82698-443-0 01 1 0604-
334 BRACKET
(B) 		1-53458-362-0 01 1 0604-
334 BRACKET
(A) 		1-53458-709-1 01 1 0604-
335 BRACKET; CONNECTOR
MAL6 M/T<X9G> 		1-82699-425-0 01 1 0604-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0604-
342 BRACKET; HARNESS CAB MTG
EXC. MIXER TRUCK<RA2> (B) 		1-47479-974-0 01 1 0604-0606
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0604-

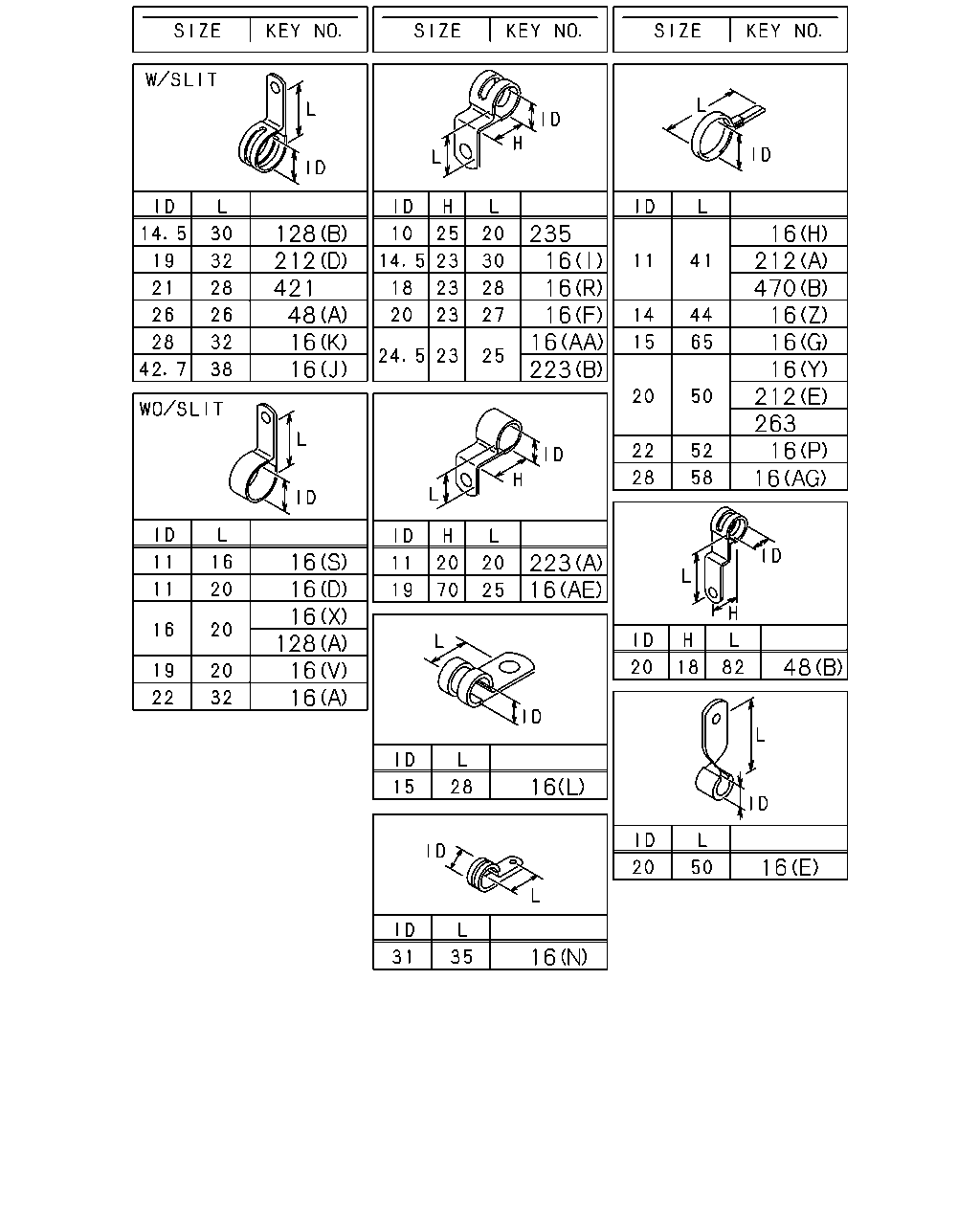

çizim 106141
128 212 421 48 16 16 235 16 16 16 16 223 16 212 470 16 16 16 212 263 16 16 16 16 16 128 16 16 223 16 48 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 0707-1208
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (AB) ID=13-18 L=26 		1-09709-293-0 03 1 0604-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0604-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0604-0606
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0607-
16 CLIP; HARNESS
(B) ID=21 L=47.5 		8-94178-108-0 02 1 0604-
16 CLIP; HARNESS
(AE) ID=19 H=70 L=25 		8-97360-209-0 01 1 0604-
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		9-09525-032-0 01 1 0604-0606
16 CLIP; HARNESS
(D) B=14 ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		9-09525-035-0 02 1 0604-0606
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 02 1 0607-1208
16 CLIP; HARNESS
EURO2 SPECIFICATION<THN> (D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(D) B=18 ID=11 L=20 		0-95235-035-0 01 1 1209-
16 CLIP; HARNESS
(V) ID=19 L=20 		9-09525-832-0 01 1 0604-0606
16 CLIP; HARNESS
(V) ID=19 L=20 		0-95235-832-0 01 1 0607-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER(SH5) (U) L=250 		5-09707-030-1 01 1 0604-
16 CLIP; HARNESS
MAL6 M/T<X9G> (R) ID=18 H=23 L=28 		1-09701-070-0 02 1 0604-
16 CLIP; HARNESS
MAL6 M/T<X9G> (AC) L=36 		8-94224-891-1 02 1 0604-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 02 1 0604-
16 CLIP; HARNESS
(AF) L=140 		5-09707-031-1 01 1 0604-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0604-0606
16 CLIP; HARNESS
(X) ID=16 L=20 		0-95235-535-0 01 1 0607-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (I) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0604-
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (G) ID=15 L=65 		1-09700-466-0 01 1 0604-
16 CLIP; HARNESS
WHEEL BASE 5900MM(59W) (W) ID=5-12 L=26 		1-09709-289-0 02 1 0604-
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0604-
16 CLIP; HARNESS
(N) ID=31 L=35 		1-09700-329-1 01 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (N) ID=31 L=35 		1-09700-329-1 01 1 0707-
16 CLIP; HARNESS
(AG) ID=28 L=58 		1-09700-400-0 03 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AG) ID=28 L=58 		1-09700-400-0 03 1 0707-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 05 1 0604-0606
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0607-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0604-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0604-
16 CLIP; HARNESS
(AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0604-0706
16 CLIP; HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) (AA) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0707-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0604-1002
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0604-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0604-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0604-
16 CLIP; HARNESS
(J) ID=42.7 L=38 		1-09701-313-0 01 1 0604-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 02 1 0604-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0604-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 07 1 0604-
16 CLIP; HARNESS
(W) ID=5-12 L=26 		1-09709-289-0 01 1 0604-
16 CLIP; HARNESS
(AD) ID=5-12 L=14.5 		1-09987-221-0 01 1 0604-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 05 1 0604-
16 CLIP; HARNESS
(C) OD=9 H=6 		8-97368-793-0 01 1 0604-
16 CLIP; HARNESS
(S) ID=11 L=16 		9-09525-025-0 02 1 0604-0606
16 CLIP; HARNESS
(S) ID=11 L=16 		0-95235-025-0 02 1 0607-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 06 1 0604-
16 CLIP; HARNESS
(Y) ID=20 L=50 		9-09917-430-0 12 1 0604-
16 CLIP; HARNESS
(P) ID=22 L=52 		9-09917-431-0 03 1 0604-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0604-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0604-
48 CLIP; FRAME HARNESS
(C) L=350 		1-09707-183-0 08 1 0604-
48 CLIP; FRAME HARNESS
DUMP TRUCK<RA1> (D) ID=5-12 L=14.5 		1-09987-221-0 01 1 0604-
48 CLIP; FRAME HARNESS
(A) ID=26 L=26 		1-09701-236-0 01 1 0604-
48 CLIP; FRAME HARNESS
(B) ID=20 H=18 L=82 		1-09701-288-0 01 1 0604-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0604-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0604-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0604-
212 CLIP; HORN HARNESS
(D) ID=19 L=32 		1-09701-235-0 01 1 0604-
212 CLIP; HORN HARNESS
(B) L=350 		1-09707-183-0 02 1 0604-
212 CLIP; HORN HARNESS
(C) L=140 		5-09707-031-1 01 1 0604-
212 CLIP; HORN HARNESS
(E) ID=20 L=50 		9-09917-430-0 02 1 0604-
223 CLIP; AIR TANK HARNESS
(B) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0604-
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		5-09700-351-0 04 1 0604-0707
223 CLIP; AIR TANK HARNESS
(A) ID=11 H=20 L=20 		8-98033-780-0 04 1 0708-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=10 H=25 L=20 		1-09700-519-0 01 1 0604-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0604-
421 CLIP; FLOOR HARNESS
ID=21 L=28 		1-09700-673-1 02 1 0604-0706
421 CLIP; FLOOR HARNESS
ENGINE CONTROL COMMON RAIL(Q4R) ID=21 L=28 		1-09700-673-1 02 1 0707-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0604-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
