Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11022 - CYZ RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#30848) — 114 parça
◀
[801A] COMPONENT;HEADLAMP (23 parça)
[801A] FOG,FLASHER AND SIDE TURN LAMP (47 parça)
[801A] FIXING (32 parça)
[801A] MARKER LAMP AND LAMP COVER (12 parça)
▶
1
12
340
14
4
13
23
202
5
202
18
13
211
307
338
339
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
1-82110-372-2
01
1
0604-0711
1
LAMP ASM; HEAD
8-98097-194-0
01
1
0712-
1
LAMP ASM; HEAD
1-82110-373-2
01
1
0604-0711
1
LAMP ASM; HEAD
8-98097-195-0
01
1
0712-
4
HEADLAMP UNIT
1-82119-171-0
01
1
0604-
4
HEADLAMP UNIT
1-82119-172-0
01
1
0604-
5
BULB; HEADLAMP
24V 75/70W
8-94405-657-0
02
1
0604-
12
HARNESS; HEADLAMP
1-82118-014-0
02
1
0604-
13
CLIP; HEADLAMP
(A)
1-82119-084-0
02
1
0604-
13
CLIP; HEADLAMP
(B)
8-94381-588-0
14
1
0604-
14
CAP; BULB,LAMP
1-86830-148-0
02
1
0604-
18
SCREW; GEAR CASE
M4X16 TAPPING
1-82119-067-0
08
1
0604-
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
0604-
202
GEAR UNIT; HEADLAMP
1-86830-139-0
04
1
0604-
211
TUBE; HEADLAMP
(B)
1-86830-330-0
01
1
0604-0711
211
TUBE; HEADLAMP
(B)
8-98101-137-0
01
1
0712-
211
TUBE; HEADLAMP
(B)
1-86830-331-0
01
1
0604-0711
211
TUBE; HEADLAMP
(B)
8-98101-138-0
01
1
0712-
211
TUBE; HEADLAMP
(A)
8-97025-128-0
02
1
0604-0906
307
SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING
1-82119-067-0
02
1
0604-
338
LEVELING; HEADLAMP
1-86830-138-0
02
1
0604-
339
GASKET; LEVELING
1-86830-158-0
02
1
0604-
340
BULB; POSITION
24V 5W
1-82194-042-0
02
1
0604-
327
91
321
344
133
104
32
211
378
43
43
378
15
49
47
44
36
378
174
127
124
399
324
448

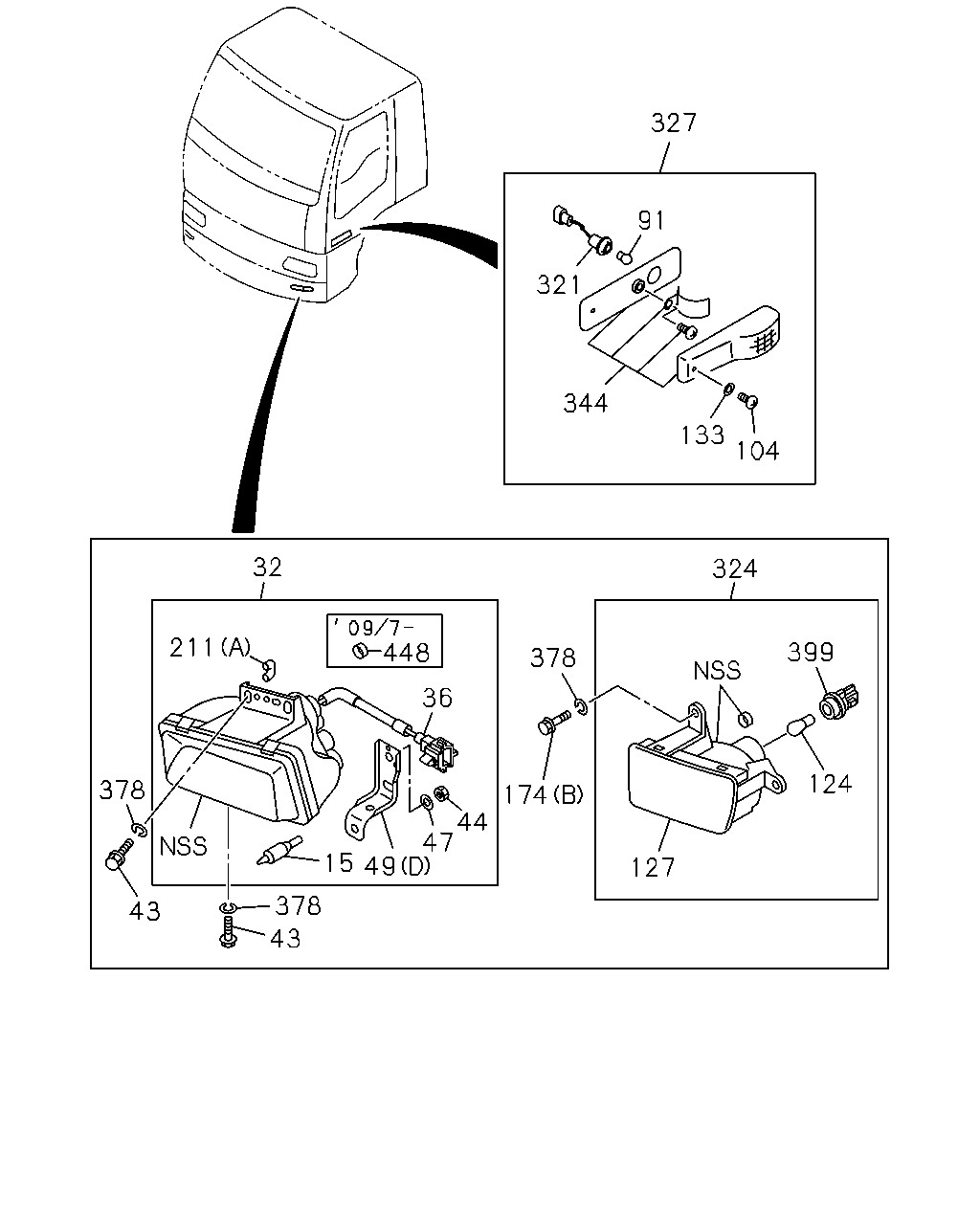

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BULB; FOG LAMP
24V 70W
1-82194-106-0
02
1
0604-
32
LAMP ASM; FOG
1-82110-453-0
01
1
0604-0712
32
LAMP ASM; FOG
1-82110-475-0
01
1
0801-0906
32
LAMP ASM; FOG
8-98149-149-1
01
1
0907-1301
32
LAMP ASM; FOG
8-98232-064-1
01
1
1302-
32
LAMP ASM; FOG
1-82110-454-0
01
1
0604-0712
32
LAMP ASM; FOG
1-82110-476-0
01
1
0801-0906
32
LAMP ASM; FOG
8-98149-150-1
01
1
0907-1301
32
LAMP ASM; FOG
8-98232-065-1
01
1
1302-
36
CORD; FOG LAMP
1-82118-015-0
01
1
0604-
36
CORD; FOG LAMP
1-82118-016-0
01
1
0604-
43
BOLT; FOG LAMP
M6X20 FLANGE
0-28650-620-0
06
1
0604-
44
NUT; FOG LAMP
M6
8-98217-430-0
02
1
1205-
47
WASHER; PL,FOG LAMP
8-98217-429-0
02
1
1205-
49
BRACKET; LAMP
(D)
8-98051-437-0
01
1
0604-
49
BRACKET; LAMP
(D)
8-98051-438-0
01
1
0604-
49
BRACKET; LAMP
(A)
1-82117-100-0
02
1
0604-
49
BRACKET; LAMP
(B)
1-82117-101-1
01
1
0604-
49
BRACKET; LAMP
(B)
1-82117-102-1
01
1
0604-
49
BRACKET; LAMP
(C)
1-82117-176-0
01
1
0604-
49
BRACKET; LAMP
(C)
1-82117-177-0
01
1
0604-
91
BULB; SIDE TURN SIGNAL
24V 21W
1-82194-036-0
02
1
0604-
104
SCREW; SIDE TURN SIGNAL
1-86830-149-0
02
1
0604-
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-105-0
02
1
0604-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-073-0
01
1
0604-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-074-0
01
1
0604-
133
WASHER; PL,SIDE FLASHER LAMP
1-86830-150-0
02
1
0604-
174
BOLT
(B) M6X20 FLANGE
0-28650-620-0
04
1
0604-
174
BOLT
(A) M6X28 W/LK&PL WASHER
1-09980-543-0
04
1
0604-
211
TUBE; HEADLAMP
(B)
1-86830-330-0
01
1
0604-0711
211
TUBE; HEADLAMP
(B)
8-98101-137-0
01
1
0712-
211
TUBE; HEADLAMP
(B)
1-86830-331-0
01
1
0604-0711
211
TUBE; HEADLAMP
(B)
8-98101-138-0
01
1
0712-
211
TUBE; HEADLAMP
(A)
8-97025-128-0
02
1
0604-0906
321
HARNESS; SIDE FLASHER LAMP
1-82218-002-0
02
1
0604-
324
LAMP; FRT FLASHER
1-82210-259-1
01
1
0604-
324
LAMP; FRT FLASHER
1-82210-260-1
01
1
0604-
327
LAMP ASM; SIDE TURN SIGNAL
1-82210-227-2
01
1
0604-
327
LAMP ASM; SIDE TURN SIGNAL
1-82210-228-2
01
1
0604-
344
LAMP UNIT; SIDE TURN SIGNAL
1-82213-020-0
01
1
0604-
344
LAMP UNIT; SIDE TURN SIGNAL
1-82213-021-0
01
1
0604-
378
WASHER; PL
ID=6.4 OD=14
9-09160-606-0
04
1
0604-0605
378
WASHER; PL
ID=6.4
0-91610-606-0
04
1
0606-
378
WASHER; PL
ID=6.4 OD=14
9-09160-606-0
06
1
0604-0605
378
WASHER; PL
ID=6.4
0-91610-606-0
06
1
0606-
399
SOCKET; TURN SIGNAL
1-82219-038-0
02
1
0604-
448
CAP ASM; LAMP
8-97378-874-0
02
1
0907-
206
19
28
28
206
1
49
30
266
273
422
49
273
172
30
28
140
49
273
175
162
1
175
16
175
28
162
175

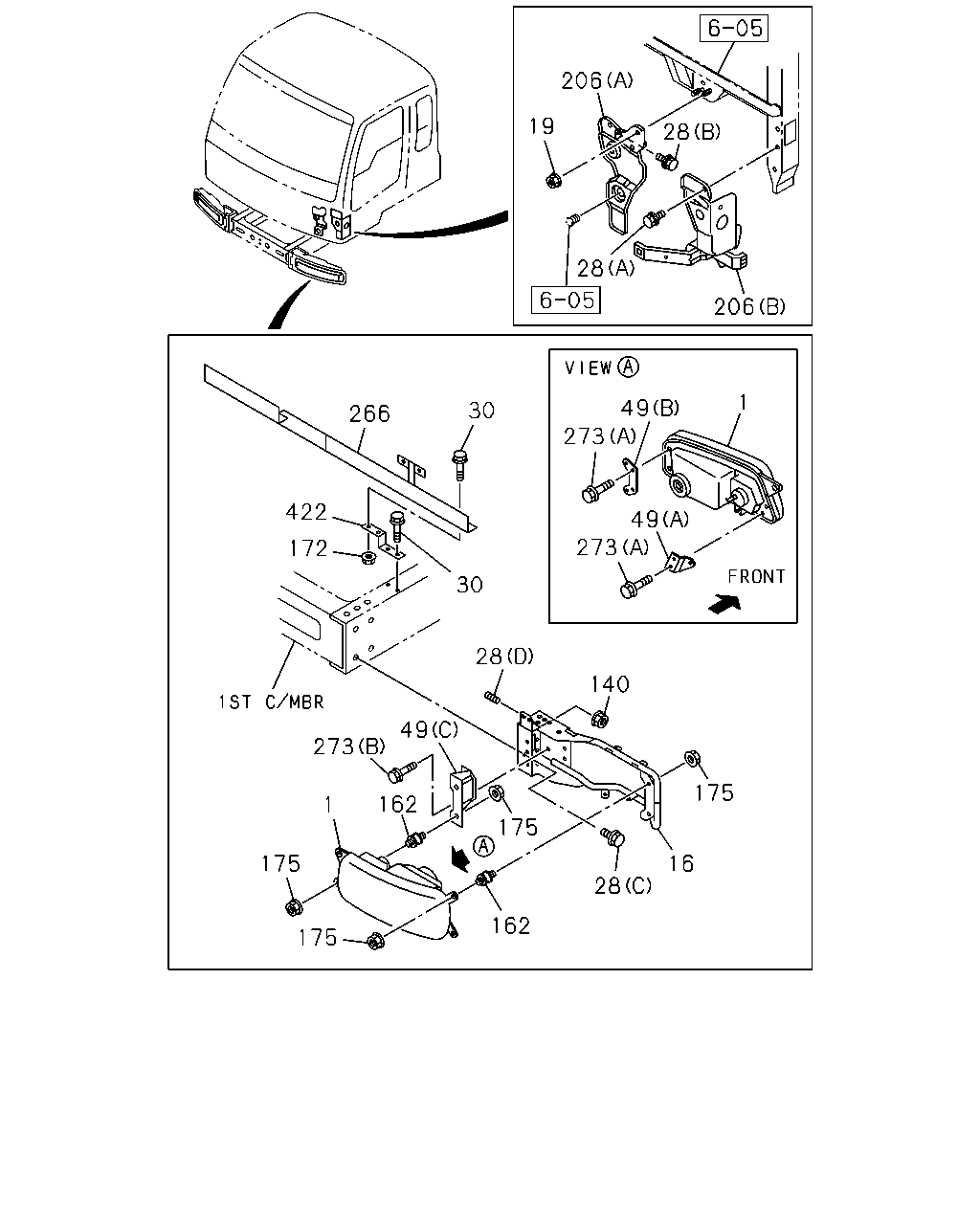

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
1-82110-372-2
01
1
0604-0711
1
LAMP ASM; HEAD
8-98097-194-0
01
1
0712-
1
LAMP ASM; HEAD
1-82110-373-2
01
1
0604-0711
1
LAMP ASM; HEAD
8-98097-195-0
01
1
0712-
16
BRACKET; HEADLAMP
8-97608-505-1
01
1
0604-
16
BRACKET; HEADLAMP
8-97608-506-2
01
1
0604-
19
NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
0604-
28
BOLT; HEADLAMP
(C) M10X30 FLANGE
0-28651-030-0
06
1
0604-
28
BOLT; HEADLAMP
(D) M10X28,M10X15 L=50
5-09300-050-0
02
1
0604-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
0604-
28
BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0604-
30
BOLT; STAY
M8X25 FLANGE
0-28650-825-0
02
1
0604-
30
BOLT; STAY
M10X25 FLANGE
0-28651-025-0
04
1
0604-
49
BRACKET; LAMP
(D)
8-98051-437-0
01
1
0604-
49
BRACKET; LAMP
(D)
8-98051-438-0
01
1
0604-
49
BRACKET; LAMP
(A)
1-82117-100-0
02
1
0604-
49
BRACKET; LAMP
(B)
1-82117-101-1
01
1
0604-
49
BRACKET; LAMP
(B)
1-82117-102-1
01
1
0604-
49
BRACKET; LAMP
(C)
1-82117-176-0
01
1
0604-
49
BRACKET; LAMP
(C)
1-82117-177-0
01
1
0604-
140
NUT
M10 FLANGE
0-91180-210-0
02
1
0604-
162
RUBBER; CUSHION UPR
1-82117-086-0
08
1
0604-
172
NUT; STAY
M8 FLANGE
0-91180-108-0
02
1
0604-
175
NUT; BRKT CUSHION RUBBER
M8 FLANGE
0-91180-108-0
16
1
0604-
206
HOLDER; HEADLAMP
(A)
1-65671-569-5
01
1
0604-
206
HOLDER; HEADLAMP
(A)
1-65671-570-6
01
1
0604-
206
HOLDER; HEADLAMP
(B)
1-65671-761-3
01
1
0604-
206
HOLDER; HEADLAMP
(B)
1-65671-762-3
01
1
0604-
266
STAY; BRKT,HEADLAMP
1-82117-182-0
01
1
0604-
273
BOLT; BRKT
(B) M8X20 FLANGE
0-28050-820-0
04
1
0604-
273
BOLT; BRKT
(A) M6X16 FLANGE
0-28650-616-0
08
1
0604-
422
BRACKET; HEADLAMP STAY
1-82698-605-0
02
1
0604-
256
82
328
81
174
83
80
185
325
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
80
BULB; MARKER LAMP
24V 5W
8-94135-397-0
02
1
0604-
81
SEAT; SCREW
1-82219-012-0
04
1
0604-
82
SCREW; MARKER LAMP
1-82219-011-0
04
1
0604-
83
LENS; MARKER LAMP
1-82215-046-0
02
1
0604-
84
GASKET; MARKER LAMP
1-86830-288-0
02
1
0604-
174
BOLT
(B) M6X20 FLANGE
0-28650-620-0
04
1
0604-
174
BOLT
(A) M6X28 W/LK&PL WASHER
1-09980-543-0
04
1
0604-
185
GROMMET; SCREW
M5 SCREW GROMMET
1-09983-131-0
12
1
0604-
256
LAMP; MARKER
1-86830-242-3
02
1
0604-
325
SCREW; SPD INDICATOR LAMP
M5X14 TAPPING
9-07066-514-0
12
1
0604-0604
325
SCREW; SPD INDICATOR LAMP
M5X14 TAPPING
0-71040-514-0
12
1
0604-
328
COVER; LAMP
1-76217-122-1
03
1
0604-
