◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#30846) — 12 parça

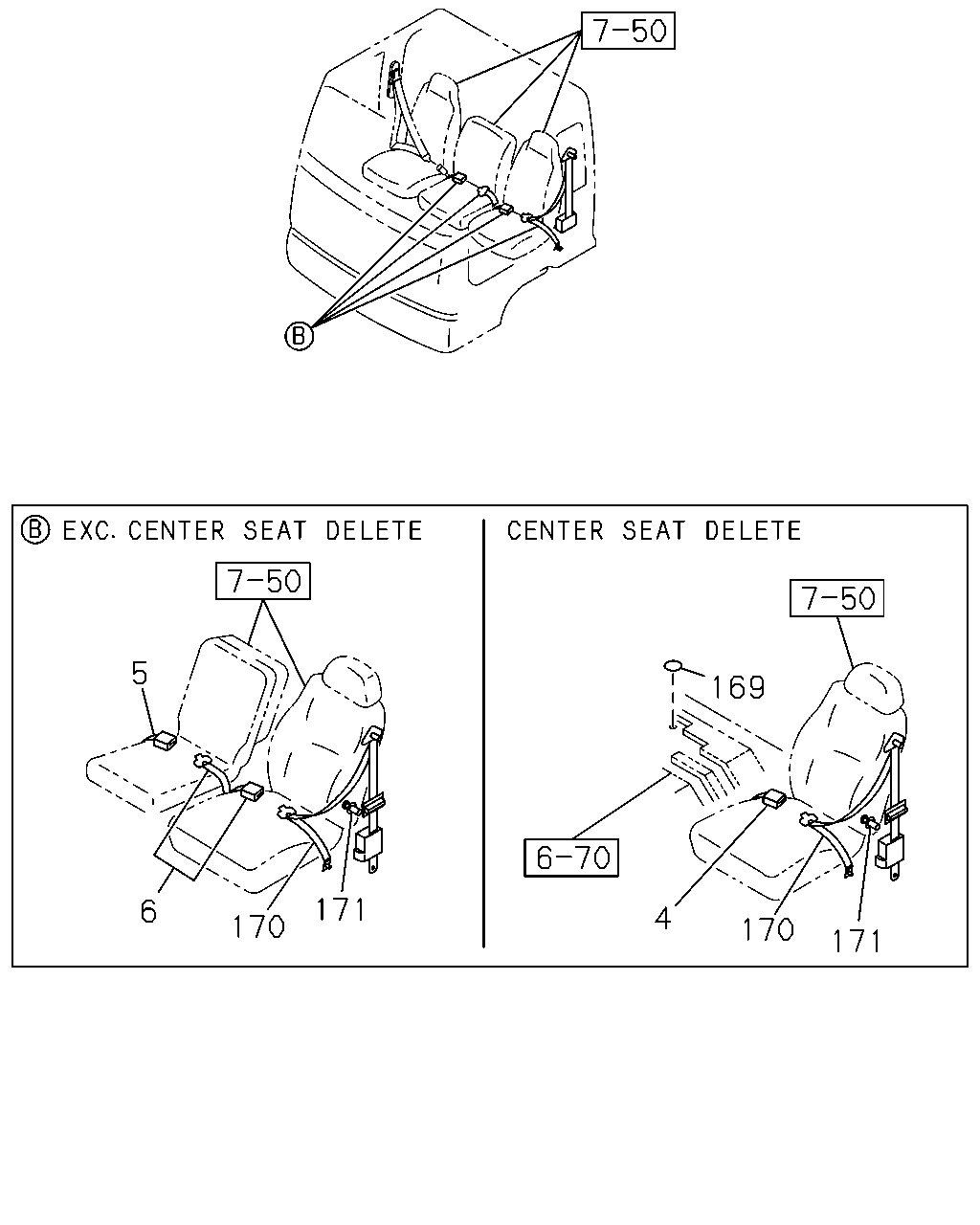

çizim 89636
5 169 171 6 4 170 170 171
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0604-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0604-0808
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) 		1-75617-553-1 01 1 0809-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 0604-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0604-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-588-3 01 1 0604-0805
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98120-820-1 01 1 0806-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0604-
çizim 105905
2 171 3
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 1-75616-096-2 01 1 0604-0805
2 BELT; SEAT,TONGUE SIDE 8-98120-814-1 01 1 0806-
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0604-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0604-
