◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#30845) — 129 parça

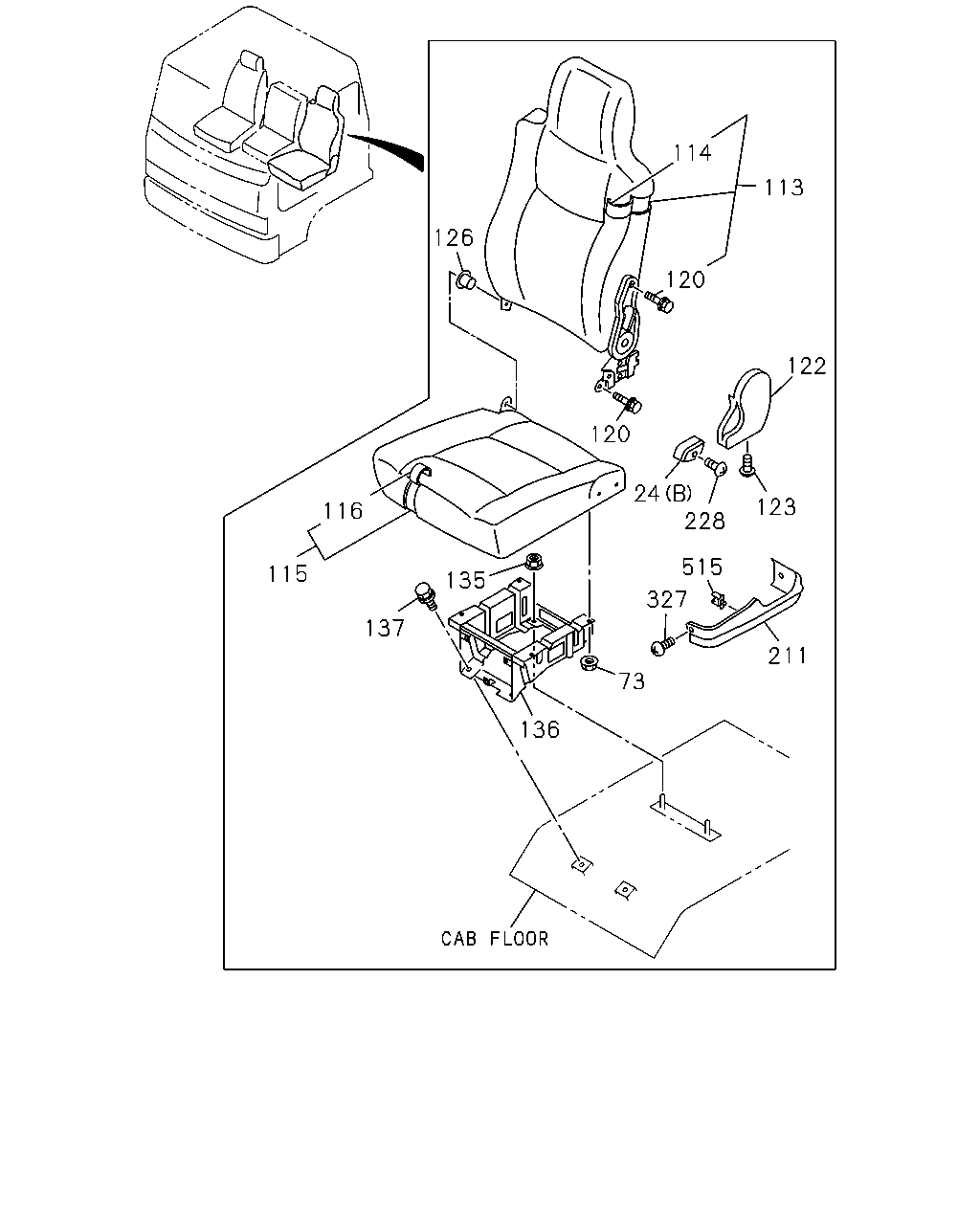

çizim 89605
114 113 126 120 122 120 24 228 123 116 515 115 135 327 137 211 73 136
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0604-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0604-0710
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0604-
113 BACK ASM; SEAT 1-75207-652-2 01 1 0604-
114 COVER; TRIM,PASSENGER SEAT,BACK 1-75127-171-1 01 1 0604-
115 CUSHION ASM; PASSENGER SEAT 1-75207-300-0 01 1 0604-
116 COVER; TRIM,PASSENGER SEAT,CUSHION 1-75127-124-0 01 1 0604-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0604-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0604-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0604-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0604-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0604-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0604-1305
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0604-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
211 COVER; FRT SEAT 1-72538-274-0 01 1 0604-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0604-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0604-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-
327 CLIP; COVER 1-09987-273-0 02 1 0604-
327 CLIP; COVER 1-09987-273-0 02 1 0604-
515 CLIP; PIPE
BLACK 		8-94227-248-1 01 1 0604-
çizim 89630
1 101 24 228 2 18 17 19 13 99 12 336 74 327 306 55 46 42 306
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT 1-75207-646-2 01 1 0604-0901
1 BACK ASM; SEAT 8-98135-635-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK 1-75127-165-1 01 1 0604-
12 CUSHION; SEAT,FRT 1-75207-603-2 01 1 0604-
13 COVER; TRIM,FRT SEAT,CUSHION 1-75127-102-1 01 1 0604-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0604-
18 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0604-
19 SCREW; COVER
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0604-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0604-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0604-0710
24 KNOB; RECLINING,FRT,SEAT
(A) 		1-75418-066-0 01 1 0711-
42 STAND; DRIVER SEAT 1-75558-604-2 01 1 0604-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0604-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0604-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0604-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0604-
101 LEVER ASM; LUMBAR 5-75190-138-0 01 1 0902-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0604-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0604-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0604-
327 CLIP; COVER 1-09987-273-0 02 1 0604-
327 CLIP; COVER 1-09987-273-0 02 1 0604-
336 COVER; DRIVER SEAT 1-75518-303-0 01 1 0604-
çizim 89632
506 360 175 176 16 188 189 359 188 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0604-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75026-856-3 01 1 0604-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE(SP9) 		1-75116-710-1 01 1 0604-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE(SP9) 		1-75116-696-1 01 1 0604-
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-75026-845-4 01 1 0604-
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0604-
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0604-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0604-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0604-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0604-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0604-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		1-75538-207-0 04 1 0604-0703
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0604-1006
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007-

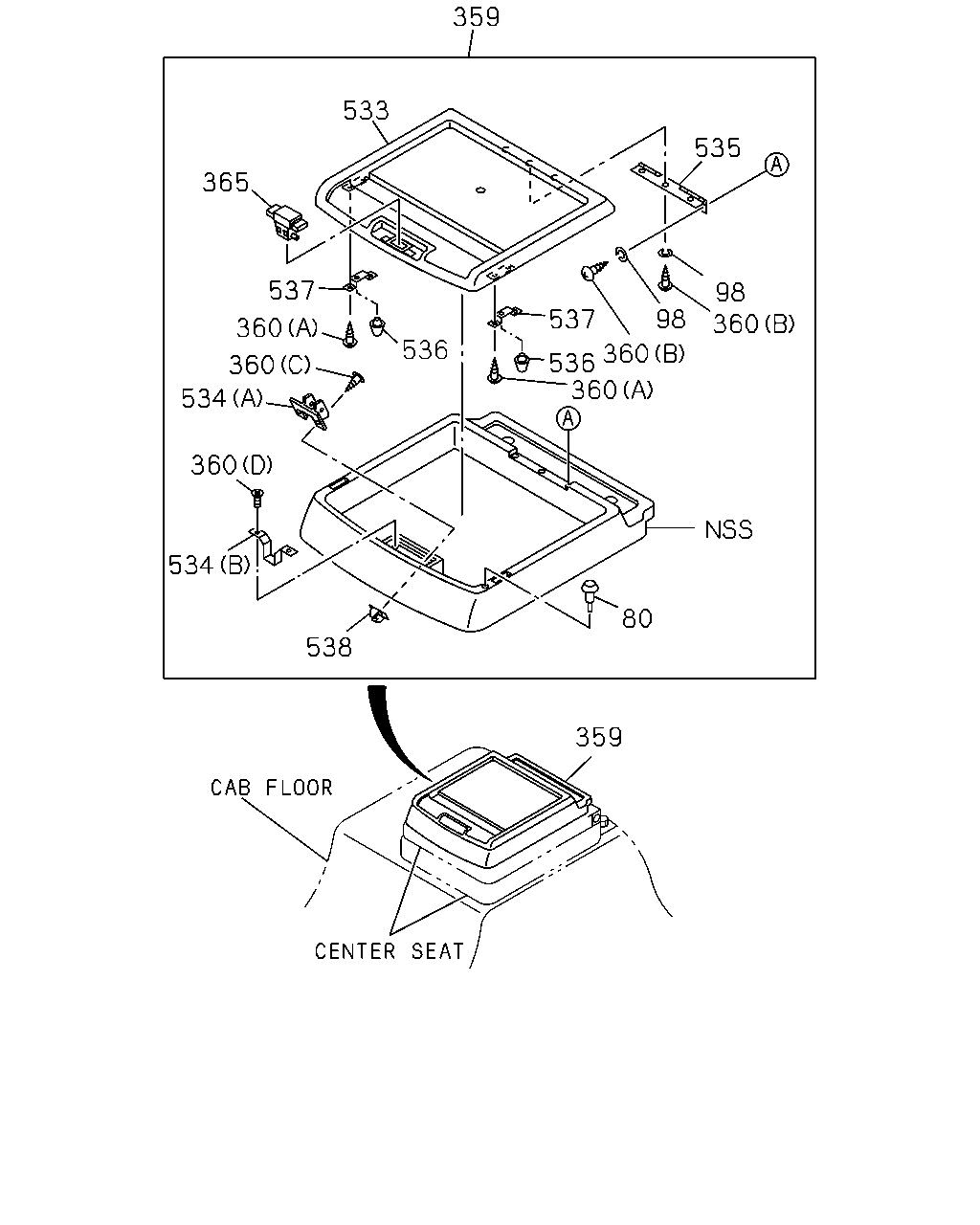

çizim 89637
359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1007-
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0604-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0604-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0604-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0604-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0604-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0604-
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0604-1006
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0604-1006
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0604-
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0604-1006
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0604-1006
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0604-1006

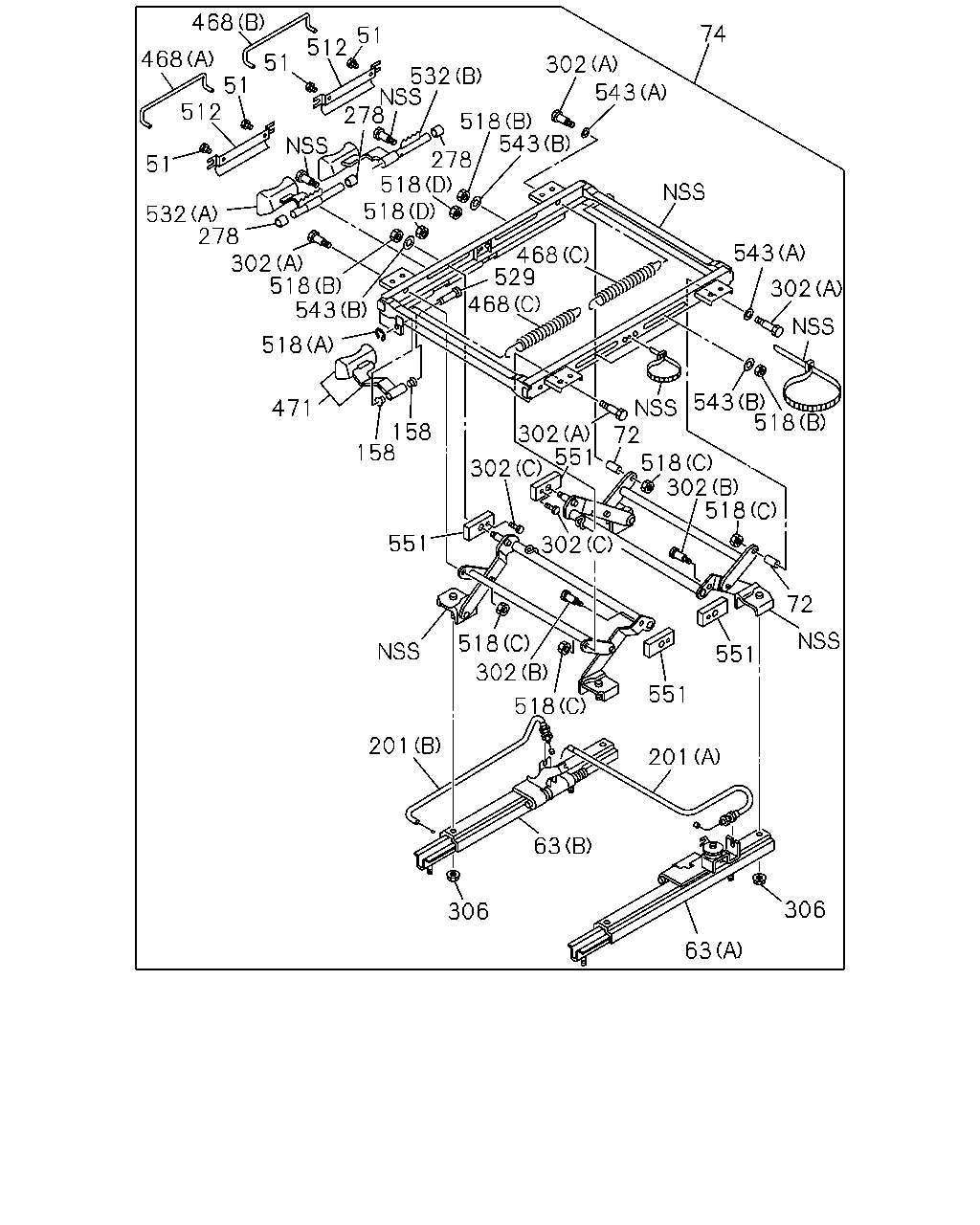

çizim 105989
468 74 51 512 468 51 302 543 532 278 51 512 518 543 278 518 518 51 532 278 302 518 543 543 468 529 468 302 518 543 518 471 551 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER 1-75518-325-1 04 1 0604-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-199-1 01 1 0604-
63 ADJUSTER; SEAT SLIDE
(B) 		1-75518-323-0 01 1 0604-
72 SPACER; SEAT ADJ 1-75518-334-1 02 1 0604-1502
72 SPACER; SEAT ADJ 8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT 1-75518-330-3 01 1 0604-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT 8-98291-644-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0604-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0604-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0604-
278 COLLAR; FRT SEAT 1-75518-244-0 03 1 0604-
302 BOLT; ADJ,HEIGHT CONT
(C) 		1-75518-266-2 02 1 0604-
302 BOLT; ADJ,HEIGHT CONT
(A) 		1-75518-270-1 04 1 0604-1502
302 BOLT; ADJ,HEIGHT CONT
(A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
(B) 		1-75518-336-1 02 1 0604-
306 NUT; SEAT ADJ
M8 FLANGE 		1-75538-207-0 14 1 0604-
468 SPRING; RETURN
(A) 		1-75518-206-0 01 1 0604-
468 SPRING; RETURN
(B) 		1-75518-207-0 01 1 0604-
468 SPRING; RETURN
(C) 		1-75518-208-0 02 1 0604-
471 LEVER; SEAT ADJ 1-75518-291-0 01 1 0604-0710
471 LEVER; SEAT ADJ 8-98107-869-0 01 1 0711-
512 COVER; LEVER 1-75518-243-1 02 1 0604-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0604-
518 NUT; TILT ADJ
(C) M8 		1-75518-264-0 04 1 0604-
518 NUT; TILT ADJ
(D) M6 LOCK NUT 		5-09984-020-0 02 1 0604-
518 NUT; TILT ADJ
(B) M8 FLANGE 		8-94152-886-0 04 1 0604-
529 PIN; LINK 1-75518-262-0 01 1 0604-
532 LEVER ASM; TILT
(A) 		1-75518-203-0 01 1 0604-
532 LEVER ASM; TILT
(B) 		1-75518-204-1 01 1 0604-
543 WASHER; HEIGHT ADJUSTER
(B) ID=8.4 		9-09160-508-0 04 1 0604-
543 WASHER; HEIGHT ADJUSTER
(A) 		1-75518-335-0 02 1 0604-1502
543 WASHER; HEIGHT ADJUSTER
(A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ 1-75518-265-0 04 1 0604-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
