◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#30844) — 46 parça

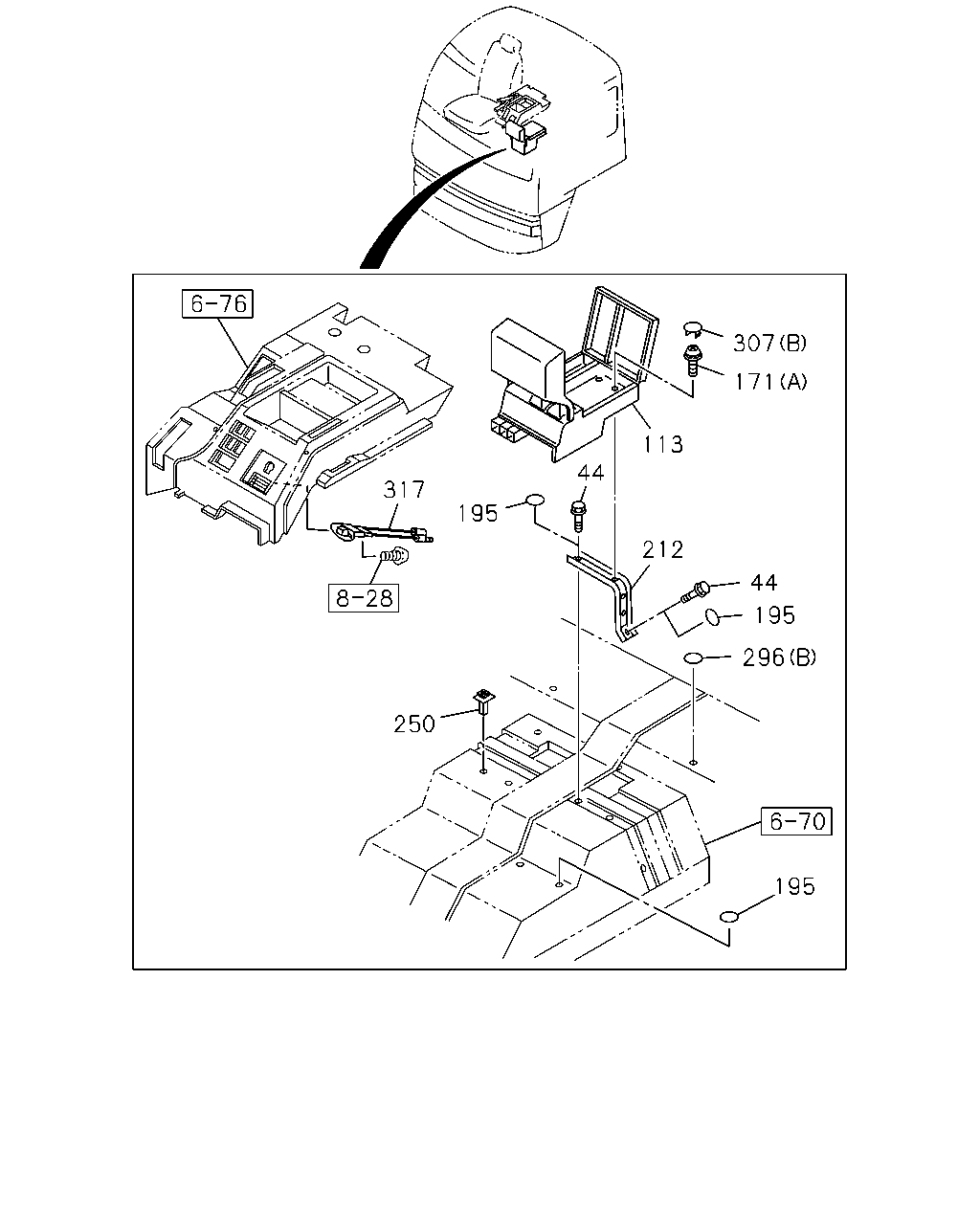

çizim 89635
307 171 113 44 317 195 212 44 195 296 250 195
BalonParca AdiParca NoAdetTipApplied Date
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0604-0904
44 BOLT; SUPPORT,CTR CONSOLE
CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-291-3 01 1 0604-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-321-1 01 1 0610-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0604-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0604-
195 SEAL; CENTER CONSOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 05 1 0604-
212 SUPPORT; CONSOLE TO COMPT
CENTER SEAT DELETE(SP9) 		1-72537-095-1 01 1 0604-
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0604-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0604-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0604-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0604-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0604-
317 CONSENT 1-82523-020-2 01 1 0604-

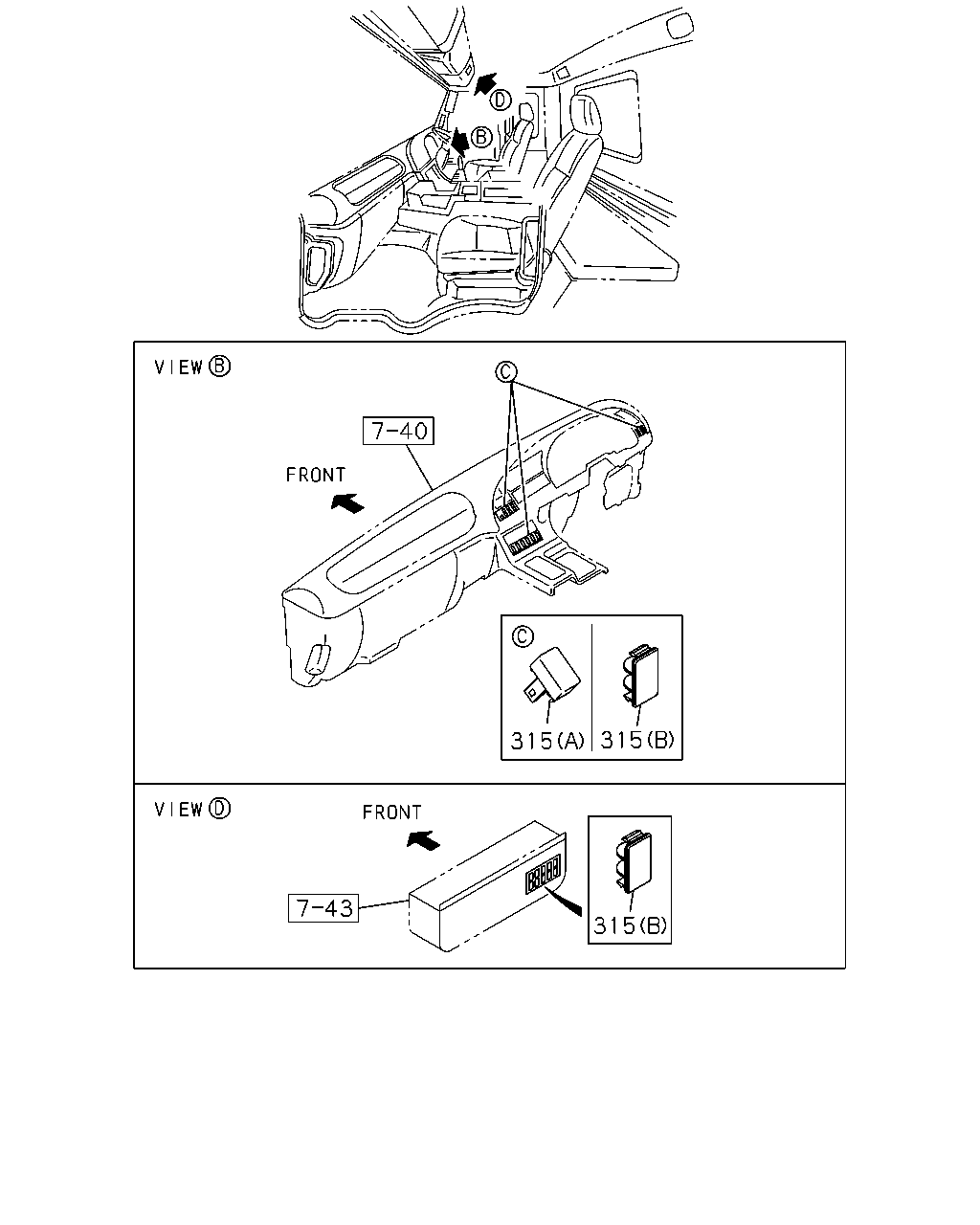

çizim 105906
315 315 315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0604-
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0604-

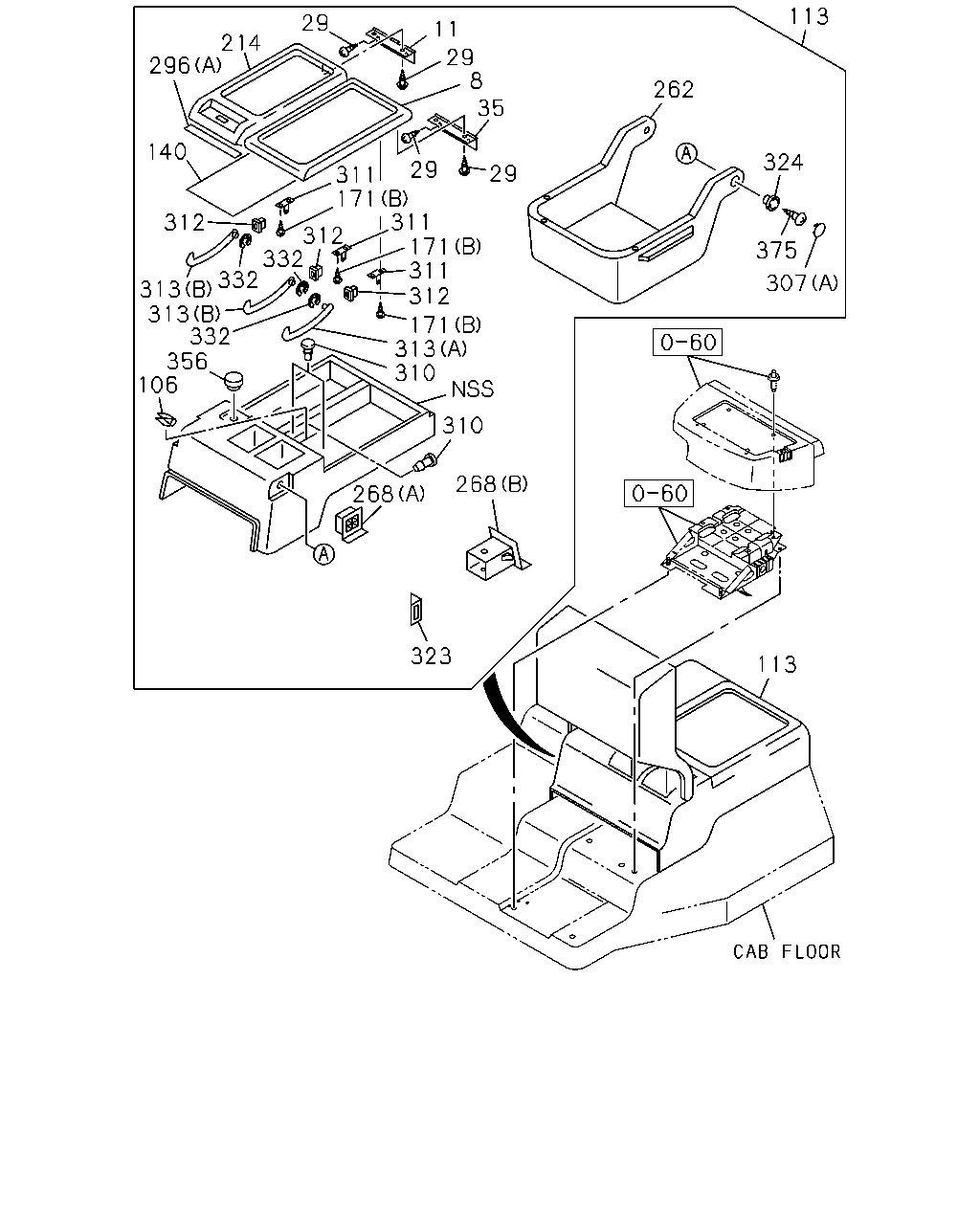

çizim 105991
113 29 11 214 29 8 35 296 262 140 324 29 29 311 171 311 171 311 312 312 312 332 332 313 313 332 356 106 375 307 171 313 310 310 268 268 323 113
BalonParca AdiParca NoAdetTipApplied Date
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-185-0 01 1 0604-0705
8 LID; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-332-0 01 1 0706-
11 HINGE; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-070-2 01 1 0604-
29 SCREW; HINGE
CENTER SEAT DELETE(SP9) M5X14 BINDING HEAD 		1-72537-168-0 08 1 0604-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-182-1 01 1 0604-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE(SP9) 		1-72537-079-0 02 1 0604-
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-291-3 01 1 0604-0609
113 BOX; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-321-1 01 1 0610-
140 SHEET
CENTER SEAT DELETE(SP9) 		1-72537-093-1 01 1 0604-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0604-
171 SCREW; CONSOLE BOX
CENTER SEAT DELETE(SP9) (A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0604-
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-186-0 01 1 0604-0705
214 LID; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72537-339-0 01 1 0706-
262 TABLE ASM
CENTER SEAT DELETE(SP9) 		1-72537-187-1 01 1 0604-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (B) 		1-72537-183-0 01 1 0604-
268 COVER; DUCT
CENTER SEAT DELETE(SP9) (A) 		1-72537-184-0 01 1 0604-
296 SEAL
CENTER SEAT DELETE(SP9) (A) 		1-72537-094-1 01 1 0604-
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0604-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72537-188-0 02 1 0604-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-76337-461-0 04 1 0604-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 0604-
311 HOLDER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-188-2 03 1 0604-
312 STOPPER; CONSOLE
CENTER SEAT DELETE(SP9) 		1-72538-186-1 03 1 0604-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (A) 		1-72538-184-3 01 1 0604-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE(SP9) (B) 		1-72538-185-3 02 1 0604-
323 SHUTTER
CENTER SEAT DELETE(SP9) 		1-72537-126-0 01 1 0604-0705
324 BUSHING
CENTER SEAT DELETE(SP9) 		1-72537-116-0 02 1 0604-
332 RING; SNAP,CONSOLE BOX
CENTER SEAT DELETE(SP9) 		1-72537-170-0 03 1 0604-
356 COVER; KNOB
CENTER SEAT DELETE(SP9) 		1-72537-155-0 01 1 0604-
375 SCREW; TAP BUSHING
CENTER SEAT DELETE(SP9) M6X20 		1-72537-319-0 02 1 0610-
