Isuzu WW
▶
TRUCKS
▶
CYZ
▶
11022 - CYZ RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#30843) — 76 parça
◀

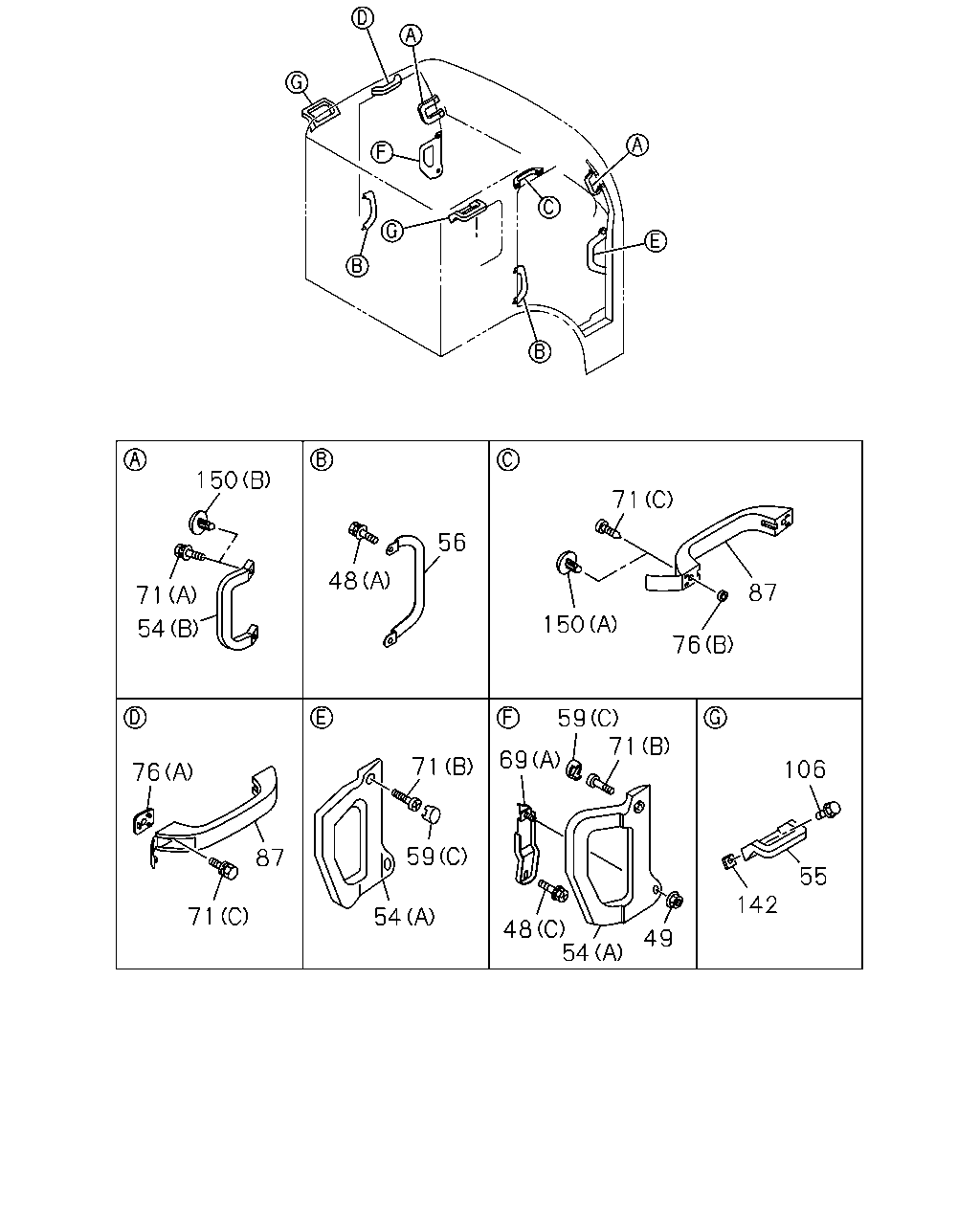

[743A] ASSIST GRIP;CAB INSIDE (31 parça)
[743A] ASSIST GRIP;CAB OUTSIDE (21 parça)

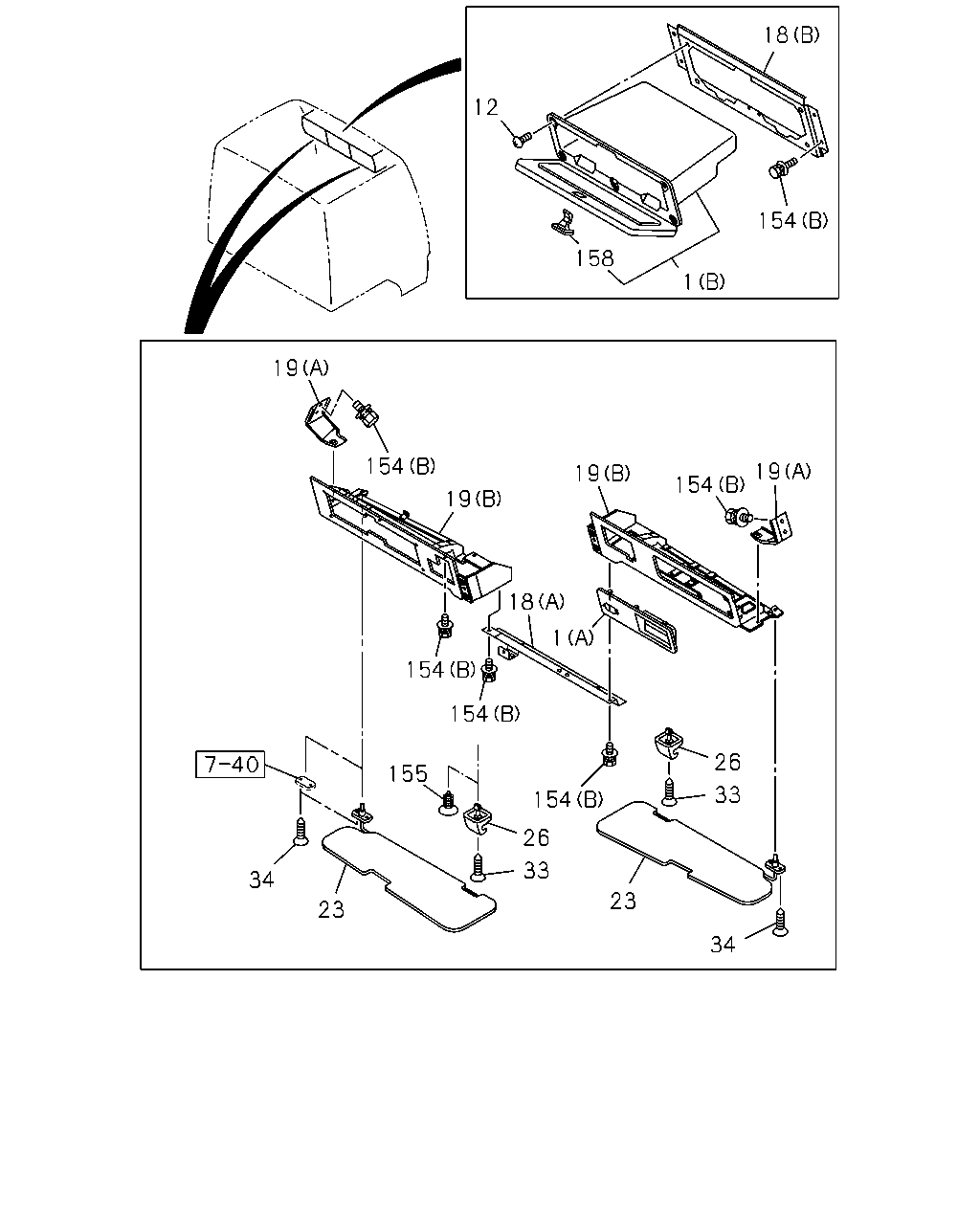

[743A] SUN VISOR AND SUPPORT ASM (24 parça)
▶
150
71
56
48
87
71
150
54
76
59
71
69
71
106
76
59
87
55
142
71
54
48
54
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0604-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0604-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0604-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0604-0904
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0604-
49
NUT; ASSIST GRIP
M6 FLANGE
0-91180-106-0
01
1
0604-
54
GRIP; ASSIST,QUARTER SIDE
ASSIST GRIP A POST<NBK> (B)
1-73618-185-1
02
1
0604-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-563-1
01
1
0604-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-564-1
01
1
0604-
54
GRIP; ASSIST,QUARTER SIDE
EXC. ASSIST GRIP A POST<NBK> (B)
1-73618-185-1
01
1
0604-
55
GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52>
1-73618-169-1
02
1
0604-
56
GRIP; ASSIST,SIDE SILL
1-73617-570-0
02
1
0604-0804
56
GRIP; ASSIST,SIDE SILL
8-98081-700-0
02
1
0805-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
0604-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
0604-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0604-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0604-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0604-
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
0604-
71
SCREW
ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER
5-09981-064-0
04
1
0604-
71
SCREW
ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0604-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0604-
71
SCREW
EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER
8-94279-411-0
02
1
0604-
76
SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> (A)
1-73618-180-0
02
1
0604-
76
SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5
8-94230-464-1
02
1
0604-
87
GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP A POST<NBK> DARK GRAY
8-97098-476-2
02
1
0604-
106
SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0604-
142
SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> 25X25
8-94272-533-0
04
1
0604-
150
CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY
1-73996-301-0
04
1
0604-
150
CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
0604-
64
64
64
62
64
48
48
48
48
62
154
69
66
103
48
59
69
66
48
48
59
103
48
59
48
48
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0604-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0604-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0604-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0604-0904
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0604-
59
COVER; ASSIST GRIP
(B)
1-71998-789-2
02
1
0604-
59
COVER; ASSIST GRIP
(A)
1-71998-790-2
02
1
0604-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0604-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
0604-0907
62
GRIP; ASSIST,ROOF PANEL
8-97630-819-0
02
1
0908-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
0604-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0604-
69
BRACKET; ASSIST GRIP
(B)
1-65570-242-0
01
1
0604-
69
BRACKET; ASSIST GRIP
(B)
1-65570-243-0
01
1
0604-
69
BRACKET; ASSIST GRIP
(A)
1-73618-178-2
01
1
0604-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
0604-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
0604-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
0604-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
0604-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0604-
18
12
154
158
1
19
154
19
19
154
19
18
1
154
154
26
155
33
154
26
33
34
23
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(A)
1-72447-876-4
01
1
0604-
1
BOARD; HEADER SHELF
(B)
1-72447-968-0
01
1
0604-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
04
1
0604-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
0604-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-877-2
01
1
0604-0909
18
SUPPORT; HEADER SHELF CENTER
(A)
8-98118-217-1
01
1
0910-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
0604-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-879-7
01
1
0604-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
0604-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
0604-
23
SUN VISOR
SUN VISOR PASSENGER<D20>
1-73138-157-1
01
1
0604-
23
SUN VISOR
1-73138-156-1
01
1
0604-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
0604-
26
HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20>
1-73137-175-0
01
1
0604-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70580-420-0
01
1
0604-0604
33
SCREW; HOLDER,SUN VISOR
SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD
0-70580-420-0
01
1
0604-0604
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
0604-
33
SCREW; HOLDER,SUN VISOR
SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD
0-70540-420-0
01
1
0604-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
0604-
154
BOLT; SUPPORT
GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
04
1
0604-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
0604-
154
BOLT; SUPPORT
EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0604-
155
FASTENER; HOLDER
EXC. SUN VISOR PASSENGER<D20>
1-09983-181-0
01
1
0604-
158
LOCK; HEADER SHELF
1-72538-312-0
01
1
0604-
