◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYZ ▶ 11022 - CYZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#30841) — 111 parça

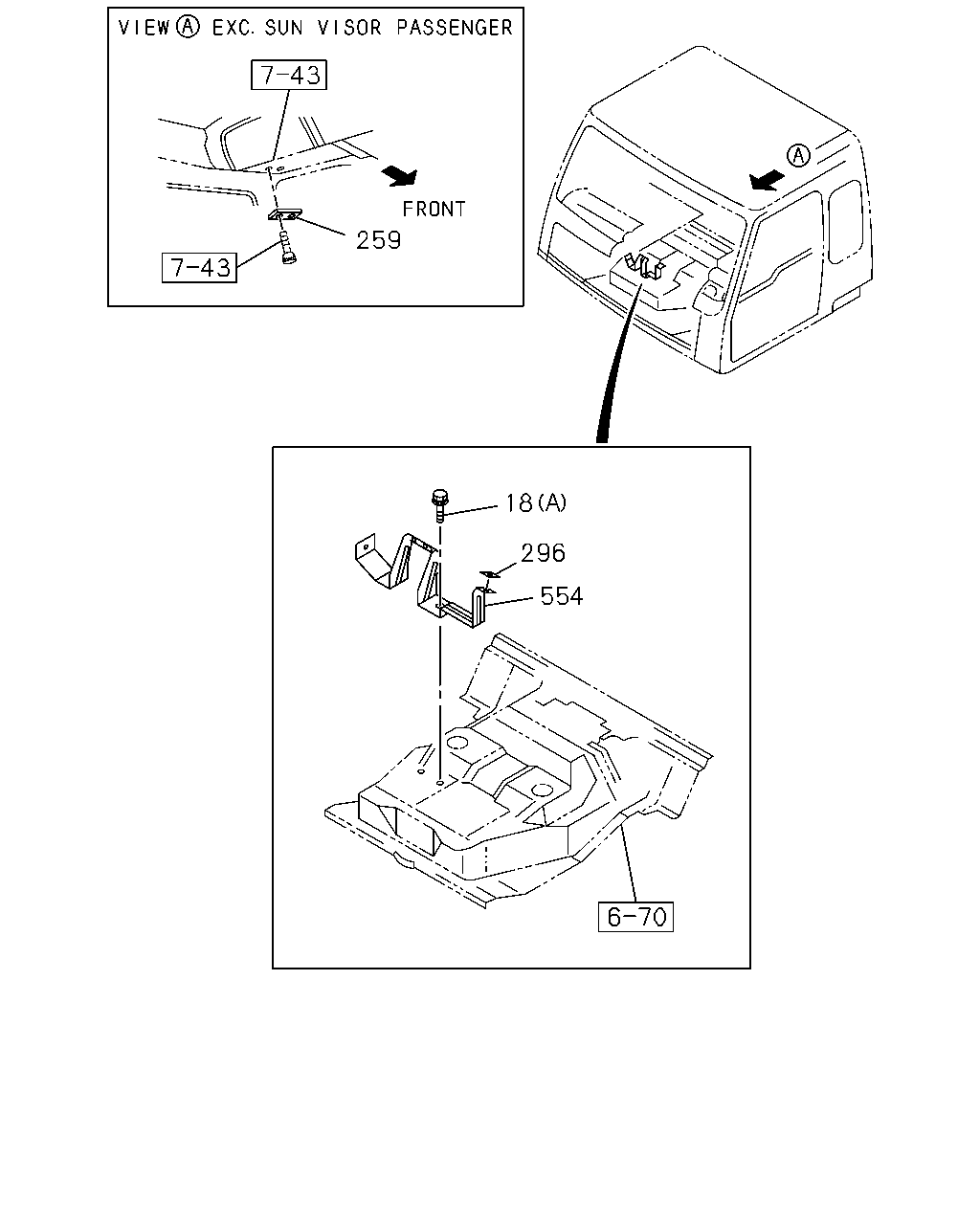

çizim 105904
259 18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0604-0709
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0604-0709
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0604-
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0604-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 0604-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 0604-

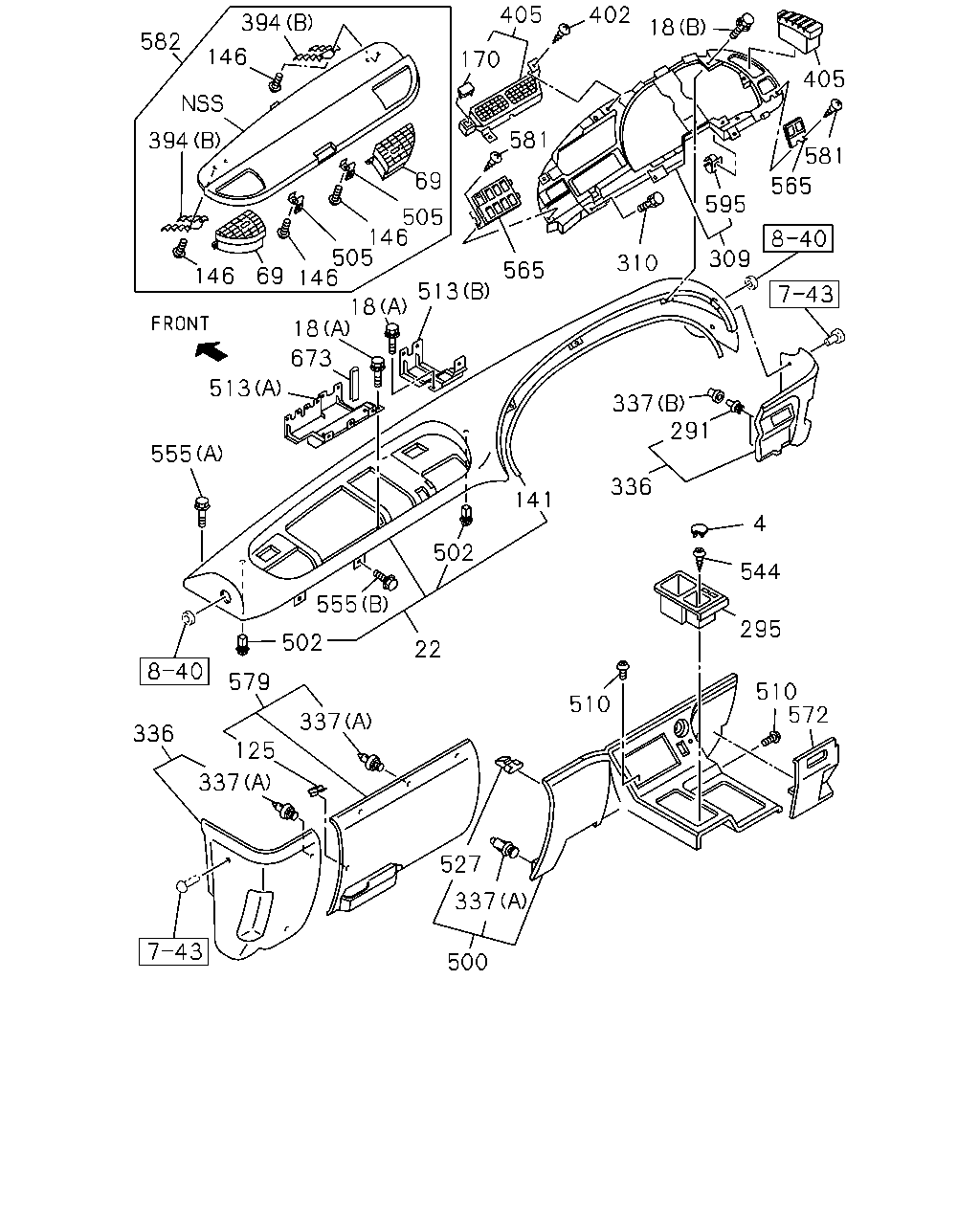

çizim 105988
405 402 394 18 582 146 170 405 581 581 394 69 565 595 505 146 505 146 309 10 565 146 69 513 18 18 673 513 337 291 555 336 141 4 502 544 555 295 502 22 579 510 572 510 337 336 125 337 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 0604-
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0604-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0604-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0604-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0604-0709
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0604-0709
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0604-
22 PAD; INST 1-72317-347-2 01 1 0604-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0604-
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0604-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0604-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0604-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0604-
170 COVER; HOLE 1-76367-068-0 01 1 0604-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0604-
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 0604-
309 PANEL; SW,INST 1-72418-009-6 01 1 0604-
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0604-
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0604-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0604-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0604-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0604-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0604-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0604-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0604-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 0604-
405 GRILLE ASM; METER VENT 1-76367-062-2 01 1 0604-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0604-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0604-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0604-
505 LOCK; LID 1-72558-024-2 02 1 0604-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0604-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 0710-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0604-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 0604-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0604-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0604-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0604-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 0604-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 0604-
572 COVER; INSPECTION 1-72437-634-0 01 1 0604-
579 COVER; INST PNL 1-72437-626-0 01 1 0604-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0604-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0604-
595 NUT; HOOK 1-72418-013-0 11 1 0604-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0604-

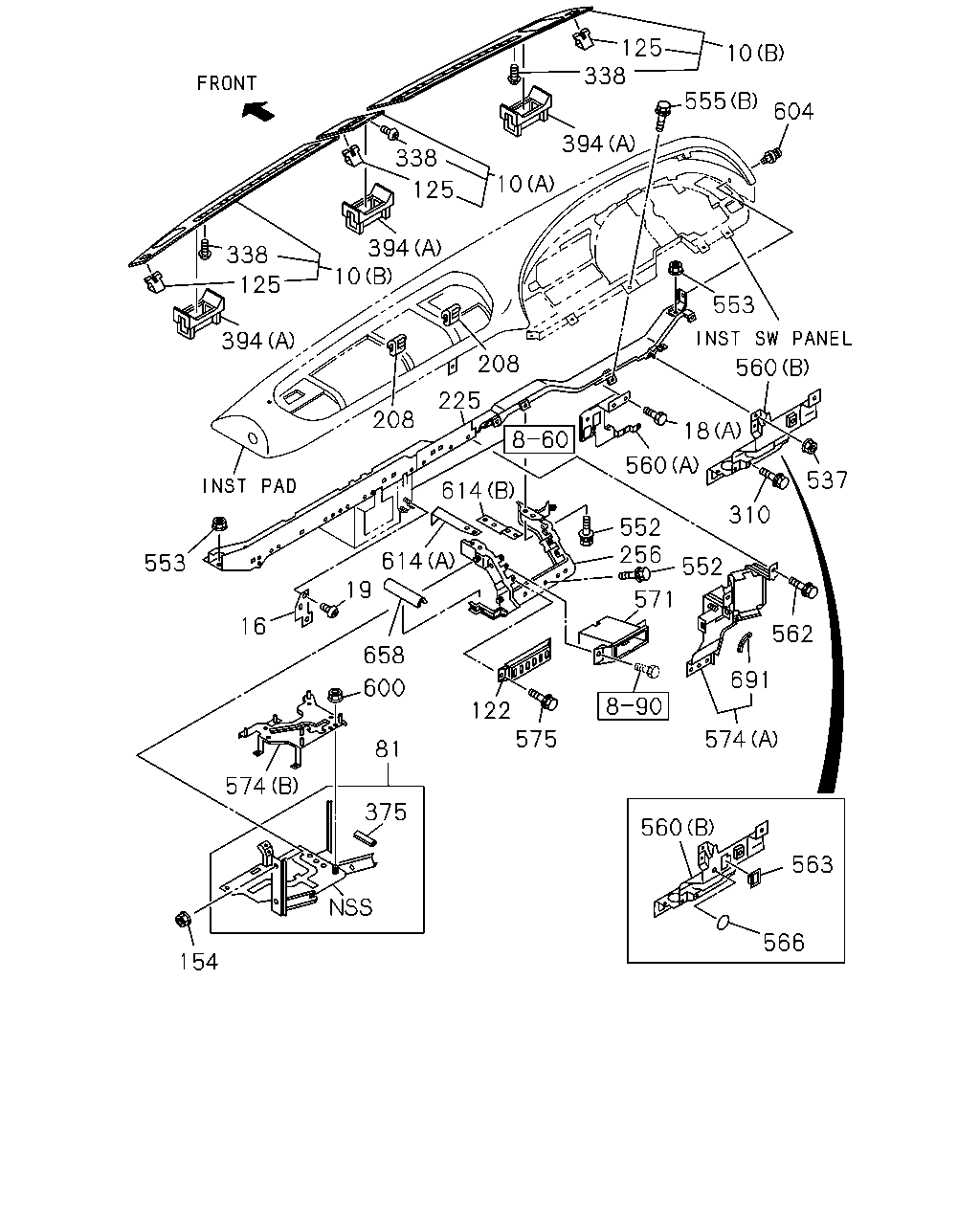

çizim 105990
125 338 10 555 604 394 338 10 125 338 394 10 125 553 394 208 560 225 208 18 560 537 614 310 552 256 614 553 552 19 571 16 562 658 691 600 122 575 574 81 574 375 560 563 566 154
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) 		1-72437-540-6 01 1 0604-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 0604-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 0604-
16 BRACKET; INST PNL 1-73908-023-2 01 1 0604-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0604-0709
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0604-0709
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 09 1 0710-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0604-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 0604-
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0604-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0604-
125 CLIP; INST PANEL 8-97217-066-0 11 1 0604-
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0604-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0604-
225 FRAME; FACIA 1-65671-725-8 01 1 0604-
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0604-0710
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0812
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0901-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0604-
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0604-0801
338 SCREW; COVER
M5X14 		8-94279-325-0 17 1 0802-
375 FINISHER; BRKT,CONT UNIT
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0604-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 0604-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0604-
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0604-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0604-
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0604-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0604-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0604-
560 BRACKET
(B) 		1-65671-772-4 01 1 0604-
560 BRACKET
(A) 		1-65680-976-3 01 1 0604-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0604-
563 BEZEL; BRKT 1-72448-410-3 01 1 0604-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0604-
571 BEZEL; POCKET 1-72438-151-3 01 1 0604-0805
571 BEZEL; POCKET 1-72438-151-3 01 1 0806-0806
571 BEZEL; POCKET 1-72438-151-3 01 1 0806-0806
571 BEZEL; POCKET 1-72438-151-3 01 1 0807-
574 PANEL; RELAY BOX
(A) 		1-73907-365-9 01 1 0604-1005
574 PANEL; RELAY BOX
(A) 		8-98170-460-0 01 1 1006-
574 PANEL; RELAY BOX
(B) 		1-73907-647-3 01 1 0604-1108
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1109-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0604-
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0604-
604 CLIP; INST PAD 1-09983-123-0 01 1 0604-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 0604-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 0604-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0807-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006-
