◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#30839) — 34 parça

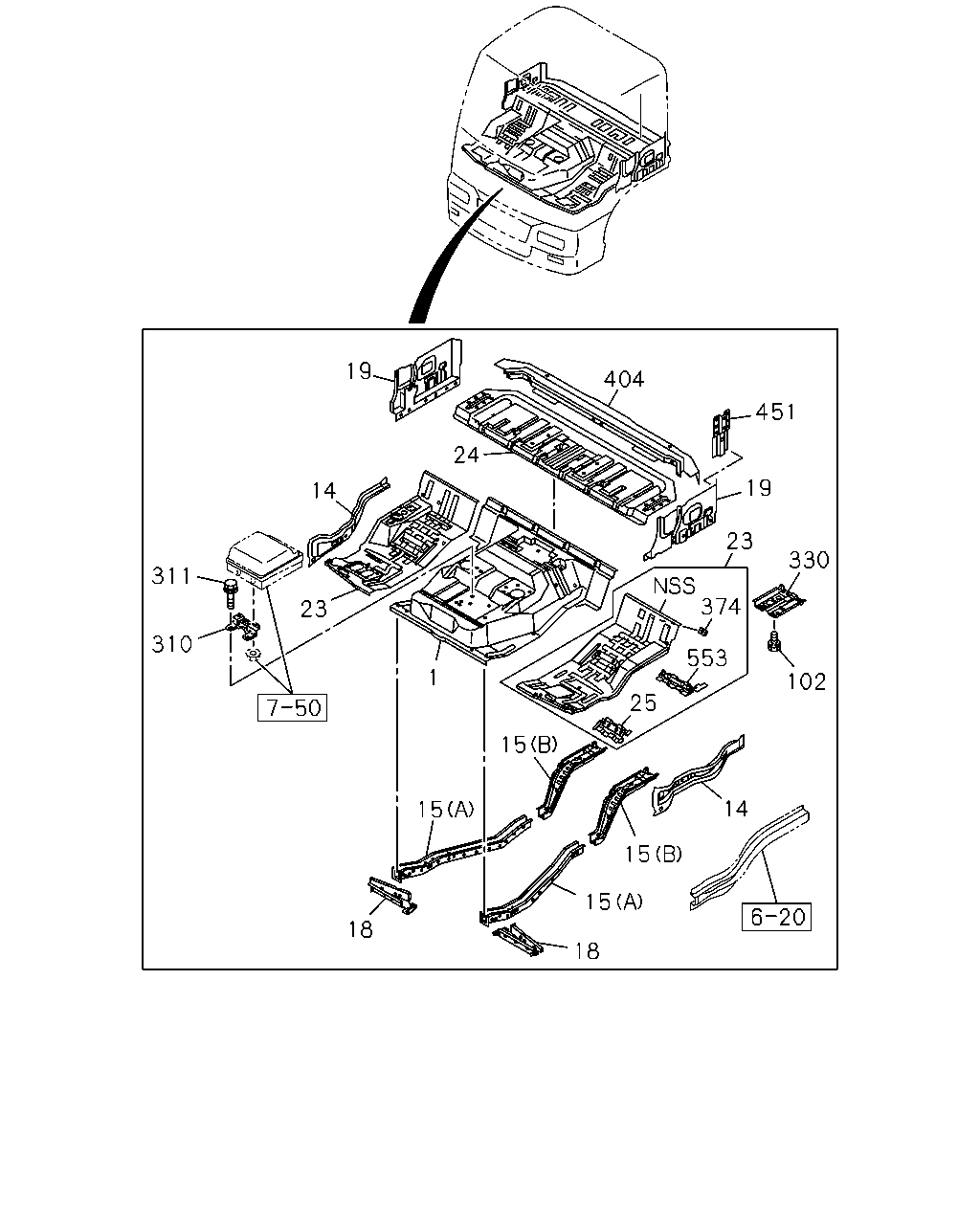

çizim 88910
19 14 23 311 310 1 15 18 18 15 15 14 102 330 23 19 451 404 24 15 25 553 374
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR 1-62172-614-5 01 1 0511-
14 PANEL; FLOOR SIDE,FRT 1-62482-917-6 01 1 0511-
14 PANEL; FLOOR SIDE,FRT 1-62482-918-6 01 1 0511-
15 FRAME; UNDER
(B) 		1-62472-598-6 01 1 0511-
15 FRAME; UNDER
(A) 		1-62472-669-3 01 1 0511-
15 FRAME; UNDER
(A) 		1-62472-670-3 01 1 0511-
15 FRAME; UNDER
(B) 		1-62472-680-1 01 1 0511-
18 FRAME; FLOOR,CENTER SIDE 1-62472-671-3 01 1 0511-
18 FRAME; FLOOR,CENTER SIDE 1-62483-105-5 01 1 0511-
19 PANEL; FLOOR SIDE,REAR 1-62472-659-2 01 1 0511-
19 PANEL; FLOOR SIDE,REAR 1-62472-660-2 01 1 0511-
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 0511-1306
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) 		1-62172-803-0 01 1 0511-1306
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1307-
23 PANEL; FLOOR,SIDE
PTO CONTROL(SV6) EXC. DUMP CONTROL LEVER<RC4> 		1-62172-803-0 01 1 1307-
23 PANEL; FLOOR,SIDE 1-62172-800-0 01 1 0511-
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-805-0 01 1 0511-1306
23 PANEL; FLOOR,SIDE
EXC. ECE R29<EFE>,DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-62172-805-0 01 1 1307-
24 PANEL; BED PAN 1-62172-540-9 01 1 0511-
25 REINFORCEMENT; FRAME FLOOR,FRT 1-62172-780-2 01 1 0511-
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0511-0904
102 BOLT; FLOOR BOARD
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
310 BRACKET; SEAT STAND 1-76397-015-0 01 1 0511-0610
310 BRACKET; SEAT STAND
EXC. CENTER SEAT DELETE(SP9) 		1-76397-015-0 01 1 0611-
311 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0511-0610
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0611-0904
311 BOLT; BRKT
EXC. CENTER SEAT DELETE(SP9) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
330 REINFORCEMENT; FLOOR 1-62172-585-5 01 1 0511-
374 NUT; FLOOR
M6 		1-09984-110-0 05 1 0511-
404 RAIL ASM; MTG,RR
ECE R29<EFE> 		8-98220-320-1 01 1 1307-
404 RAIL ASM; MTG,RR 1-62472-596-8 01 1 0511-1306
404 RAIL ASM; MTG,RR
EXC. ECE R29<EFE> 		1-62472-596-8 01 1 1307-
451 REINFORCEMENT; RR PILLAR
ECE R29<EFE> 		8-98219-094-0 02 1 1307-
553 REINFORCEMENT; SEAT STAND RR 1-62172-797-0 01 1 0511-
