◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#30838) — 47 parça

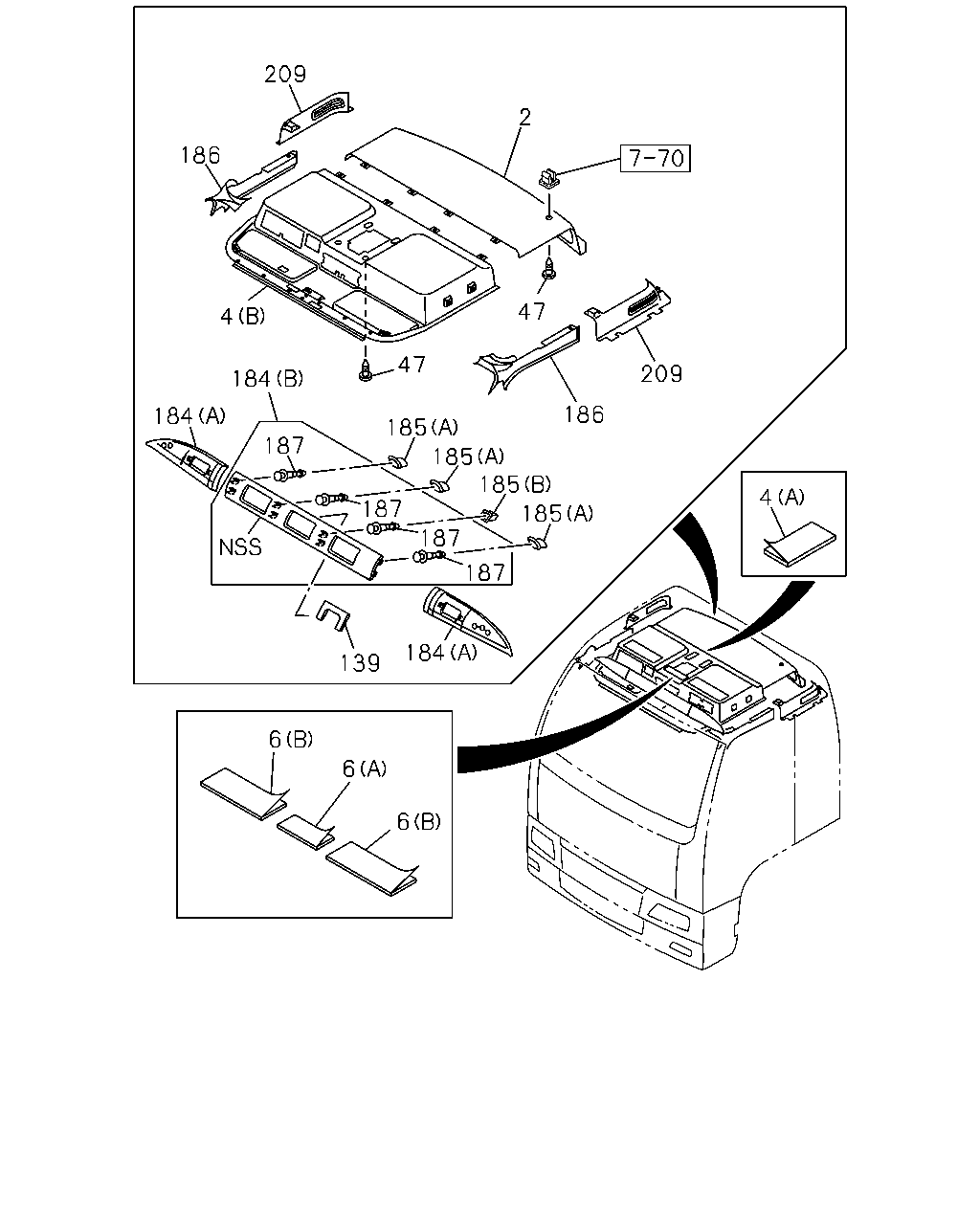

çizim 89005
209 2 186 47 4 47 209 184 186 184 185 187 185 185 4 187 185 187 187 184 139 6 6 6
BalonParca AdiParca NoAdetTipApplied Date
2 LINING; HD,ROOF RR
CHINA EQUIPMENT(YT2) 		1-73317-565-0 01 1 0702-
2 LINING; HD,ROOF RR 1-73317-502-2 01 1 0511-0701
2 LINING; HD,ROOF RR
EXC. CHINA EQUIPMENT(YT2) 		1-73317-502-2 01 1 0702-
4 LINING; ROOF,FRT
CHINA EQUIPMENT(YT2) (B) 		1-73317-564-0 01 1 0702-
4 LINING; ROOF,FRT
(A) 		1-73317-436-0 02 1 0511-
4 LINING; ROOF,FRT
(B) 		1-73317-519-3 01 1 0511-0701
4 LINING; ROOF,FRT
EXC. CHINA EQUIPMENT(YT2) (B) 		1-73317-519-3 01 1 0702-
6 SPACER; HD LINING
(B) 140X800 		1-73317-429-2 02 1 0511-
6 SPACER; HD LINING
(A) 130X300 		1-73317-435-2 01 1 0511-
47 CLIP; HEADLINING
D5X14.7 		1-09983-183-0 05 1 0511-
47 CLIP; HEADLINING
D6X23 LIGHT GRAY 		1-73318-629-0 11 1 0511-
47 CLIP; HEADLINING
OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0511-
47 CLIP; HEADLINING
EXC. WINDOW CURTAIN ROUND<BW4> D7.7X25 LIGHT GRAY 		1-73317-371-0 08 1 0511-
139 SEAL; ROOF
ROOF MARKER LAMP<U01> 		1-73318-562-0 03 1 0810-
184 ORNAMENT; ROOF
ROOF MARKER LAMP<U01> (B) 		1-73317-405-1 01 1 0810-
184 ORNAMENT; ROOF
EXC. CHINA EQUIPMENT(YT2) (A) 		1-73317-408-2 01 1 0611-0808
184 ORNAMENT; ROOF
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (A) 		1-73317-408-2 01 1 0809-1105
184 ORNAMENT; ROOF
MIRROR O/S UNDER VIEW<RR9> (A) 		1-73317-408-2 01 1 0809-1105
184 ORNAMENT; ROOF
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (A) 		1-73317-408-2 01 1 1106-
184 ORNAMENT; ROOF
MIRROR O/S UNDER VIEW<RR9> (A) 		1-73317-408-2 01 1 1106-
184 ORNAMENT; ROOF
LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A) 		1-73317-408-2 01 1 1106-
184 ORNAMENT; ROOF
(A) 		1-73317-409-2 01 1 0511-
184 ORNAMENT; ROOF
(A) 		1-73317-452-1 01 1 0511-0610
184 ORNAMENT; ROOF
CHINA EQUIPMENT(YT2) (A) 		1-73317-452-1 01 1 0611-0809
184 ORNAMENT; ROOF
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (A) 		1-73317-452-1 01 1 0810-0811
184 ORNAMENT; ROOF
CHINA EQUIPMENT(YT2) (A) 		1-73317-452-1 01 1 0810-0811
184 ORNAMENT; ROOF
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (A) 		1-73317-452-1 01 1 0812-1105
184 ORNAMENT; ROOF
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (A) 		1-73317-452-1 01 1 0812-1105
184 ORNAMENT; ROOF
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) 		1-73317-452-1 01 1 0812-1105
184 ORNAMENT; ROOF
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (A) 		1-73317-452-1 01 1 1106-
184 ORNAMENT; ROOF
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (A) 		1-73317-452-1 01 1 1106-
184 ORNAMENT; ROOF
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-73317-452-1 01 1 1106-
184 ORNAMENT; ROOF
(B) 		1-73318-660-3 01 1 0511-0809
184 ORNAMENT; ROOF
EXC. ROOF MARKER LAMP<U01> (B) 		1-73318-660-3 01 1 0810-
185 GROMMET; ORNAMENT
(A) 		1-79198-012-0 06 1 0511-
185 GROMMET; ORNAMENT
(B) 		1-79198-013-0 02 1 0511-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-73346-012-2 01 1 0611-
186 TRIM; ROOM,CANT RAIL SIDE
EXC. CHINA EQUIPMENT(YT2) 		1-73346-013-2 01 1 0611-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-012-2 01 1 0511-0610
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-041-0 01 1 0611-0611
186 TRIM; ROOM,CANT RAIL SIDE
CHINA EQUIPMENT(YT2) 		1-73346-041-0 01 1 0611-
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-013-2 01 1 0511-0610
186 TRIM; ROOM,CANT RAIL SIDE 1-73346-042-0 01 1 0611-0611
186 TRIM; ROOM,CANT RAIL SIDE
CHINA EQUIPMENT(YT2) 		1-73346-042-0 01 1 0611-
187 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0511-
209 COVER; GRILLE 1-73347-865-3 01 1 0511-
209 COVER; GRILLE 1-73347-866-3 01 1 0511-
