◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-30 - FRONT DOOR AND HINGE ▶
6-30 — FRONT DOOR AND HINGE (#30830) — 89 parça

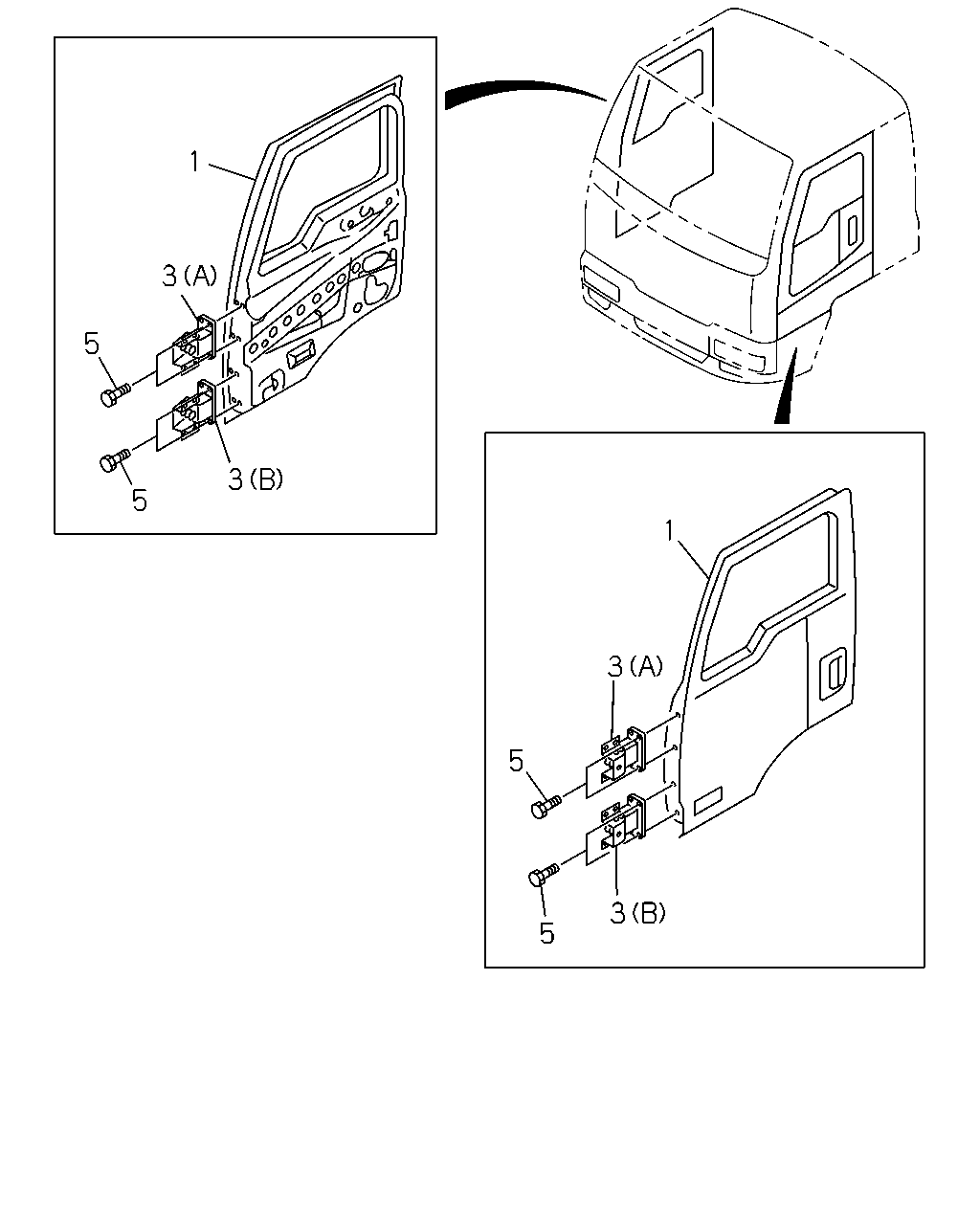

çizim 88972
1 3 5 3 5 1 3 5 3 5
BalonParca AdiParca NoAdetTipApplied Date
1 DOOR ASM; FRT,WO/TRIM
AUTO DOOR LOCK<AU4> LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) 		8-97632-565-0 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
AUTO DOOR LOCK<AU4> LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) 		8-97632-566-0 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
EXC. CHINA EQUIPMENT(YT2) 		1-64080-388-2 01 1 0611-0808
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-64080-388-2 01 1 0809-
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S UNDER VIEW<RR9> 		1-64080-388-2 01 1 0809-
1 DOOR ASM; FRT,WO/TRIM 1-64080-390-2 01 1 0511-0610
1 DOOR ASM; FRT,WO/TRIM
CHINA EQUIPMENT(YT2) 		1-64080-390-2 01 1 0611-0809
1 DOOR ASM; FRT,WO/TRIM
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> 		1-64080-390-2 01 1 0810-0811
1 DOOR ASM; FRT,WO/TRIM
CHINA EQUIPMENT(YT2) 		1-64080-390-2 01 1 0810-0811
1 DOOR ASM; FRT,WO/TRIM
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> 		1-64080-390-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 		1-64080-390-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-64080-390-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> 		1-64080-390-2 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 		1-64080-390-2 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> 		1-64080-390-2 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM 1-64080-391-2 01 1 0511-0808
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 0809-0809
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 0809-0809
1 DOOR ASM; FRT,WO/TRIM
CHINA EQUIPMENT(YT2) 		1-64080-391-2 01 1 0809-0809
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 0810-0811
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 0810-0811
1 DOOR ASM; FRT,WO/TRIM
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> 		1-64080-391-2 01 1 0810-0811
1 DOOR ASM; FRT,WO/TRIM
CHINA EQUIPMENT(YT2) 		1-64080-391-2 01 1 0810-0811
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> 		1-64080-391-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 		1-64080-391-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-64080-391-2 01 1 0812-1105
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
MIRROR O/S UNDER VIEW<RR9> 		1-64080-391-2 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> 		1-64080-391-2 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 		1-64080-391-2 01 1 1106-
1 DOOR ASM; FRT,WO/TRIM
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> 		1-64080-391-2 01 1 1106-
3 HINGE; DOOR FRT
CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-088-3 02 1 0704-0809
3 HINGE; DOOR FRT
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (A) UPPER 		1-64780-088-3 02 1 0810-0811
3 HINGE; DOOR FRT
CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-088-3 02 1 0810-0811
3 HINGE; DOOR FRT
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (A) UPPER 		1-64780-088-3 02 1 0812-1105
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (A) UPPER 		1-64780-088-3 02 1 0812-1105
3 HINGE; DOOR FRT
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-088-3 02 1 0812-1105
3 HINGE; DOOR FRT
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (A) UPPER 		1-64780-088-3 02 1 1106-
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (A) UPPER 		1-64780-088-3 02 1 1106-
3 HINGE; DOOR FRT
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) UPPER 		1-64780-088-3 02 1 1106-
3 HINGE; DOOR FRT
AUTO DOOR LOCK<AU4> LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-088-3 02 1 1106-
3 HINGE; DOOR FRT
CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-089-3 02 1 0704-0809
3 HINGE; DOOR FRT
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (B) LOWER 		1-64780-089-3 02 1 0810-0811
3 HINGE; DOOR FRT
CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-089-3 02 1 0810-0811
3 HINGE; DOOR FRT
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (B) LOWER 		1-64780-089-4 02 1 0812-1105
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (B) LOWER 		1-64780-089-4 02 1 0812-1105
3 HINGE; DOOR FRT
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-089-4 02 1 0812-1105
3 HINGE; DOOR FRT
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> (B) LOWER 		1-64780-089-4 02 1 1106-
3 HINGE; DOOR FRT
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (B) LOWER 		1-64780-089-4 02 1 1106-
3 HINGE; DOOR FRT
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) LOWER 		1-64780-089-4 02 1 1106-
3 HINGE; DOOR FRT
AUTO DOOR LOCK<AU4> LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-089-4 02 1 1106-
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-097-1 02 1 0511-0610
3 HINGE; DOOR FRT
(A) UPPER 		1-64780-097-1 01 1 0611-0703
3 HINGE; DOOR FRT
EXC. CHINA EQUIPMENT(YT2) (A) UPPER 		1-64780-097-1 02 1 0704-0808
3 HINGE; DOOR FRT
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (A) UPPER 		1-64780-097-1 02 1 0809-
3 HINGE; DOOR FRT
MIRROR O/S UNDER VIEW<RR9> (A) UPPER 		1-64780-097-1 02 1 0809-
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-098-2 02 1 0511-0610
3 HINGE; DOOR FRT
(B) LOWER 		1-64780-098-2 01 1 0611-0703
3 HINGE; DOOR FRT
EXC. CHINA EQUIPMENT(YT2) (B) LOWER 		1-64780-098-2 02 1 0704-0808
3 HINGE; DOOR FRT
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) LOWER 		1-64780-098-2 02 1 0809-
3 HINGE; DOOR FRT
MIRROR O/S UNDER VIEW<RR9> (B) LOWER 		1-64780-098-2 02 1 0809-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 24 1 0611-0703
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0704-0808
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0809-0809
5 BOLT; HINGE
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0809-0809
5 BOLT; HINGE
MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0809-0809
5 BOLT; HINGE
CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0809-0809
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0810-0811
5 BOLT; HINGE
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0810-0811
5 BOLT; HINGE
MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0810-0811
5 BOLT; HINGE
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0810-0811
5 BOLT; HINGE
CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0810-0811
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0812-1105
5 BOLT; HINGE
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0812-1105
5 BOLT; HINGE
MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0812-1105
5 BOLT; HINGE
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0812-1105
5 BOLT; HINGE
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0812-1105
5 BOLT; HINGE
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 0812-1105
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 1106-
5 BOLT; HINGE
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 1106-
5 BOLT; HINGE
MIRROR O/S UNDER VIEW<RR9> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 1106-
5 BOLT; HINGE
RUSSIA COUNTRY<CZ3> EXC. MIRROR O/S RR VIEW<D37> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 1106-
5 BOLT; HINGE
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 1106-
5 BOLT; HINGE
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) EXC. LOW DECK WO/REAR BODY VAR2<XR8> M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 1106-
5 BOLT; HINGE
AUTO DOOR LOCK<AU4> LOW DECK WO/REAR BODY VAR2<XR8> CHINA EQUIPMENT(YT2) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 16 1 1106-
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 32 1 0511-0610
5 BOLT; HINGE
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 0611-0703
