7-40 — INSTRUMENT PANEL AND BOX (#3083) — 188 parça

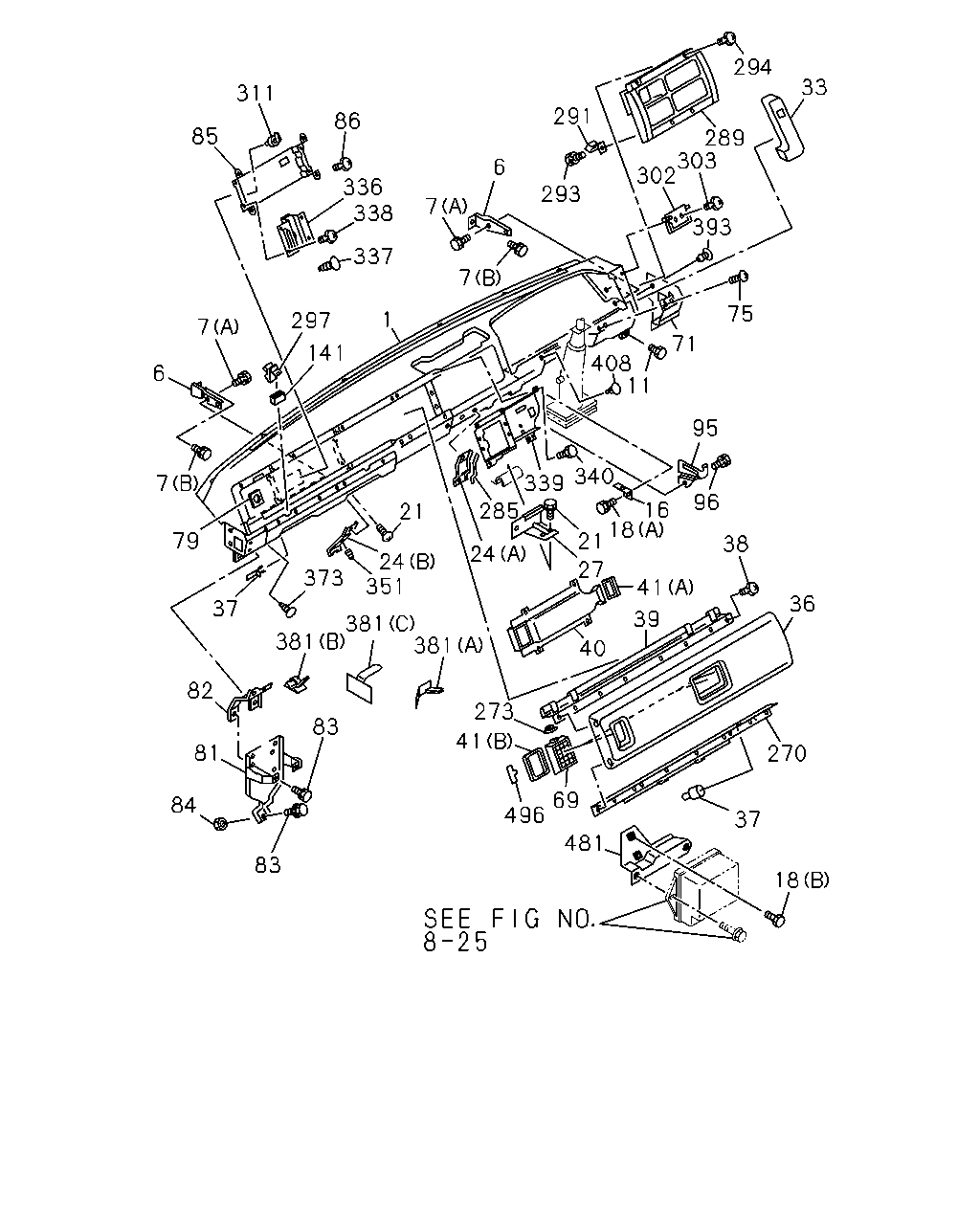

çizim 4452
18 37 270 481 69 496 41 273 40 39 41 38 36 96 95 16 18 21 27 340 339 285 24 21 24 351 381 381 381 373 83 81 84 83 82 37 79 7 6 7 297 141 1 337 338 336 86 311 85 6 7 7 293 291 302 303 289 294 33 75 393 71 11 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST 1-65671-334-1 01 1 9002-9306 ●
1 PANEL; INST
EXC. CAB SUSPENSION RIGID<W71> 		1-65671-334-1 01 1 9002-9306 ●
1 PANEL; INST 1-65671-542-0 01 1 9307- ●
1 PANEL; INST
CAB SUSPENSION RIGID<W71> 		1-65671-335-1 01 1 9002-9306 ●
1 PANEL; INST 1-65671-336-0 01 1 9002-9306 ● ●
1 PANEL; INST 1-65671-532-0 01 1 9307- ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9002- ● ● ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9002- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M6X16 W/LK&PL WASHER 		1-09980-440-0 04 1 9002- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002- ● ● ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 09 1 9002- ● ● ● ●
16 BRACKET; INST PNL
EXC. STEERING COLUMN WO/TILT<WV6> 		1-65670-595-1 01 1 9002- ● ● ● ●
16 BRACKET; INST PNL
STEERING COLUMN WO/TILT<WV6> 		1-65670-829-0 01 1 9002- ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-527-0 02 1 9002-9008 ● ● ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9009- ● ● ● ●
18 BOLT; BRKT
POWER WINDOW<A30> (B) M6X14 W/LK&PL WASHER 		8-94279-142-0 02 1 9307- ●
21 SCREW; STAY,INST
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ● ● ●
24 STAY; INST CLUSTER
(A) 		1-65670-609-3 01 1 9002- ● ● ● ●
24 STAY; INST CLUSTER
(B) 		1-65670-695-2 01 1 9002- ● ● ● ●
27 SUPPORT ASM; STAY "B" 1-65670-653-2 01 1 9002- ● ●
27 SUPPORT ASM; STAY "B" 1-65670-679-2 01 1 9002- ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-067-0 01 1 9002-9306 ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-072-0 01 1 9307- ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-068-0 01 1 9002-9306 ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-073-0 01 1 9307- ●
36 BEZEL; INST SIDE CLUSTER 1-72547-094-0 01 1 9002-9306 ● ● ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-110-0 01 1 9307- ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9002- ● ● ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ● ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72557-047-3 01 1 9002- ● ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76377-089-1 01 1 9002- ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9002- ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9002- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9002- ● ● ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-038-0 01 1 9002-9306 ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-078-0 01 1 9307- ●
71 GARNISH; INST CLUSTER SIDE 1-72437-039-0 01 1 9002-9306 ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-079-0 01 1 9307- ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ● ●
79 SEAL; SIDE DEFROSTER 1-76377-092-0 01 1 9002- ● ● ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-839-7 01 1 9002-9103 ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-235-0 01 1 9104- ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-786-6 01 1 9002- ● ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73998-409-7 01 1 9002- ● ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73997-802-0 01 1 9002- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9304 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		9-01960-620-0 03 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9205- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ● ●
84 NUT; CONT UNIT BRKT
INTAKE HEATER<SL2> M6 FLANGE 		5-09440-004-0 01 1 9002- ● ●
85 PANEL; ELEC 1-73997-523-7 01 1 9002- ● ● ● ●
86 BOLT; ELEC PNL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ● ● ●
95 PANEL; BLIND,SIDE 1-65671-338-0 01 1 9002-9306 ● ●
95 PANEL; BLIND,SIDE 1-65671-562-0 01 1 9307- ●
96 SCREW; BLIND PNL
M6X16 W/LK&PL WASHER 		1-09981-141-0 01 1 9002- ● ●
141 PROTECTOR; EDGE
L=35 		1-73997-910-0 02 1 9002- ● ● ● ●
270 REINFORCEMENT; SIDE CLUSTER BEZEL 1-72557-053-2 01 1 9002- ● ● ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9002- ● ● ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 		1-71997-513-1 02 1 9002- ● ● ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-036-0 01 1 9002-9306 ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-084-0 01 1 9307- ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-037-0 01 1 9002-9306 ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72438-075-0 01 1 9307- ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9002- ● ● ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9002- ● ● ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72557-052-3 02 1 9002- ● ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9002-9306 ● ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73928-356-0 01 1 9307- ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ● ●
311 CLIP; DASH HARNESS,ELEC PANEL
MIXER TRUCK<RA2> ID=6.5 		8-94206-730-0 01 1 9002-9306 ● ●
336 COVER; INST PANEL SIDE 1-73997-623-0 01 1 9002- ● ●
336 COVER; INST PANEL SIDE 1-73997-745-0 01 1 9002- ● ●
337 FASTENER; COVER
BLACK 		8-94104-935-0 02 1 9407- ● ●
338 SCREW; COVER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ● ●
339 PANEL; FUSE BOX 1-73997-838-3 01 1 9002- ● ●
339 PANEL; FUSE BOX 1-73997-877-1 01 1 9002- ● ●
340 BOLT; FUSE BOX PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ● ● ●
351 STOPPER; CTR CONSOLE 1-09983-052-0 01 1 9002- ● ● ● ●
373 PLUG; BRKT HOLE,CONT UNIT
INTAKE HEATER<SL2> D4.7X11 		1-76378-154-0 01 1 9002- ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 03 1 9205-9306 ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 02 1 9307- ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 02 1 9208-9306 ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 01 1 9307- ●
381 CLIP; HARNESS
(A) 		5-09700-088-0 02 1 9002- ● ● ● ●
381 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 01 1 9307- ●
381 CLIP; HARNESS
(B) 1 SET=5 PIECE 		1-09987-214-0 01 1 9307- ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9002-9306 ● ● ● ●
393 FASTENER; GARNISH PANEL 1-09987-213-0 02 1 9307- ● ●
408 PLUG; DUMMY HOLE,INST PANEL 1-09987-112-0 01 1 9002- ● ● ● ●
481 BRACKET; POWER WINDOW,COMPARTMENT PANE
POWER WINDOW<A30> 		1-65671-397-1 01 1 9307- ●
496 PANEL; SHUTTER,SIDE SLUSTER BEZEL 1-72547-049-0 01 1 9002- ● ● ● ●

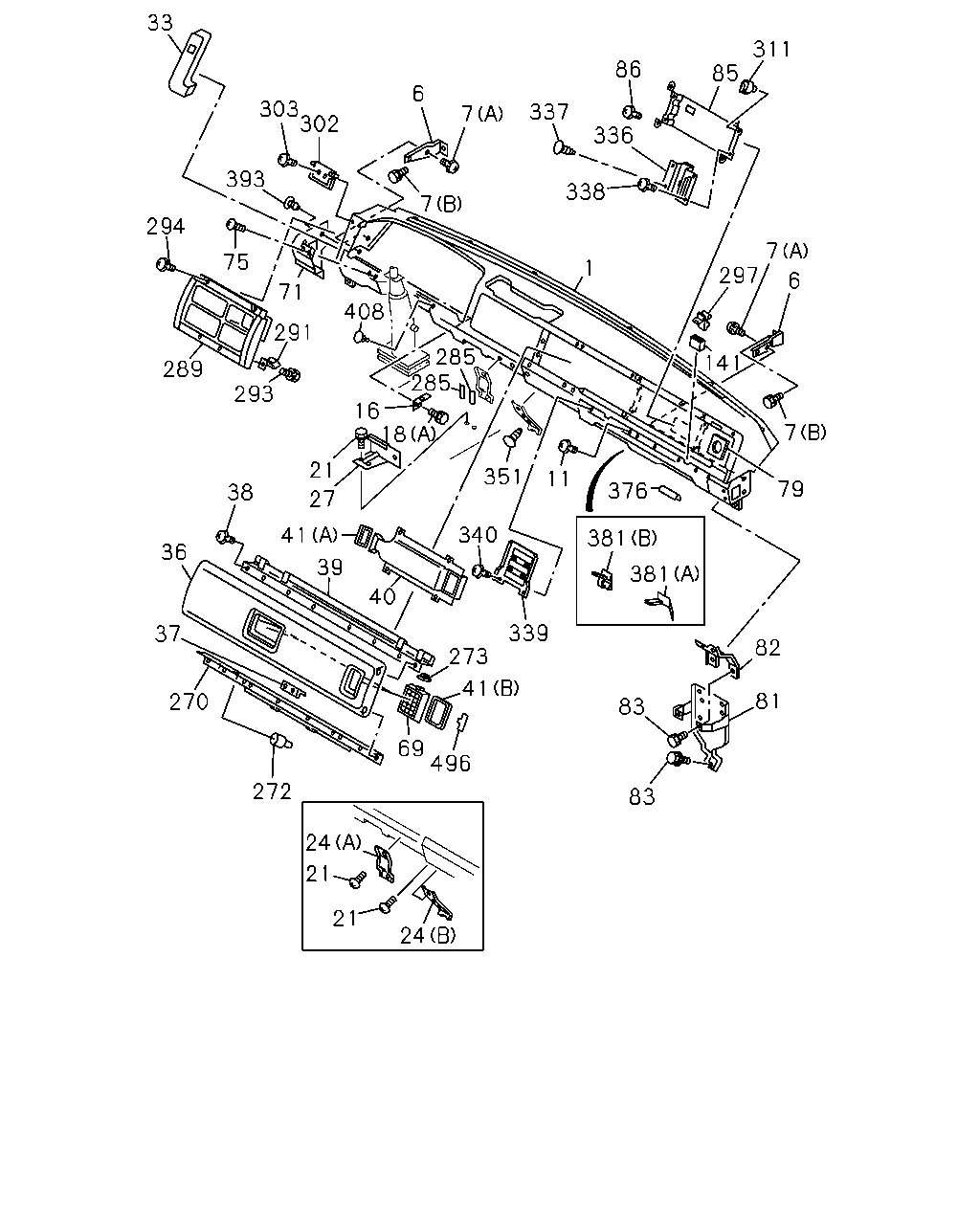

çizim 4576
24 21 21 24 272 270 37 36 38 21 27 41 39 40 340 339 273 41 496 69 83 83 81 82 381 381 376 11 351 18 16 285 285 408 291 293 289 75 71 294 393 303 302 33 6 7 7 337 338 1 336 86 85 311 7 297 6 141 7 79
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST 1-65671-334-1 01 1 9002-9306 ●
1 PANEL; INST
EXC. CAB SUSPENSION RIGID<W71> 		1-65671-334-1 01 1 9002-9306 ●
1 PANEL; INST 1-65671-542-0 01 1 9307- ●
1 PANEL; INST
CAB SUSPENSION RIGID<W71> 		1-65671-335-1 01 1 9002-9306 ●
1 PANEL; INST 1-65671-336-0 01 1 9002-9306 ● ●
1 PANEL; INST 1-65671-532-0 01 1 9307- ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9002- ● ● ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9002- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(A) M6X16 W/LK&PL WASHER 		1-09980-440-0 04 1 9002- ● ● ● ●
7 BOLT; SUPPORT,INST PNL
(B) M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002- ● ● ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 09 1 9002- ● ● ● ●
16 BRACKET; INST PNL
EXC. STEERING COLUMN WO/TILT<WV6> 		1-65670-595-1 01 1 9002- ● ● ● ●
16 BRACKET; INST PNL
STEERING COLUMN WO/TILT<WV6> 		1-65670-829-0 01 1 9002- ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-527-0 02 1 9002-9008 ● ● ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9009- ● ● ● ●
18 BOLT; BRKT
POWER WINDOW<A30> (B) M6X14 W/LK&PL WASHER 		8-94279-142-0 02 1 9307- ●
21 SCREW; STAY,INST
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ● ● ●
24 STAY; INST CLUSTER
(A) 		1-65670-609-3 01 1 9002- ● ● ● ●
24 STAY; INST CLUSTER
(B) 		1-65670-695-2 01 1 9002- ● ● ● ●
27 SUPPORT ASM; STAY "B" 1-65670-653-2 01 1 9002- ● ●
27 SUPPORT ASM; STAY "B" 1-65670-679-2 01 1 9002- ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-067-0 01 1 9002-9306 ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-072-0 01 1 9307- ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-068-0 01 1 9002-9306 ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-073-0 01 1 9307- ●
36 BEZEL; INST SIDE CLUSTER 1-72547-094-0 01 1 9002-9306 ● ● ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-110-0 01 1 9307- ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9002- ● ● ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ● ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72557-047-3 01 1 9002- ● ● ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76377-089-1 01 1 9002- ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9002- ● ● ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9002- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9002- ● ● ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-038-0 01 1 9002-9306 ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-078-0 01 1 9307- ●
71 GARNISH; INST CLUSTER SIDE 1-72437-039-0 01 1 9002-9306 ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-079-0 01 1 9307- ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ● ●
79 SEAL; SIDE DEFROSTER 1-76377-092-0 01 1 9002- ● ● ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-839-7 01 1 9002-9103 ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-235-0 01 1 9104- ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-786-6 01 1 9002- ● ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73998-409-7 01 1 9002- ● ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73997-802-0 01 1 9002- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9304 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		9-01960-620-0 03 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9205- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> M6X16 W/LK&PL WASHER 		0-50140-616-0 04 1 9205- ● ●
85 PANEL; ELEC 1-73997-523-7 01 1 9002- ● ● ● ●
86 BOLT; ELEC PNL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ● ● ●
141 PROTECTOR; EDGE
L=35 		1-73997-910-0 02 1 9002- ● ● ● ●
270 REINFORCEMENT; SIDE CLUSTER BEZEL 1-72557-053-2 01 1 9002- ● ● ● ●
272 CUSHION; SIDE CLUSTER BEZEL 1-72547-054-0 02 1 9002- ● ● ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9002- ● ● ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 		1-71997-513-1 02 1 9002- ● ● ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-036-0 01 1 9002-9306 ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-084-0 01 1 9307- ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-037-0 01 1 9002-9306 ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72438-075-0 01 1 9307- ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9002- ● ● ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9002- ● ● ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72557-052-3 02 1 9002- ● ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9002-9306 ● ● ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73928-356-0 01 1 9307- ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ● ● ●
311 CLIP; DASH HARNESS,ELEC PANEL
MIXER TRUCK<RA2> ID=6.5 		8-94206-730-0 01 1 9002-9306 ● ●
336 COVER; INST PANEL SIDE 1-73997-623-0 01 1 9002- ● ●
336 COVER; INST PANEL SIDE 1-73997-745-0 01 1 9002- ● ●
337 FASTENER; COVER
BLACK 		8-94104-935-0 02 1 9407- ● ●
338 SCREW; COVER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ● ● ●
339 PANEL; FUSE BOX 1-73997-838-3 01 1 9002- ● ●
339 PANEL; FUSE BOX 1-73997-877-1 01 1 9002- ● ●
340 BOLT; FUSE BOX PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ● ● ●
351 STOPPER; CTR CONSOLE 1-09983-052-0 01 1 9002- ● ● ● ●
376 FINISHER; QOS
INTAKE HEATER<SL2> L=120 SERVICED BY L=2040 		1-71997-513-1 01 1 9002- ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 03 1 9205-9306 ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 02 1 9307- ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 02 1 9208-9306 ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 01 1 9307- ●
381 CLIP; HARNESS
(A) 		5-09700-088-0 02 1 9002- ● ● ● ●
381 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) 1 SET=5 PIECE 		1-09987-214-0 01 1 9307- ●
381 CLIP; HARNESS
(B) 1 SET=5 PIECE 		1-09987-214-0 01 1 9307- ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9002-9306 ● ● ● ●
393 FASTENER; GARNISH PANEL 1-09987-213-0 02 1 9307- ● ●
408 PLUG; DUMMY HOLE,INST PANEL 1-09987-112-0 01 1 9002- ● ● ● ●
496 PANEL; SHUTTER,SIDE SLUSTER BEZEL 1-72547-049-0 01 1 9002- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
