6-01 — FRONT BUMPER (#30825) — 119 parça

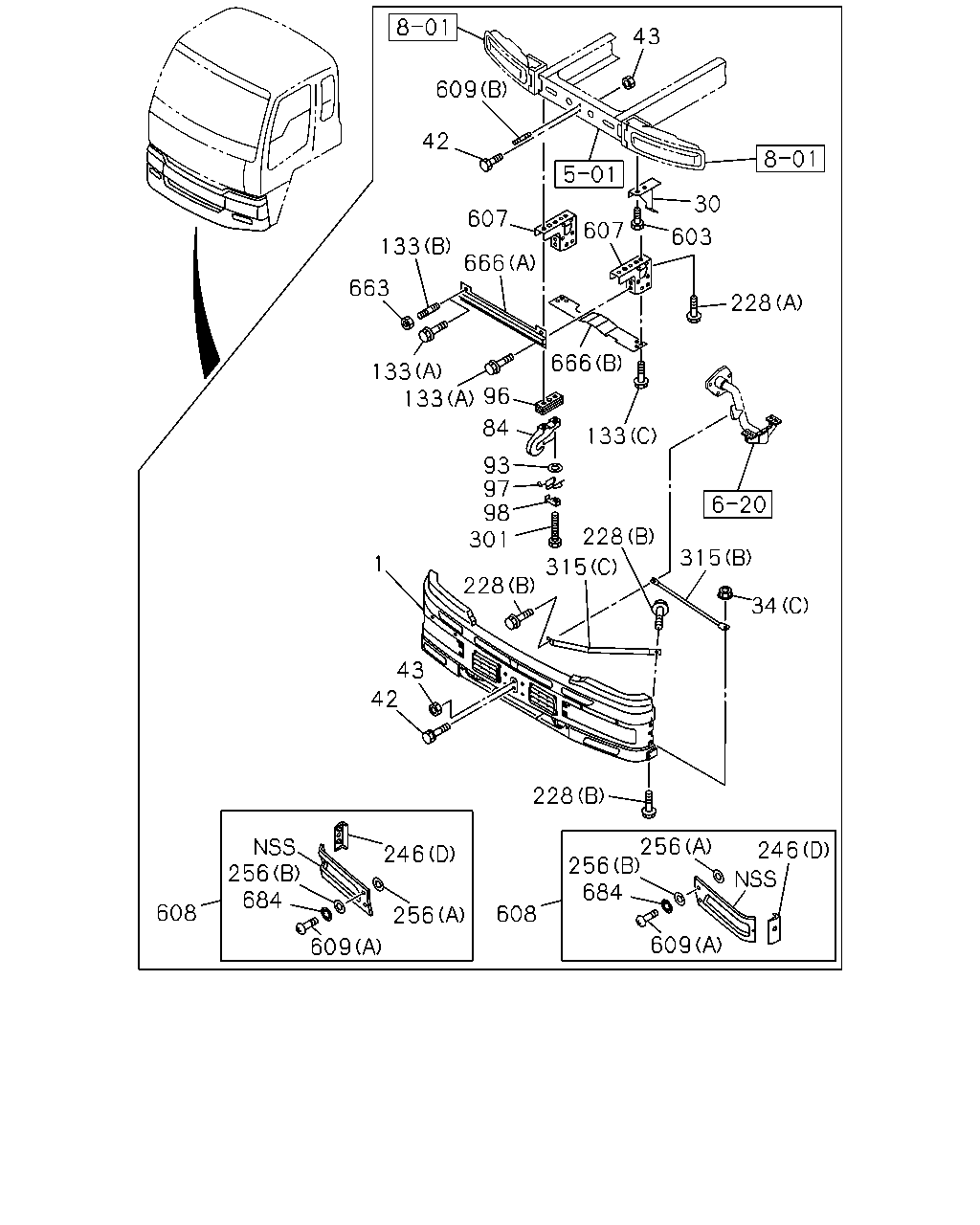

43 609 42 30 607 607 603 133 666 663 228 666 133 133 96 84 133 93 97 98 301 228 315 1 315 228 34 43 42 228 256 256 684 256 684 246 246 608 608 256 609 609

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT WHITE	1-71211-385-0	01	1	0511-0610
1	BUMPER ASM; FRT EXC. CHINA EQUIPMENT(YT2) WHITE	1-71211-427-1	01	1	0611-
1	BUMPER ASM; FRT CHINA EQUIPMENT(YT2) WHITE	1-71211-385-1	01	1	0611-0901
1	BUMPER ASM; FRT CHINA EQUIPMENT(YT2) WHITE	8-98139-028-0	01	1	0902-
30	BRACKET; FRT BUMPER	1-71230-638-0	01	1	0511-
30	BRACKET; FRT BUMPER	1-71230-639-0	01	1	0511-
34	NUT; BRKT,BUMPER (C) M8 FLANGE	0-91150-108-0	03	1	0511-0602
34	NUT; BRKT,BUMPER (C) M8 FLANGE	0-91180-108-0	03	1	0603-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	13	1	0511-0602
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	0603-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0511-
42	BOLT; BUMPER M10X30 W/LK&PL WASHER	8-94279-213-0	09	1	0511-
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91150-210-0	08	1	0511-0602
43	NUT; BRKT TO BUMPER M10 FLANGE	0-91180-210-0	03	1	0603-
43	NUT; BRKT TO BUMPER M10 CAP NUT	1-09650-480-0	01	1	0511-0602
84	HOOK	1-57181-027-1	01	1	0511-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	0511-0603
93	WASHER; LK,HOOK ID=16.2	0-91510-516-0	02	1	0604-
96	PLATE; DIST,HOOK	1-53497-595-0	01	1	0511-
97	SPRING; FRT HOOK	9-53519-003-0	01	1	0511-
98	STOPPER; SPR,FRT HOOK	9-53519-006-0	01	1	0511-
133	BOLT; PROTECTOR FIX (A) M12X40 FLANGE	0-28681-240-0	02	1	0511-0512
133	BOLT; PROTECTOR FIX (A) M12X40 FLANGE	0-28651-240-0	02	1	0601-0808
133	BOLT; PROTECTOR FIX (A) M12X40 FLANGE	0-28651-240-0	04	1	0809-
133	BOLT; PROTECTOR FIX (C) M12X25 FLANGE	0-28691-225-0	06	1	0511-0512
133	BOLT; PROTECTOR FIX (C) M12X25 FLANGE	0-28661-225-0	06	1	0601-1207
133	BOLT; PROTECTOR FIX (C) M12X30 FLANGE	0-28661-230-0	06	1	1208-
133	BOLT; PROTECTOR FIX (B) M12X40 L=56	1-09300-123-0	02	1	0511-0808
228	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	06	1	0511-0512
228	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	06	1	0601-
228	BOLT; BRKT (A) M16X40	9-92061-640-0	06	1	0511-0512
228	BOLT; BRKT (A) M16X40	0-20951-640-0	06	1	0601-
246	PROTECTOR; BUMPER CHINA EQUIPMENT(YT2) (D)	8-98139-104-1	01	1	0902-
246	PROTECTOR; BUMPER CHINA EQUIPMENT(YT2) (D)	8-98139-105-1	01	1	0902-
246	PROTECTOR; BUMPER (B)	1-71260-094-2	01	1	0511-
246	PROTECTOR; BUMPER (B)	1-71260-095-2	01	1	0511-
246	PROTECTOR; BUMPER (A)	1-71260-155-1	01	1	0511-
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	0511-
256	WASHER; PL (A)	1-71260-173-0	06	1	0511-
256	WASHER; PL (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	0511-
301	BOLT; HOOK TO FRAME M16X90	0-10811-690-0	01	1	0511-0512
301	BOLT; HOOK TO FRAME M16X90	0-10861-690-0	01	1	0601-
301	BOLT; HOOK TO FRAME M16X95	0-10811-695-0	01	1	0511-
315	STAY; BUMPER (C)	1-71230-434-0	01	1	0511-
315	STAY; BUMPER (B)	1-71230-492-0	01	1	0511-
315	STAY; BUMPER (C)	1-71230-624-0	01	1	0511-
315	STAY; BUMPER (B)	1-71230-625-0	01	1	0511-
315	STAY; BUMPER (A)	1-71230-636-0	01	1	0511-
315	STAY; BUMPER (A)	1-71230-637-0	01	1	0511-
603	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0511-0512
603	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-
607	BRACKET	8-97608-469-3	01	1	0511-
607	BRACKET	8-97608-470-3	01	1	0511-
608	LID; BUMPER BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2)	8-98138-788-3	01	1	0902-
608	LID; BUMPER BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2)	8-98138-789-3	01	1	0902-
608	LID; BUMPER BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2)	8-98139-037-3	01	1	0902-
608	LID; BUMPER BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2)	8-98139-038-3	01	1	0902-
608	LID; BUMPER	1-71211-284-0	01	1	0511-0901
608	LID; BUMPER	1-71211-285-0	01	1	0511-0901
608	LID; BUMPER EXC. CHINA EQUIPMENT(YT2)	1-71211-284-0	01	1	0902-
608	LID; BUMPER EXC. CHINA EQUIPMENT(YT2)	1-71211-285-0	01	1	0902-
609	STUD; BUMPER (A)	1-71260-175-0	06	1	0511-
609	STUD; BUMPER (B) M10X28,M10X15 L=50	5-09300-050-0	01	1	0511-
663	NUT M12 FLANGE	0-91150-212-0	02	1	0511-0602
663	NUT M12 FLANGE	0-91180-212-0	02	1	0603-0808
666	PROTECTOR; UNDER CONCRETE PUMP<RA5> CHINA EQUIPMENT(YT2) (B)	8-98210-493-0	01	1	1208-
666	PROTECTOR; UNDER (B)	8-97608-467-1	01	1	0511-1107
666	PROTECTOR; UNDER CHINA EQUIPMENT(YT2) EXC. CONCRETE PUMP<RA5> (B)	8-97608-467-1	01	1	1108-
666	PROTECTOR; UNDER EXC. CHINA EQUIPMENT(YT2) (B)	8-97608-467-1	01	1	1108-
666	PROTECTOR; UNDER (A)	8-97608-471-0	01	1	0511-
684	WASHER CHINA EQUIPMENT(YT2)	8-98148-221-0	06	1	0906-

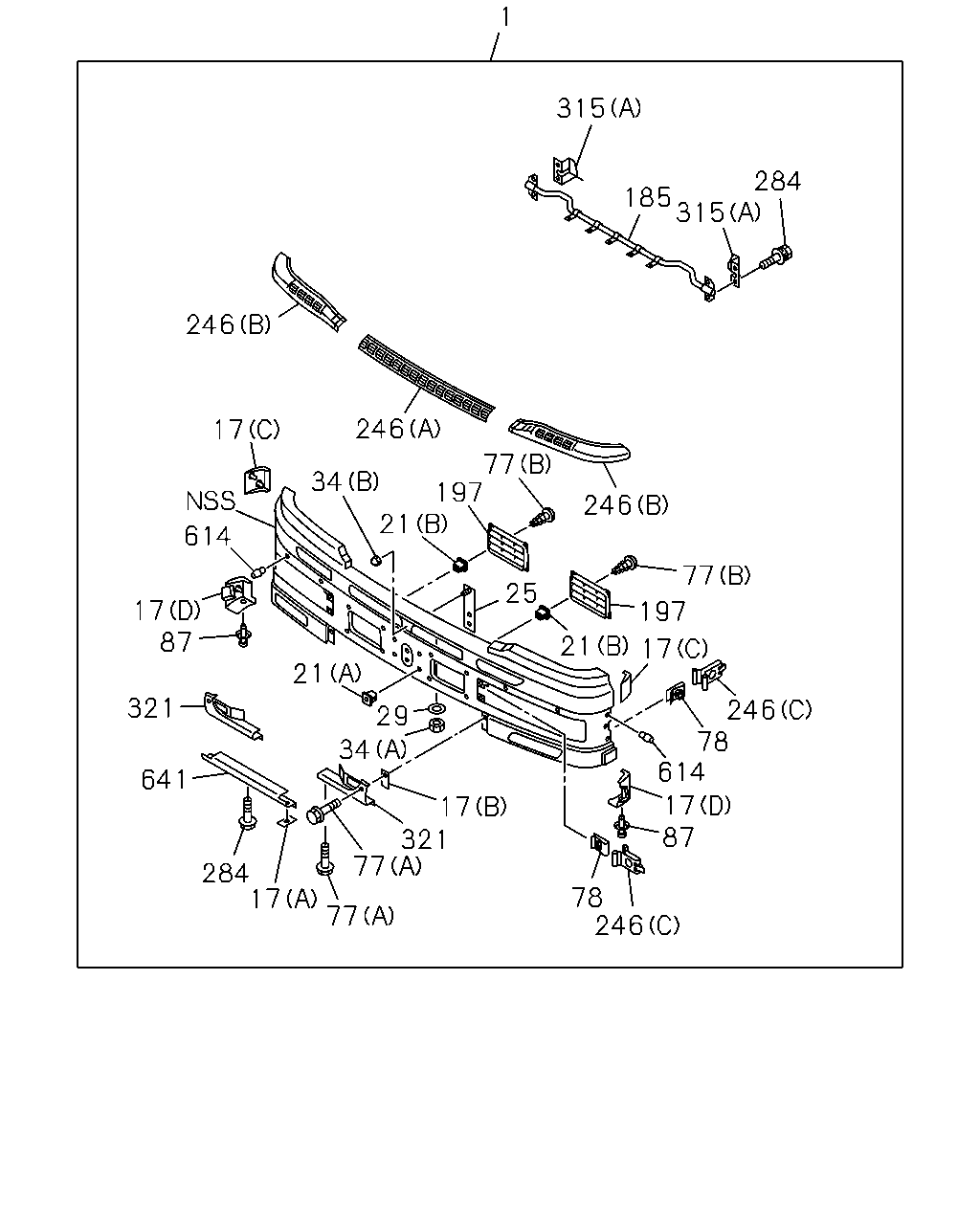

1 315 284 185 315 246 246 17 77 197 21 34 246 614 77 25 17 87 197 21 17 21 29 321 246 78 614 34 641 17 87 17 321 77 284 17 78 246 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT WHITE	1-71211-385-0	01	1	0511-0610
1	BUMPER ASM; FRT EXC. CHINA EQUIPMENT(YT2) WHITE	1-71211-427-1	01	1	0611-
1	BUMPER ASM; FRT CHINA EQUIPMENT(YT2) WHITE	1-71211-385-1	01	1	0611-0901
1	BUMPER ASM; FRT CHINA EQUIPMENT(YT2) WHITE	8-98139-028-0	01	1	0902-
17	PROTECTOR; FRT BUMPER CHINA EQUIPMENT(YT2) (C)	8-98139-102-1	01	1	0902-
17	PROTECTOR; FRT BUMPER CHINA EQUIPMENT(YT2) (C)	8-98139-103-1	01	1	0902-
17	PROTECTOR; FRT BUMPER CHINA EQUIPMENT(YT2) (D)	8-98139-106-2	01	1	0902-
17	PROTECTOR; FRT BUMPER CHINA EQUIPMENT(YT2) (D)	8-98139-107-2	01	1	0902-
17	PROTECTOR; FRT BUMPER (A)	1-71260-185-0	02	1	0511-
17	PROTECTOR; FRT BUMPER (B)	1-71260-277-0	02	1	0511-
21	GROMMET; SCREW,BUMPER PROTECTOR (B) D=9X9 L=7 M5	8-94163-979-0	08	1	0511-
21	GROMMET; SCREW,BUMPER PROTECTOR (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0511-
25	SPACER; PLATFORM	1-71230-640-0	01	1	0511-
29	WASHER; FRT BUMPER ID=8.4 OD=22	9-09160-708-0	13	1	0511-0605
29	WASHER; FRT BUMPER ID=8.4 OD=22	0-91610-708-0	13	1	0606-
34	NUT; BRKT,BUMPER (C) M8 FLANGE	0-91150-108-0	03	1	0511-0602
34	NUT; BRKT,BUMPER (C) M8 FLANGE	0-91180-108-0	03	1	0603-
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91150-108-0	13	1	0511-0602
34	NUT; BRKT,BUMPER (A) M8 FLANGE	0-91180-108-0	13	1	0603-
34	NUT; BRKT,BUMPER (B) M10 CAP NUT	1-09650-480-0	01	1	0511-
77	SCREW; BRKT (A) M8X20 W/PL WASHER	1-71260-184-0	06	1	0511-
77	SCREW; BRKT (B) M5X16 TAPPING	9-07076-516-0	08	1	0511-0603
77	SCREW; BRKT (B) M5X16 TAPPING	0-71240-516-0	08	1	0604-
78	NUT; SPIRE	1-71260-174-0	06	1	0511-
87	RIVET; POP,FRT BUMPER CHINA EQUIPMENT(YT2) D8X13.5	1-09987-248-1	02	1	0902-
185	BRACKET; BUMPER,INNER	1-71230-610-0	01	1	0511-
197	GRILLE; BUMPER	1-71260-115-1	01	1	0511-
197	GRILLE; BUMPER	1-71260-116-1	01	1	0511-
246	PROTECTOR; BUMPER CHINA EQUIPMENT(YT2) (D)	8-98139-104-1	01	1	0902-
246	PROTECTOR; BUMPER CHINA EQUIPMENT(YT2) (D)	8-98139-105-1	01	1	0902-
246	PROTECTOR; BUMPER (B)	1-71260-094-2	01	1	0511-
246	PROTECTOR; BUMPER (B)	1-71260-095-2	01	1	0511-
246	PROTECTOR; BUMPER (A)	1-71260-155-1	01	1	0511-
246	PROTECTOR; BUMPER (C)	1-71260-162-0	06	1	0511-
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	0511-0512
284	BOLT; BRKT M8X20 W/LK&PL WASHER	0-50640-820-0	03	1	0601-
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0511-0512
284	BOLT; BRKT M8X25 W/LK&PL WASHER	0-50640-825-0	04	1	0601-
315	STAY; BUMPER (C)	1-71230-434-0	01	1	0511-
315	STAY; BUMPER (B)	1-71230-492-0	01	1	0511-
315	STAY; BUMPER (C)	1-71230-624-0	01	1	0511-
315	STAY; BUMPER (B)	1-71230-625-0	01	1	0511-
315	STAY; BUMPER (A)	1-71230-636-0	01	1	0511-
315	STAY; BUMPER (A)	1-71230-637-0	01	1	0511-
321	COVER; BUMPER FRT SIDE	1-71260-263-0	01	1	0511-
321	COVER; BUMPER FRT SIDE	1-71260-264-0	01	1	0511-
614	STOPPER; LID	1-71260-163-0	12	1	0511-
641	BUMPER; FRT,LWR	1-71211-304-1	01	1	0511-
