Isuzu WW
▶
TRUCKS
▶
CYH
▶
11010 - CYH LHD WITH 2STEPS
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

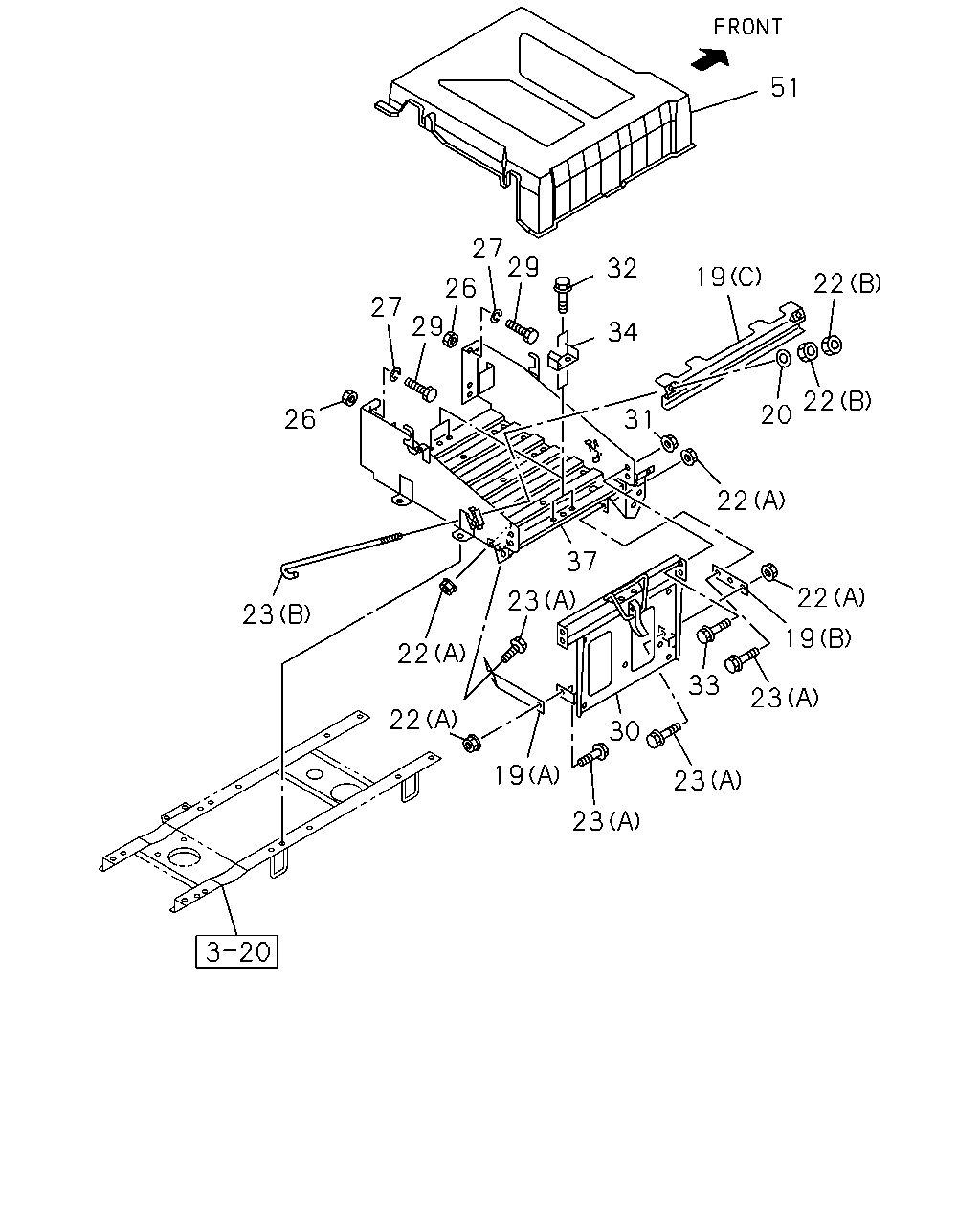

5-20 — BATTERY CARRIER
(#30823) — 28 parça
51
27
29
32
19
22
26
27
29
34
22
20
26
31
22
37
22
23
23
19
22
33
23
22
30
19
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
(B)
1-47479-118-0
01
1
0511-
19
STAY; BATTERY
(A)
1-47479-874-0
01
1
0511-
19
STAY; BATTERY
(C)
1-53618-039-2
01
1
0511-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
0511-0605
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
22
NUT; STAY
(A) M8 FLANGE
0-91150-108-0
04
1
0511-0602
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
04
1
0603-0702
22
NUT; STAY
(A) M8 FLANGE
0-91180-108-0
02
1
0703-
22
NUT; STAY
(B) M8
9-09110-408-0
04
1
0511-0512
22
NUT; STAY
(B) M8
0-91110-508-0
04
1
0601-
23
BOLT; STAY
(A) M8X20 FLANGE
0-28680-820-0
04
1
0511-0512
23
BOLT; STAY
(A) M8X20 FLANGE
0-28650-820-0
04
1
0601-
23
BOLT; STAY
(B) L=250
1-53616-108-0
02
1
0511-
26
NUT; BRKT
M14
1-09440-072-0
02
1
0511-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
0511-0603
27
WASHER; LK,BRKT
ID=14.2
0-91510-514-0
04
1
0604-
29
BOLT; BRKT TO FRAME
M14X45
1-09000-764-0
02
1
0511-
30
PLATE; BATTERY
1-53619-148-1
01
1
0511-
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
0511-0602
31
NUT; PLATE
M8 FLANGE
0-91180-108-0
04
1
0603-
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28080-816-0
04
1
0511-0512
32
BOLT; PLATE TO SPACER
BATTERY 115F51 N120<SJ3> M8X16 FLANGE
0-28050-816-0
04
1
0601-
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0511-0512
33
BOLT; PLATE TO BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0601-1007
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1008-
34
SPACER; BATTERY BRKT
BATTERY 115F51 N120<SJ3>
1-53619-084-0
02
1
0511-
37
BRACKET; BATTERY
1-53610-161-3
01
1
0511-
51
COVER; BATTERY
1-53612-068-0
01
1
0511-
