5-01 — FRAME AND OTHER PARTS (#30818) — 187 parça

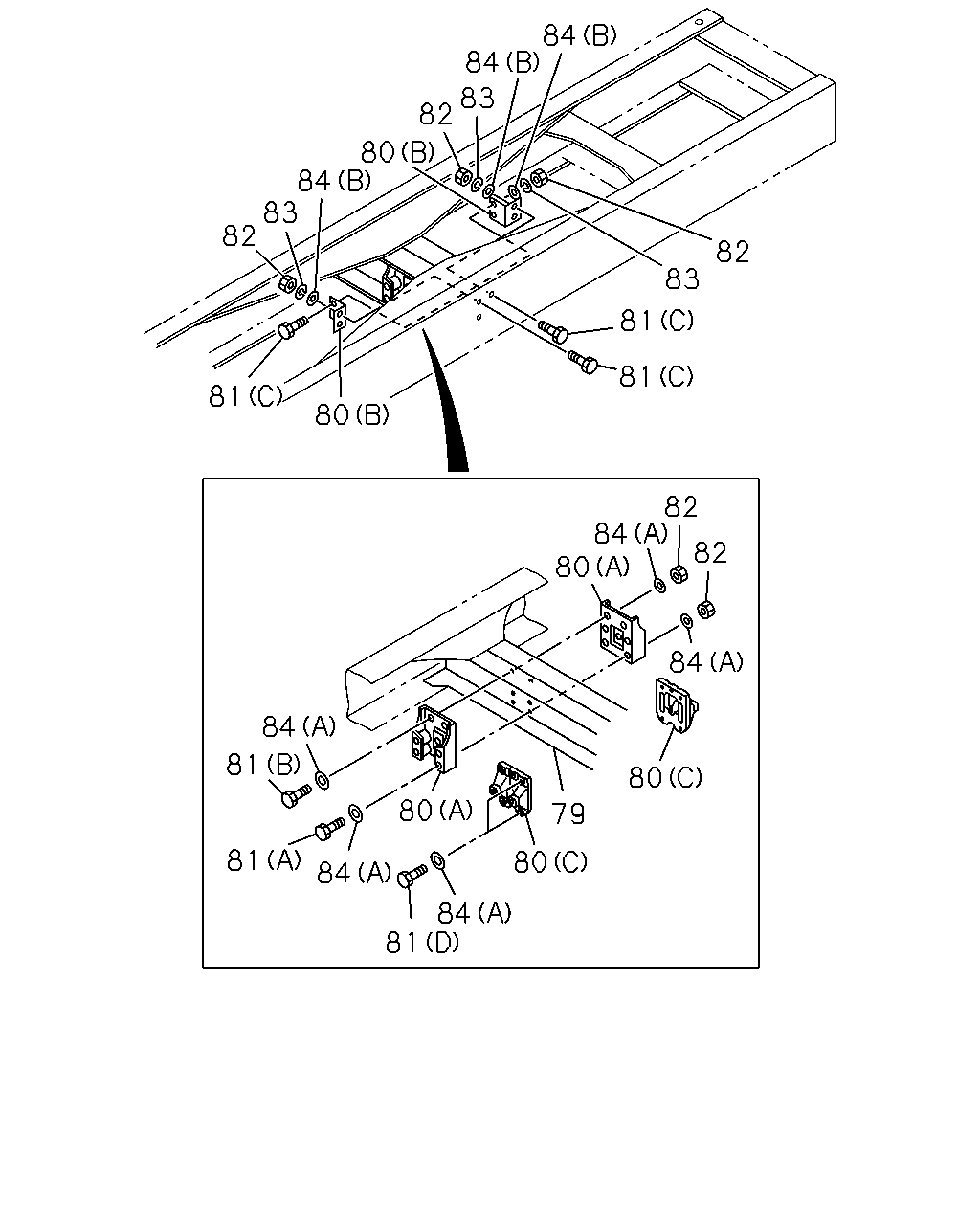

84 84 83 82 80 84 83 82 82 83 81 81 81 80 82 84 80 82 84 84 81 80 80 79 81 80 84 84 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0511-	●	●	●
80	BRACKET; C/MBR LOW DECK WO/REAR BODY VAR2<XR8> (C)	1-53363-076-0	02	1	0912-			●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0511-0911	●	●	●
80	BRACKET; C/MBR (A)	1-53363-031-2	02	1	0912-	●	●
80	BRACKET; C/MBR EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A)	1-53363-031-2	02	1	0912-			●
80	BRACKET; C/MBR (B)	1-53167-288-1	04	1	0511-	●	●	●
81	BOLT; BRKT LOW DECK WO/REAR BODY VAR2<XR8> (D) M14X100	0-10956-400-0	04	1	0912-			●
81	BOLT; BRKT LOW DECK WO/REAR BODY VAR2<XR8> (E) M14X50	0-20951-450-0	05	1	0912-			●
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	0511-0911	●	●	●
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	0912-	●	●
81	BOLT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M14X205	1-09000-147-0	02	1	0912-			●
81	BOLT; BRKT (B) M14X50	9-92061-450-0	02	1	0511-0512	●	●	●
81	BOLT; BRKT (B) M14X50	0-20951-450-0	02	1	0601-0911	●	●	●
81	BOLT; BRKT (B) M14X50	0-20951-450-0	02	1	0912-	●	●
81	BOLT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M14X50	0-20951-450-0	02	1	0912-			●
81	BOLT; BRKT (C) M14X55	9-91066-455-0	04	1	0511-	●	●	●
81	BOLT; BRKT (C) M14X45	9-92061-445-0	08	1	0511-	●	●	●
82	NUT; BRKT LOW DECK WO/REAR BODY VAR2<XR8> M14	0-91110-514-0	13	1	0912-			●
82	NUT; BRKT M14	9-99110-514-0	08	1	0511-0512	●	●	●
82	NUT; BRKT M14	0-91110-514-0	08	1	0601-0911	●	●	●
82	NUT; BRKT M14	0-91110-514-0	08	1	0912-	●	●
82	NUT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> M14	0-91110-514-0	08	1	0912-			●
82	NUT; BRKT M14	9-99110-514-0	12	1	0511-0512	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	0601-	●	●	●
83	WASHER; LK,BRKT ID=14.2	9-09150-614-0	12	1	0511-0603	●	●	●
83	WASHER; LK,BRKT ID=14.2	0-91510-614-0	12	1	0604-	●	●	●
84	WASHER; PL,BRKT LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=15	8-98010-627-1	08	1	0912-1201			●
84	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	08	1	1202-	●	●	●
84	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	08	1	0511-0911	●	●	●
84	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	08	1	0912-1201	●	●
84	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=15	9-09651-069-0	08	1	0912-1201			●
84	WASHER; PL,BRKT (B) ID=15 OD=26	9-09164-514-0	16	1	0511-1104	●	●	●
84	WASHER; PL,BRKT (B) ID=15 OD=26	0-91614-514-0	16	1	1105-	●	●	●

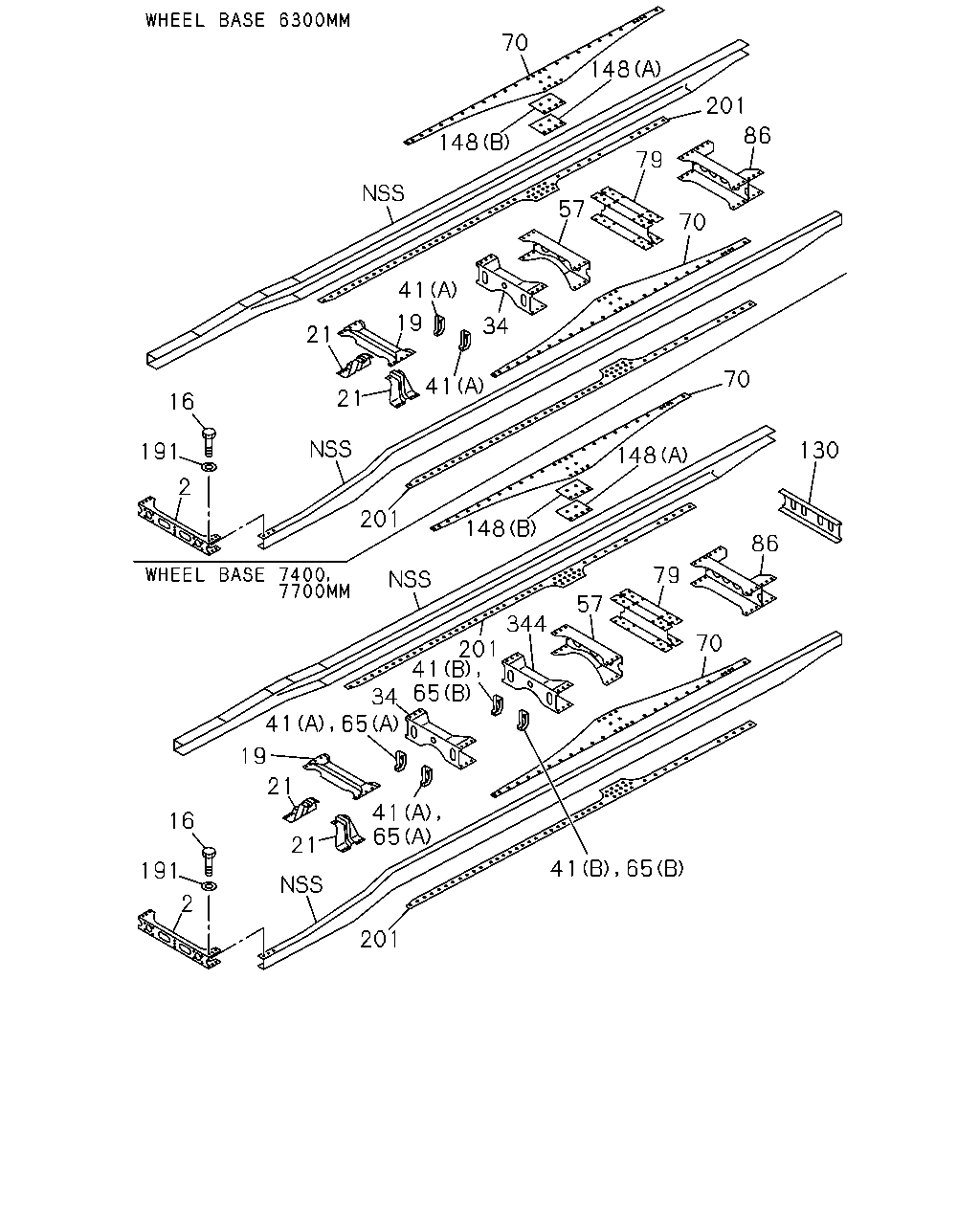

148 70 148 201 86 79 57 70 41 19 34 21 70 41 21 16 148 130 191 148 2 201 86 344 41 34 65 65 79 57 70 41 19 21 41 65 16 21 191 2 41 65 201 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53181-975-7	01	1	0511-	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	9-92061-440-0	02	1	0511-0512	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X40	0-20951-440-0	02	1	0601-	●	●	●
19	MEMBER; CROSS,2ND	1-53174-221-0	01	1	0511-	●	●	●
21	GUSSET; 2ND CROSS	1-53164-208-0	02	1	0511-	●	●	●
34	MEMBER; CROSS,3RD	1-53182-070-1	01	1	0511-	●	●	●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=325	1-53271-341-0	02	1	0511-	●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=330	1-53271-263-2	02	1	0511-0911		●	●
41	BRACKET; CENTER BRG,FRAME SIDE (A) L=330	1-53271-263-2	02	1	0912-		●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) L=330	1-53271-263-2	02	1	0912-			●
41	BRACKET; CENTER BRG,FRAME SIDE (B) L=360	1-53271-357-0	02	1	0511-0911		●	●
41	BRACKET; CENTER BRG,FRAME SIDE (B) L=360	1-53271-357-0	02	1	0912-		●
41	BRACKET; CENTER BRG,FRAME SIDE EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) L=360	1-53271-357-0	02	1	0912-			●
57	MEMBER; CROSS,RR SUSP FRT	1-53171-685-3	01	1	0511-	●	●	●
65	BRACKET; CENTER BRG LOW DECK WO/REAR BODY VAR2<XR8> (A)	8-97614-134-0	02	1	0912-			●
65	BRACKET; CENTER BRG LOW DECK WO/REAR BODY VAR2<XR8> (B)	8-97623-393-0	02	1	0912-			●
70	GUSSET; TRUNNION,UPR	1-53182-092-1	02	1	0511-	●
70	GUSSET; TRUNNION,UPR	1-53161-930-1	02	1	0511-		●
70	GUSSET; TRUNNION,UPR	1-53161-913-1	02	1	0511-			●
79	MEMBER; CROSS,TRUNNION ASM	1-53182-054-1	01	1	0511-	●	●	●
86	MEMBER; CROSS,RR SUSP RR	1-53181-134-2	01	1	0511-	●	●	●
130	MEMBER; CROSS,END	1-53171-876-4	01	1	0511-		●	●
148	SPACER; C/MBR (A) T=7.0	1-53168-486-0	02	1	0511-	●	●	●
148	SPACER; C/MBR (B) T=8.0	1-53168-508-0	02	1	0511-	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR LOW DECK WO/REAR BODY VAR2<XR8> ID=15	8-98010-627-1	02	1	0912-1201			●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	8-98010-627-1	02	1	1202-	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0511-0911	●	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR ID=15	9-09651-069-0	02	1	0912-1201	●	●
191	WASHER; PL,1ST C/MBR TO S/MBR EXC. LOW DECK WO/REAR BODY VAR2<XR8> ID=15	9-09651-069-0	02	1	0912-1201			●
201	GUSSET; C/MBR	1-53161-931-1	02	1	0511-		●
201	GUSSET; C/MBR	1-53182-057-1	02	1	0511-	●
201	GUSSET; C/MBR	1-53161-914-1	02	1	0511-			●
344	MEMBER; CROSS,4TH	1-53182-070-1	01	1	0511-		●	●

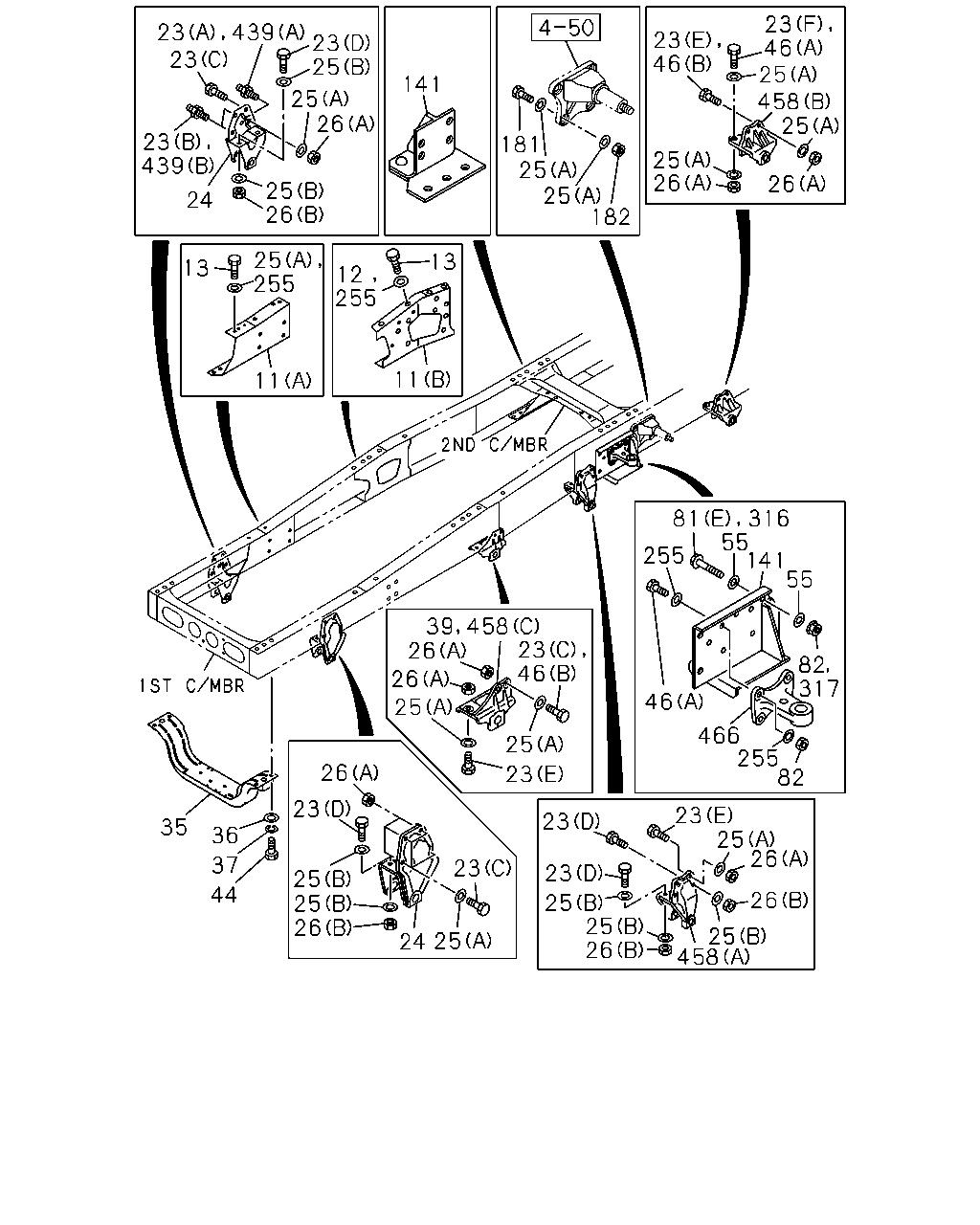

23 46 25 458 25 23 23 25 23 46 141 25 26 23 439 181 25 25 25 26 26 25 26 182 24 25 255 13 13 12 255 11 11 55 141 55 255 26 23 46 82 317 26 25 46 466 255 82 25 26 23 23 23 25 26 23 35 36 37 23 23 25 25 26 44 26 25 25 26 25 458 81 316 39 458 23 439 24 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (B)	1-53239-139-1	01	1	0511-	●
11	BRACKET; ENG MTG (B)	1-53239-140-1	01	1	0511-	●
11	BRACKET; ENG MTG (A)	1-53211-399-0	01	1	0511-	●	●	●
11	BRACKET; ENG MTG (A)	1-53211-400-0	01	1	0511-	●	●	●
11	BRACKET; ENG MTG (B)	1-53239-141-1	01	1	0511-		●	●
11	BRACKET; ENG MTG (B)	1-53239-142-1	01	1	0511-		●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0511-0911	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	02	1	0912-1201	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. LOW DECK WO/REAR BODY VAR2<XR8> ID=15	9-09651-069-0	02	1	0912-1201			●
12	WASHER; PL,BRKT,ENG MTG ID=15	8-98010-627-1	02	1	1202-	●	●
12	WASHER; PL,BRKT,ENG MTG EXC. LOW DECK WO/REAR BODY VAR2<XR8> ID=15	8-98010-627-1	02	1	1202-			●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	06	1	0511-0512	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	06	1	0601-	●	●	●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY VAR2<XR8> (C) M14X40	0-20951-440-0	05	1	0912-			●
23	BOLT; BRKT,SPR LOW DECK WO/REAR BODY VAR2<XR8> (E) M14X50	0-20951-450-0	04	1	0912-			●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	01	1	0511-0911	●	●	●
23	BOLT; BRKT,SPR (A) M12X35,M14X45 L=100	1-09029-075-0	01	1	0912-	●	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M12X35,M14X45 L=100	1-09029-075-0	01	1	0912-			●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0511-0911	●	●	●
23	BOLT; BRKT,SPR (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0912-	●	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0912-			●
23	BOLT; BRKT,SPR (C) M14X40	9-92061-440-0	09	1	0511-0512	●	●	●
23	BOLT; BRKT,SPR (C) M14X40	0-20951-440-0	09	1	0601-0911	●	●	●
23	BOLT; BRKT,SPR (C) M14X40	0-20951-440-0	09	1	0912-	●	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY VAR2<XR8> (C) M14X40	0-20951-440-0	09	1	0912-			●
23	BOLT; BRKT,SPR (E) M14X50	9-92061-450-0	12	1	0511-0512	●	●	●
23	BOLT; BRKT,SPR (E) M14X50	0-20951-450-0	12	1	0601-0911	●	●	●
23	BOLT; BRKT,SPR (E) M14X50	0-20951-450-0	12	1	0912-	●	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY VAR2<XR8> (E) M14X50	0-20951-450-0	12	1	0912-			●
23	BOLT; BRKT,SPR (F) M14X60	9-92061-460-0	04	1	0511-0512	●	●	●
23	BOLT; BRKT,SPR (F) M14X60	0-20951-460-0	04	1	0601-0911	●	●	●
23	BOLT; BRKT,SPR (F) M14X60	0-20951-460-0	04	1	0912-	●	●
23	BOLT; BRKT,SPR EXC. LOW DECK WO/REAR BODY VAR2<XR8> (F) M14X60	0-20951-460-0	04	1	0912-			●
23	BOLT; BRKT,SPR (D) M16X50	9-92061-650-0	12	1	0511-0512	●	●	●
23	BOLT; BRKT,SPR (D) M16X50	0-20951-650-0	12	1	0601-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-237-1	01	1	0511-	●	●	●
24	BRACKET; FRT SPR,FRT	1-53351-238-1	01	1	0511-	●	●	●
25	WASHER; PL,BRKT LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=16.2	1-09503-316-0	20	1	0912-			●
25	WASHER; PL,BRKT LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=15	8-98010-627-1	48	1	0912-			●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0511-0911	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-223-0	20	1	0912-	●	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) ID=16.2	1-09503-223-0	20	1	0912-			●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	52	1	0511-0911	●	●	●
25	WASHER; PL,BRKT (A) ID=15	9-09651-069-0	52	1	0912-1201	●	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=15	9-09651-069-0	52	1	0912-1201			●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	52	1	1202-	●	●
25	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) ID=15	8-98010-627-1	52	1	1202-			●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0511-0512		●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	12	1	0601-	●	●	●
26	NUT; BRKT,SPR (A) M14	9-99110-514-0	24	1	0511-0512	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	24	1	0601-	●	●	●
26	NUT; BRKT,SPR (B) M16	9-99110-516-0	12	1	0511-0512	●		●
35	MEMBER; UNDER	1-53174-263-2	01	1	0511-	●	●	●
36	WASHER; PL,UNDER MBR ID=17	9-09164-516-0	04	1	0511-	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	9-09150-816-0	04	1	0511-0603	●	●	●
37	WASHER; LK,UNDER MBR ID=16.2	0-91510-816-0	04	1	0604-	●	●	●
39	BRACKET; FRT SPR,RR LOW DECK WO/REAR BODY VAR2<XR8>	1-53352-179-0	01	1	0912-			●
39	BRACKET; FRT SPR,RR LOW DECK WO/REAR BODY VAR2<XR8>	1-53352-180-0	01	1	0912-			●
44	BOLT; UNDER MBR M16X60	9-92061-660-0	04	1	0511-0512	●	●	●
44	BOLT; UNDER MBR M16X60	0-20951-660-0	04	1	0601-	●	●	●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY VAR2<XR8> (B) M14X50	0-20951-450-0	12	1	0912-			●
46	BOLT; BRKT FIX LOW DECK WO/REAR BODY VAR2<XR8> (A) M14X60	0-20951-460-0	08	1	0912-			●
46	BOLT; BRKT FIX (A) M14X60	9-92061-460-0	04	1	0511-0512	●	●	●
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	0601-0911	●	●	●
46	BOLT; BRKT FIX (A) M14X60	0-20951-460-0	04	1	0912-	●	●
46	BOLT; BRKT FIX EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M14X60	0-20951-460-0	04	1	0912-			●
55	WASHER; PL LOW DECK WO/REAR BODY VAR2<XR8> ID=15	8-98010-627-1	10	1	0912-1201			●
55	WASHER; PL ID=15	8-98010-627-1	10	1	1202-	●	●	●
55	WASHER; PL ID=15	9-09651-069-0	10	1	0511-0911	●	●	●
55	WASHER; PL ID=15	9-09651-069-0	10	1	0912-1201	●	●
55	WASHER; PL EXC. LOW DECK WO/REAR BODY VAR2<XR8> ID=15	9-09651-069-0	10	1	0912-1201			●
81	BOLT; BRKT LOW DECK WO/REAR BODY VAR2<XR8> (D) M14X100	0-10956-400-0	04	1	0912-			●
81	BOLT; BRKT LOW DECK WO/REAR BODY VAR2<XR8> (E) M14X50	0-20951-450-0	05	1	0912-			●
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	0511-0911	●	●	●
81	BOLT; BRKT (A) M14X205	1-09000-147-0	02	1	0912-	●	●
81	BOLT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) M14X205	1-09000-147-0	02	1	0912-			●
81	BOLT; BRKT (B) M14X50	9-92061-450-0	02	1	0511-0512	●	●	●
81	BOLT; BRKT (B) M14X50	0-20951-450-0	02	1	0601-0911	●	●	●
81	BOLT; BRKT (B) M14X50	0-20951-450-0	02	1	0912-	●	●
81	BOLT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> (B) M14X50	0-20951-450-0	02	1	0912-			●
81	BOLT; BRKT (C) M14X55	9-91066-455-0	04	1	0511-	●	●	●
81	BOLT; BRKT (C) M14X45	9-92061-445-0	08	1	0511-	●	●	●
82	NUT; BRKT LOW DECK WO/REAR BODY VAR2<XR8> M14	0-91110-514-0	13	1	0912-			●
82	NUT; BRKT M14	9-99110-514-0	08	1	0511-0512	●	●	●
82	NUT; BRKT M14	0-91110-514-0	08	1	0601-0911	●	●	●
82	NUT; BRKT M14	0-91110-514-0	08	1	0912-	●	●
82	NUT; BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> M14	0-91110-514-0	08	1	0912-			●
82	NUT; BRKT M14	9-99110-514-0	12	1	0511-0512	●	●	●
82	NUT; BRKT M14	0-91110-514-0	12	1	0601-	●	●	●
141	STIFFENER	1-53151-699-0	01	1	0511-	●	●	●
141	STIFFENER	1-53151-700-0	01	1	0511-	●	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	9-92061-450-0	08	1	0511-0512	●	●	●
181	BOLT; S/ABS BRKT TO FRAME M14X50	0-20951-450-0	08	1	0601-	●	●	●
182	NUT; S/ABS BRKT TO FRAME M14	9-99110-514-0	08	1	0511-0512	●	●	●
182	NUT; S/ABS BRKT TO FRAME M14	0-91110-514-0	08	1	0601-	●	●	●
255	WASHER; PL,BRKT LOW DECK WO/REAR BODY VAR2<XR8> ID=15	8-98010-627-1	14	1	0912-			●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0511-0911	●	●	●
255	WASHER; PL,BRKT ID=15	9-09651-069-0	08	1	0912-1201	●	●
255	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> ID=15	9-09651-069-0	08	1	0912-1201			●
255	WASHER; PL,BRKT ID=15	8-98010-627-1	08	1	1202-	●	●
255	WASHER; PL,BRKT EXC. LOW DECK WO/REAR BODY VAR2<XR8> ID=15	8-98010-627-1	08	1	1202-			●
316	BOLT; STIFFENER M14X50	9-92061-450-0	05	1	0511-0512	●	●	●
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0601-0911	●	●	●
316	BOLT; STIFFENER M14X50	0-20951-450-0	05	1	0912-	●	●
316	BOLT; STIFFENER EXC. LOW DECK WO/REAR BODY VAR2<XR8> M14X50	0-20951-450-0	05	1	0912-			●
317	NUT; STIFFENER M14	9-99110-514-0	05	1	0511-0512	●	●	●
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0601-0911	●	●	●
317	NUT; STIFFENER M14	0-91110-514-0	05	1	0912-	●	●
317	NUT; STIFFENER EXC. LOW DECK WO/REAR BODY VAR2<XR8> M14	0-91110-514-0	05	1	0912-			●
439	STUD; BRKT,SPR LOW DECK WO/REAR BODY VAR2<XR8> (A) M12X35,M14X45 L=100	1-09029-075-0	01	1	0912-			●
439	STUD; BRKT,SPR LOW DECK WO/REAR BODY VAR2<XR8> (B) M12X25,M14X45 L=81	1-09029-103-0	02	1	0912-			●
458	BRACKET; LEAF SPRING (A)	1-53351-217-0	01	1	0511-	●	●	●
458	BRACKET; LEAF SPRING (A)	1-53351-218-0	01	1	0511-	●	●	●
458	BRACKET; LEAF SPRING (B)	1-53352-067-3	02	1	0511-	●	●	●
458	BRACKET; LEAF SPRING (C)	1-53352-179-0	01	1	0511-0911	●	●	●
458	BRACKET; LEAF SPRING (C)	1-53352-179-0	01	1	0912-	●	●
458	BRACKET; LEAF SPRING EXC. LOW DECK WO/REAR BODY VAR2<XR8> (C)	1-53352-179-0	01	1	0912-			●
458	BRACKET; LEAF SPRING (C)	1-53352-180-0	01	1	0511-0911	●	●	●
458	BRACKET; LEAF SPRING (C)	1-53352-180-0	01	1	0912-	●	●
458	BRACKET; LEAF SPRING EXC. LOW DECK WO/REAR BODY VAR2<XR8> (C)	1-53352-180-0	01	1	0912-			●
466	BRACKET; BOOSTER	1-44515-073-0	01	1	0511-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
