4-65 — REAR LEAF SPRING (#30816) — 12 parça

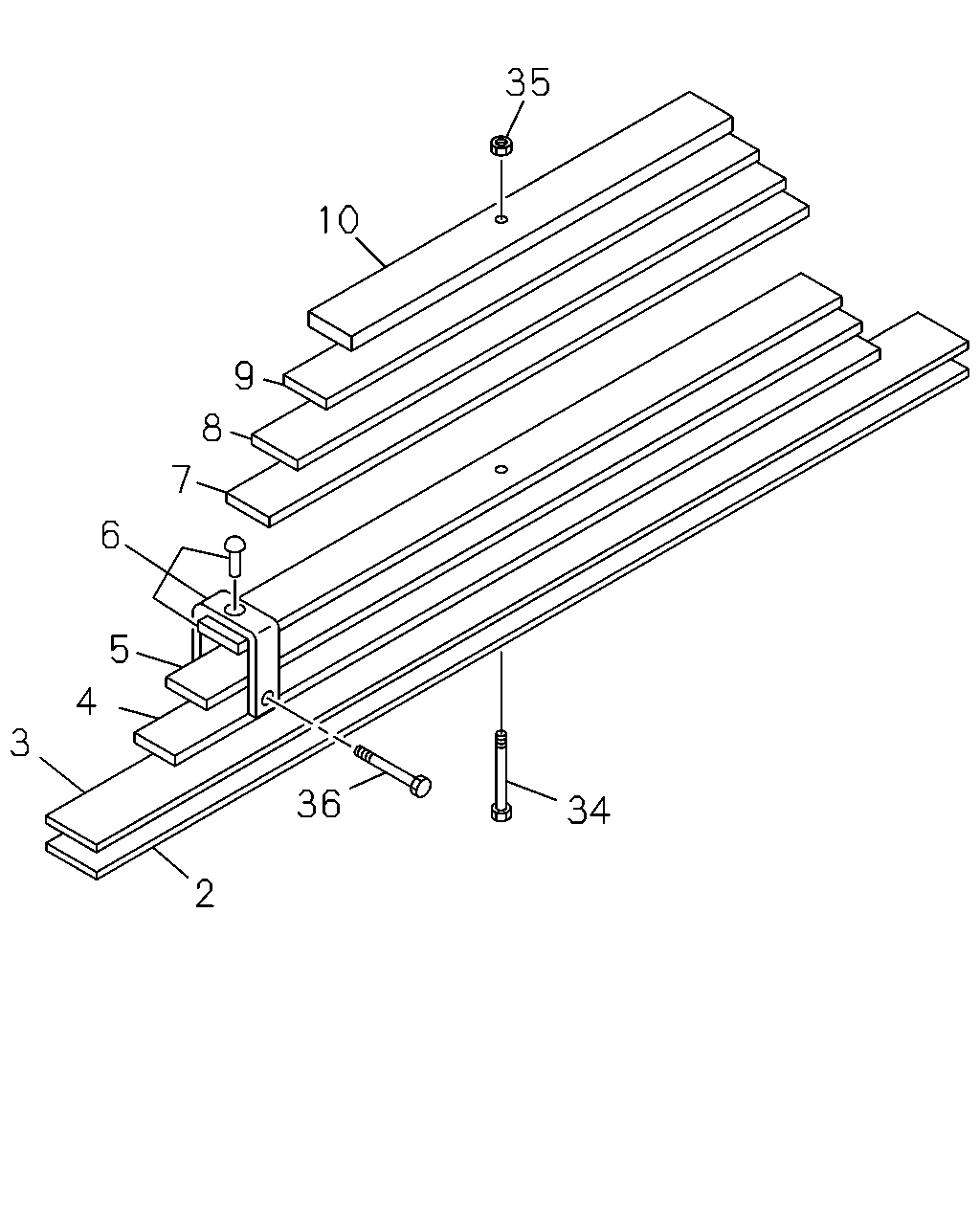

çizim 88567
35 10 9 8 7 6 5 4 3 36 34 2
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51411-294-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51412-294-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51413-294-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51414-294-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
W/CLIP ASM PART: A = 1-51410-294-0 		1-51415-294-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51416-294-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51417-294-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51418-294-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
ASM PART: A = 1-51410-294-0 		1-51419-294-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=205 ASM PART: A = 1-51410-294-0 		1-51356-120-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51410-294-0 		1-09400-054-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: A = 1-51410-294-0 		1-09000-326-0 01 1 -
