4-55 — FRONT LEAF SPRING (#30814) — 95 parça

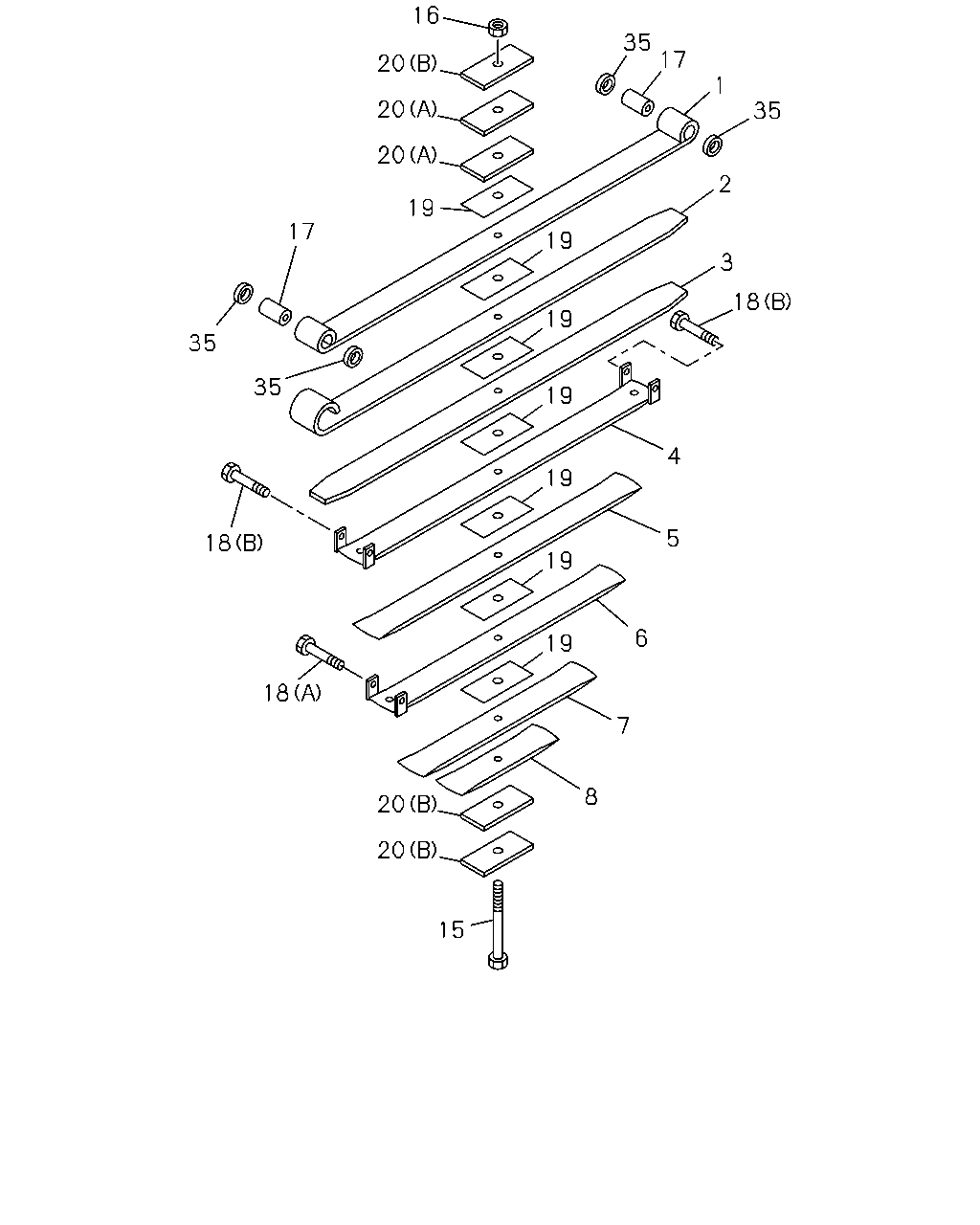

çizim 88599
16 35 17 20 1 20 35 20 2 19 17 19 3 18 19 35 35 19 4 19 5 18 19 6 19 18 7 8 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-923-0 		1-51131-965-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0 		1-51131-966-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0 		8-97615-338-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98159-641-0 		8-98165-012-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-98159-653-0 		8-98165-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-923-0 		1-51132-965-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0 		1-51132-966-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0 		8-97615-339-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98159-641-0 		8-98165-013-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-98159-653-0 		8-98165-028-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-923-0 		1-51133-965-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-340-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-923-0 		1-51134-965-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-341-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51130-923-0 		1-51135-965-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-342-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51130-923-0 		1-51136-965-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-923-0 		1-51137-965-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-344-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51130-923-0 		1-51138-965-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-345-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=185 ASM PART: D = 8-98158-579-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=205 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, F = 8-98159-641-0 		1-51156-425-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=225 ASM PART: B = 1-51130-940-0, G = 8-98159-653-0 		1-51156-426-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=215 ASM PART: E = 8-98158-581-0 		8-98165-060-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-923-0, B = 1-51130-940-0, C = 8-97614-068-0, D = 8-98158-579-0, E = 8-98158-581-0, F = 8-98159-641-0, G = 8-98159-653-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-98159-641-0, G = 8-98159-653-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-923-0, B = 1-51130-940-0, C = 8-97614-068-0, D = 8-98158-579-0, E = 8-98158-581-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 1-51130-923-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 1-51130-923-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		1-51177-071-0 07 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: D = 8-98158-579-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, F = 8-98159-641-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=11 ASM PART: B = 1-51130-940-0, G = 8-98159-653-0 		1-51177-347-0 07 1 -
20 SEAT; LEAF SPR,FRT
(D), T=11 ASM PART: E = 8-98158-581-0 		1-51177-347-0 06 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-923-0, B = 1-51130-940-0, C = 8-97614-068-0, D = 8-98158-579-0, E = 8-98158-581-0 		1-51177-321-0 04 1 -

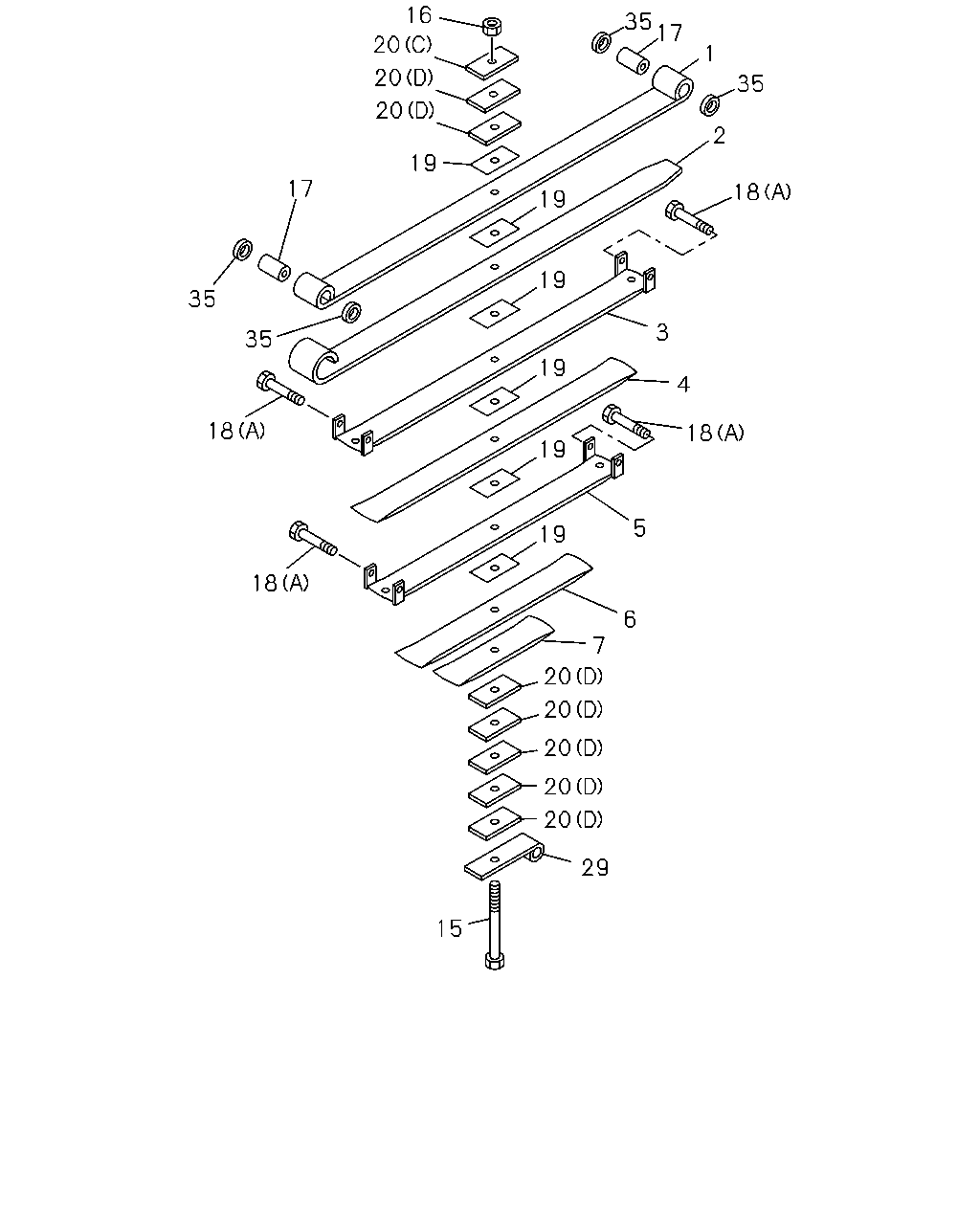

çizim 104625
16 35 17 20 1 20 35 20 2 19 17 18 19 19 35 3 35 19 4 18 18 19 5 19 18 6 7 20 20 20 20 20 29 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-923-0 		1-51131-965-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0 		1-51131-966-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0 		8-97615-338-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: F = 8-98159-641-0 		8-98165-012-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: G = 8-98159-653-0 		8-98165-027-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-923-0 		1-51132-965-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0 		1-51132-966-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0 		8-97615-339-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: F = 8-98159-641-0 		8-98165-013-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: G = 8-98159-653-0 		8-98165-028-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: A = 1-51130-923-0 		1-51133-965-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51133-966-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-340-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-923-0 		1-51134-965-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51134-966-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-341-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: A = 1-51130-923-0 		1-51135-965-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51135-966-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-342-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51130-923-0 		1-51136-965-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51136-966-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-923-0 		1-51137-965-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51137-966-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-344-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=185 ASM PART: D = 8-98158-579-0 		1-51156-420-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=205 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, F = 8-98159-641-0 		1-51156-425-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=225 ASM PART: B = 1-51130-940-0, G = 8-98159-653-0 		1-51156-426-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=215 ASM PART: E = 8-98158-581-0 		8-98165-060-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-923-0, B = 1-51130-940-0, C = 8-97614-068-0, D = 8-98158-579-0, E = 8-98158-581-0, F = 8-98159-641-0, G = 8-98159-653-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: F = 8-98159-641-0, G = 8-98159-653-0 		1-51351-009-0 02 1 -
17 BUSHING; LEAF SPR,FRT
OD=42 ASM PART: A = 1-51130-923-0, B = 1-51130-940-0, C = 8-97614-068-0, D = 8-98158-579-0, E = 8-98158-581-0 		1-51351-044-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-09000-328-0 04 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: A = 1-51130-923-0 		1-09000-328-0 01 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: A = 1-51130-923-0 		1-09000-536-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(B), M10X103 ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-331-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
(A), M10X99 ASM PART: C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		8-97615-895-0 01 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51177-071-0 06 1 -
19 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		1-51177-071-0 07 1 -
20 SEAT; LEAF SPR,FRT
(A), T=12 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, D = 8-98158-579-0, F = 8-98159-641-0 		1-51177-069-0 02 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: D = 8-98158-579-0 		1-51177-078-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=10 ASM PART: A = 1-51130-923-0, C = 8-97614-068-0, F = 8-98159-641-0 		1-51177-078-0 03 1 -
20 SEAT; LEAF SPR,FRT
(C), T=9 ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51177-085-0 01 1 -
20 SEAT; LEAF SPR,FRT
(D), T=11 ASM PART: B = 1-51130-940-0, G = 8-98159-653-0 		1-51177-347-0 07 1 -
20 SEAT; LEAF SPR,FRT
(D), T=11 ASM PART: E = 8-98158-581-0 		1-51177-347-0 06 1 -
29 SUPPORTER; LEAF SPR,FRT
ASM PART: B = 1-51130-940-0, E = 8-98158-581-0, G = 8-98159-653-0 		1-51681-650-0 01 1 -
35 SEAL; DUST
ASM PART: A = 1-51130-923-0, B = 1-51130-940-0, C = 8-97614-068-0, D = 8-98158-579-0, E = 8-98158-581-0 		1-51177-321-0 04 1 -
