4-50 — FRONT SUSPENSION (#30813) — 161 parça

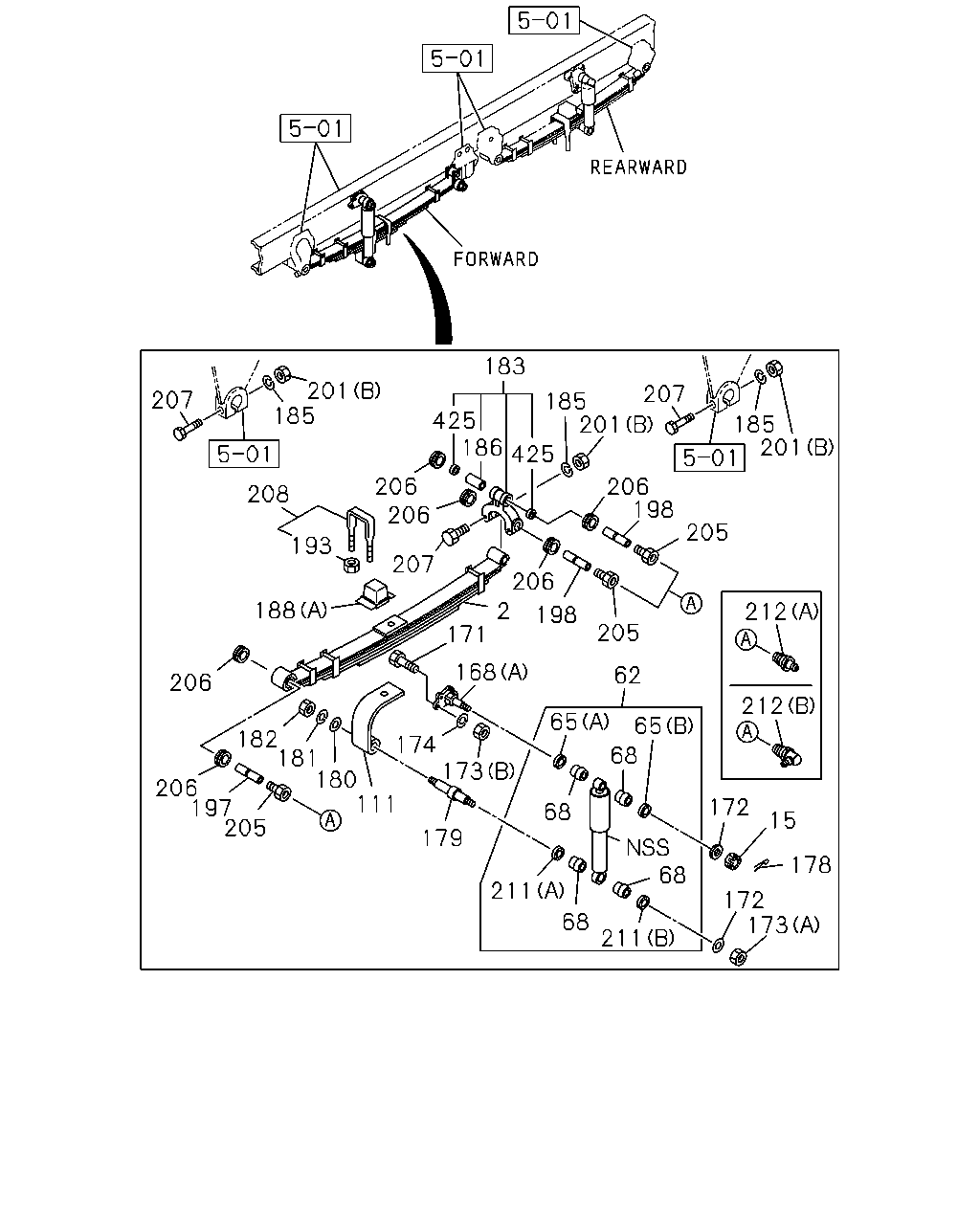

çizim 104511
183 201 185 207 207 185 201 425 186 425 185 201 206 206 206 198 208 205 193 207 188 2 212 198 205 171 168 62 206 212 65 182 181 180 111 65 174 173 68 206 197 205 172 68 15 68 179 178 211 172 173 68 211
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-98158-579-0 02 1 0912-1103
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-98192-906-0 02 1 1104-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		8-98158-581-0 02 1 0912-1103
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		8-98192-907-0 02 1 1104-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		1-51130-923-0 02 1 0511-0603
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		8-97614-068-0 02 1 0604-0911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-97614-068-0 02 1 0912-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-98159-641-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 7-LEAF 		1-51130-940-0 02 1 0511-0911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		1-51130-940-0 02 1 0912-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		8-98159-653-0 02 1 1001-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 04 1 0511-1107
15 NUT; S/ABS,UPR
M20 		0-91110-520-0 04 1 1108-
62 ABSORBER ASM; SHOCK,FRT
LOW DECK WO/REAR BODY VAR2<XR8> 		1-51630-429-0 02 1 1104-
62 ABSORBER ASM; SHOCK,FRT 1-51630-443-0 02 1 0511-1103
62 ABSORBER ASM; SHOCK,FRT
EXC. LOW DECK WO/REAR BODY VAR2<XR8> 		1-51630-443-0 02 1 1104-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 0511-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 0511-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0511-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-627-0 02 1 0511-
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0511-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0511-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
171 BOLT; S/ABS BRKT
M14X45 		9-92061-445-0 08 1 0511-
172 WASHER; PL,S/ABS BRKT
ID=21 		9-09160-520-0 04 1 0511-0605
172 WASHER; PL,S/ABS BRKT
ID=21 		0-91610-520-0 04 1 0606-
173 NUT; S/ABS
(B) M14 		9-99110-514-0 08 1 0511-0512
173 NUT; S/ABS
(B) M14 		0-91110-514-0 08 1 0601-
173 NUT; S/ABS
(A) M20 		9-99110-520-0 04 1 0511-0512
173 NUT; S/ABS
(A) M20 		0-91110-520-0 04 1 0601-
174 WASHER; LK,S/ABS
ID=14.2 		9-09150-614-0 08 1 0511-0603
174 WASHER; LK,S/ABS
ID=14.2 		0-91510-614-0 08 1 0604-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 06 1 0511-0606
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 06 1 0607-1011
179 PIN 1-51682-094-1 04 1 0511-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 04 1 0511-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0511-0603
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 04 1 0604-
182 NUT; S/ABS LWR
M24 		9-99110-524-0 02 1 0511-0512
182 NUT; S/ABS LWR
M24 		0-91110-524-0 02 1 0601-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0511-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0511-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0511-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-081-1 02 1 0511-1103
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-51172-081-1 02 1 1104-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-088-1 02 1 0511-1103
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-088-1 02 1 1104-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
LOW DECK WO/REAR BODY VAR2<XR8> (B) 		1-51172-088-1 02 1 1104-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0511-0512
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0511-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0511-
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 0511-0512
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 0601-
201 NUT; PIN LK
(A) M24 		9-99110-524-0 02 1 0511-0512
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0511-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0511-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0511-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601-
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> FORWARD L=270 		1-87870-327-1 04 1 0912-1103
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> FORWARD,REARWARD L=250 		1-87870-343-1 08 1 1104-1206
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> FORWARD,REARWARD L=250 		1-87870-494-0 08 1 1207-
208 U-BOLT SET; FRT SPRING
REARWARD L=315 		1-87870-421-1 04 1 0511-0911
208 U-BOLT SET; FRT SPRING
EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD L=315 		1-87870-421-2 04 1 0912-
208 U-BOLT SET; FRT SPRING
FORWARD L=290 		1-87870-437-1 04 1 0511-0911
208 U-BOLT SET; FRT SPRING
EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD L=290 		1-87870-437-2 04 1 0912-
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> REARWARD L=290 		1-87870-437-1 04 1 0912-1103
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 0511-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 0511-
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0511-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0601-0608
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 0609-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0511-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-0608
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 0609-
425 SEAL; DUST 1-51177-321-0 08 1 0511-1005

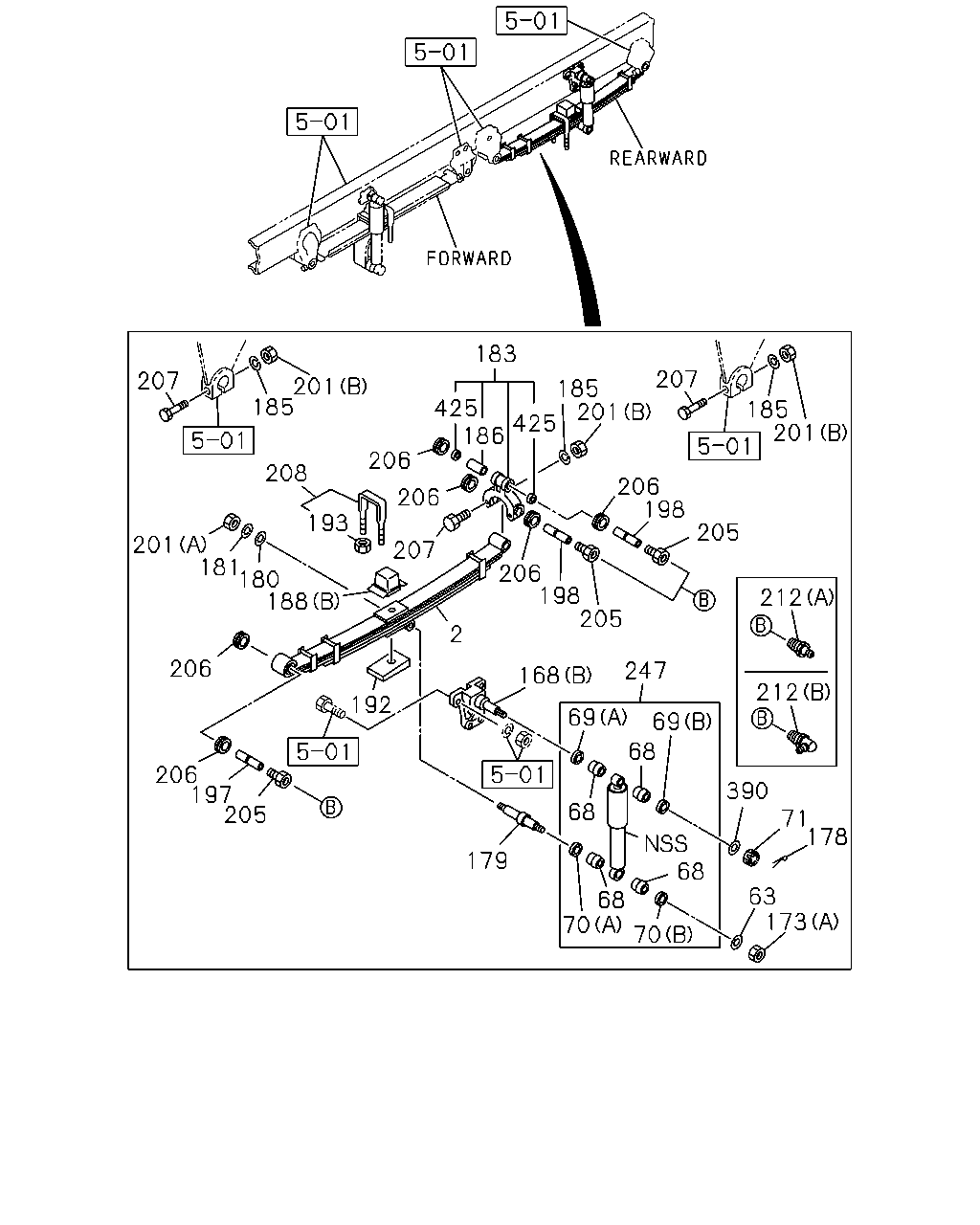

çizim 104633
183 207 207 201 185 185 201 425 425 186 185 201 206 208 206 198 206 193 205 201 181 180 188 207 206 198 205 212 2 206 247 168 212 192 69 69 68 206 197 205 390 68 71 178 68 179 63 173 68 70 70
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-98158-579-0 02 1 0912-1103
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-98192-906-0 02 1 1104-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		8-98158-581-0 02 1 0912-1103
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		8-98192-907-0 02 1 1104-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		1-51130-923-0 02 1 0511-0603
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 8-LEAF 		8-97614-068-0 02 1 0604-0911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-97614-068-0 02 1 0912-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD 8-LEAF 		8-98159-641-0 02 1 1001-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 7-LEAF 		1-51130-940-0 02 1 0511-0911
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		1-51130-940-0 02 1 0912-0912
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD 7-LEAF 		8-98159-653-0 02 1 1001-
63 WASHER; PL,S/ABS,LWR
ID=21 		9-09160-520-0 02 1 0511-0605
63 WASHER; PL,S/ABS,LWR
ID=21 		0-91610-520-0 02 1 0606-
68 BUSHING; S/ABS 9-51631-026-0 16 1 0511-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0511-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0511-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 0511-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 0511-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 0511-1010
168 BRACKET; S/ABS,FRT SUSP
(B) 		1-51681-746-0 02 1 0511-1309
168 BRACKET; S/ABS,FRT SUSP
(B) 		8-98182-384-0 02 1 1310-
168 BRACKET; S/ABS,FRT SUSP
(A) 		1-51681-745-0 02 1 0511-1012
168 BRACKET; S/ABS,FRT SUSP
(A) 		8-98182-383-0 02 1 1101-
173 NUT; S/ABS
(B) M14 		9-99110-514-0 08 1 0511-0512
173 NUT; S/ABS
(B) M14 		0-91110-514-0 08 1 0601-
173 NUT; S/ABS
(A) M20 		9-99110-520-0 04 1 0511-0512
173 NUT; S/ABS
(A) M20 		0-91110-520-0 04 1 0601-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 06 1 0511-0606
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		0-81124-035-0 06 1 0607-1011
179 PIN 1-51682-094-1 04 1 0511-
180 WASHER; PL,PIN
ID=25 		1-09503-169-0 04 1 0511-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 0511-0603
181 WASHER; LK,PIN
ID=24.5 		0-91510-524-0 04 1 0604-
183 SHACKLE; FRT SUSP 1-51162-071-0 04 1 0511-1005
183 SHACKLE; FRT SUSP 1-51162-029-5 04 1 1006-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 0511-0603
185 WASHER; LK,PIN
ID=12.2 		0-91510-612-0 24 1 0604-
186 BUSHING; SHACKLE
OD=42 		1-51351-044-0 04 1 0511-1005
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 04 1 1006-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(A) 		1-51172-081-1 02 1 0511-1103
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. LOW DECK WO/REAR BODY VAR2<XR8> (A) 		1-51172-081-1 02 1 1104-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-088-1 02 1 0511-1103
188 RUBBER; CLAMP,U-BOLT,FRT SPR
(B) 		1-51172-088-1 02 1 1104-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
LOW DECK WO/REAR BODY VAR2<XR8> (B) 		1-51172-088-1 02 1 1104-
192 PIECE; DIST 1-51177-281-1 02 1 0511-1308
192 PIECE; DIST 8-98200-748-0 02 1 1309-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 0511-0512
193 NUT; U BOLT
M22 		0-91112-822-0 16 1 0601-1206
193 NUT; U BOLT
M22 		8-98179-318-0 16 1 1207-
197 PIN; FRT SPR,FRT 1-51161-031-0 04 1 0511-
198 PIN; FRT SPR & SHACKLE,FWD FRT 1-51161-031-0 08 1 0511-
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 0511-0512
201 NUT; PIN LK
(B) M12 		0-91110-512-0 24 1 0601-
201 NUT; PIN LK
(A) M24 		9-99110-524-0 02 1 0511-0512
201 NUT; PIN LK
(A) M24 		0-91110-524-0 02 1 0601-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 0511-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 0511-
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 0511-0512
207 BOLT; SPR TO SHACKLE
M12X80 		0-10856-280-0 24 1 0601-
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> FORWARD L=270 		1-87870-327-1 04 1 0912-1103
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> FORWARD,REARWARD L=250 		1-87870-343-1 08 1 1104-1206
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> FORWARD,REARWARD L=250 		1-87870-494-0 08 1 1207-
208 U-BOLT SET; FRT SPRING
REARWARD L=315 		1-87870-421-1 04 1 0511-0911
208 U-BOLT SET; FRT SPRING
EXC. LOW DECK WO/REAR BODY VAR2<XR8> REARWARD L=315 		1-87870-421-2 04 1 0912-
208 U-BOLT SET; FRT SPRING
FORWARD L=290 		1-87870-437-1 04 1 0511-0911
208 U-BOLT SET; FRT SPRING
EXC. LOW DECK WO/REAR BODY VAR2<XR8> FORWARD L=290 		1-87870-437-2 04 1 0912-
208 U-BOLT SET; FRT SPRING
LOW DECK WO/REAR BODY VAR2<XR8> REARWARD L=290 		1-87870-437-1 04 1 0912-1103
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		9-09031-010-0 07 1 0511-0512
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 07 1 0601-0608
212 NIPPLE; GREASE,ELBOW
(A) PT1/8 STRAIGHT 		0-90301-410-0 05 1 0609-
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		9-09031-210-0 05 1 0511-0512
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 05 1 0601-0608
212 NIPPLE; GREASE,ELBOW
(B) PT1/8 ELBOW 		0-90301-610-0 07 1 0609-
247 ABSORBER ASM; SHOCK,RWD FRT
LOW DECK WO/REAR BODY VAR2<XR8> 		1-51630-443-0 02 1 1104-
247 ABSORBER ASM; SHOCK,RWD FRT 1-51630-444-0 02 1 0511-1103
247 ABSORBER ASM; SHOCK,RWD FRT
EXC. LOW DECK WO/REAR BODY VAR2<XR8> 		1-51630-444-0 02 1 1104-
390 WASHER; PL,S/ABS,UPR
ID=21 		9-09160-520-0 02 1 0511-0605
390 WASHER; PL,S/ABS,UPR
ID=21 		0-91610-520-0 02 1 0606-
425 SEAL; DUST 1-51177-321-0 08 1 0511-1005
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
