Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#3081) — 329 parça

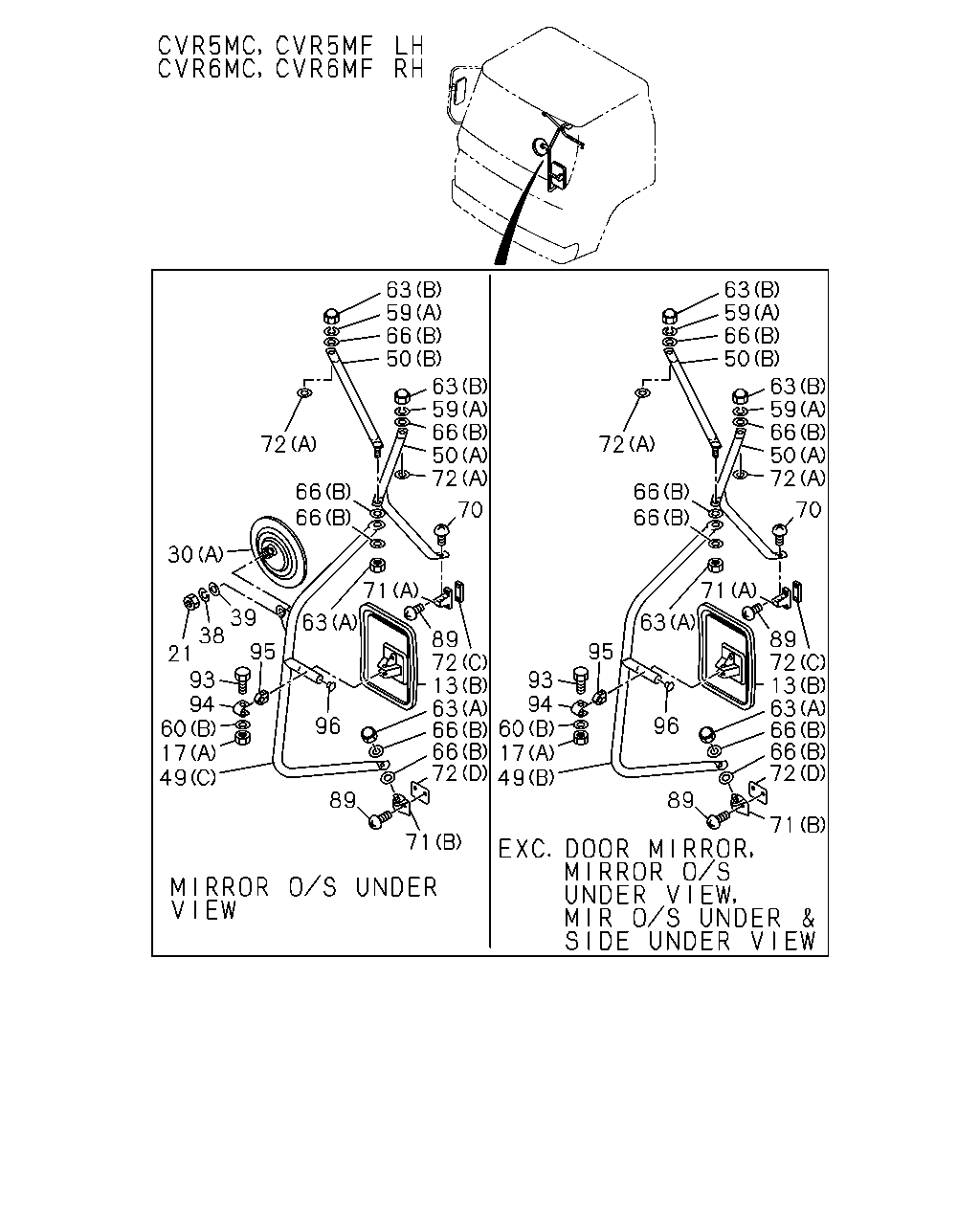

89 71 72 66 66 63 13 72 89 71 63 96 95 93 94 60 17 49 71 89 96 72 66 66 63 13 72 89 71 63 95 39 38 21 93 94 60 17 49 66 66 30 70 72 50 66 59 63 50 66 59 63 72 63 59 66 50 63 59 66 50 72 70 66 66 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-730-0	01	1	9002-9404	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-730-0	01	1	9405-		●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9002-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9307-9404		●		●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9405-				●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9307-		●		●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306			●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-		●		●
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9307-		●		●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-	●	●	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9208-9306			●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9307-		●		●
38	WASHER; LK,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.2	1-09985-177-0	01	1	9002-	●	●	●	●
39	WASHER; PL,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.4 OD=16	1-09985-174-0	01	1	9002-	●	●	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) BLACK	1-71798-001-0	01	1	9307-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-734-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-			●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-779-0	01	1	9002-	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-780-2	01	1	9002-	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-793-0	01	1	9002-			●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-794-1	01	1	9002-			●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	02	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=10	1-09985-180-0	01	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> (C) ID=8.4 OD=22	1-09985-188-0	08	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) ID=10.5 OD=18	1-09985-173-0	01	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=8.4 OD=16	1-09985-174-0	01	1	9002-	●	●	●	●
63	NUT; STAY (A)	1-09984-134-0	04	1	9002-	●	●	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B)	1-09984-126-0	02	1	9002-	●	●	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	09	1	9307-		●		●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71798-002-1	04	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71736-247-0	04	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71737-428-0	04	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●	●	●
93	BOLT; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> M8X45 W/LK&PL WASHER	1-09980-542-0	01	1	9002-	●	●	●	●
94	HOLDER; BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF>	1-71737-755-0	01	1	9002-	●	●	●	●
95	GASKET; NYLON,BACK MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF>	1-71737-290-1	01	1	9002-	●	●	●	●
96	CAP; MIRROR STAY EXC. DOOR MIRROR<D32>	1-71737-292-0	01	1	9002-	●	●	●	●

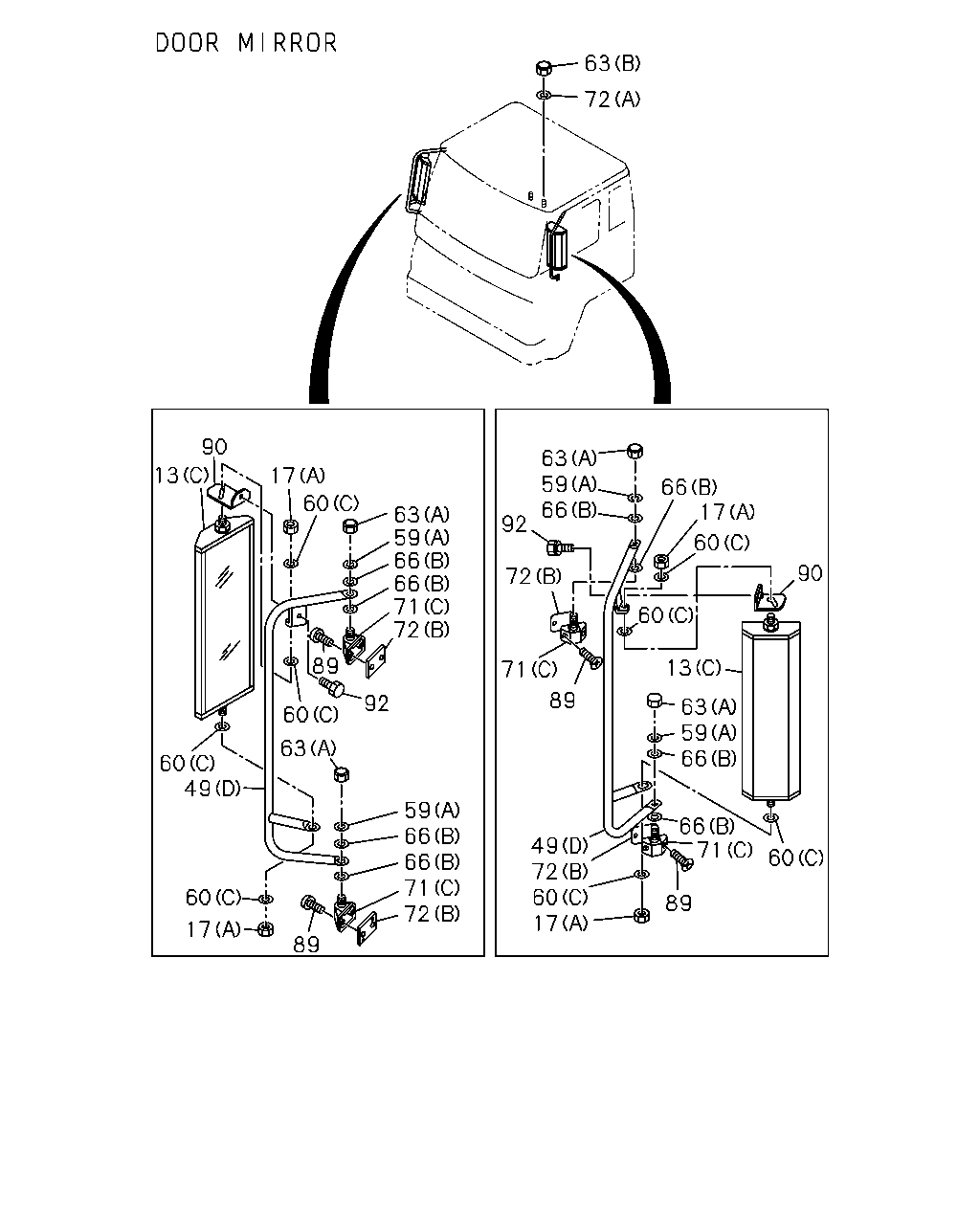

60 71 66 89 17 60 72 49 66 59 63 13 89 71 72 92 66 59 63 66 17 60 60 90 72 63 63 59 66 66 71 72 60 17 90 13 60 49 89 60 92 63 59 66 66 71 72 89 17 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-730-0	01	1	9002-9404	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-730-0	01	1	9405-		●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9002-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9307-9404		●		●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9405-				●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9307-		●		●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306			●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-		●		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) BLACK	1-71798-001-0	01	1	9307-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-734-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-			●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	02	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=10	1-09985-180-0	01	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> (C) ID=8.4 OD=22	1-09985-188-0	08	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) ID=10.5 OD=18	1-09985-173-0	01	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=8.4 OD=16	1-09985-174-0	01	1	9002-	●	●	●	●
63	NUT; STAY (A)	1-09984-134-0	04	1	9002-	●	●	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B)	1-09984-126-0	02	1	9002-	●	●	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	09	1	9307-		●		●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71798-002-1	04	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71736-247-0	04	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71737-428-0	04	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●	●	●
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-764-0	01	1	9002-	●	●	●	●
90	BRACKET; MIRROR STAY DOOR MIRROR<D32>	1-71737-763-0	01	1	9002-	●	●	●	●
92	BOLT; STAY BRKT,MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●	●

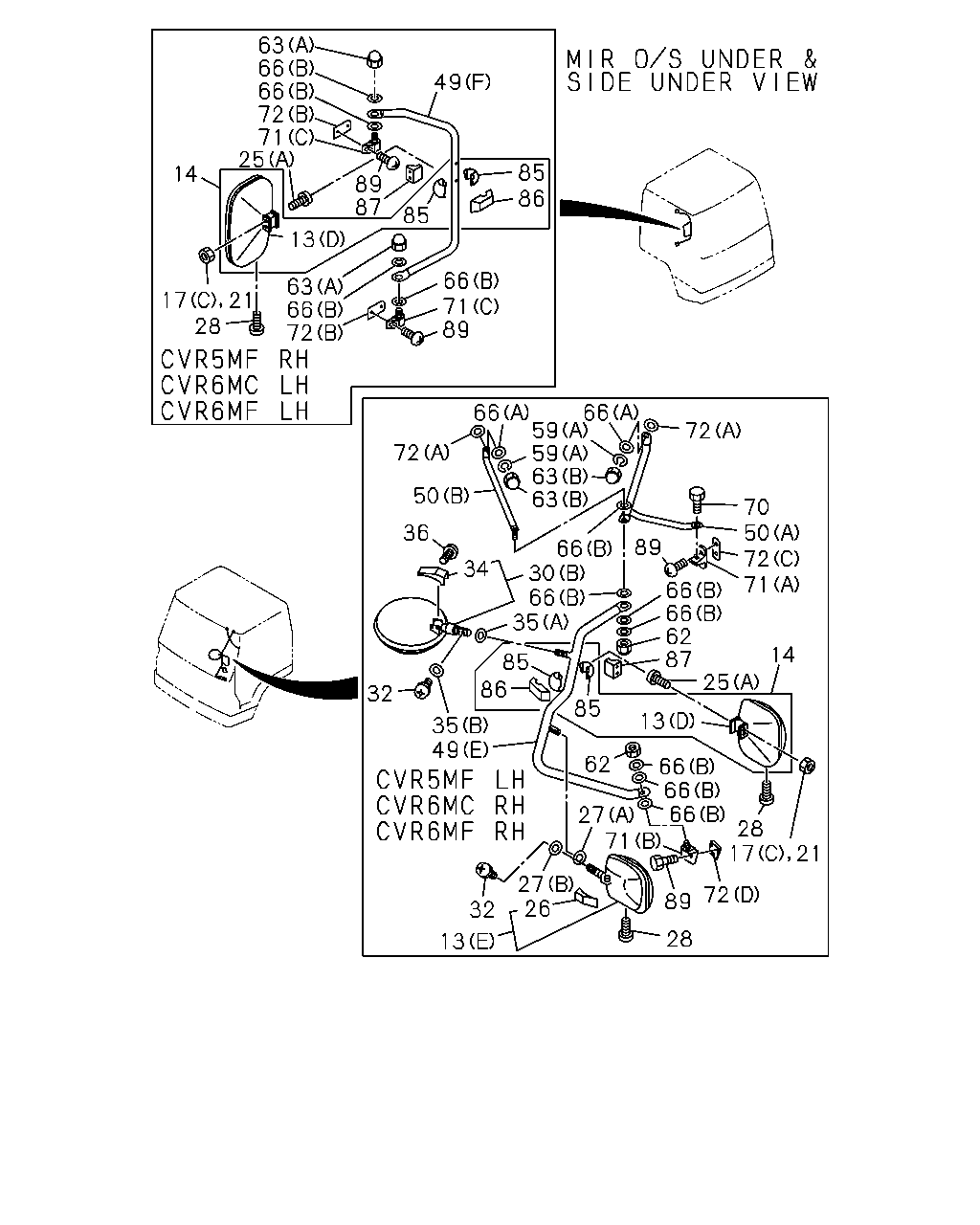

28 89 72 17 21 28 66 66 66 62 27 71 27 26 32 13 49 35 32 86 85 85 13 25 14 87 62 66 66 71 72 50 70 72 89 66 30 66 35 34 36 50 72 66 59 59 63 63 66 89 71 66 86 85 49 85 89 87 13 63 66 72 28 21 17 14 25 71 72 66 66 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-730-0	01	1	9002-9404	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-730-0	01	1	9405-		●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9002-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9307-9404		●		●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9405-				●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9307-		●		●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-924-0	01	1	9208-		●	●	●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> PIVOT ID=22.2	1-71707-152-1	01	1	9307-		●	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306			●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-		●		●
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9307-		●		●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9208-9306			●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9307-		●		●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9208-9306			●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9307-		●		●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9208-9306			●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9307-		●		●
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9208-9306			●	●
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9307-		●		●
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9208-9306			●	●
27	GASKET; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9307-		●		●
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	03	1	9208-9306			●	●
28	GROMMET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	03	1	9307-		●		●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-732-0	01	1	9002-	●	●	●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9208-9306			●	●
30	MIRROR; UNDER MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-631-6	01	1	9307-		●		●
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9208-9306			●	●
32	SCREW; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9307-		●		●
34	CAP; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-649-1	01	1	9208-9306			●	●
34	CAP; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-649-1	01	1	9307-		●		●
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9208-9306			●	●
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71736-661-0	01	1	9307-		●		●
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9208-9306			●	●
35	GASKET; UNDER MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-748-0	02	1	9307-		●		●
36	GROMMET; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	01	1	9208-9306			●	●
36	GROMMET; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-678-0	01	1	9307-		●		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) BLACK	1-71798-001-0	01	1	9307-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-734-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-			●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-779-0	01	1	9002-	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-780-2	01	1	9002-	●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (A)	1-71737-793-0	01	1	9002-			●	●
50	STAY; CAB SIDE EXC. DOOR MIRROR<D32> (B)	1-71737-794-1	01	1	9002-			●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	02	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=10	1-09985-180-0	01	1	9002-	●	●	●	●
62	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M10 CAP NUT	1-09984-134-0	02	1	9002-	●	●	●	●
63	NUT; STAY (A)	1-09984-134-0	04	1	9002-	●	●	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B)	1-09984-126-0	02	1	9002-	●	●	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	09	1	9307-		●		●
70	BOLT; STAY TO BRKT EXC. DOOR MIRROR<D32> M10X30	1-09980-517-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71798-002-1	04	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71736-247-0	04	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71737-428-0	04	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●	●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9208-9306			●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9307-		●		●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9208-9306			●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9307-		●		●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	03	1	9208-9306			●	●
87	SPACER MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-704-0	02	1	9307-		●		●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●	●	●

71 89 60 17 59 89 72 66 49 66 66 63 13 71 72 66 66 66 63 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MIRROR; ROOM	1-73117-026-1	01	1	9002-	●	●	●	●
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-730-0	01	1	9002-9404	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-730-0	01	1	9405-		●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9002-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9307-9404		●		●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9405-				●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9307-		●		●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306			●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-		●		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-738-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-735-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-733-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-803-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-802-0	01	1	9002-	●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71737-778-0	01	1	9307-		●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F) BLACK	1-71798-001-0	01	1	9307-		●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-736-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71737-737-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-734-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ,MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-804-0	01	1	9002-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (F)	1-71797-052-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E)	1-71797-114-0	01	1	9208-			●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-792-0	01	1	9002-			●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	02	1	9002-	●	●	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=10	1-09985-180-0	01	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> (C) ID=8.4 OD=22	1-09985-188-0	08	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) ID=10.5 OD=18	1-09985-173-0	01	1	9002-	●	●	●	●
60	WASHER; PL,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) ID=8.4 OD=16	1-09985-174-0	01	1	9002-	●	●	●	●
63	NUT; STAY (A)	1-09984-134-0	04	1	9002-	●	●	●	●
63	NUT; STAY DOOR MIRROR<D32> (B)	1-71736-200-0	02	1	9007-	●	●	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32> (B)	1-09984-126-0	02	1	9002-	●	●	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	08	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	02	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9002-	●	●	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	09	1	9307-		●		●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71798-002-1	04	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (A)	1-71736-578-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (B)	1-71737-783-0	01	1	9002-	●	●	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> (C)	1-71798-002-1	02	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (A)	1-71736-247-0	04	1	9002-	●	●	●	●
72	SHEET DOOR MIRROR<D32> (B)	1-71737-428-0	04	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (A)	1-71736-247-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (B)	1-71737-428-0	02	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (C)	1-71737-444-0	01	1	9002-	●	●	●	●
72	SHEET EXC. DOOR MIRROR<D32> (D)	1-71737-636-0	01	1	9002-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	08	1	9002-	●	●	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M6X20	1-09981-494-0	09	1	9002-	●	●	●	●

86 85 85 134 133 132 14 25 26 53 13 134 17 21 132 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32> (B)	1-71737-730-0	01	1	9002-9404	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-730-0	01	1	9405-		●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (C)	1-71737-487-3	02	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A)	1-71737-729-0	01	1	9002-	●	●	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9002-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9307-9404		●		●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B)	1-71737-731-0	01	1	9405-				●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-919-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-0	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (D)	1-71737-917-1	01	1	9307-		●		●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9208-9306			●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIR O/S UNDER & SIDE UNDER VIEW<TAF> (E) BLACK	1-71737-920-1	01	1	9307-		●		●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-924-0	01	1	9208-		●	●	●
14	MIRROR ASM; OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> PIVOT ID=22.2	1-71707-152-1	01	1	9307-		●	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (A) M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32>,MIR O/S UNDER & SIDE UNDERVIEW<TAF> (B) M10	1-09984-145-0	01	1	9002-	●	●	●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	06	1	9208-9306			●	●
17	NUT; CAP,MIRROR STAY MIR O/S UNDER & SIDE UNDER VIEW<TAF> (C) M5	1-09984-124-0	04	1	9307-		●		●
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M8 FLANGE	1-09984-122-0	01	1	9002-	●	●	●	●
21	NUT; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> M5	1-09984-124-0	02	1	9307-		●		●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9208-9306			●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A) M5X50	1-09981-444-0	04	1	9307-		●		●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9208-9306			●	●
25	SCREW; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B) M5X40 W/PL WASHER	1-71737-797-0	02	1	9307-		●		●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9208-9306			●	●
26	COVER; OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-652-1	01	1	9307-		●		●
53	PIVOT; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-645-1	01	1	9208-9306			●	●
53	PIVOT; SIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-645-1	01	1	9307-		●		●
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9208-9306			●	●
85	PIVOT; MAIN MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> ID=22.2	1-71736-489-2	04	1	9307-		●		●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9208-9306			●	●
86	COVER; STAY,OUTSIDE MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> BLACK	1-71737-760-0	02	1	9307-		●		●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-934-0	01	1	9008-		●	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-933-0	01	1	9008-		●	●	●
132	RING; MIRROR MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-935-0	01	1	9208-		●	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-928-0	01	1	9208-		●	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (A)	1-71737-926-0	01	1	9208-		●	●	●
133	LENS; MIRROR,OUTSIDE MIR O/S UNDER & SIDE UNDER VIEW<TAF> (B)	1-71737-929-0	01	1	9208-		●	●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	01	1	9208-9306			●	●
134	CLIP; MIRROR LENS MIR O/S UNDER & SIDE UNDER VIEW<TAF>	1-71737-936-0	03	1	9307-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
