4-33 — STEERING LINKAGE
(#30807) — 54 parça
◀

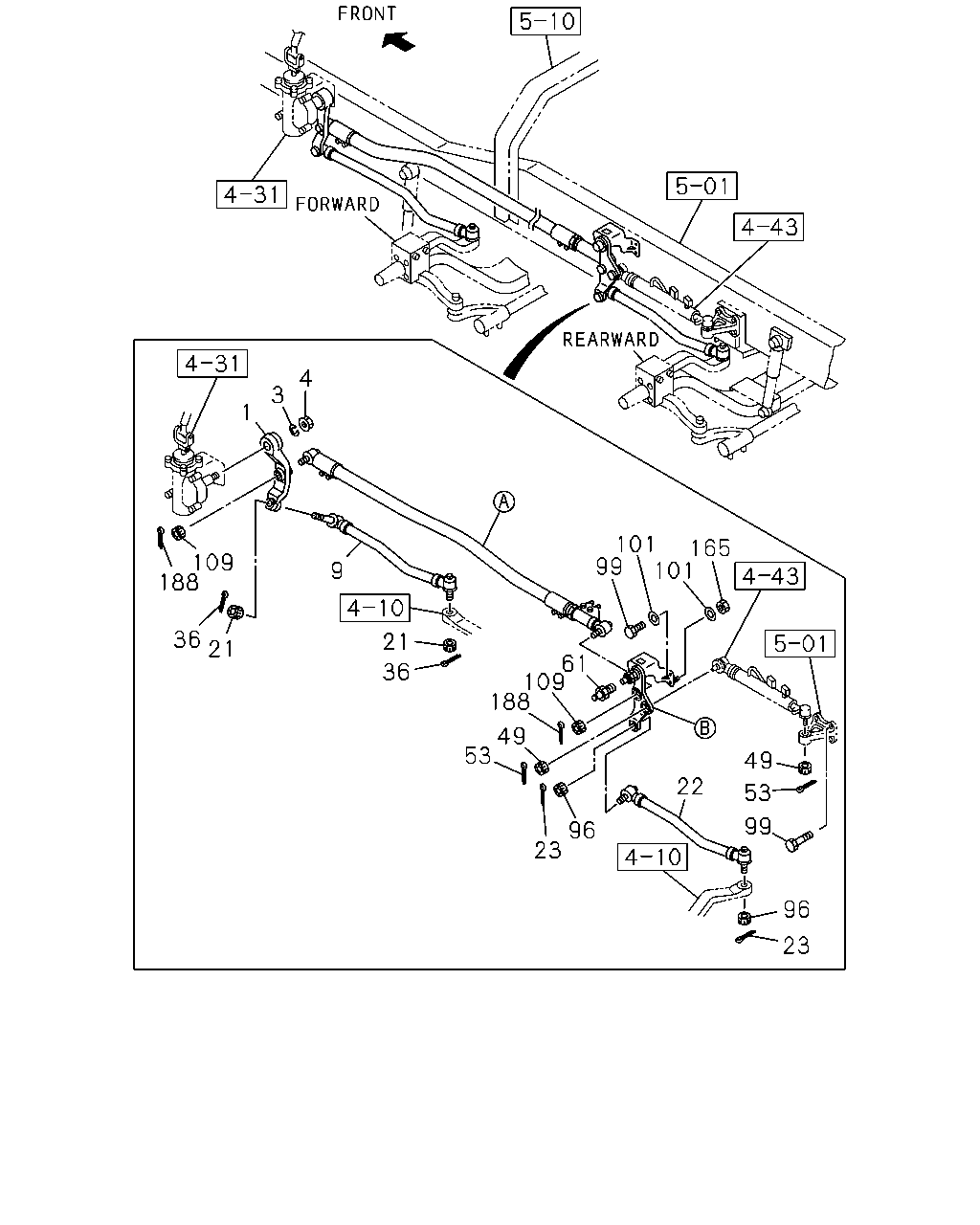

[433A] FIXING;DRAG LINK (30 parça)
[433A] COMPONENT;DRAG LINK (24 parça)
▶
4
3
1
101
165
99
101
109
188
9
36
21
21
61
109
188
36
49
53
49
22
53
99
96
23
96
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-506-1
01
1
0511-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0511-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0511-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
9
LINK; DRAG
1-44380-287-1
01
1
0511-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-028-0
02
1
0511-
22
LINK; DRAG,2ND
1-44380-288-0
01
1
0511-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
9-08115-035-0
02
1
0511-0606
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
0-81125-035-0
02
1
0607-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0511-0606
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
49
NUT; BOOSTER,BRKT SIDE
M24 SLOTTED
1-09442-020-0
02
1
0511-0805
49
NUT; BOOSTER,BRKT SIDE
M24
1-09442-032-0
02
1
0806-
53
PIN; SPLIT,BOOSTER,BRKT SIDE
OD=4.6 L=35
9-08115-035-0
02
1
0511-0606
53
PIN; SPLIT,BOOSTER,BRKT SIDE
OD=4.6 L=35
0-81125-035-0
02
1
0607-
61
NIPPLE; PIN LINK ARM
PT1/8 STRAIGHT
9-09031-010-0
01
1
0511-0512
61
NIPPLE; PIN LINK ARM
PT1/8 STRAIGHT
0-90301-410-0
01
1
0601-
96
NUT; LINK ARM
M24 SLOTTED
1-09442-028-0
02
1
0511-
99
BOLT; BRKT
M14X50
9-92061-450-0
02
1
0511-0512
99
BOLT; BRKT
M14X50
0-20951-450-0
02
1
0601-
99
BOLT; BRKT
M14X60
9-92061-460-0
01
1
0511-0512
99
BOLT; BRKT
M14X60
0-20951-460-0
01
1
0601-
101
WASHER; PL,BRKT
ID=15
9-09651-069-0
04
1
0511-1201
101
WASHER; PL,BRKT
ID=15
8-98010-627-1
04
1
1202-
109
NUT; ROD
M24 SLOTTED
1-09442-020-0
02
1
0511-0805
109
NUT; ROD
M24
1-09442-032-0
02
1
0806-
165
NUT; BRKT
M14
9-99110-514-0
01
1
0511-0512
165
NUT; BRKT
M14
0-91110-514-0
01
1
0601-
188
PIN; ROD
OD=4.6 L=35
9-08115-035-0
02
1
0511-0606
188
PIN; ROD
OD=4.6 L=35
0-81125-035-0
02
1
0607-
87
85
86
88
89
89
88
86
89
88
87
86
67
65
66
97
66
65
137
135
137
33
134
135
136
137
65
56
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
STUD
M14X37 L=66
1-09300-095-1
01
1
0511-
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-204-0
01
1
0511-
65
SEAL; DUST,LINK ARM
(A) ID=32
1-44159-058-1
02
1
0511-
65
SEAL; DUST,LINK ARM
(B) ID=38
1-44349-017-0
02
1
0511-
66
BEARING; LINK ARM
1-09812-149-0
02
1
0511-
67
PIN; LINK ARM UPR
1-44346-011-3
01
1
0511-
85
ROD ASM; LINK
1-44380-291-1
01
1
0511-
86
BOLT; ROD END TO LINK ROD
M12X45
9-91066-245-0
06
1
0511-0805
86
BOLT; ROD END TO LINK ROD
M12X45
8-98036-382-0
06
1
0806-
87
END; ROD
1-44380-260-1
02
1
0511-
88
WASHER; LK,ROD END TO LINK ROD
ID=12.2
9-09150-812-0
06
1
0511-0603
88
WASHER; LK,ROD END TO LINK ROD
ID=12.2
0-91510-812-0
06
1
0604-
89
NUT; ROD END TO LINK ROD
M12
9-99110-512-0
06
1
0511-0512
89
NUT; ROD END TO LINK ROD
M12
0-91110-512-0
06
1
0601-
97
BRACKET; LINK ARM
1-44348-083-0
01
1
0511-
134
BOLT; PIN SET LINK ARM
1-44349-016-2
01
1
0511-
135
WASHER; LK,PIN SET,LINK ARM
(A) M31
1-09533-015-1
01
1
0511-
135
WASHER; LK,PIN SET,LINK ARM
(B) ID=8.2
9-09150-808-0
01
1
0511-0603
135
WASHER; LK,PIN SET,LINK ARM
(B) ID=8.2
0-91510-808-0
01
1
0604-
136
WASHER; PL,SPINDLE,LINK ARM
ID=8.4
9-09164-508-0
01
1
0511-0605
136
WASHER; PL,SPINDLE,LINK ARM
ID=8.4 OD=16
0-91614-508-0
01
1
0606-
137
NUT; PIN SET LINK ARM
(A) M30
1-09400-102-0
02
1
0511-
137
NUT; PIN SET LINK ARM
(B) M8
9-09110-508-0
01
1
0511-0512
137
NUT; PIN SET LINK ARM
(B) M8
0-91110-508-0
01
1
0601-
