◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#30803) — 87 parça

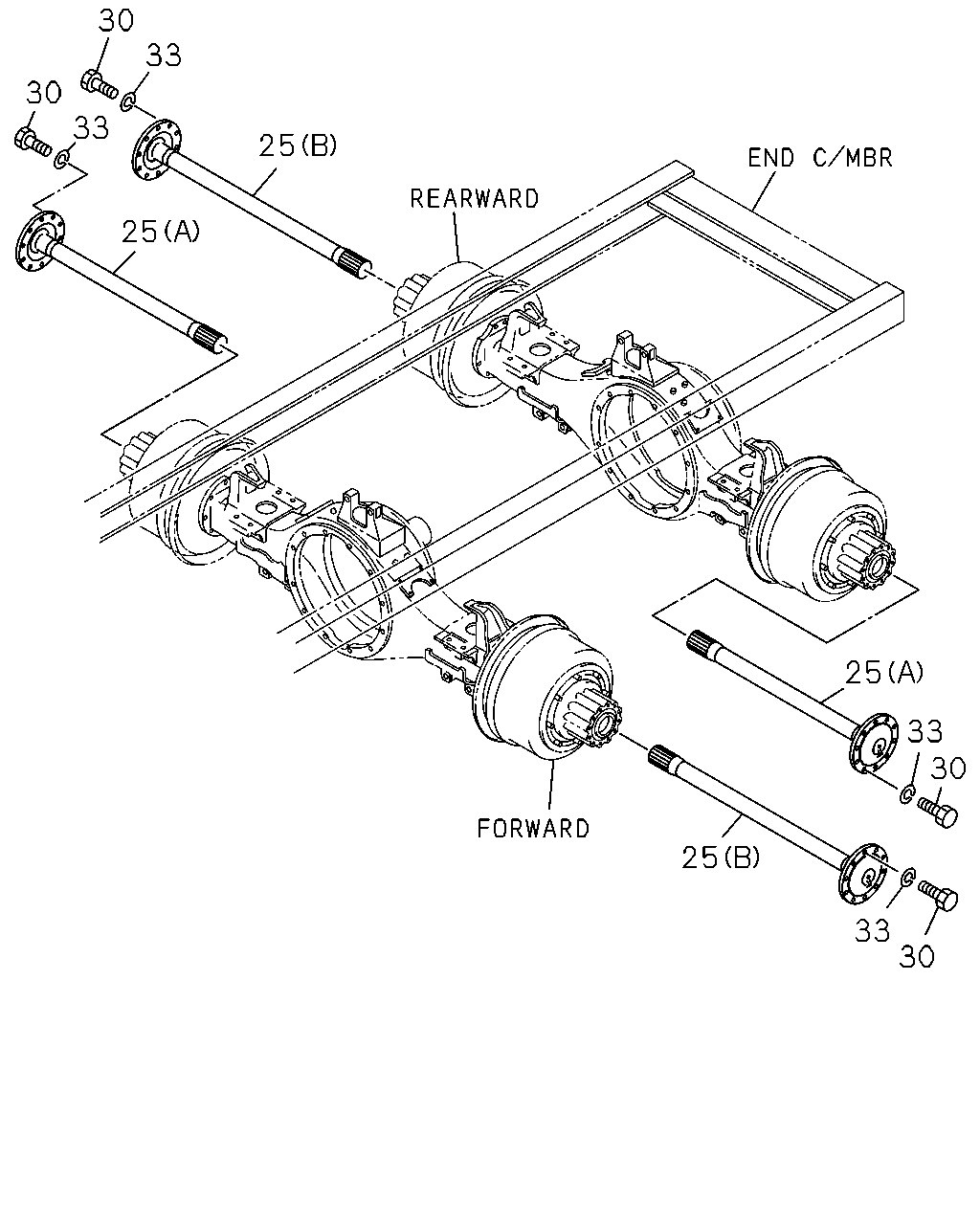

çizim 88838
30 33 30 33 25 25 25 33 30 25 33 30
BalonParca AdiParca NoAdetTipApplied Date
25 SHAFT; AXLE,RR
(A) L=976 		1-42171-356-0 02 1 0511-0910
25 SHAFT; AXLE,RR
(A) L=990 		8-98146-166-0 02 1 0911-
25 SHAFT; AXLE,RR
(B) L=1106 		1-42171-357-0 02 1 0511-0910
25 SHAFT; AXLE,RR
(B) L=1110 		8-98146-167-0 02 1 0911-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0511-
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0511-
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0511-0603
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0511-0603
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604-

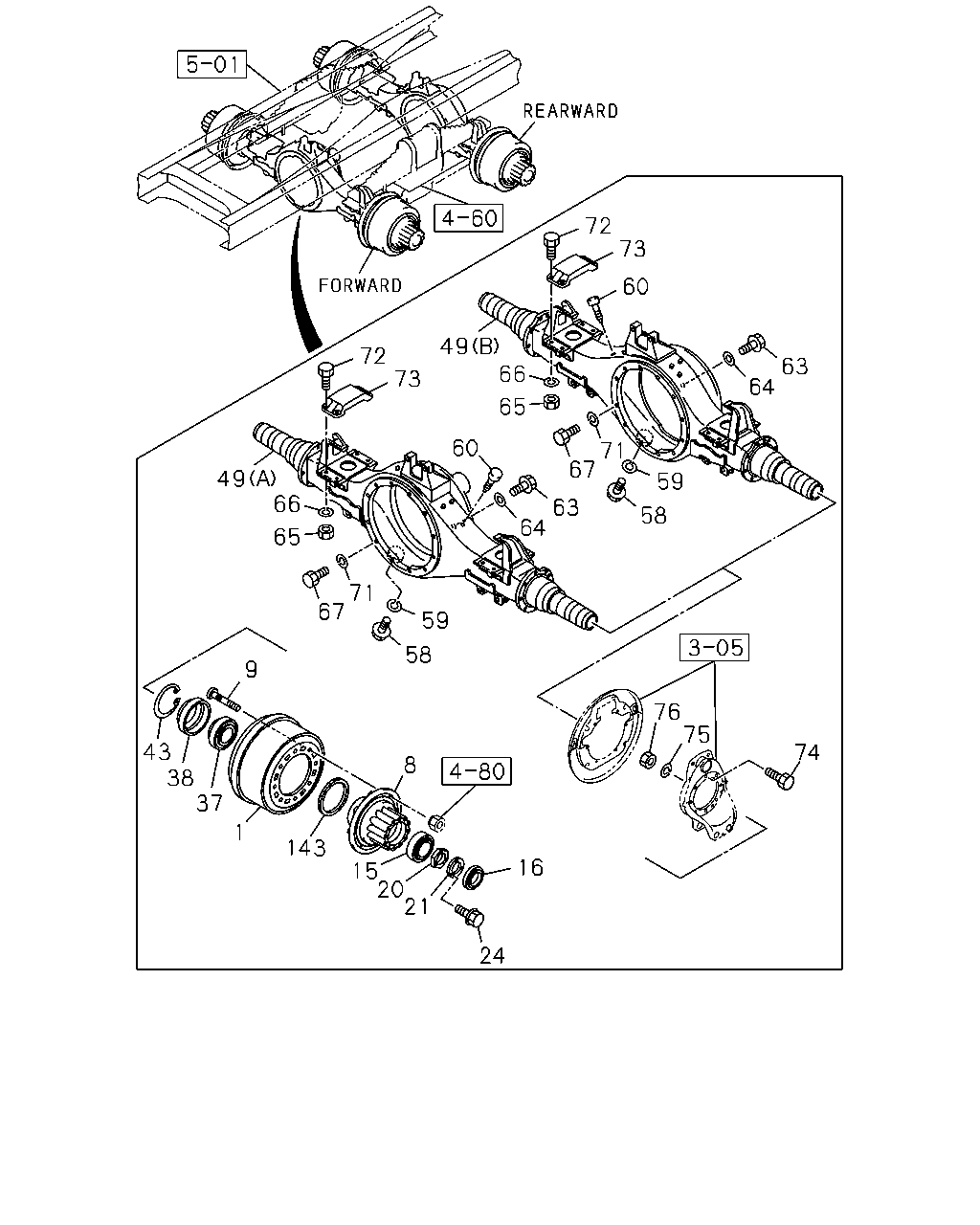

çizim 104410
72 73 60 49 66 72 73 63 64 65 71 67 60 49 66 59 63 64 58 65 71 67 59 58 9 76 75 43 38 37 74 8 1 143 16 15 20 21 24
BalonParca AdiParca NoAdetTipApplied Date
1 DRUM; BRK,RR 1-42315-377-2 04 1 0511-
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 0511-
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 0511-
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 40 1 0511-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0511-
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 0511-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209-
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 04 1 1209-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0511-
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0511-
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 04 1 0511-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0511-
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 0511-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0511-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0511-0512
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0511-
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 0511-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209-
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 04 1 1209-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0511-
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 0511-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0511-
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 0511-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0511-
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 0511-
49 CASE; RR AXLE
(A) 		1-42190-488-2 01 1 0511-
49 CASE; RR AXLE
(B) 		1-42190-539-2 01 1 0511-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0511-
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0511-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0511-
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0511-
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 0511-1412
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0511-
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 0511-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0511-
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0511-
65 NUT
M14 		9-99110-514-0 08 1 0511-0512
65 NUT
M14 		9-99110-514-0 08 1 0511-0512
65 NUT
M14 		0-91110-514-0 08 1 0601-
65 NUT
M14 		0-91110-514-0 08 1 0601-
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0511-0603
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0511-0603
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604-
67 BOLT; FINAL DRIVE SETTING
M16X40 		9-92061-640-0 15 1 0511-0512
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 15 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0511-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		9-91066-670-0 04 1 0511-0512
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 0601-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0511-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0511-0603
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604-
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0511-0805
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0511-0805
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0511-
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0511-
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 28 1 0511-
74 BOLT; RR BRK ASM SETTING
M14X80 		9-92621-480-0 04 1 0511-1504
74 BOLT; RR BRK ASM SETTING
M14X60 		1-09040-084-0 04 1 1505-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0511-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0511-0603
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604-
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0511-0512
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0511-0512
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601-
143 RING; EXCITER 1-42319-173-0 02 1 0511-
