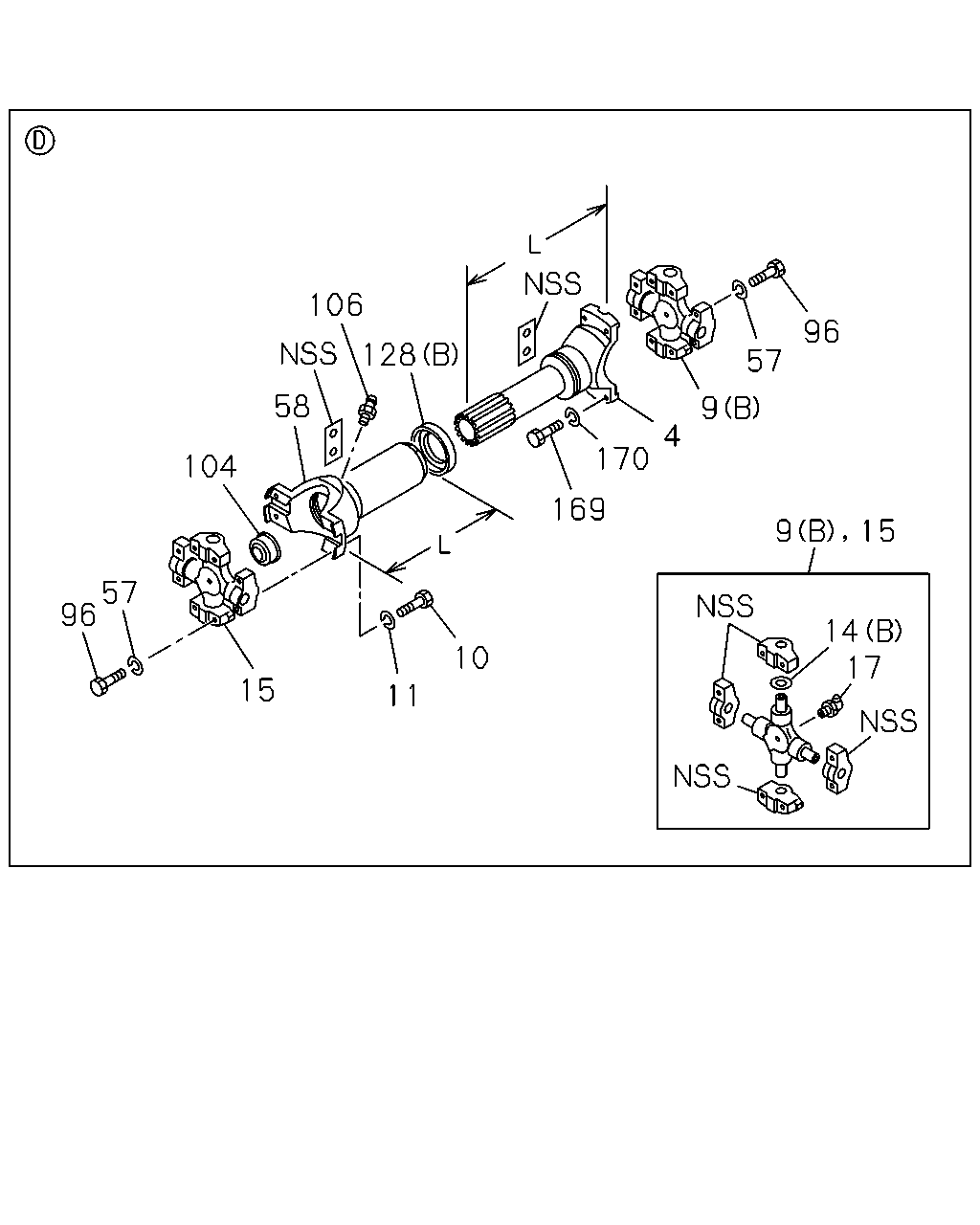

4-01 — PROPELLER SHAFT (#30800) — 185 parça

106 96 128 57 58 9 4 170 104 169 9 15 57 96 14 17 10 15 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	SHAFT; PROP L=348	1-37171-127-2	01	1	0511-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0511-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0511-		●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0511-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	0511-	●	●	●
10	BOLT; UJT M12X45	9-91066-245-0	04	1	0511-0805	●	●	●
10	BOLT; UJT M12X45	8-98036-382-0	04	1	0806-	●	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	0511-0603	●	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	0-91510-612-0	04	1	0604-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0511-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0511-		●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	0511-	●	●	●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0511-	●	●	●
15	UNIVERSAL CENTER	1-37300-100-1	01	1	0511-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0511-0512		●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●	●
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	0511-0603	●	●	●
57	WASHER; LK,YOKE ID=12.2	0-91510-612-0	08	1	0604-	●	●	●
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	0511-	●	●	●
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	0511-0805	●	●	●
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	0806-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0511-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR PT1/8 STRAIGHT	9-09031-010-0	01	1	0511-0512	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT END PT1/8 STRAIGHT	9-09031-010-0	02	1	0511-0512	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT END PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	0511-	●	●	●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0511-	●	●	●
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	0511-0805	●	●	●
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	0806-	●	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	0511-0603	●	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2	0-91510-612-0	04	1	0604-	●	●	●

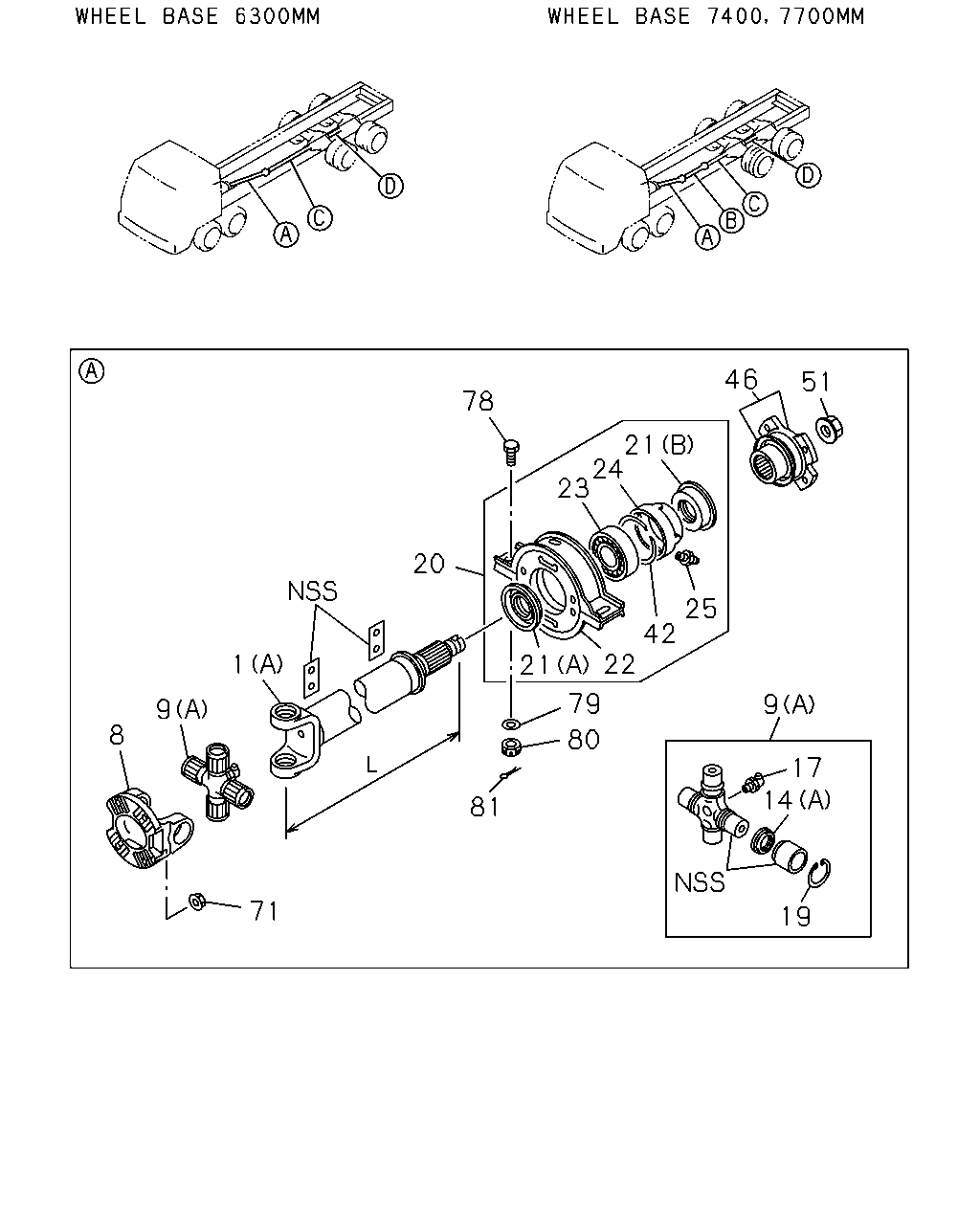

46 51 78 21 24 23 20 25 42 22 1 21 79 9 9 8 80 17 14 81 71 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (C) L=975	1-37125-338-0	01	1	0511-		●
1	SHAFT; PROP (B) L=1499	8-98030-328-0	01	1	0511-		●
1	SHAFT; PROP (A) L=874	8-98030-327-0	01	1	0511-		●
1	SHAFT; PROP (C) L=1465	1-37124-634-1	01	1	0511-	●
1	SHAFT; PROP ENGINE REAR PTO(SV1) (A) L=804	1-37153-459-0	01	1	0511-	●
1	SHAFT; PROP (C) L=1365	1-37124-631-1	01	1	0511-			●
1	SHAFT; PROP (B) L=1499	1-37153-468-0	01	1	0511-			●
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (A) L=874	1-37152-921-0	01	1	0511-	●
1	SHAFT; PROP (A) L=874	1-37152-921-0	01	1	0511-			●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-084-0	02	1	0511-		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-084-0	01	1	0511-		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-084-0	01	1	0511-		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-077-1	01	1	0511-	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-077-1	01	1	0511-			●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-077-1	02	1	0511-	●		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0511-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0511-		●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0511-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	0511-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0511-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0511-		●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	0511-	●	●	●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0511-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0511-0512		●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	0511-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	0511-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	0511-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	0511-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	0511-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	0511-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	0511-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	0511-		●	●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	0511-	●	●	●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	0511-		●	●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	0511-	●	●	●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	0511-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0511-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0511-		●	●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0511-	●	●	●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0511-		●	●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	0511-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	0511-		●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0511-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0511-		●	●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	0511-	●	●	●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	0511-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	0511-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	0511-		●	●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0511-	●	●	●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0511-		●	●
71	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0511-0805	●	●	●
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0806-	●	●	●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	0511-	●	●	●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	0511-	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	9-99116-516-0	02	1	0511-0605	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	0606-1204	●	●	●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	9-08114-025-0	02	1	0511-0606	●	●	●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	0607-	●	●	●

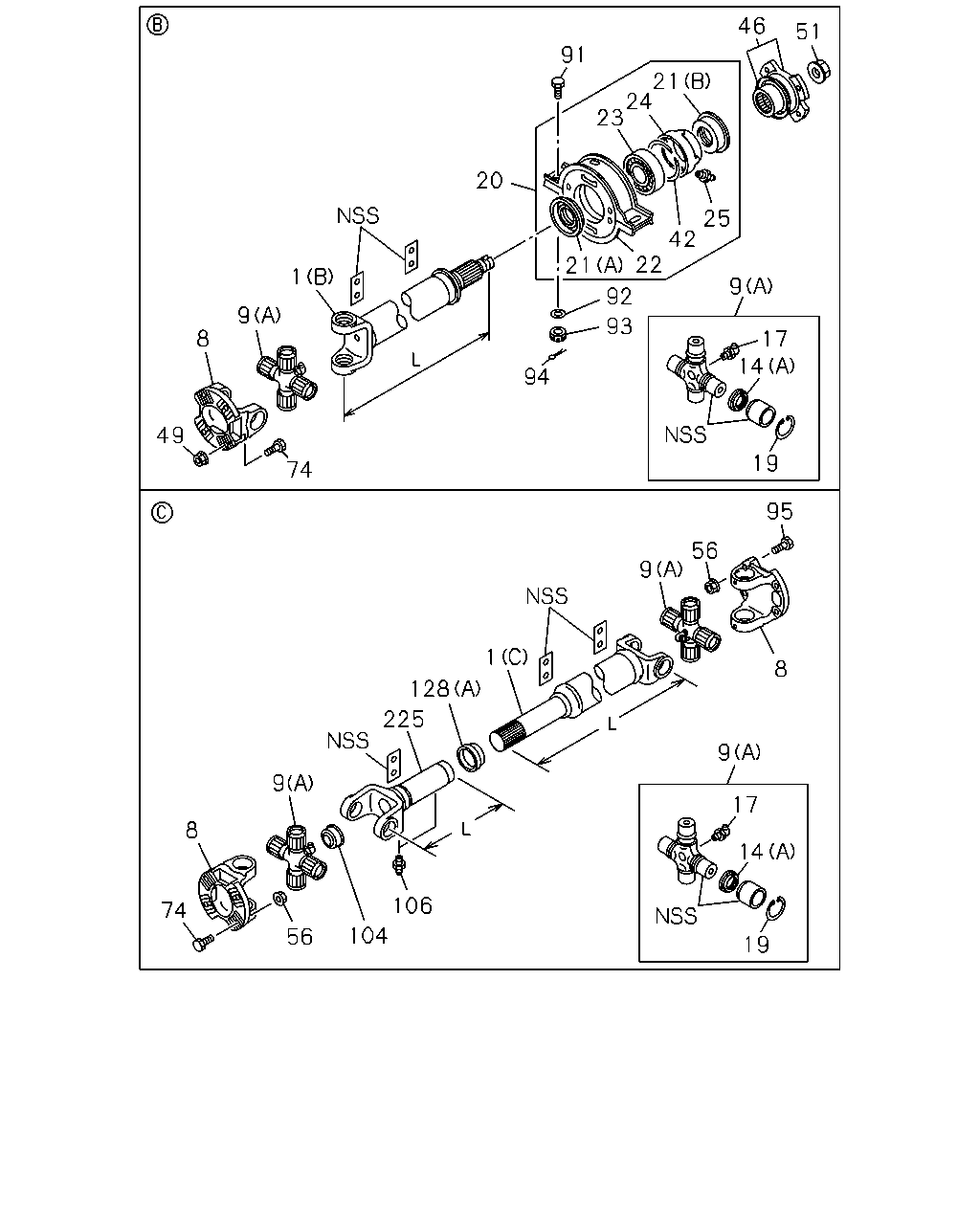

46 51 91 21 24 23 20 25 42 22 21 1 9 92 9 93 8 17 14 94 49 19 74 95 56 9 1 8 128 225 9 17 8 14 106 74 104 56 19 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP (C) L=975	1-37125-338-0	01	1	0511-		●
1	SHAFT; PROP (B) L=1499	8-98030-328-0	01	1	0511-		●
1	SHAFT; PROP (A) L=874	8-98030-327-0	01	1	0511-		●
1	SHAFT; PROP (C) L=1465	1-37124-634-1	01	1	0511-	●
1	SHAFT; PROP ENGINE REAR PTO(SV1) (A) L=804	1-37153-459-0	01	1	0511-	●
1	SHAFT; PROP (C) L=1365	1-37124-631-1	01	1	0511-			●
1	SHAFT; PROP (B) L=1499	1-37153-468-0	01	1	0511-			●
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (A) L=874	1-37152-921-0	01	1	0511-	●
1	SHAFT; PROP (A) L=874	1-37152-921-0	01	1	0511-			●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-084-0	02	1	0511-		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-084-0	01	1	0511-		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-084-0	01	1	0511-		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-077-1	01	1	0511-	●		●
8	YOKE; FLANGE,PROP SHAFT 1ST AND 2ND	1-37211-077-1	01	1	0511-			●
8	YOKE; FLANGE,PROP SHAFT END	1-37211-077-1	02	1	0511-	●		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0511-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	0511-		●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	0511-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	0511-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0511-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	0511-		●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	0511-	●	●	●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	0511-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0511-0512		●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 1ST AND 2ND PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-		●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	0511-0512	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT END AND REAR PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0601-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	0511-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	0511-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	0511-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	0511-		●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	0511-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	0511-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	0511-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	0511-		●	●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	0511-	●	●	●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	0511-		●	●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	0511-	●	●	●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	0511-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0511-	●	●	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	0511-		●	●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0511-	●	●	●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	0511-		●	●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	0511-	●	●	●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	0511-		●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0511-	●	●	●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	0511-		●	●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	0511-	●	●	●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	0511-		●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	0511-	●	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	0511-		●	●
49	NUT; YOKE M14 FLANGE	1-09440-048-0	04	1	0511-0805		●	●
49	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	0806-		●	●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0511-	●	●	●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	0511-		●	●
56	NUT; YOKE M14 FLANGE	1-09440-048-0	08	1	0511-0805	●	●	●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	08	1	0806-	●	●	●
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0511-	●	●	●
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	04	1	0511-		●	●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	0511-		●	●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	0511-		●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	9-99116-516-0	02	1	0511-0605		●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	0606-1204		●	●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-		●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	9-08114-025-0	02	1	0511-0606		●	●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	0607-		●	●
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	0511-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0511-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	0511-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR PT1/8 STRAIGHT	9-09031-010-0	01	1	0511-0512	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT REAR PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT END PT1/8 STRAIGHT	9-09031-010-0	02	1	0511-0512	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT END PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●	●	●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	0511-	●	●	●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	0511-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=339	1-37241-140-0	01	1	0511-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
