Sayfa 7-10 - Isuzu EPC

7-10 — CAUTION PLATE AND LABEL (#3080) — 54 parça

7 173 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
7	LABEL; EMISSION INJ PUMP Q SET SPECIAL ECE(T1M)	8-97042-609-0	01	1	9102-9205	●	●	●	●
7	LABEL; EMISSION CAUTIONS ECE<WX4>	8-97042-609-0	01	1	9206-	●	●	●	●
173	PLATE; CAUTION,FUEL FILTER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. AIR CONDITIONER MANUAL CONTROL(C60),STEEL FAN<E1P>,OIL FILLER CAB BACK DELETE<E6X>,CONCRETE PUMP<RA5>,CHEAPER CAB(SAX),INTAKE HEATER<SL2>,C HINA TIBET EQUIPMENT(WD1),CAUTIONS ECE<WX4>, GOVERNOR CONTROL<W69>	1-85886-177-0	01	1	9307-				●
186	PLATE; CAUTION,PARTIAL OIL FILTER CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> EXC. OIL FILTER CENTRIFUGAL<E6S>	1-85886-180-0	01	1	9307-				●

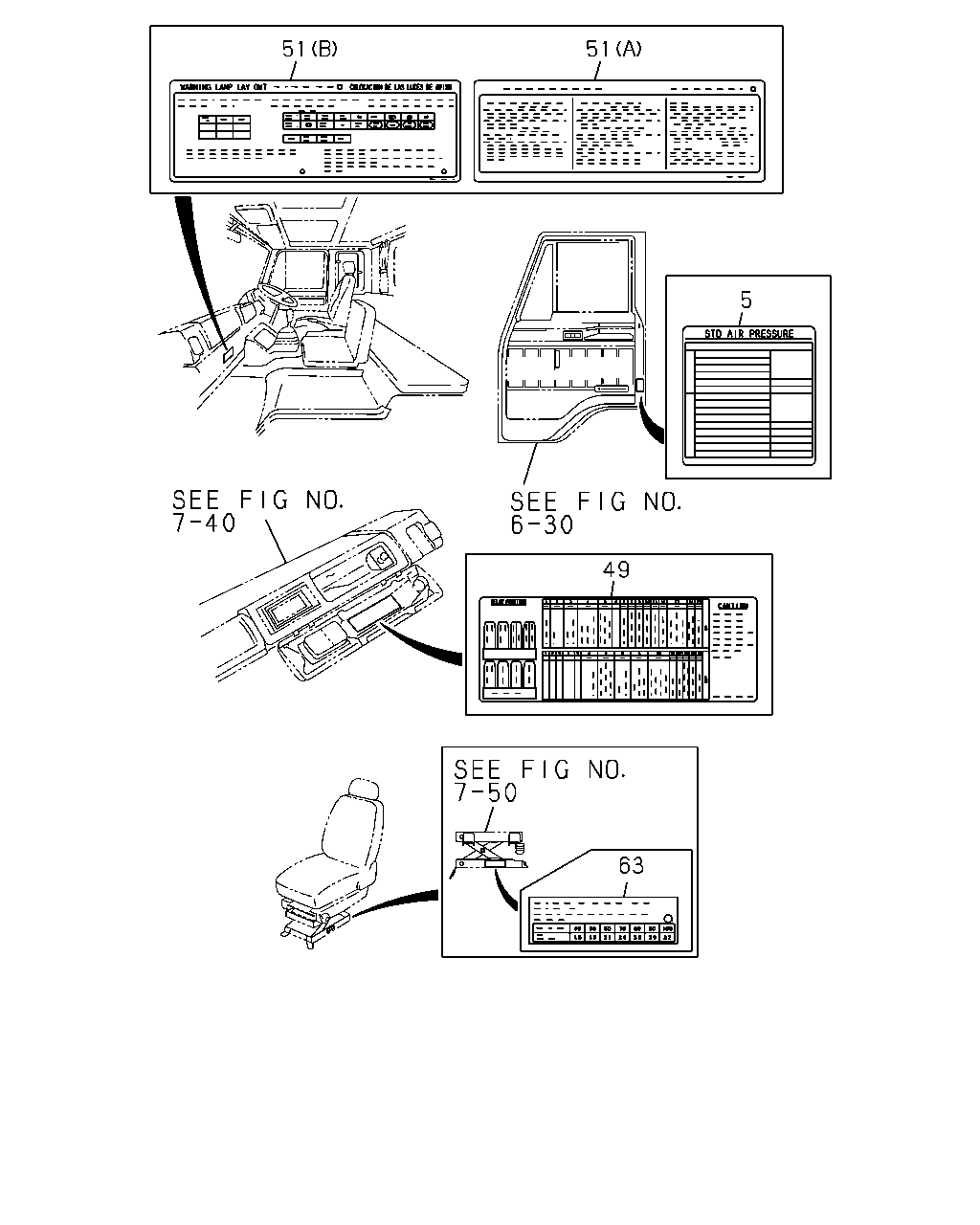

63 49 5 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
5	LABEL; TIRE AIR PRESSURE	1-85881-387-0	01	1	9002-9003	●	●	●	●
5	LABEL; TIRE AIR PRESSURE	1-85881-655-0	01	1	9004-	●	●	●	●
49	PLATE; CAUTION,FUSE BOX	1-85887-691-4	01	1	9002-	●	●
49	PLATE; CAUTION,FUSE BOX EXC. CAUTIONS CHINESE<SL7>	1-85887-691-4	01	1	9002-			●	●
49	PLATE; CAUTION,FUSE BOX CAUTIONS CHINESE<SL7>	1-85887-795-1	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING (A)	1-85880-569-0	01	1	9002-	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS FRENCH<WJ8> (A)	1-85880-569-0	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING (B)	1-85887-454-1	01	1	9002-	●	●
51	PLATE; CAUTION,WARNING EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS FRENCH<WJ8> (B)	1-85887-454-1	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (A)	1-85880-572-0	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING CAUTIONS ARABIAN<WJ7> (B)	1-85887-514-1	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (A)	1-85880-570-0	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING CAUTIONS CHINESE<SL7> (B)	1-85887-512-1	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (A)	1-85880-571-0	01	1	9002-			●	●
51	PLATE; CAUTION,WARNING CAUTIONS FRENCH<WJ8> (B)	1-85887-513-2	01	1	9002-			●	●
63	PLATE; CAUTION,SEAT AIR CAUTIONS ARABIAN<WJ7> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-202-0	01	1	9002-				●
63	PLATE; CAUTION,SEAT AIR CAUTIONS CHINESE<SL7> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-200-0	01	1	9002-				●
63	PLATE; CAUTION,SEAT AIR CAUTIONS FRENCH<WJ8> SUSP SEAT W/SEAT BELT ANCHORAGE(WN5)	1-75537-201-0	01	1	9002-				●
63	PLATE; CAUTION,SEAT AIR SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) CAUTIONS SPANISH<YN1>	1-75537-203-0	01	1	9002-				●

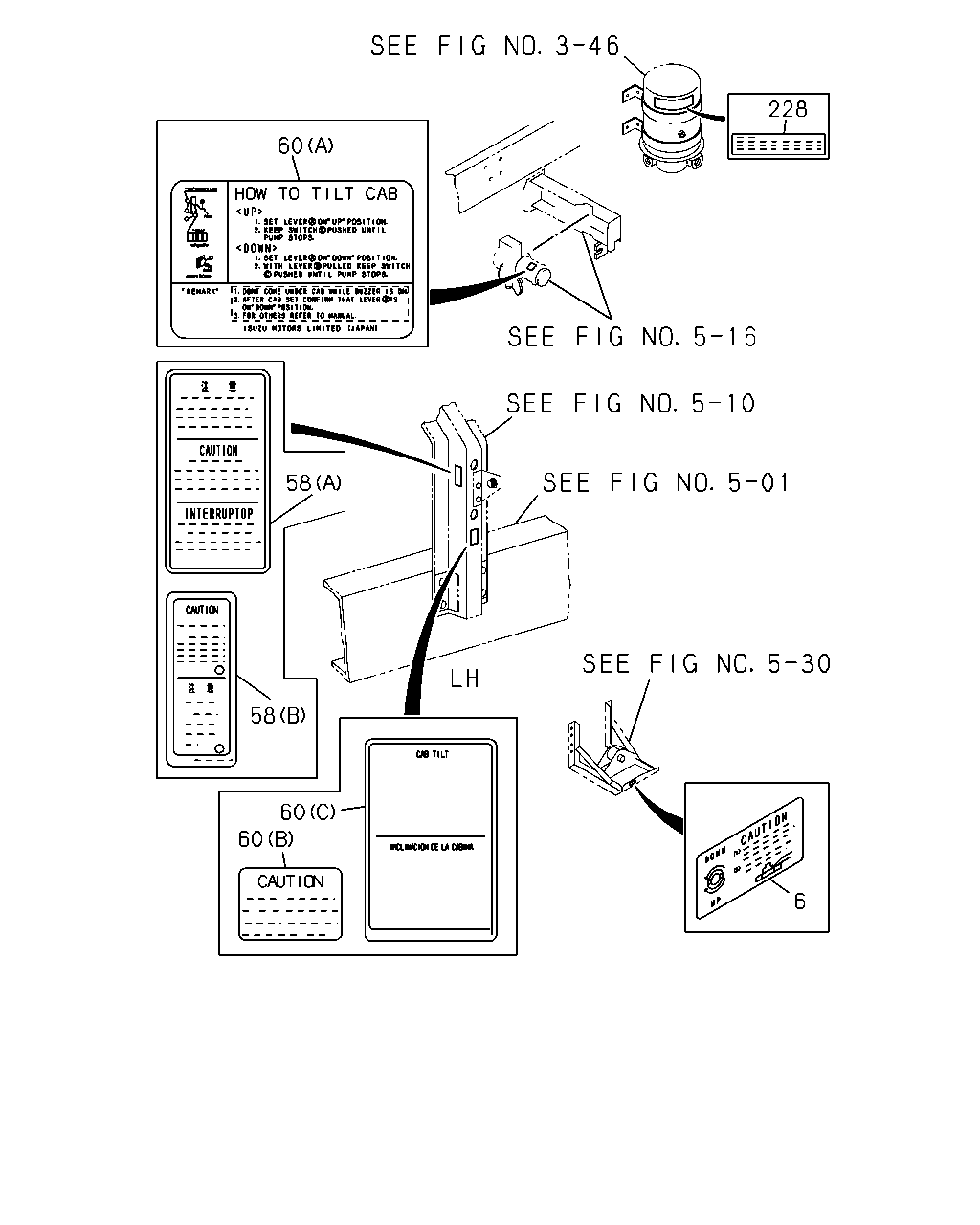

6 60 60 58 58 60 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> ENGLISH	1-53639-004-0	01	1	9307-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ENGLISH	1-53639-004-0	01	1	9307-				●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10> SPANISH	1-53639-005-0	01	1	9307-		●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS FRENCH<WJ8> SPANISH	1-53639-005-0	01	1	9307-				●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7>	1-85883-114-0	01	1	9307-				●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7>	1-85883-113-0	01	1	9307-				●
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8>	1-85883-108-0	01	1	9307-				●
58	PLATE; CAUTION,ENG START (A)	1-85887-457-0	01	1	9002-	●	●
58	PLATE; CAUTION,ENG START EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS FRENCH<WJ8> (A)	1-85887-457-0	01	1	9002-			●	●
58	PLATE; CAUTION,ENG START CAUTIONS ARABIAN<WJ7> (B)	1-85887-537-0	01	1	9002-			●	●
58	PLATE; CAUTION,ENG START CAUTIONS CHINESE<SL7> (B)	1-85887-536-0	01	1	9002-			●	●
58	PLATE; CAUTION,ENG START CAUTIONS FRENCH<WJ8> (B)	1-85887-535-0	01	1	9002-			●	●
60	PLATE; CAUTION,CAB TILT (C)	1-85881-511-0	01	1	9002-	●	●
60	PLATE; CAUTION,CAB TILT EXC. CAUTIONS CHINESE<SL7>,CAUTIONS ARABIAN<WJ7> ,CAUTIONS FRENCH<WJ8> (C)	1-85881-511-0	01	1	9002-			●	●
60	PLATE; CAUTION,CAB TILT AUTO CAB TILT<WV2> (A)	1-85883-094-2	01	1	9002-9306	●	●
60	PLATE; CAUTION,CAB TILT AUTO CAB TILT<WV2> (B)	1-85883-097-0	01	1	9002-9206	●	●
60	PLATE; CAUTION,CAB TILT AUTO CAB TILT<WV2> (B)	1-85883-097-0	02	1	9207-9306	●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS ARABIAN<WJ7> (C)	1-85881-529-0	01	1	9002-			●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS CHINESE<SL7> (C)	1-85881-527-0	01	1	9002-			●	●
60	PLATE; CAUTION,CAB TILT CAUTIONS FRENCH<WJ8> (C)	1-85881-528-0	01	1	9002-			●	●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7>	1-85887-935-0	01	1	9307-		●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> EXC. CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8>	1-85887-935-0	01	1	9307-				●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS CHINESE<SL7>	1-85887-934-0	01	1	9307-				●
228	PLATE; CAUTION,AIR DRYER AIR DRYER<PS7> CAUTIONS FRENCH<WJ8>	1-85887-936-0	01	1	9307-				●

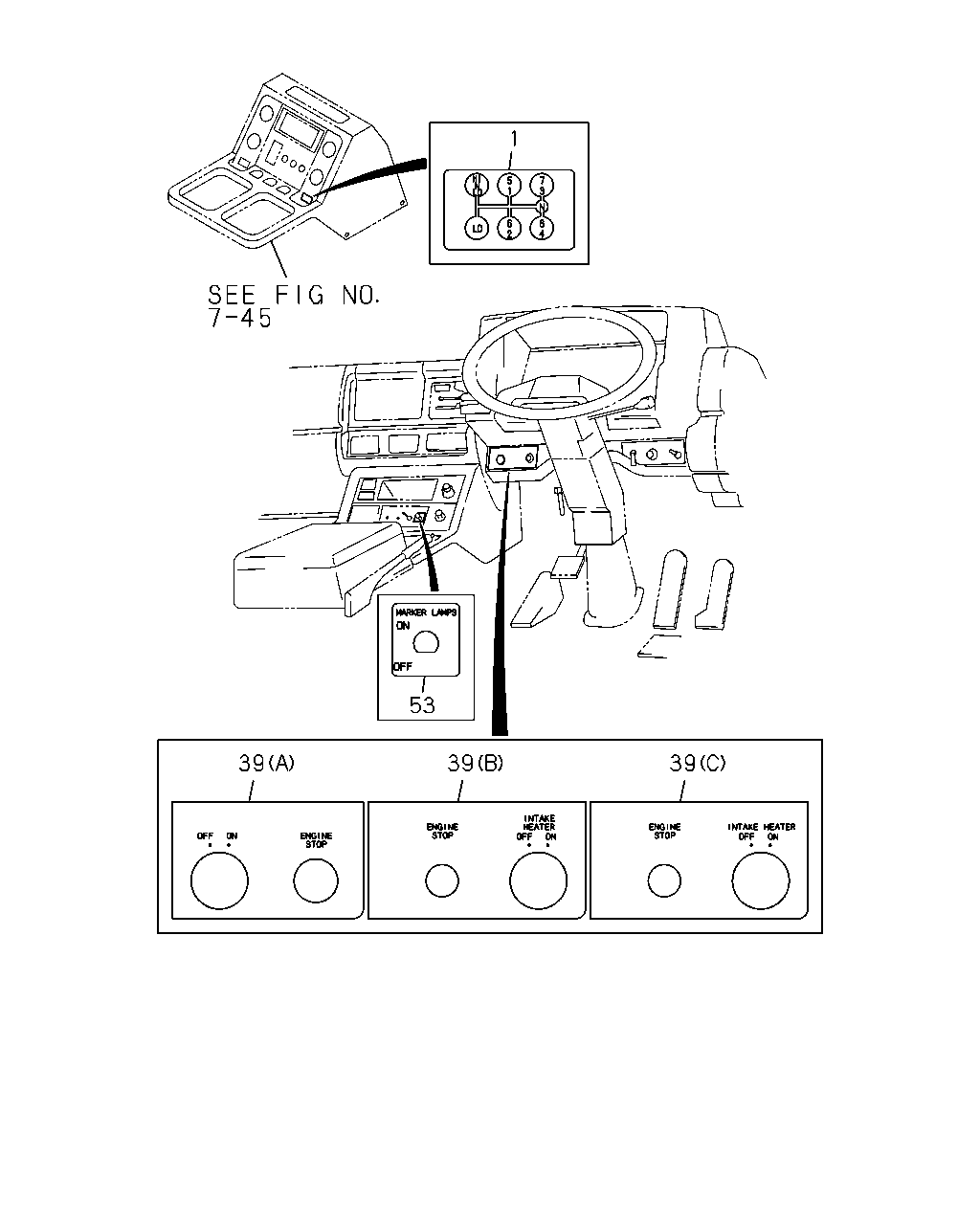

39 39 39 53 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PLATE; CAUTION,SHIFT PATTERN RT11609A M/T FULLER(PQ4)	1-85881-519-0	01	1	9006-9306	●	●	●	●
39	PLATE; CAUTION,ENG STOP INTAKE HEATER<SL2> (B)	1-85877-230-0	01	1	9002-9307	●	●	●	●
39	PLATE; CAUTION,ENG STOP INTAKE HEATER<SL2> EXC. AUTO ENG SHUTOFF<KB6> (B)	1-85877-230-0	01	1	9308-		●		●
39	PLATE; CAUTION,ENG STOP EXC. INTAKE HEATER<SL2> (C)	1-85877-199-0	01	1	9002-9307	●	●	●	●
39	PLATE; CAUTION,ENG STOP EXC. AUTO ENG SHUTOFF<KB6>,INTAKE HEATER<SL2> (C)	1-85877-199-0	01	1	9308-		●		●
39	PLATE; CAUTION,ENG STOP AUTO ENG SHUTOFF<KB6> EXC. INTAKE HEATER<SL2> (A)	1-85877-308-0	01	1	9308-		●
53	PLATE; CAUTION,MARKER LAMP MARKER LAMP THREE AMBER<WD9>	1-85877-356-0	01	1	9002-9306			●	●
