Isuzu WW
▶
TRUCKS
▶
FTR
▶
10626 - FTR-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶

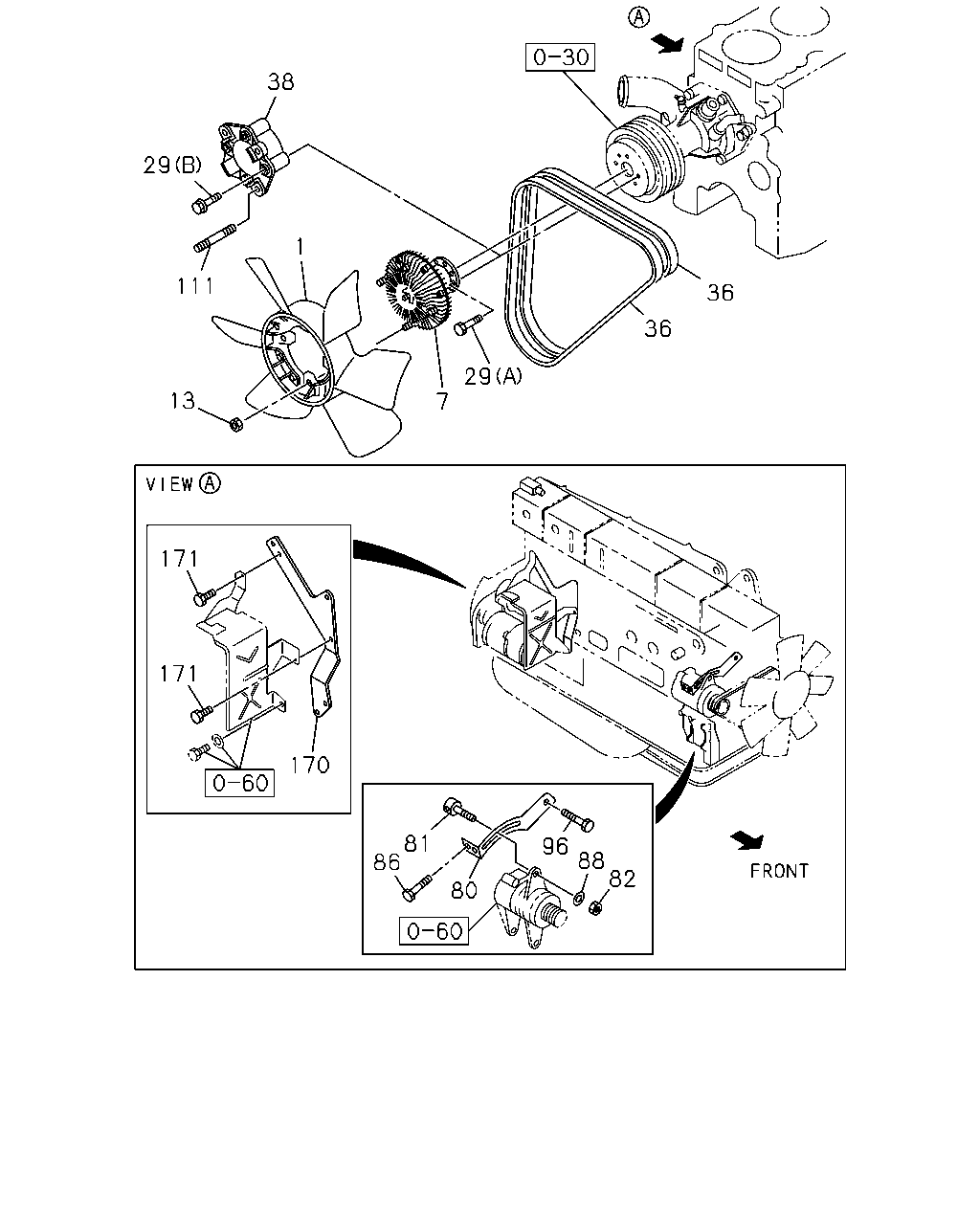

0-33 — FAN AND FAN BELT
(#308) — 27 parça
Tümü
A - 6HE1 STD NEG
B - 6HE1 N ENG
38
29
1
111
36
36
29
13
7
171
171
170
81
86
96
88
82
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FAN; COOLING
5-13662-012-1
01
1
9202-
●
●
7
COUPLING; FAN
FLUID DRIVE FAN<KA3> RLD GOVERNOR ADR VAR8(RC7)
8-94396-674-0
01
1
9202-
●
7
COUPLING; FAN
FLUID DRIVE FAN<KA3>
8-94396-674-0
01
1
9202-
●
7
COUPLING; FAN
FLUID DRIVE FAN<KA3> EXC. RLD GOVERNOR ADR VAR8(RC7)
8-94393-574-1
01
1
9202-
●
13
NUT; COOLING FAN
M6 FLANGE
0-91150-106-0
04
1
9202-
●
●
29
BOLT; COUPLING TO WATER PUMP
FLUID DRIVE FAN<KA3> (A) M8X14 FLANGE
8-94399-451-1
04
1
9202-
●
●
29
BOLT; COUPLING TO WATER PUMP
EXC. FLUID DRIVE FAN<KA3> (B) M8X70 FLANGE
0-28080-870-0
04
1
9202-
●
●
36
BELT; COOLING FAN
FLUID DRIVE FAN<KA3> RLD GOVERNOR ADR VAR8(RC7) L=1150 1 SET=2 PIECE(1136711970) MITSUBOSHI
1-13671-194-0
01
1
9202-
●
36
BELT; COOLING FAN
EXC. FLUID DRIVE FAN<KA3> L=1150 1 SET=2 PIECE(1136711970) MITSUBOSHI
1-13671-194-0
01
1
9202-
●
36
BELT; COOLING FAN
L=1150 1 SET=2 PIECE(1136711970) MITSUBOSHI
1-13671-194-0
01
1
9202-
●
36
BELT; COOLING FAN
FLUID DRIVE FAN<KA3> EXC. RLD GOVERNOR ADR VAR8(RC7) L=1186 1 SET=2 PIECE(1136713270) MITSUBOSHI
1-13671-328-0
01
1
9202-
●
38
SPACER; FAN
EXC. FLUID DRIVE FAN<KA3>
8-94393-896-0
01
1
9202-
●
●
80
PLATE; ADJ
8-94396-271-0
01
1
9202-9502
●
●
80
PLATE; ADJ
8-94390-021-1
01
1
9503-
●
●
81
PIECE; SLIDING
M12X45
1-13674-160-0
01
1
9202-
●
●
82
NUT; ADJ PLATE
M12 FLANGE
0-91150-112-0
01
1
9202-
●
●
86
BOLT; ADJ
M10X155 FLANGE
1-09009-114-1
01
1
9202-
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09160-712-0
01
1
9202-9501
●
●
88
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
9-09164-712-0
01
1
9502-
●
●
96
BOLT; ADJ PLATE
M10X45 FLANGE
0-28181-045-0
01
1
9202-
●
●
111
STUD; FAN DRIVE
EXC. FLUID DRIVE FAN<KA3> M6X12 L=21
9-04110-612-0
04
1
9202-
●
●
170
BRACKET; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3)
8-94393-024-0
01
1
9202-9409
●
●
170
BRACKET; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENTVAR2<TAK>
8-94393-024-0
01
1
9410-
●
●
171
BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3) M8X14 FLANGE
0-28080-814-0
02
1
9202-9409
●
●
171
BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENTVAR2<TAK> M8X14 FLANGE
0-28080-814-0
02
1
9410-
●
●
171
BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3) M10X20 FLANGE
0-28181-020-0
01
1
9202-9409
●
●
171
BOLT; HEAT PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3),ANTI NOISE EQUIPMENTVAR2<TAK> M10X20 FLANGE
0-28181-020-0
01
1
9410-
●
●
