Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#30798) — 319 parça

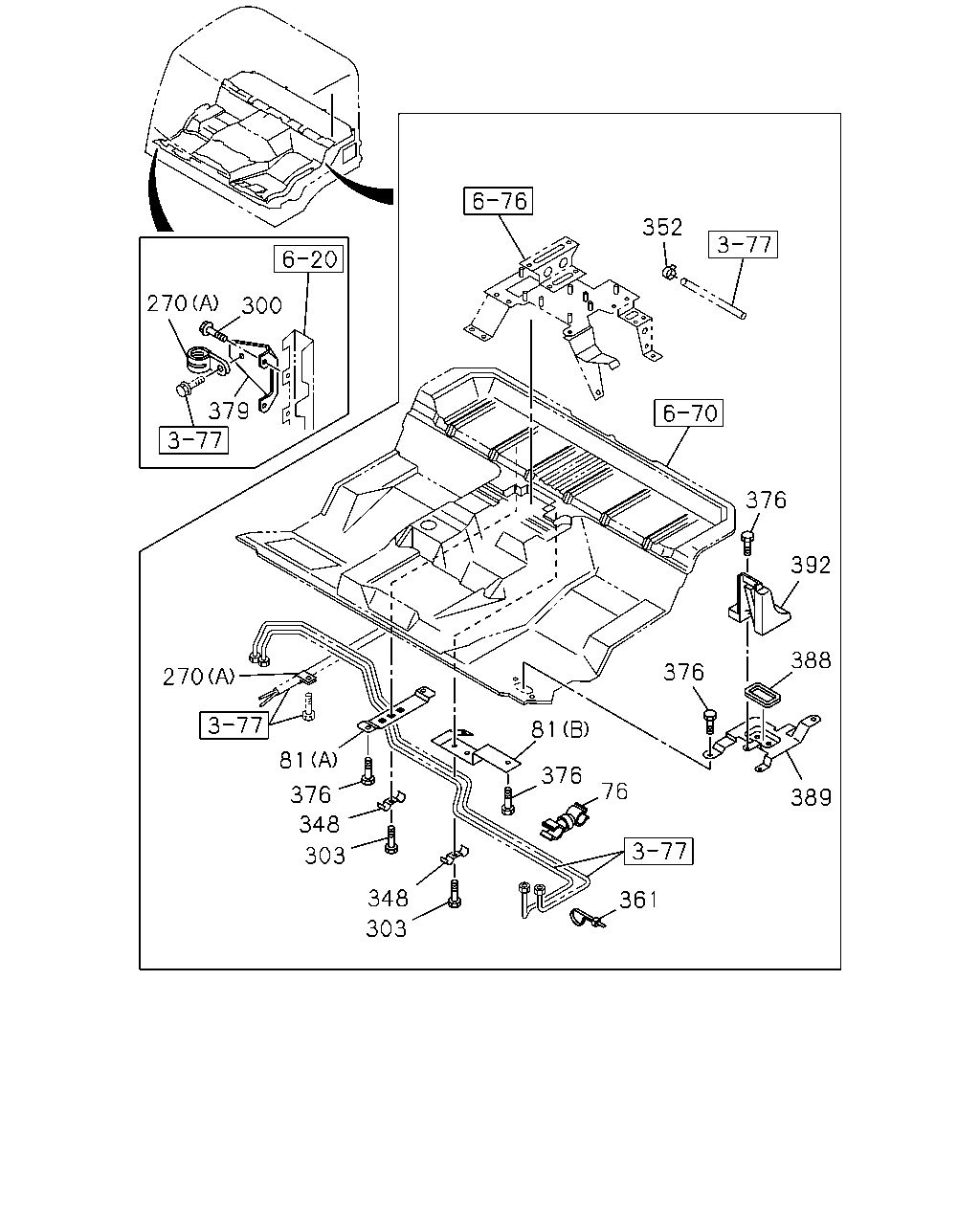

352 270 300 379 376 392 388 376 270 81 81 376 76 376 389 348 303 348 361 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	0511-
81	BRACKET; CLIP (E)	1-47477-694-0	01	1	0511-
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0511-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	02	1	0511-0703
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	03	1	0704-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	0511-
81	BRACKET; CLIP (C)	1-47479-381-2	02	1	0511-0703
81	BRACKET; CLIP (C)	1-47479-381-2	01	1	0704-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0511-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0511-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0511-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0511-0706
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	0707-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	0511-
270	CLIP; NYLON TUBE (A) ID=26 L=26	1-09701-236-0	01	1	0511-0706
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0511-
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	0511-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	01	1	0511-
348	CLIP; AIR PIPE ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	0511-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0511-0610
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	0611-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	0511-
376	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0511-0512
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0511-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0511-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0511-0904
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	0511-
388	SEAL L=215	1-79738-794-1	01	1	0511-
389	BRACKET; UNION	1-79738-790-1	01	1	0511-
392	COVER; BRKT	1-73996-264-1	01	1	0511-

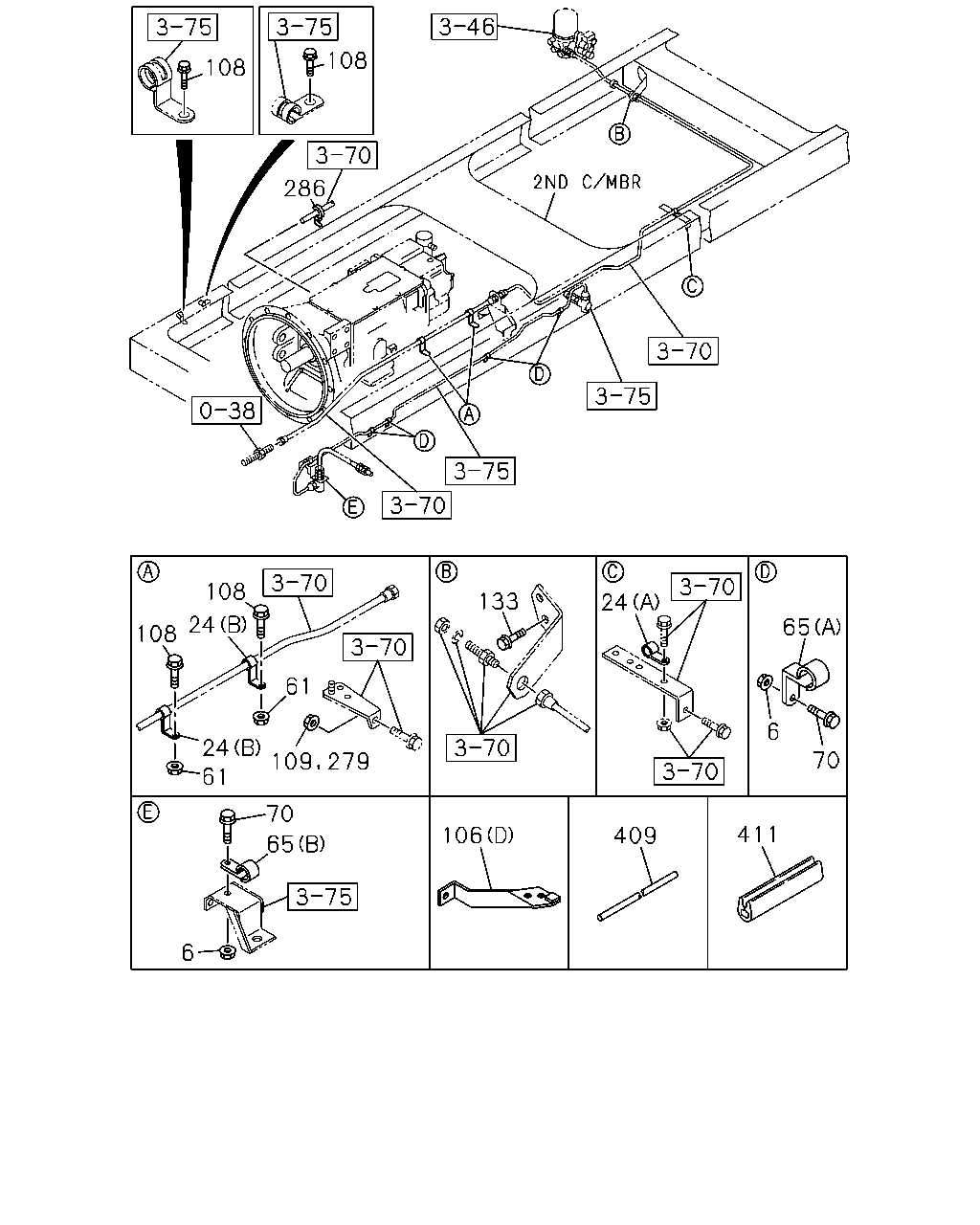

108 108 286 108 133 24 24 65 108 61 6 24 70 61 70 411 106 409 65 6 109 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	03	1	0511-0602
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0511-
24	CLIP; PIPE (A) ID=19 L=20	9-09525-836-0	01	1	0511-0606
24	CLIP; PIPE (A) ID=19 L=20	0-95235-836-0	01	1	0607-
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0511-0602
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0603-
65	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	04	1	0511-
65	CLIP; AIR PIPE (B) ID=13 L=20	9-09525-235-0	01	1	0511-0606
65	CLIP; AIR PIPE (B) ID=13 L=20	0-95235-235-0	01	1	0607-
70	BOLT; CLIP,AIR PIPE M8X35 FLANGE	0-28680-835-0	05	1	0511-0512
70	BOLT; CLIP,AIR PIPE M8X35 FLANGE	0-28650-835-0	05	1	0601-
106	BRACKET; TUBE CLIP (C) W/STUD M8X20	1-47471-209-0	02	1	0511-
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	0511-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	07	1	0511-
106	BRACKET; TUBE CLIP (D)	1-47477-746-0	01	1	0511-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	0511-0512
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	03	1	0511-0512
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	0601-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	06	1	0511-0602
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	06	1	0603-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	0511-0512
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28650-835-0	03	1	0601-
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28680-835-0	04	1	0511-0512
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28650-835-0	04	1	0601-
133	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0511-0512
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	17	1	0511-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	17	1	0601-0703
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	18	1	0704-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0511-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0511-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0511-0512
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0601-
279	NUT; BRKT M8 FLANGE	0-91150-108-0	15	1	0511-0602
279	NUT; BRKT M8 FLANGE	0-91180-108-0	15	1	0603-
286	CLIP; NYLON TUBE ID=16 H=25 L=25	1-09701-162-0	01	1	0511-
409	TUBE; DISTANCE L=22	9-22159-024-0	01	1	0511-
411	SLEEVE; RUBBER WHEEL BASE 6300MM(63W) L=60	8-97865-346-0	01	1	0511-
411	SLEEVE; RUBBER WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) L=60	8-97865-346-0	02	1	0511-

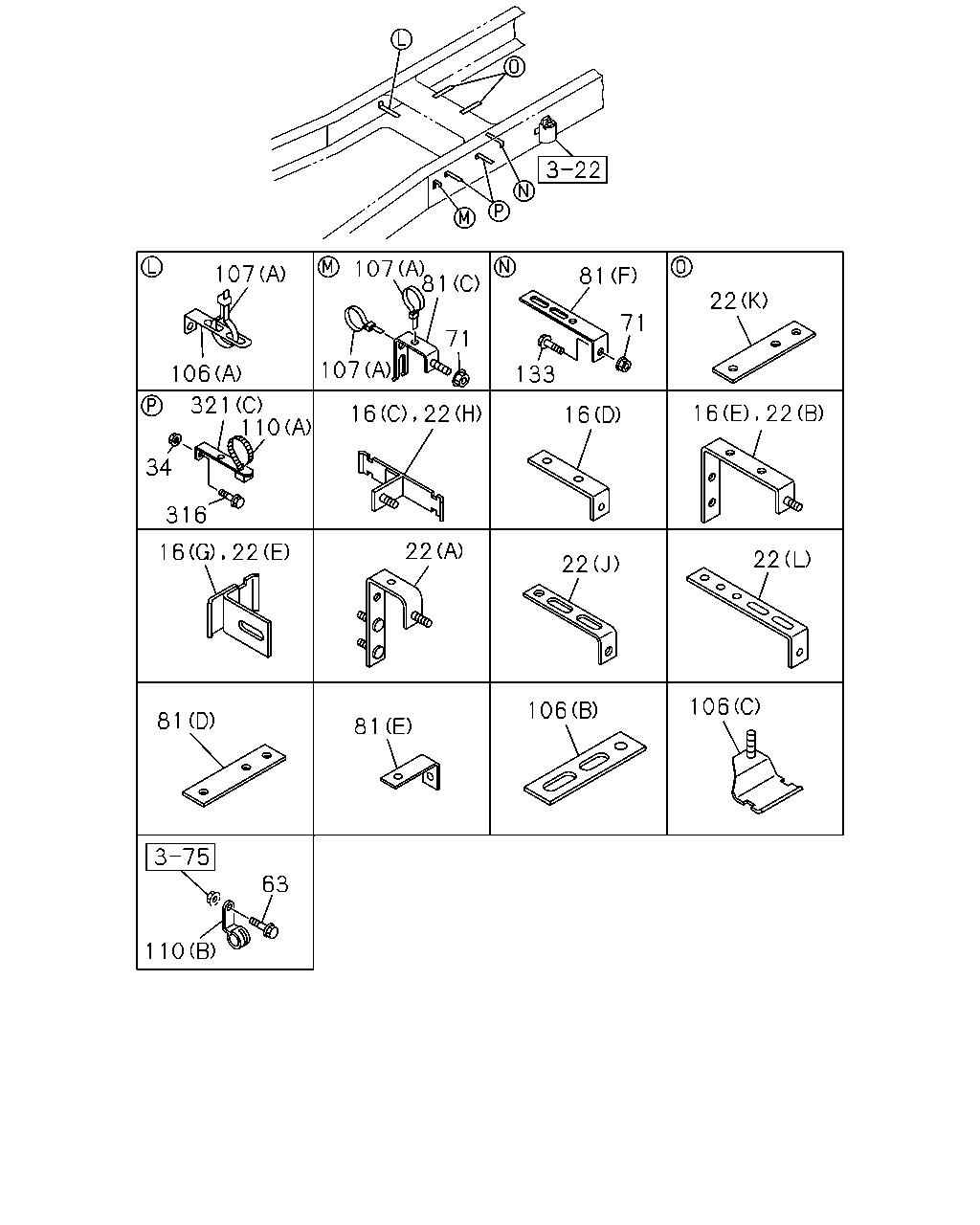

107 81 107 81 22 71 71 107 106 133 321 110 16 34 316 22 16 22 22 22 106 106 81 81 63 110 16 22 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP WHEEL BASE 6300MM(63W) (G)	1-47479-693-0	02	1	0511-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (G)	1-47479-693-0	03	1	0511-
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	04	1	0511-
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0511-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0511-
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0511-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0511-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	02	1	0511-
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	0511-
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0511-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	0511-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (F)	1-47479-381-2	09	1	0511-
22	BRACKET; CLIP WHEEL BASE 6300MM(63W) (F)	1-47479-381-2	06	1	0511-
22	BRACKET; CLIP WHEEL BASE 6300MM(63W) (E)	1-47479-693-0	02	1	0511-
22	BRACKET; CLIP WHEEL BASE 7700MM(77W) (F)	1-47479-381-2	10	1	0511-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (E)	1-47479-693-0	03	1	0511-
22	BRACKET; CLIP (K) L=130	1-47478-959-0	02	1	0511-
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	0511-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	0511-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0511-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0511-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	0511-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	0511-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	04	1	0511-0903
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	0904-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0511-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	0511-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0511-0602
34	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0603-0611
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0612-
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0612-
71	NUT; BRKT M8 FLANGE	0-91150-108-0	10	1	0511-0602
71	NUT; BRKT M8 FLANGE	0-91180-108-0	10	1	0603-
81	BRACKET; CLIP (E)	1-47477-694-0	01	1	0511-
81	BRACKET; CLIP (D) W/STUD M8X20	1-47471-209-0	02	1	0511-
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	02	1	0511-0703
81	BRACKET; CLIP (F) L=100 H=30	1-47477-645-2	03	1	0704-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	0511-
81	BRACKET; CLIP (C)	1-47479-381-2	02	1	0511-0703
81	BRACKET; CLIP (C)	1-47479-381-2	01	1	0704-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	0511-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	0511-
106	BRACKET; TUBE CLIP (C) W/STUD M8X20	1-47471-209-0	02	1	0511-
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	0511-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	07	1	0511-
106	BRACKET; TUBE CLIP (D)	1-47477-746-0	01	1	0511-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	18	1	0511-0608
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	19	1	0609-
107	CLIP; NYLON TUBE (C) ID=25 H=30 L=35	1-09700-875-0	01	1	0511-
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	0511-
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	0511-
110	CLIP; BAND,NYLON TUBE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0612-
110	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	05	1	0511-0611
110	CLIP; BAND,NYLON TUBE (A) L=350	1-09707-183-0	03	1	0612-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	0511-0512
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28650-835-0	03	1	0601-
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28680-835-0	04	1	0511-0512
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28650-835-0	04	1	0601-
133	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0511-0512
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	17	1	0511-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	17	1	0601-0703
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	18	1	0704-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0511-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0511-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0511-0512
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0601-
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	03	1	0511-0512
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	03	1	0601-0611
316	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	0612-
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	03	1	0511-0611
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	01	1	0612-
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0511-
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0511-

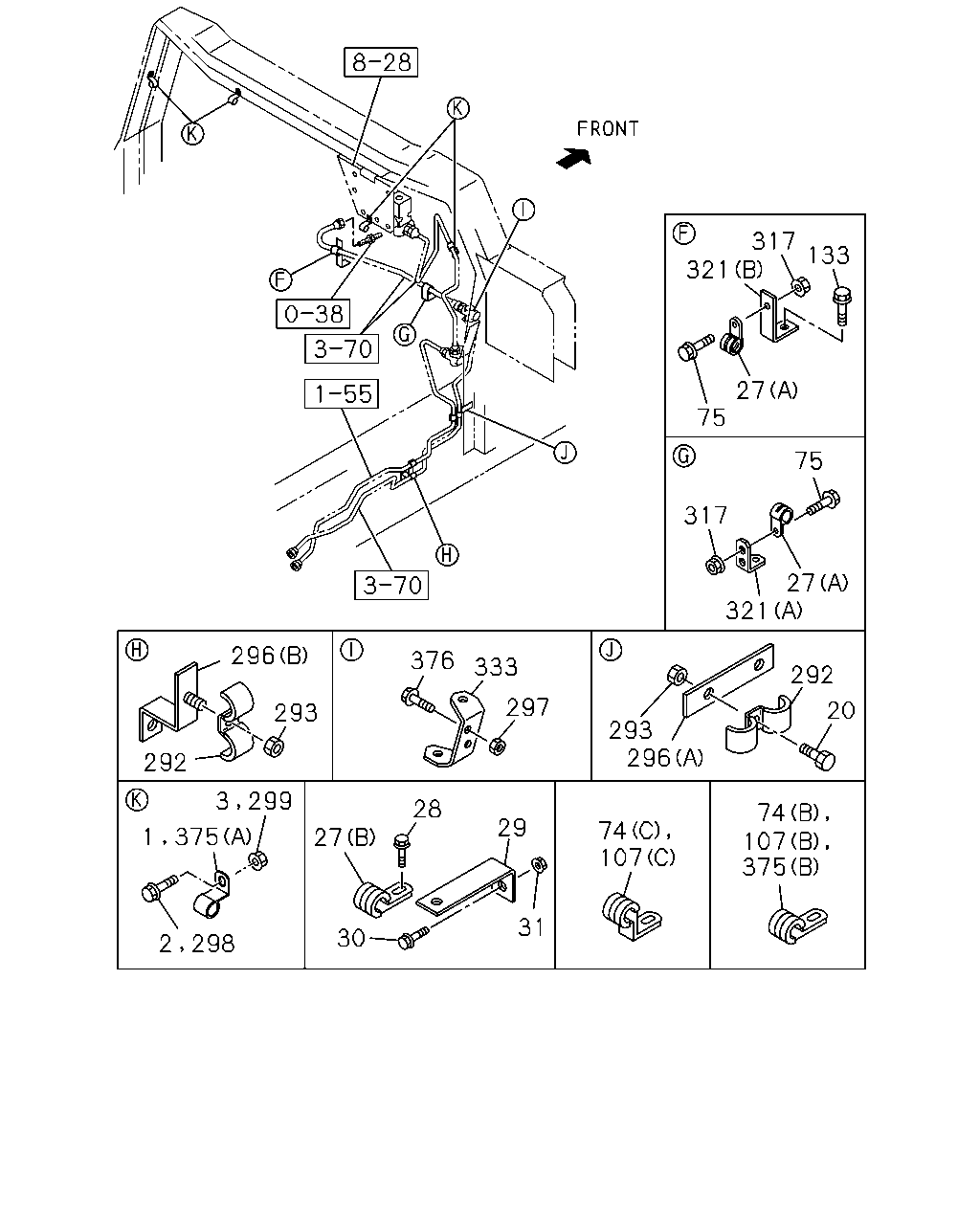

317 321 133 27 75 75 317 27 321 296 376 333 292 297 20 293 293 296 292 299 28 74 107 375 29 74 107 375 1 27 31 30 298 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0511-
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0511-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0511-0602
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	01	1	0603-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	0511-0512
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	0601-
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	06	1	0511-0512
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	06	1	0601-
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0511-0512
20	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	0601-
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	0511-
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	0511-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	01	1	0511-0512
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	0601-
29	BRACKET; CLIP,AIR PIPE L=145 B=25	1-47479-123-0	01	1	0511-
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0511-0512
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-
31	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0511-0602
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (A) L=350	1-09707-183-0	20	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	17	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (C) ID=28 H=45 L=30	1-09700-948-0	02	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (C) ID=16 H=25 L=25	1-09701-162-0	02	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 7700MM(77W) (A) L=350	1-09707-183-0	21	1	0511-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0511-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	02	1	0511-
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28680-820-0	02	1	0511-0512
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	0601-
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	18	1	0511-0608
107	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	19	1	0609-
107	CLIP; NYLON TUBE (C) ID=25 H=30 L=35	1-09700-875-0	01	1	0511-
107	CLIP; NYLON TUBE (B) ID=35 L=33	1-09700-945-0	01	1	0511-
107	CLIP; NYLON TUBE (B) ID=26 L=27	1-09701-006-0	01	1	0511-
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28680-835-0	03	1	0511-0512
133	BOLT; BRKT WHEEL BASE 6300MM(63W) M8X35 FLANGE	0-28650-835-0	03	1	0601-
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28680-835-0	04	1	0511-0512
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X35 FLANGE	0-28650-835-0	04	1	0601-
133	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	0511-0512
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
133	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	17	1	0511-0512
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	17	1	0601-0703
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	18	1	0704-
133	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	07	1	0511-0512
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	07	1	0601-
133	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	01	1	0511-0512
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	01	1	0601-
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28080-610-0	01	1	0511-0512
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	0601-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0511-
293	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0511-0602
293	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0603-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	0511-
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	0511-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91150-108-0	21	1	0511-0602
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	21	1	0603-
297	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	17	1	0511-0602
297	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	17	1	0603-
297	NUT; BRKT WHEEL BASE 7700MM(77W) M8 FLANGE	0-91150-108-0	22	1	0511-0602
297	NUT; BRKT WHEEL BASE 7700MM(77W) M8 FLANGE	0-91180-108-0	22	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0511-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28680-820-0	01	1	0511-0512
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	0601-
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0511-0602
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0603-
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	02	1	0511-0602
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	0603-
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	03	1	0511-0611
321	BRACKET; CLIP (C) L=59 B=20	1-47479-048-0	01	1	0612-
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	0511-
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	0511-
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	0511-
375	CLIP; AIR PIPE EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	0707-
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0511-
376	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0511-0512
376	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	0601-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0511-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	05	1	0511-
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	0511-0904
376	BOLT; BRKT M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	0905-

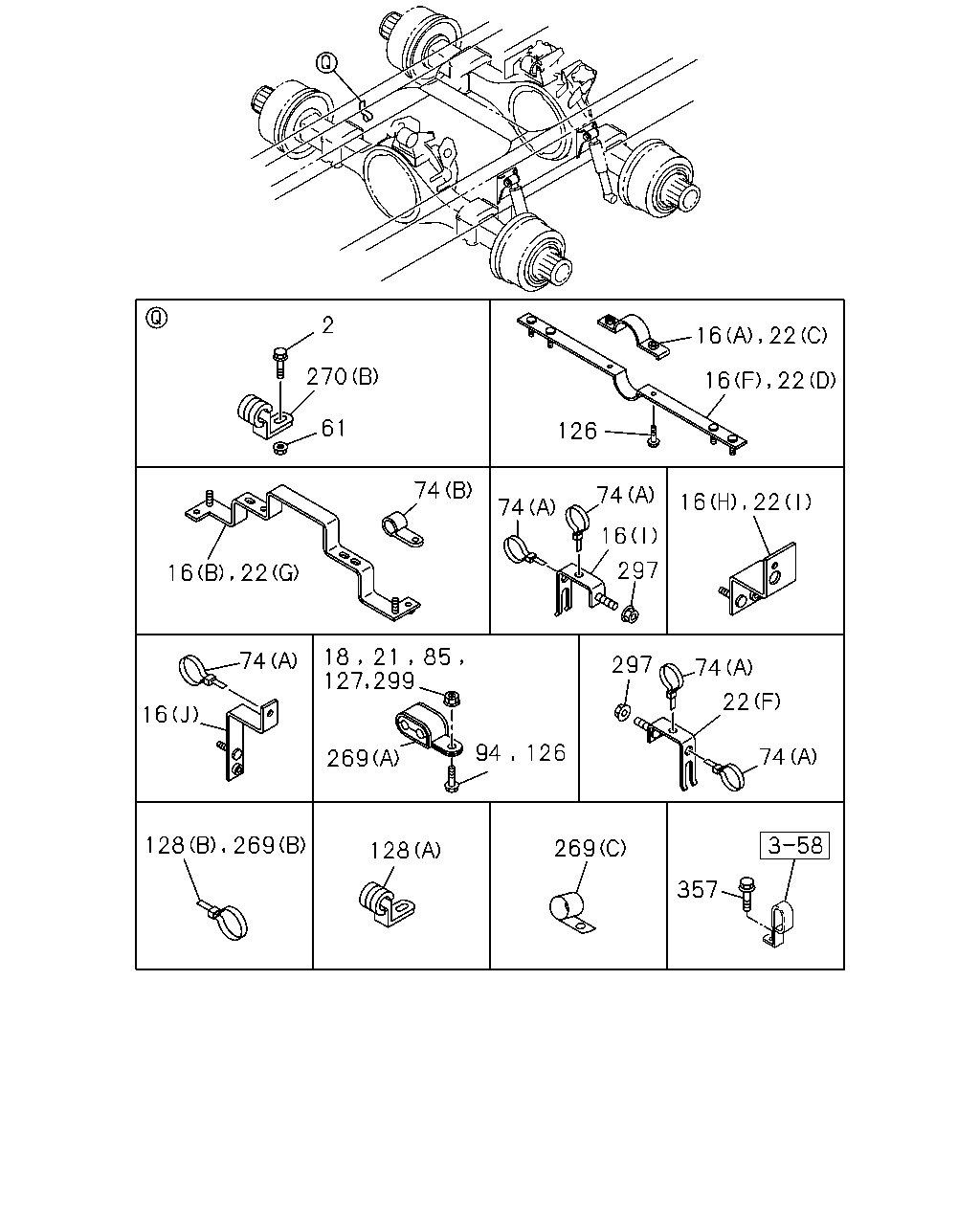

2 16 22 270 61 126 74 74 74 16 297 85 74 297 74 22 16 94 126 74 269 269 128 357 16 22 16 22 16 22 127 299 128 269 18 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	02	1	0511-0512
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
16	BRACKET; PIPE CLIP WHEEL BASE 6300MM(63W) (G)	1-47479-693-0	02	1	0511-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (G)	1-47479-693-0	03	1	0511-
16	BRACKET; PIPE CLIP (I)	1-47479-381-2	04	1	0511-
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	0511-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	0511-
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	0511-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	0511-
16	BRACKET; PIPE CLIP (J)	1-47479-721-0	02	1	0511-
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	0511-
16	BRACKET; PIPE CLIP (E)	1-47479-800-0	01	1	0511-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	0511-
18	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0511-0602
18	NUT; CLIP M8 FLANGE	0-91180-108-0	07	1	0603-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	10	1	0511-0602
21	NUT; CLIP M8 FLANGE	0-91180-108-0	10	1	0603-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (F)	1-47479-381-2	09	1	0511-
22	BRACKET; CLIP WHEEL BASE 6300MM(63W) (F)	1-47479-381-2	06	1	0511-
22	BRACKET; CLIP WHEEL BASE 6300MM(63W) (E)	1-47479-693-0	02	1	0511-
22	BRACKET; CLIP WHEEL BASE 7700MM(77W) (F)	1-47479-381-2	10	1	0511-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (E)	1-47479-693-0	03	1	0511-
22	BRACKET; CLIP (K) L=130	1-47478-959-0	02	1	0511-
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	0511-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	0511-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	0511-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	0511-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	0511-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	0511-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	04	1	0511-0903
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	0904-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	0511-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	0511-
61	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	03	1	0511-0602
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0603-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (A) L=350	1-09707-183-0	20	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (C) ID=31 H=30 L=35	1-09700-994-0	02	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (A) L=350	1-09707-183-0	17	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (C) ID=28 H=45 L=30	1-09700-948-0	02	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (C) ID=16 H=25 L=25	1-09701-162-0	02	1	0511-
74	CLIP; NYLON TUBE WHEEL BASE 7700MM(77W) (A) L=350	1-09707-183-0	21	1	0511-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	0511-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	02	1	0511-
85	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0511-0602
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	0603-
94	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0511-0512
94	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-
126	BOLT; CLIP BRKT WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28680-825-0	03	1	0511-0512
126	BOLT; CLIP BRKT WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28650-825-0	03	1	0601-
126	BOLT; CLIP BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X25 FLANGE	0-28680-825-0	04	1	0511-0512
126	BOLT; CLIP BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8X25 FLANGE	0-28650-825-0	04	1	0601-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28080-812-0	02	1	0511-0512
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	0601-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0511-0512
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	03	1	0511-0512
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	0601-
127	NUT; CLIP BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	09	1	0511-0602
127	NUT; CLIP BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	09	1	0603-
127	NUT; CLIP BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8 FLANGE	0-91150-108-0	10	1	0511-0602
127	NUT; CLIP BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) M8 FLANGE	0-91180-108-0	10	1	0603-
127	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	02	1	0511-0602
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	0603-
128	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) (B) L=350	1-09707-183-0	09	1	0511-
128	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W),WHEEL BASE 7700MM(77W) (B) L=350	1-09707-183-0	10	1	0511-
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	0511-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	0511-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	0511-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	0511-
270	CLIP; NYLON TUBE (B) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0511-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	02	1	0511-0706
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	0707-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	0511-
270	CLIP; NYLON TUBE (A) ID=26 L=26	1-09701-236-0	01	1	0511-0706
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91150-108-0	21	1	0511-0602
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	21	1	0603-
297	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	17	1	0511-0602
297	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91180-108-0	17	1	0603-
297	NUT; BRKT WHEEL BASE 7700MM(77W) M8 FLANGE	0-91150-108-0	22	1	0511-0602
297	NUT; BRKT WHEEL BASE 7700MM(77W) M8 FLANGE	0-91180-108-0	22	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0511-0602
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0603-
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91150-108-0	01	1	0511-0602
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	0603-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28080-810-0	02	1	0511-0512
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	0601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
