◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#30795) — 217 parça

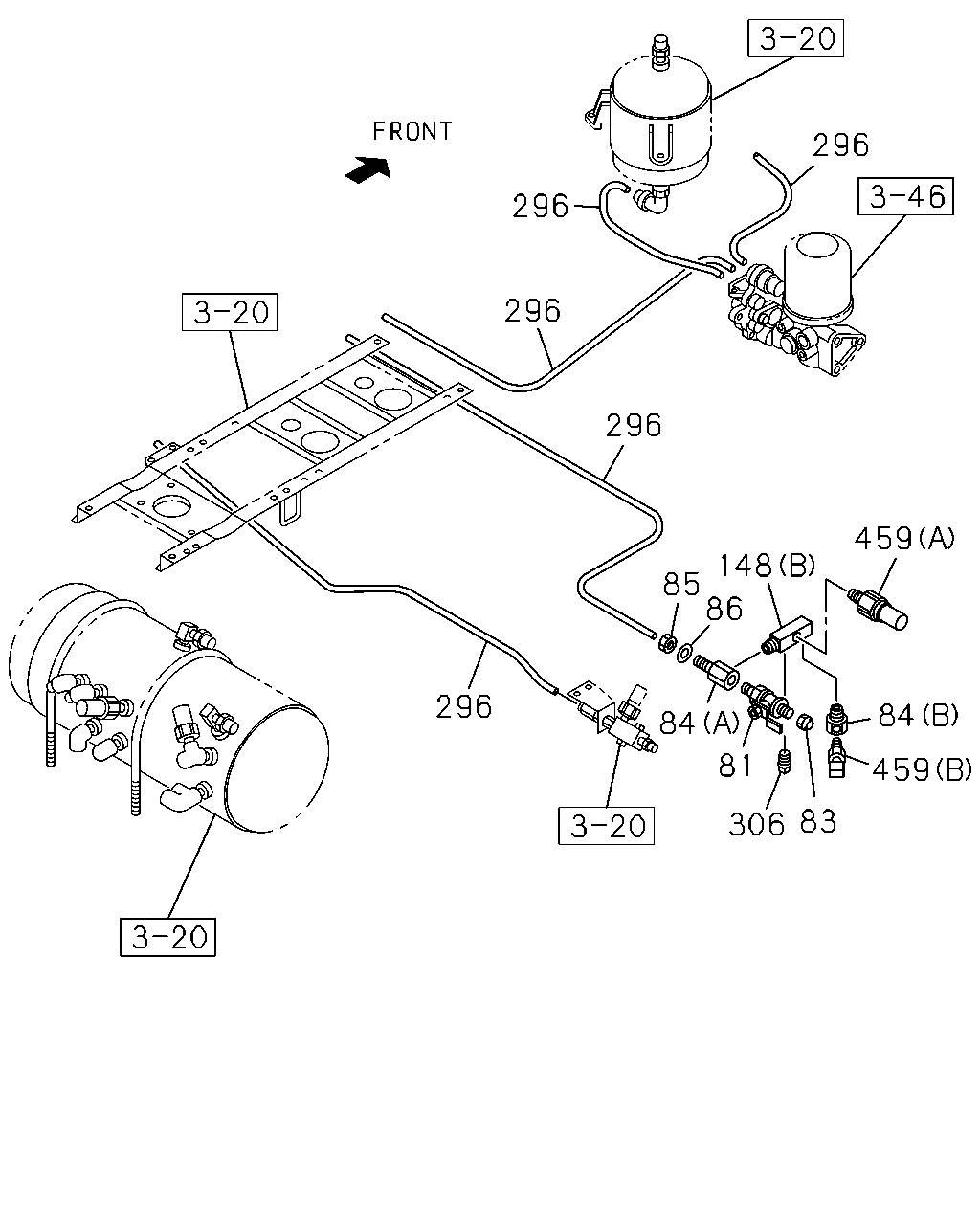

çizim 88565
296 296 296 296 459 148 85 86 84 296 84 81 459 83 306
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR 1-09680-099-0 01 1 0511-0610
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 0611-
83 CAP; AIR COCK 9-48319-102-0 01 1 0607-0610
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 0611-
84 UNION; NYLON TUBE
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0511-0804
84 UNION; NYLON TUBE
(A) 		1-09661-092-0 01 1 0511-
85 NUT; UNION
M18 		9-99110-518-0 01 1 0511-0512
85 NUT; UNION
M18 		0-91110-518-0 01 1 0601-
86 WASHER; LK,TUBE UNION
ID=18.2 		9-09150-518-0 01 1 0511-0603
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 0604-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0511-
148 CONNECTOR; UNION
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0511-
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 02 1 0611-
306 PLUG; NYLON TUBE
PT1/4 		9-99204-513-0 01 1 0511-0610
306 PLUG; NYLON TUBE
TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 0611-
459 SWITCH; PRESS
(A) 		1-48340-058-2 01 1 0511-
459 SWITCH; PRESS
(B) THREAD R1/4 		1-80220-023-1 01 1 0511-
çizim 88940
434 337 337 232 231 330 334 330 232 231 343 343 335 286 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE 1-47470-418-2 01 1 0511-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0511-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 0511-
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0511-
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0511-0512
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0601-
286 PLUG; AIR PIPE 9-09204-510-0 01 1 0611-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0511-0603
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0511-
335 SEAL; UNION
OD=30 BLACK 		1-76798-035-0 01 1 0511-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0511-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0511-
372 NUT
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
ID=10 & 10 		1-09709-221-0 01 1 0511-

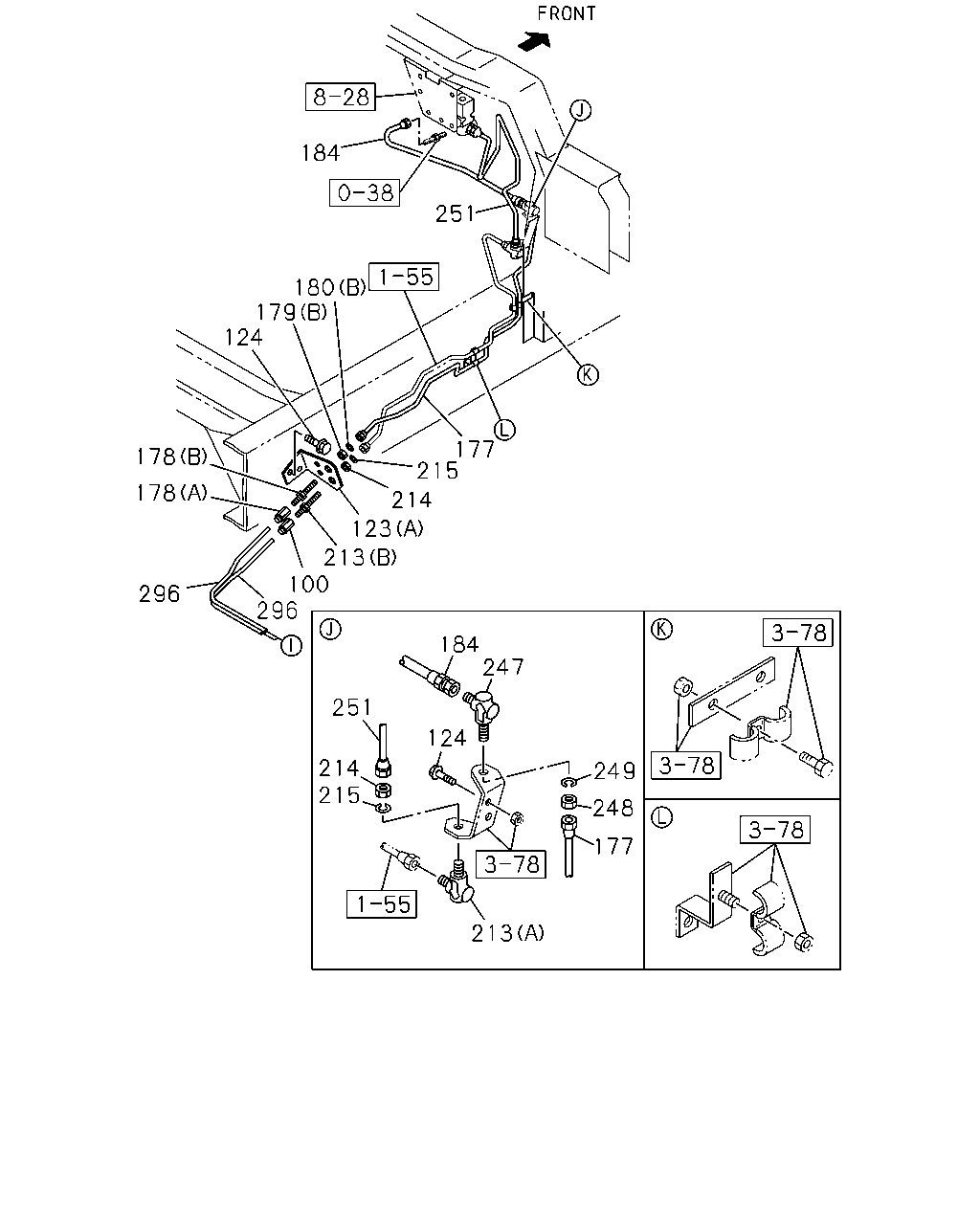

çizim 88969
184 251 180 179 124 177 215 178 178 214 123 213 100 296 296 184 247 251 124 214 215 249 248 177 213
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0511-
123 BRACKET; UNION
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 0707-
123 BRACKET; UNION
(A) 		1-47479-146-0 01 1 0511-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 0511-
124 BOLT; BRKT
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 0707-
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0511-0512
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1058 SERVICED BY L=1100 		1-47428-815-0 01 1 0511-
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1027 SERVICED BY L=1100 		1-47428-815-0 01 1 0511-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0511-
178 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0511-0607
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0608-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0511-0512
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0601-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0511-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0511-0603
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0604-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0511-0603
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0604-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0511-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0511-
213 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0511-0607
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0608-
213 UNION; AIR PIPE
(A) M12 ELBOW 		9-09225-206-1 01 1 0511-0607
213 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0511-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 02 1 0511-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 0604-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		9-09223-306-1 01 1 0511-0607
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0608-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		9-09225-206-1 01 1 0511-0607
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0511-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0511-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
251 PIPE; AIR,UNION TO MAG VLV
L=771 SERVICED BY L=800 		1-47428-812-0 01 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0511-

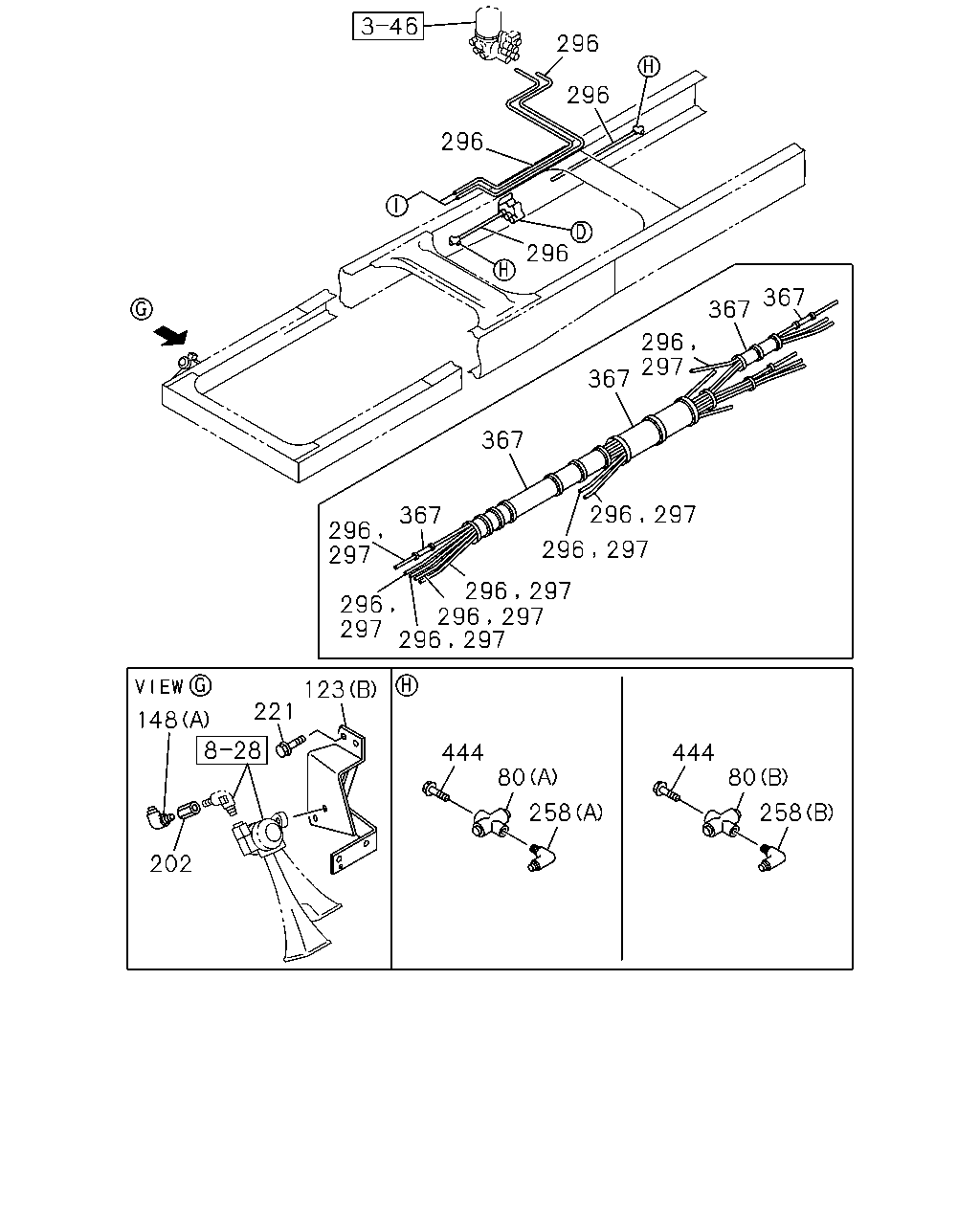

çizim 104307
296 296 296 296 367 367 296 297 367 367 367 296 297 296 297 123 221 148 444 444 80 80 258 258 202 296 297 297 296 297 296 296 296 297 297
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0511-
80 UNION; 3 WAY
(B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0511-
123 BRACKET; UNION
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 0707-
123 BRACKET; UNION
(A) 		1-47479-146-0 01 1 0511-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 0511-
148 CONNECTOR; UNION
(B) PT1/4 4WAY 		1-09660-358-0 01 1 0511-
148 CONNECTOR; UNION
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0511-
202 ADAPTER
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0511-
221 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0511-0512
221 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
221 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0511-0512
221 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
258 CONNECTOR; NYLON TUBE
(F) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0511-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0511-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0511-
258 CONNECTOR; NYLON TUBE
(C) 		1-09661-570-0 01 1 0511-0806
258 CONNECTOR; NYLON TUBE
(E) 		1-48319-059-0 01 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0511-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0511-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0511-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0511-
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 02 1 0601-

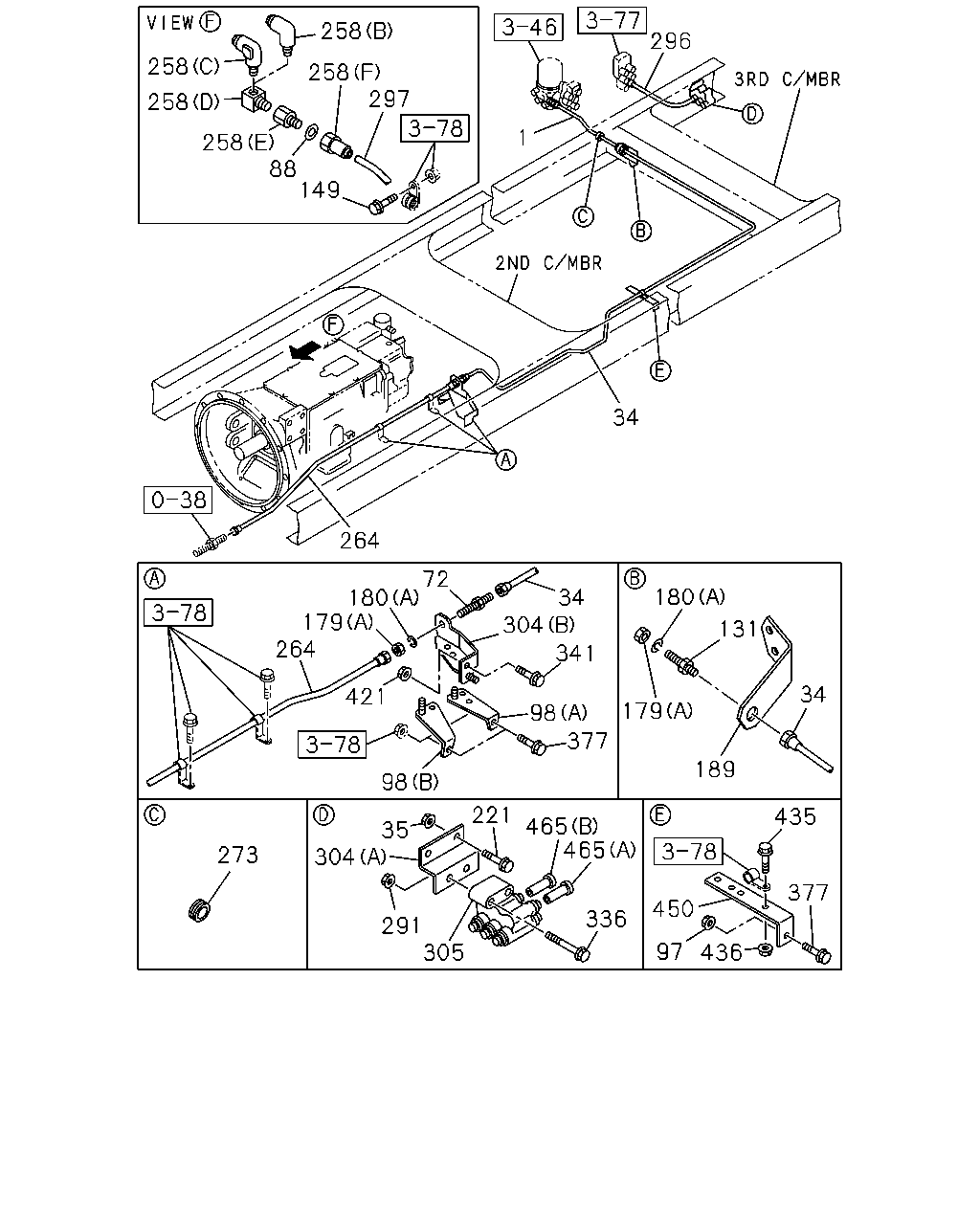

çizim 104402
296 258 258 258 297 258 258 88 149 34 264 72 180 34 304 180 179 264 131 341 34 421 179 98 377 189 98 221 435 465 465 35 273 304 377 450 336 291 305 97 436 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 0511-
34 PIPE; AIR
L=1197 		1-49124-876-0 01 1 0511-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
72 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0511-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 		9-09572-014-0 01 1 0511-
97 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0511-0602
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
98 BRACKET; AIR PIPE
(B) 		1-47479-639-0 01 1 0511-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 0511-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 0511-
149 BOLT; TUBE CLIP
M8X50 FLANGE 		0-28080-850-0 01 1 0511-0512
149 BOLT; TUBE CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 0601-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0511-0512
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0601-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0511-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0511-0603
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0604-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0511-0603
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0604-
189 BRACKET; FLEX HOSE 1-47479-905-0 01 1 0511-
221 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0511-0512
221 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
221 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0511-0512
221 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
258 CONNECTOR; NYLON TUBE
(F) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0511-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0511-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0511-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 0511-
258 CONNECTOR; NYLON TUBE
(C) 		1-09661-570-0 01 1 0511-0806
258 CONNECTOR; NYLON TUBE
(E) 		1-48319-059-0 01 1 0511-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 0511-
273 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0511-
291 NUT; UNION
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 0603-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0511-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0511-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0511-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 0511-
304 BRACKET; UNION
(B) 		8-97610-319-1 01 1 0511-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 0511-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28080-870-0 02 1 0511-0512
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 0601-0906
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 0907-
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0511-0512
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 01 1 0511-0512
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28680-830-0 02 1 0511-0512
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
435 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0511-0512
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0511-0602
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
450 BRACKET; CLIP 1-82698-358-0 01 1 0511-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 03 1 0511-0609
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 02 1 0610-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 0511-
465 PLUG
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 0511-

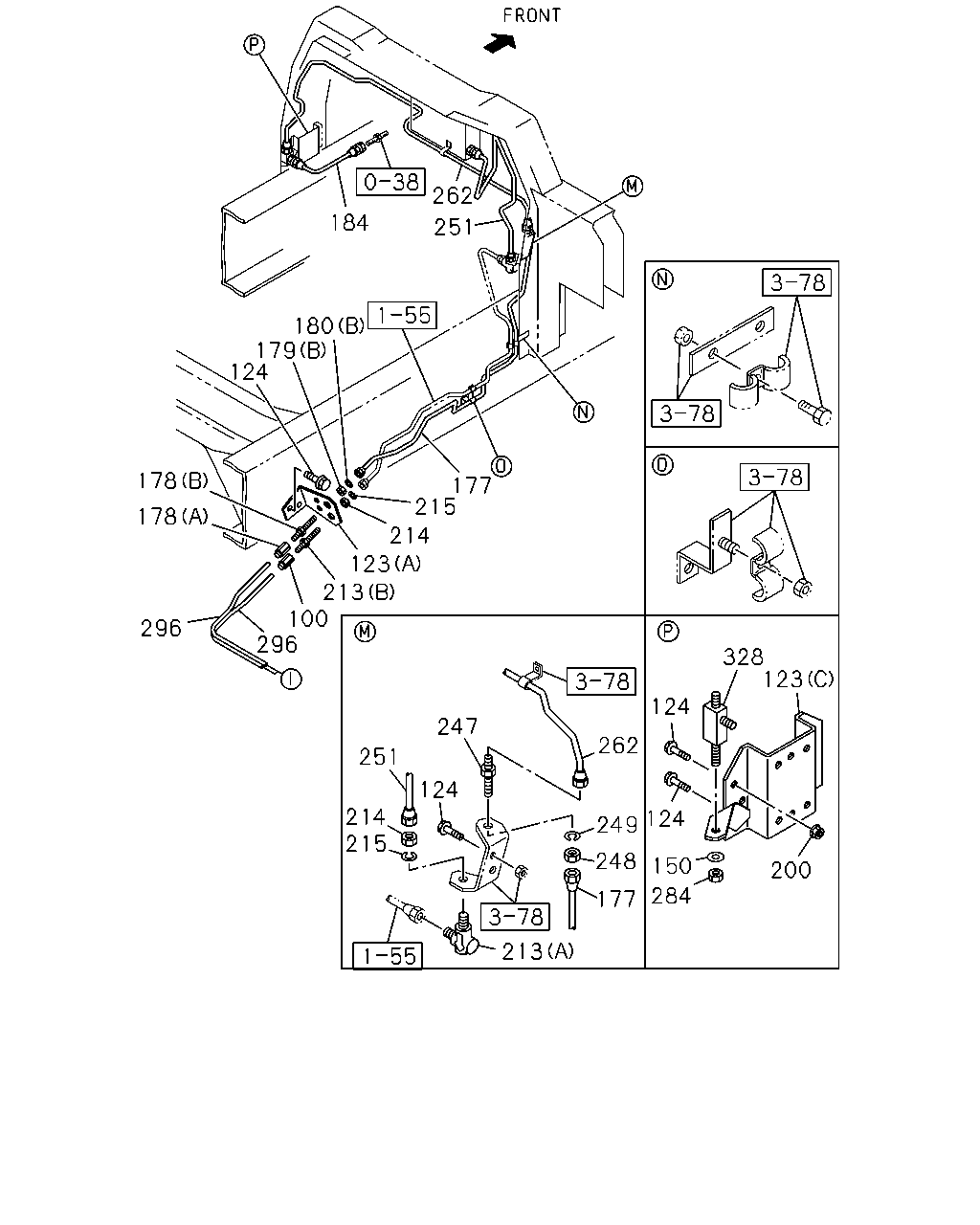

çizim 104404
262 184 251 180 179 124 177 215 178 178 214 123 213 100 296 296 328 123 124 247 262 251 124 214 215 124 249 248 150 200 284 177 213
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0511-
123 BRACKET; UNION
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 0707-
123 BRACKET; UNION
(A) 		1-47479-146-0 01 1 0511-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 0511-
124 BOLT; BRKT
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> M8X25 FLANGE 		0-28650-825-0 04 1 0707-
124 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0511-0512
124 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
150 WASHER; LK,UNION
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 0707-
177 PIPE; AIR,UNION TO UNION
MIXER TRUCK<RA2> L=1058 SERVICED BY L=1100 		1-47428-815-0 01 1 0511-
177 PIPE; AIR,UNION TO UNION
EXC. MIXER TRUCK<RA2> L=1027 SERVICED BY L=1100 		1-47428-815-0 01 1 0511-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0511-
178 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0511-0607
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0608-
179 NUT; UNION
(A) M22 		9-09111-422-0 02 1 0511-0512
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 0601-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 0511-
180 WASHER; LK,UNION
(B) ID=12.2 		9-09150-512-0 01 1 0511-0603
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 0604-
180 WASHER; LK,UNION
(A) ID=22.5 		9-09150-522-0 02 1 0511-0603
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 0604-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 0511-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=780 		1-09363-620-0 01 1 0511-
200 NUT; BRKT
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 0707-
213 UNION; AIR PIPE
(B) M12 L=66.5 		9-09223-306-1 01 1 0511-0607
213 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 0608-
213 UNION; AIR PIPE
(A) M12 ELBOW 		9-09225-206-1 01 1 0511-0607
213 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 0511-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 02 1 0511-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 0604-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		9-09223-306-1 01 1 0511-0607
247 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 L=66.5 		0-92113-306-0 01 1 0608-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		9-09225-206-1 01 1 0511-0607
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> M12 ELBOW 		0-92125-206-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0511-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0511-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
251 PIPE; AIR,UNION TO MAG VLV
L=771 SERVICED BY L=800 		1-47428-812-0 01 1 0511-
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-345-0 01 1 0511-
284 NUT; UNION
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 0707-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0511-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0511-
328 UNION; AIR PIPE
EURO2 SPECIFICATION<THN> MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 0707-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
