Isuzu WW
▶
TRUCKS
▶
CVR
▶
10661 - CVR
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-01 - EMBLEM AND NAME PLATE
▶

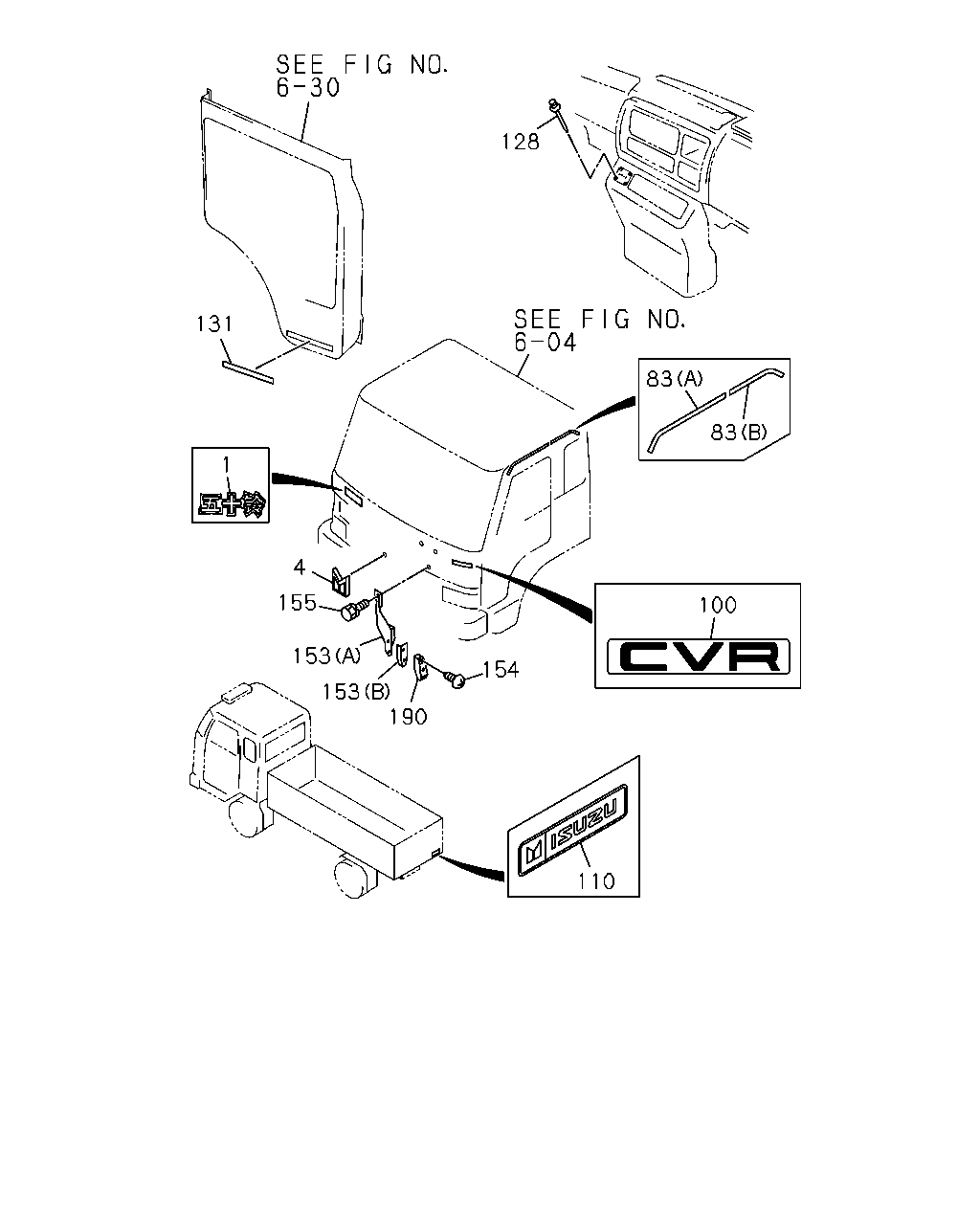

7-01 — EMBLEM AND NAME PLATE
(#3079) — 21 parça
Tümü
A - CVR6MC
B - CVR6MF
C - CVR5MC
D - CVR5MF
110
190
153
153
155
4
1
131
128
83
83
100
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
MARK; ISUZU
CHINA EQUIPMENT(YT2)
1-76210-433-1
01
1
9002-9306
●
1
MARK; ISUZU
CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)
1-76210-433-1
01
1
9002-9306
●
1
MARK; ISUZU
CHINA TIBET EQUIPMENT(WD1),CHINA EQUIPMENT(YT2)
1-76210-433-1
01
1
9307-
●
4
EMBLEM; RAD GRILLE
1-76210-492-0
01
1
9002-9004
●
●
●
●
4
EMBLEM; RAD GRILLE
1-76210-596-0
01
1
9005-9306
●
●
●
●
4
EMBLEM; RAD GRILLE
1-76210-597-0
01
1
9307-
●
●
83
PROTECTOR; SUB SEAL,DOOR
(A) CLEAR
1-65500-225-0
01
1
9112-
●
●
●
●
83
PROTECTOR; SUB SEAL,DOOR
(B) CLEAR
1-65500-227-0
01
1
9112-
●
●
●
●
83
PROTECTOR; SUB SEAL,DOOR
(A) CLEAR
1-65500-224-0
01
1
9112-
●
●
●
●
83
PROTECTOR; SUB SEAL,DOOR
(B) CLEAR
1-65500-226-0
01
1
9112-
●
●
●
●
100
EMBLEM; PET NAME
1-76210-346-1
01
1
9002-
●
●
●
●
110
EMBLEM; "ISUZU",RR BODY
1-76210-310-0
01
1
9002-9306
●
●
●
●
110
EMBLEM; "ISUZU",RR BODY
1-76210-624-0
01
1
9307-
●
●
128
RIVET; POP,NAME PLATE
5-09734-001-0
04
1
9002-
●
●
●
●
131
DECAL; DOOR INNER
1-79998-254-0
02
1
9002-9111
●
●
●
●
153
PLATE; GUIDE
(A)
1-76211-035-1
02
1
9002-
●
●
●
●
153
PLATE; GUIDE
(B)
1-76211-036-0
02
1
9002-
●
●
●
●
154
SCREW
M6X25 W/LK WASHER
1-09164-016-0
04
1
9002-
●
●
●
●
155
BOLT; GUIDE PLATE
M8X16 W/LK&PL WASHER
1-09980-498-0
04
1
9002-9302
●
●
155
BOLT; GUIDE PLATE
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
9303-
●
●
190
PROTECTOR; HARNESS
1-82699-194-0
02
1
9002-
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
