Isuzu WW
▶
TRUCKS
▶
CYH
▶
11010 - CYH LHD WITH 2STEPS
▶
3 - Brakes, Brake System
▶
3-26 - TRAILER CONTROL
▶
3-26 — TRAILER CONTROL
(#30788) — 43 parça
◀

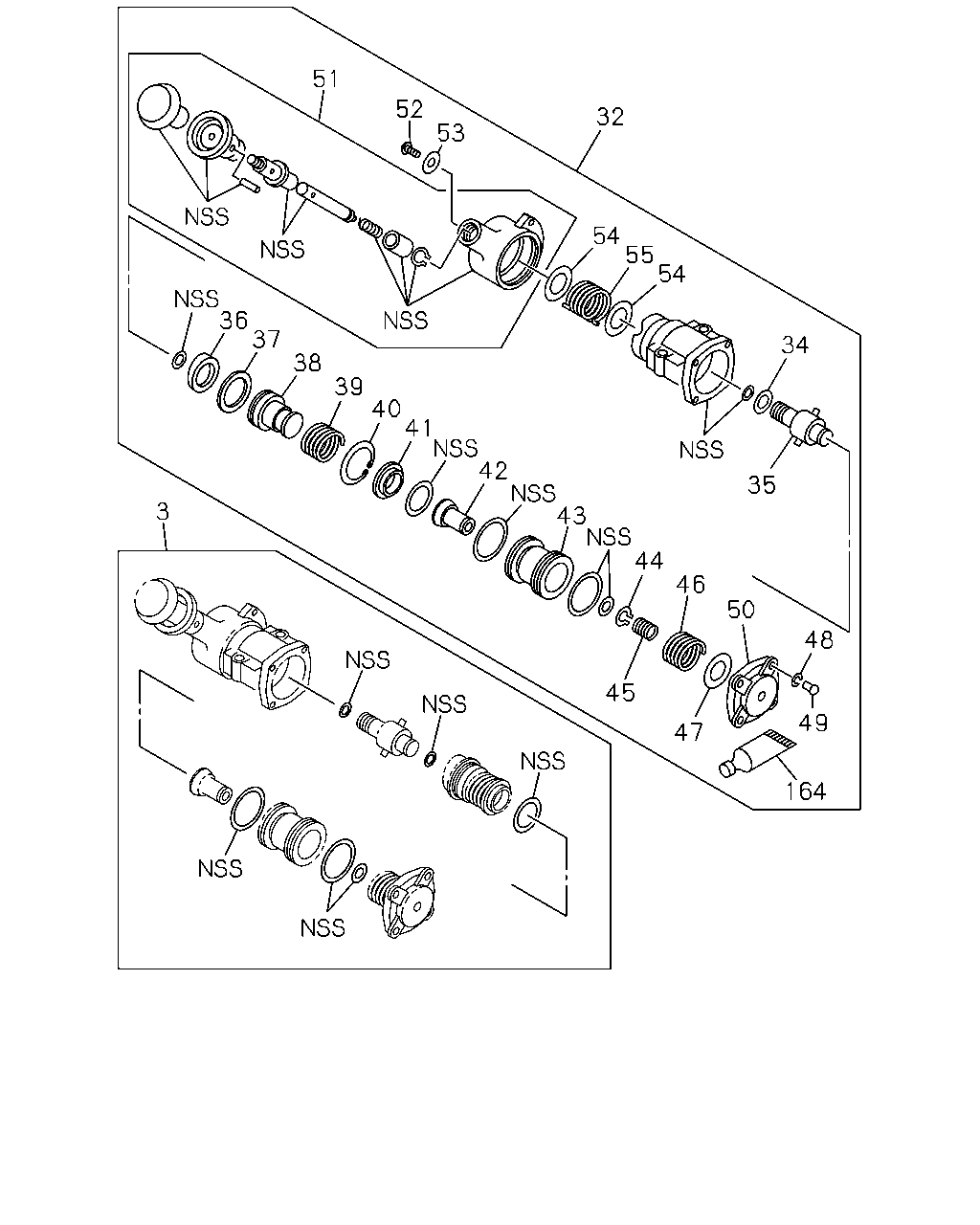

[326A] COMPONENT AND REPAIR KIT (25 parça)

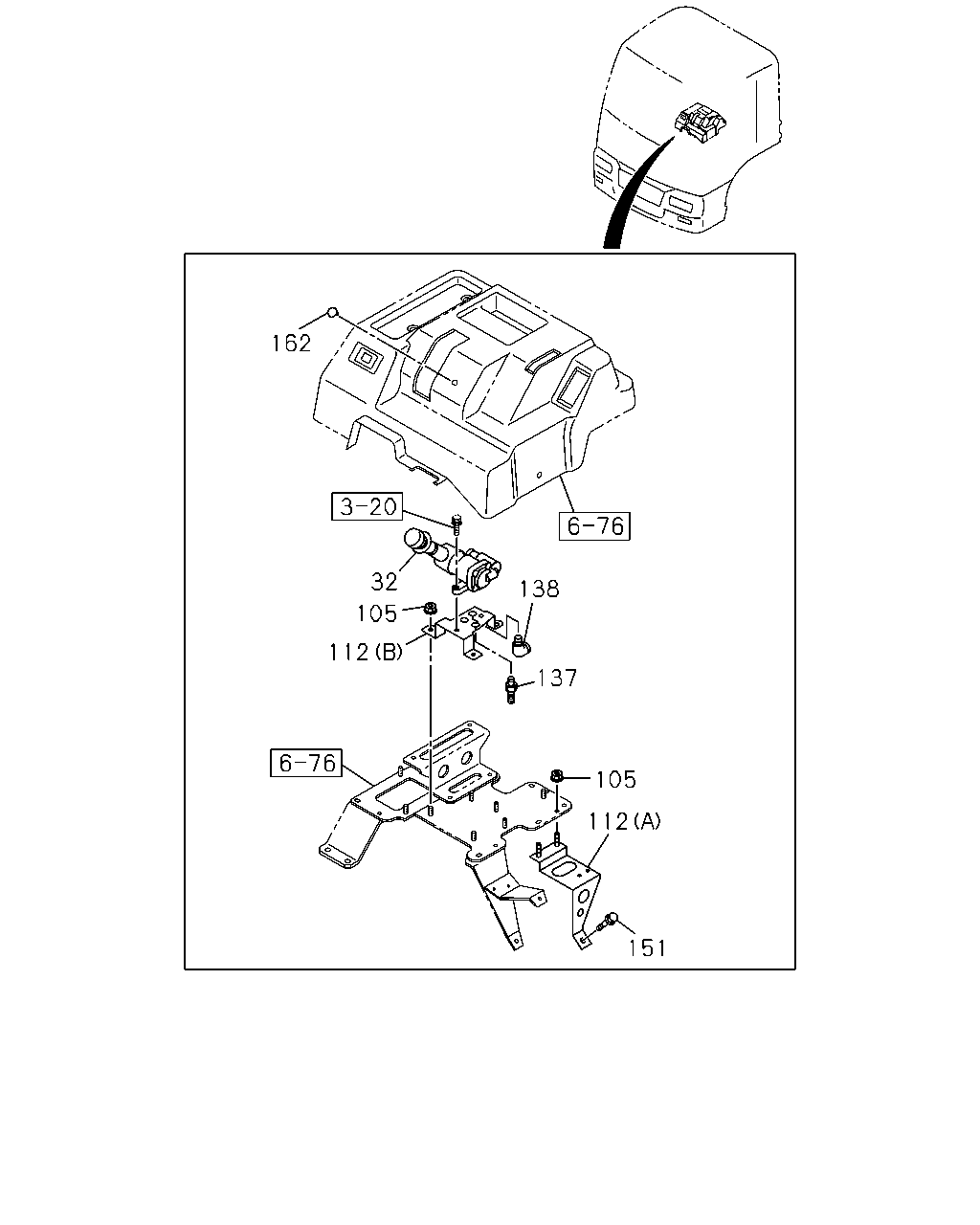

[326A] FIXING (18 parça)
▶
51
52
32
53
54
55
54
36
37
34
38
39
40
41
42
43
44
35
3
46
50
48
45
49
47
164
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
REPAIR KIT; HAND BRK VLV
1-48469-096-0
01
1
0511-
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0511-
34
SHIM; CAM HOLDER
1-48469-055-0
AR
1
0511-
35
HOLDER; CAM
1-48469-054-0
01
1
0511-
36
RING; CAM
1-48469-056-0
01
1
0511-
37
GUIDE; CAM RING
1-48469-058-0
01
1
0511-
38
SEAT; EXH VLV
1-48469-057-0
01
1
0511-
39
SPRING; RETURN,CAM RING
1-48469-063-0
01
1
0511-
40
RING; SNAP
1-48469-067-0
01
1
0511-
41
SEAT; FEED VLV
1-48469-066-0
01
1
0511-
42
VALVE; FEED
1-48469-065-0
01
1
0511-
43
PISTON; HAND BRK VLV
1-48469-064-0
01
1
0511-
44
RING; SNAP,FEED VLV
1-48469-068-0
02
1
0511-
45
SPRING; FEED VLV
1-48469-070-0
01
1
0511-
46
SPRING; MAIN,PISTON
1-48469-089-0
01
1
0511-
47
SHIM; MAIN SPRING
1-48469-072-0
AR
1
0511-
48
WASHER; COVER
1-48469-091-0
04
1
0511-
49
SCREW; COVER
1-48469-092-0
04
1
0511-
50
COVER; HAND BRK VLV
1-48469-090-0
01
1
0511-
51
HANDLE ASM; HAND BRK VLV
1-48469-122-0
01
1
0511-
52
SCREW; HANDLE
1-48469-062-0
01
1
0511-
53
WASHER; HANDLE
1-48469-061-0
01
1
0511-
54
SEAT; SPRING
1-48469-082-0
02
1
0511-
55
SPRING; RETURN,HANDLE
1-48469-059-0
01
1
0511-
164
GREASE; HAND BRK VLV
1-48469-084-0
01
1
0511-
162
32
138
105
112
137
105
112
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
32
VALVE; BRK,HAND CONT
1-48460-306-0
01
1
0511-
105
NUT; BRKT
M8 FLANGE
0-91150-108-0
03
1
0511-0602
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0603-0610
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0611-
105
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0511-0602
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-0610
105
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0611-
112
BRACKET; CONT VLV
(A)
1-79996-113-2
01
1
0511-
112
BRACKET; CONT VLV
(B)
1-79996-636-0
01
1
0511-0601
112
BRACKET; CONT VLV
(B)
1-79996-378-1
01
1
0602-0610
112
BRACKET; CONT VLV
PARKING BRAKE VALVE LEVER TYPE<W48> (B)
1-79996-378-1
01
1
0611-
137
CONNECTOR; SUPPLY
M16 & PT1/4 STRAIGHT
9-09231-810-1
01
1
0511-0607
137
CONNECTOR; SUPPLY
M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
0608-0610
137
CONNECTOR; SUPPLY
M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
0611-
138
CONNECTOR; DELIVERY
1-09650-240-1
01
1
0511-0610
138
CONNECTOR; DELIVERY
1-09650-240-1
01
1
0611-
151
BOLT; VLV BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
01
1
0511-
162
SWITCH; PARKING BRK VLV
1-72447-390-0
01
1
0511-
