◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#30786) — 184 parça
çizim 88906

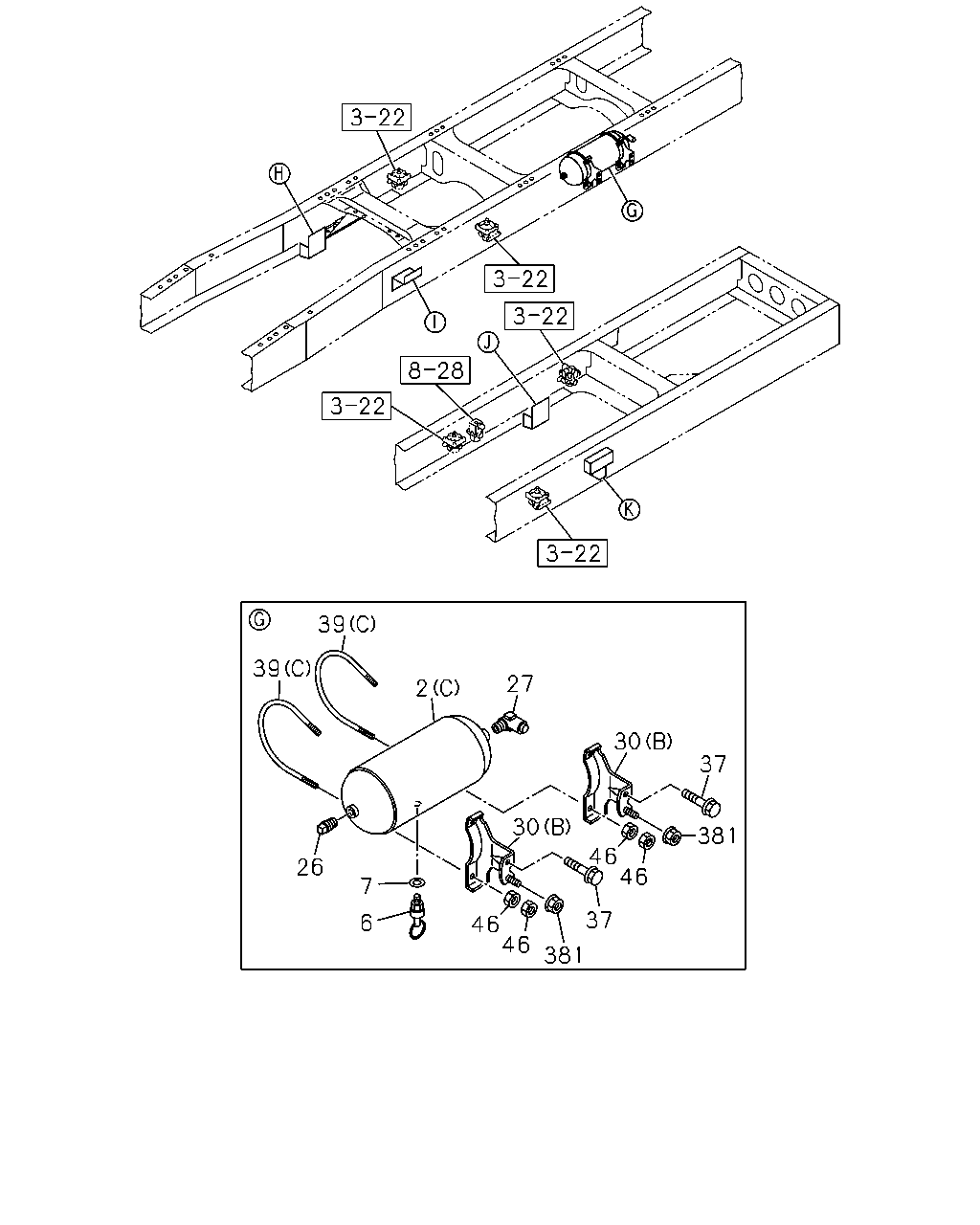

39 39 27 2 30 37 30 381 46 46 26 7 37 6 46 46 381
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
(A) 		1-48371-166-3 01 1 0511-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 0511-
2 TANK; AIR
(C) 		1-48371-435-0 01 1 0511-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 08 1 0511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 08 1 0511-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 04 1 0511-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0511-
30 BRACKET; AIR TANK,SUB
(A) 		1-48316-024-3 01 1 0511-
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-076-1 02 1 0511-
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28681-035-0 02 1 0511-0512
37 BOLT; AIR TANK
M10X35 FLANGE 		0-28651-035-0 02 1 0601-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0511-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 0511-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 0511-
46 NUT; U-BOLT
M8 		9-09110-408-0 32 1 0511-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 32 1 0601-
381 NUT; SUB TANK
M10 FLANGE 		0-91150-210-0 02 1 0511-0602
381 NUT; SUB TANK
M10 FLANGE 		0-91180-210-0 02 1 0603-
çizim 88937

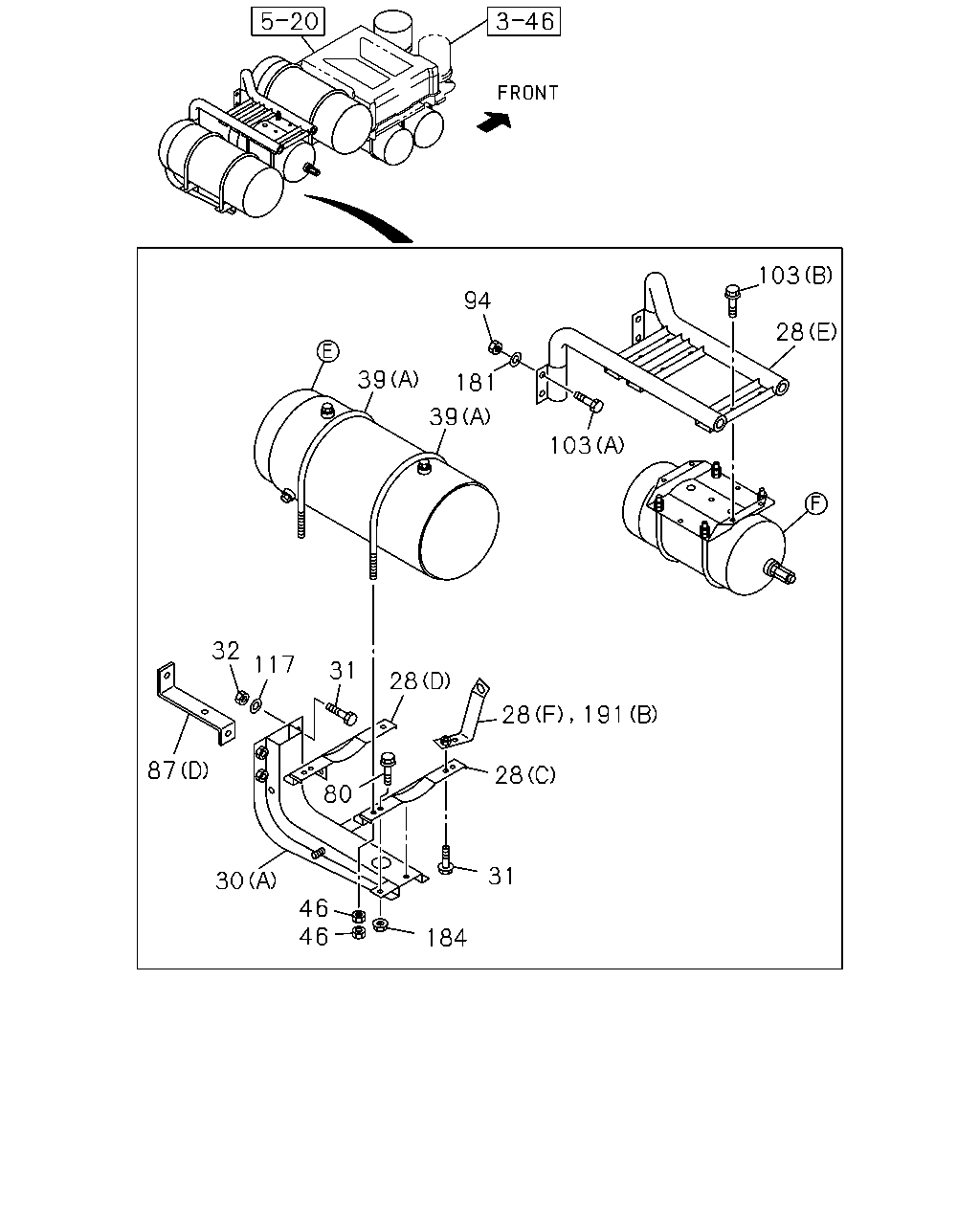

103 94 28 39 181 39 103 32 117 31 28 191 28 87 28 80 31 30 46 46 184
BalonParca AdiParca NoAdetTipApplied Date
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 0511-
28 BRACKET; AIR TANK
(F) 		1-48316-014-0 01 1 0511-0609
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 0511-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0511-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 0511-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 0511-
30 BRACKET; AIR TANK,SUB
(A) 		1-48316-024-3 01 1 0511-
30 BRACKET; AIR TANK,SUB
(B) 		1-48316-076-1 02 1 0511-
31 BOLT; BRKT TO FRAME
M12X25 FLANGE 		0-28681-225-0 04 1 0511-0512
31 BOLT; BRKT TO FRAME
M12X25 FLANGE 		0-28651-225-0 04 1 0601-
32 NUT; BRKT TO FRAME
M14 		9-99110-514-0 04 1 0511-0512
32 NUT; BRKT TO FRAME
M14 		0-91110-514-0 04 1 0601-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0511-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 0511-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 0511-
46 NUT; U-BOLT
M8 		9-09110-408-0 32 1 0511-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 32 1 0601-
80 BOLT; BRKT
M14X50 		0-20801-450-0 04 1 0511-0512
80 BOLT; BRKT
M14X50 		0-20851-450-0 04 1 0601-
80 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0511-0512
80 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-537-0 01 1 0511-0809
87 BRACKET; AIR PIPE JOINT
(B) 		8-98060-053-0 01 1 0810-
87 BRACKET; AIR PIPE JOINT
(D) 		1-33659-243-0 01 1 0511-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 0511-
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-242-0 01 1 0511-0809
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 0810-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47471-246-0 02 1 0511-
94 NUT; BRKT FIX
M14 		0-91110-514-0 04 1 0811-
103 BOLT; BRKT
(A) M14X35 		0-28081-435-0 04 1 0511-0810
103 BOLT; BRKT
(A) M14X35 		0-20851-435-0 04 1 0811-
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28681-030-0 04 1 0511-0512
103 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
117 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 0511-0603
117 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 04 1 0604-
181 WASHER; LK,AIR TANK
ID=14.2 		9-09150-514-0 04 1 0511-0603
181 WASHER; LK,AIR TANK
ID=14.2 		0-91510-514-0 04 1 0604-
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0511-0602
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
184 NUT; BRKT
M12 FLANGE 		0-91150-212-0 01 1 0511-0602
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 0511-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 0511-
çizim 104297
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28080-870-0 02 1 0511-0512
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 0601-
çizim 104299

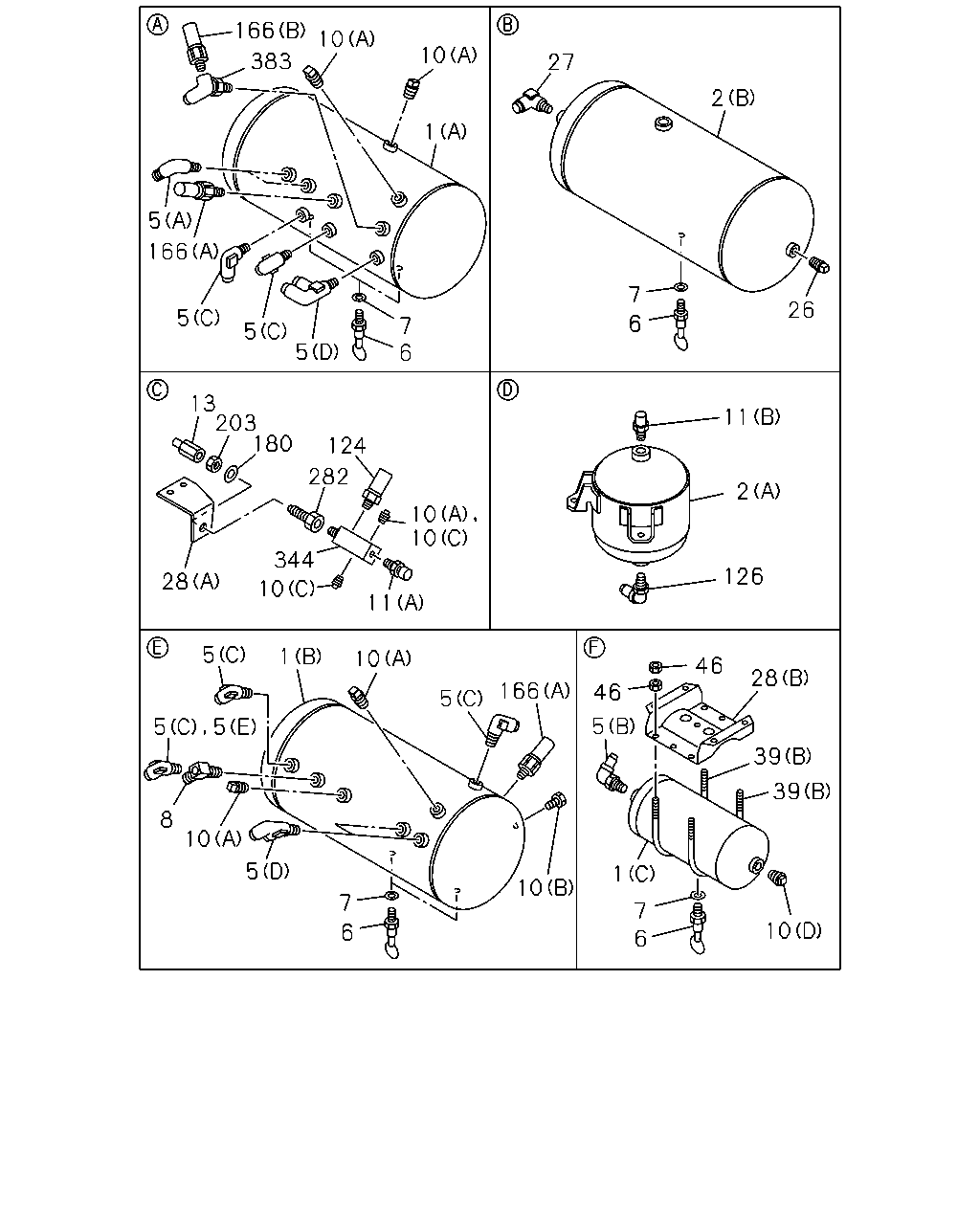

166 10 10 383 27 2 1 5 166 7 26 5 6 7 6 5 5 13 203 180 11 124 282 2 10 10 344 126 28 10 11 5 1 10 46 28 166 46 5 5 39 39 8 10 5 1 10 7 7 6 10 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(C) 		1-48371-165-3 01 1 0511-
1 TANK ASM; AIR
(A) 		1-48371-387-1 01 1 0511-
1 TANK ASM; AIR
(B) 		1-48371-434-1 01 1 0511-
2 TANK; AIR
(A) 		1-48371-166-3 01 1 0511-
2 TANK; AIR
(B) 		1-48371-389-1 02 1 0511-
2 TANK; AIR
(C) 		1-48371-435-0 01 1 0511-
5 UNION; AIR TANK
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 1202-
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 05 1 0511-1201
5 UNION; AIR TANK
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1202-
5 UNION; AIR TANK
(D) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 03 1 0511-
5 UNION; AIR TANK
(B) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0511-
5 UNION; AIR TANK
(A) 		1-09661-550-0 02 1 0511-
6 COCK; DRAIN,AIR TANK 1-48312-017-0 08 1 0511-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 08 1 0511-
8 CONNECTOR; AIR TANK
DIN8 & R3/8 & RC3/8 3WAY 		1-09661-271-0 01 1 0511-1201
8 CONNECTOR; AIR TANK
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1202-
10 PLUG; AIR TANK
(B) M22 		1-09661-502-0 01 1 0511-
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 02 1 0511-0608
10 PLUG; AIR TANK
(C) PT3/8 		9-09204-517-0 01 1 0609-
10 PLUG; AIR TANK
(D) PT3/4 		9-09204-526-0 01 1 0511-
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 04 1 0511-0608
10 PLUG; AIR TANK
(A) PT1/4 		9-99204-513-0 05 1 0609-
11 VALVE; SAFETY,AIR TANK
(A) 		1-48320-012-2 01 1 0511-
11 VALVE; SAFETY,AIR TANK
(B) 		1-48320-047-2 01 1 0511-
13 ADAPTER; NYLON TUBE
DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0511-
26 PLUG; SUB AIR TANK
PT3/8 		9-09204-517-0 04 1 0511-
27 UNION; ELBOW,AIR TANK
DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0511-
28 BRACKET; AIR TANK
(A) 		1-47471-153-0 01 1 0511-
28 BRACKET; AIR TANK
(F) 		1-48316-014-0 01 1 0511-0609
28 BRACKET; AIR TANK
(D) 		1-48316-026-0 01 1 0511-
28 BRACKET; AIR TANK
(B) 		1-48317-473-2 01 1 0511-
28 BRACKET; AIR TANK
(E) 		1-48317-985-1 01 1 0511-
28 BRACKET; AIR TANK
(C) 		1-48317-994-2 01 1 0511-
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0511-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 0511-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 0511-
46 NUT; U-BOLT
M8 		9-09110-408-0 32 1 0511-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 32 1 0601-
124 SWITCH; AIR PRESSURE 1-48340-065-0 01 1 0511-
126 CONNECTOR; ELBOW
DIN8 & M22 ELBOW 		1-09661-495-0 01 1 0511-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(A) 		1-48340-058-2 02 1 0511-
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
(B) 		1-48340-065-0 01 1 0511-
180 WASHER; LK
ID=16.2 		9-09150-516-0 01 1 0511-0603
180 WASHER; LK
ID=16.2 		0-91510-516-0 01 1 0604-
203 NUT
M16 		9-99110-516-0 01 1 0511-0512
203 NUT
M16 		0-91110-516-0 01 1 0601-
282 UNION; 2 WAY 1-09650-222-1 01 1 0511-
344 CONNECTOR; 4WAY 1-09660-521-2 01 1 0511-
383 UNION; 3 WAY
DIN12 & R3/8 ELBOW 		1-09661-233-0 01 1 0511-
çizim 104398

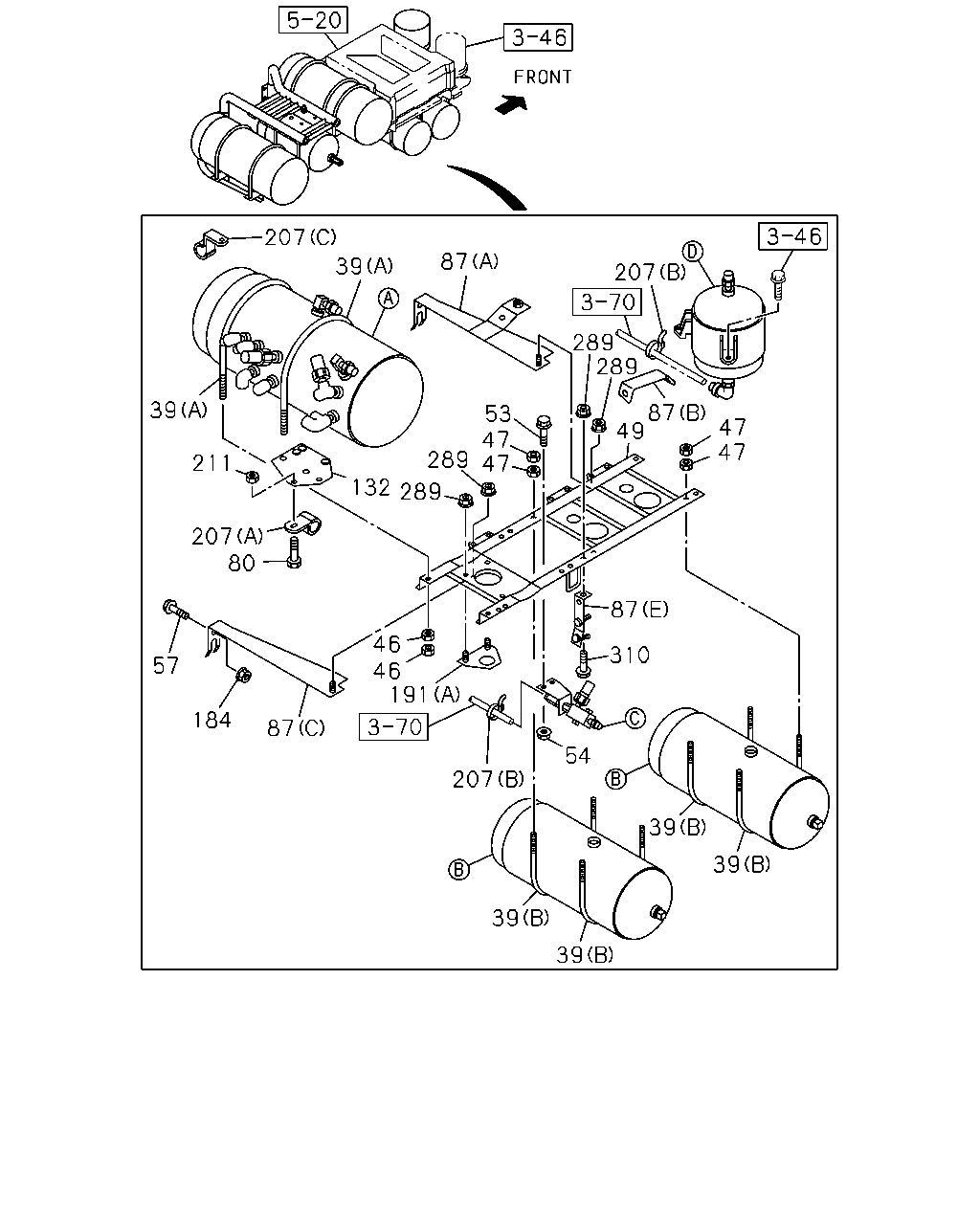

207 207 87 39 289 289 39 87 49 53 47 47 47 47 289 211 132 289 207 80 87 46 46 191 310 57 184 87 54 207 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date
39 U-BOLT; AIR TANK
(A) L=303 		1-48317-087-2 04 1 0511-
39 U-BOLT; AIR TANK
(C) 		1-48317-302-0 02 1 0511-
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 06 1 0511-
46 NUT; U-BOLT
M8 		9-09110-408-0 32 1 0511-0512
46 NUT; U-BOLT
M8 		0-91110-508-0 32 1 0601-
47 NUT; LK,U BOLT,AIR TANK
M8 		9-09110-408-0 16 1 0511-0512
47 NUT; LK,U BOLT,AIR TANK
M8 		0-91110-508-0 16 1 0601-
49 BRACKET; AIR TANK 1-48316-065-1 01 1 0511-
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28680-820-0 02 1 0511-0512
53 BOLT; STAY,AIR TANK
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
54 NUT; STAY
M8 FLANGE 		0-91150-108-0 02 1 0511-0602
54 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 0603-
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28681-025-0 04 1 0511-0512
57 BOLT; BRKT,AIR TANK TO FRAME
M10X25 FLANGE 		0-28651-025-0 04 1 0601-
80 BOLT; BRKT
M14X50 		0-20801-450-0 04 1 0511-0512
80 BOLT; BRKT
M14X50 		0-20851-450-0 04 1 0601-
80 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0511-0512
80 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
87 BRACKET; AIR PIPE JOINT
(B) 		1-47479-537-0 01 1 0511-0809
87 BRACKET; AIR PIPE JOINT
(B) 		8-98060-053-0 01 1 0810-
87 BRACKET; AIR PIPE JOINT
(D) 		1-33659-243-0 01 1 0511-
87 BRACKET; AIR PIPE JOINT
(C) 		1-47471-241-0 01 1 0511-
87 BRACKET; AIR PIPE JOINT
(A) 		1-47471-242-0 01 1 0511-0809
87 BRACKET; AIR PIPE JOINT
(A) 		8-98054-525-0 01 1 0810-
87 BRACKET; AIR PIPE JOINT
(E) 		1-47471-246-0 02 1 0511-
132 BRACKET; STRING GUIDE 1-47471-204-0 01 1 0511-
184 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0511-0602
184 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-
184 NUT; BRKT
M12 FLANGE 		0-91150-212-0 01 1 0511-0602
184 NUT; BRKT
M12 FLANGE 		0-91180-212-0 01 1 0603-
191 BRACKET; STOPPER,AIR TANK
(B) 		1-48316-014-1 01 1 0511-
191 BRACKET; STOPPER,AIR TANK
(A) 		1-48316-023-1 01 1 0511-
207 CLIP; AIR PIPE
(A) ID=35 L=33 		1-09700-945-0 02 1 0511-
207 CLIP; AIR PIPE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0511-
207 CLIP; AIR PIPE
(B) L=350 		1-09707-183-0 17 1 0511-
211 NUT; STRING GUIDE
M8 FLANGE 		0-91150-108-0 03 1 0511-0602
211 NUT; STRING GUIDE
M8 FLANGE 		0-91180-108-0 03 1 0603-
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 17 1 0511-0602
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 17 1 0603-0809
289 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 18 1 0810-
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 05 1 0511-0512
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 0601-0809
310 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 04 1 0810-
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 06 1 0511-0512
310 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 06 1 0601-
çizim 104399

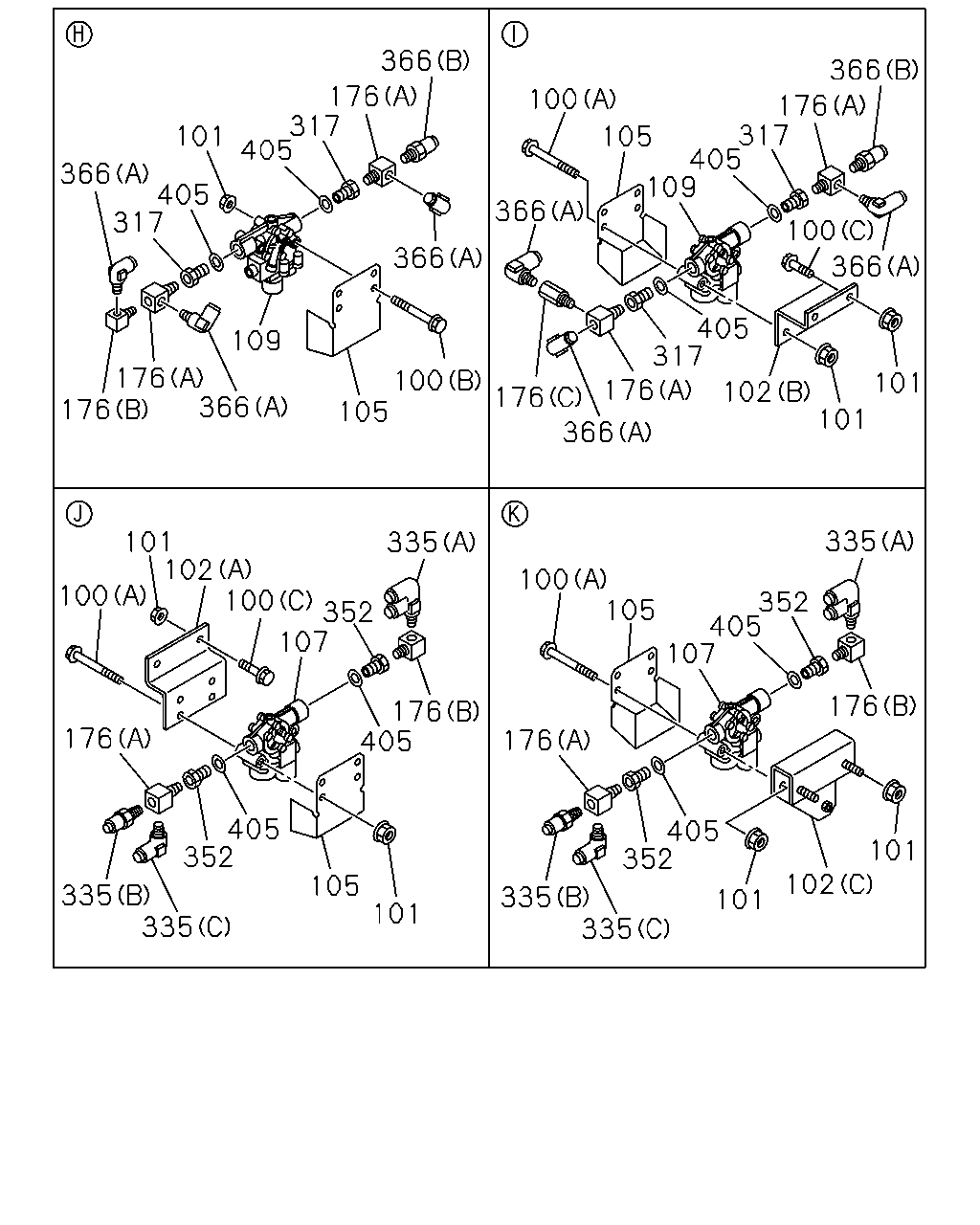

366 366 176 317 405 100 176 317 405 109 101 105 366 405 317 366 100 366 366 405 317 176 109 176 176 366 100 105 101 102 101 176 366 335 101 102 100 352 107 335 100 105 100 352 405 107 176 176 405 176 176 405 352 405 352 101 102 105 335 335 335 335 101 101
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28080-880-0 06 1 0511-0512
100 BOLT; MODULATOR
(A) M8X80 FLANGE 		0-28050-880-0 06 1 0601-
100 BOLT; MODULATOR
(B) M8X90 FLANGE 		0-28080-890-0 02 1 0511-0512
100 BOLT; MODULATOR
(B) M8X90 FLANGE 		0-28050-890-0 02 1 0601-
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28680-835-0 04 1 0511-0512
100 BOLT; MODULATOR
(C) M8X35 FLANGE 		0-28650-835-0 04 1 0601-
101 NUT; MODULATOR
M8 FLANGE 		0-91150-108-0 14 1 0511-0602
101 NUT; MODULATOR
M8 FLANGE 		0-91180-108-0 14 1 0603-
102 BRACKET; MODULATOR
(A) 		1-47471-180-0 01 1 0511-
102 BRACKET; MODULATOR
(B) 		1-47471-319-0 01 1 0511-
102 BRACKET; MODULATOR
(C) 		1-47471-353-0 01 1 0511-0612
102 BRACKET; MODULATOR
(C) 		8-98043-398-0 01 1 0701-
105 COVER; MODULATOR 1-47471-354-0 04 1 0511-
107 MODULATOR; RR 1-48240-115-0 02 1 0511-
109 MODULATOR; FRT 1-48240-115-0 02 1 0511-
176 ADAPTER
(B) PT3/8 ELBOW 		1-09660-696-0 03 1 0511-
176 ADAPTER
(A) PT3/8 3WAY 		1-09661-300-0 06 1 0511-
176 ADAPTER
(C) PT3/8 		1-48319-058-0 01 1 0511-0701
176 ADAPTER
(C) PT3/8 		1-09664-210-0 01 1 0702-
317 CONNECTOR; MODULATOR
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0511-
335 CONNECTOR; MODULATOR
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0511-
335 CONNECTOR; MODULATOR
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0511-
335 CONNECTOR; MODULATOR
(A) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 02 1 0511-
352 CONNECTOR; STRAIGHT
INNER PT3/8,OUTER M22 		1-09650-494-1 04 1 0511-
366 CONNECTOR; NYLON TUBE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 06 1 0511-
366 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 02 1 0511-
405 GASKET
ID=22.5 		9-09571-422-0 08 1 0511-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
