◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11010 - CYH LHD WITH 2STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#30781) — 47 parça

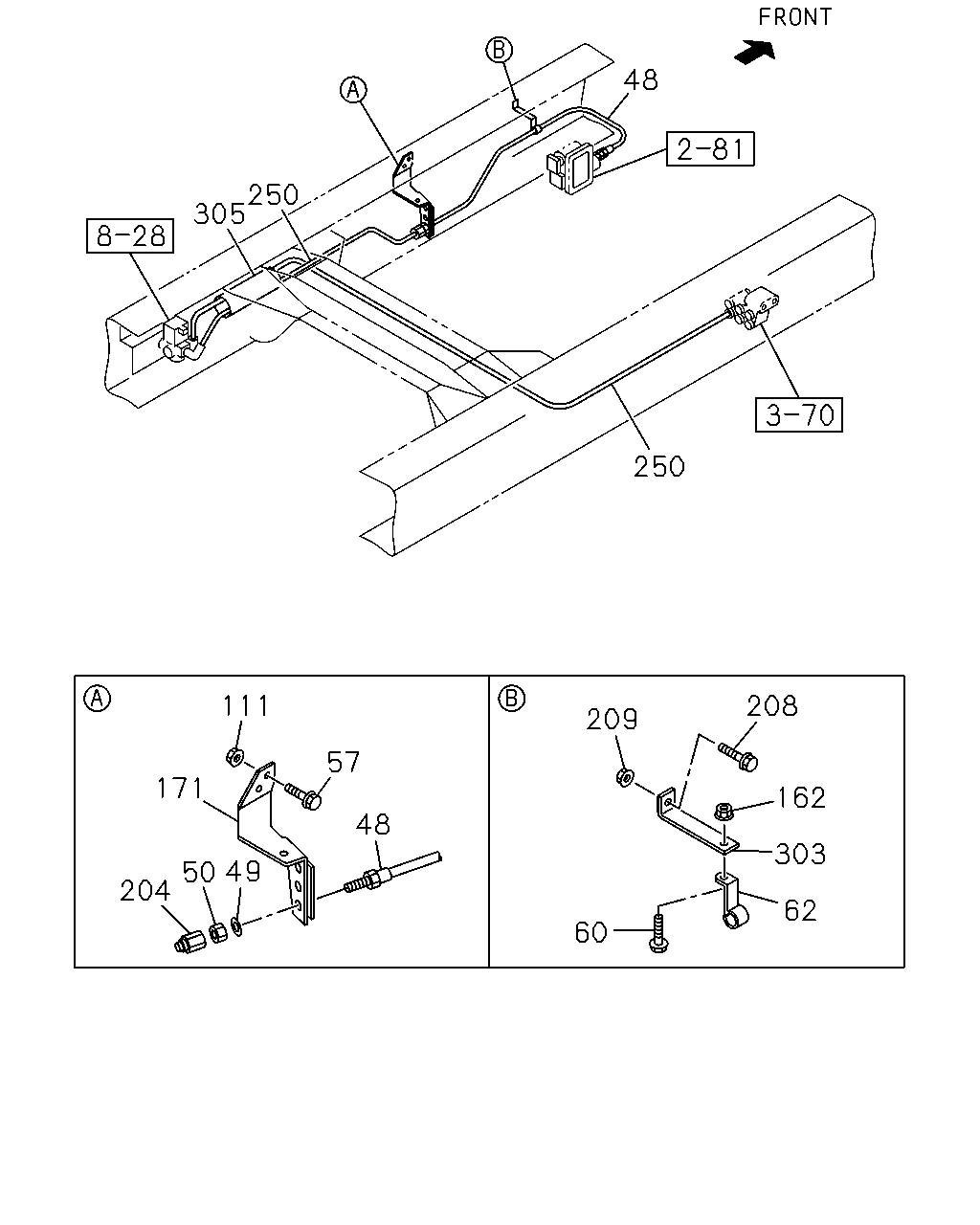

çizim 88934
48 250 305 250 111 208 209 57 171 162 48 303 204 62 60 50 49
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=840 		1-09363-852-0 01 1 0612-0703
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. PROVISIONAL PACKAGE SPEC<BCC> L=760 		1-09363-715-0 01 1 0704-0808
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. MIXER TRUCK<RA2> L=760 		1-09363-715-0 01 1 0809-
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760 		1-09363-715-0 01 1 0511-0611
48 HOSE; FLEX,PTO
PROVISIONAL PACKAGE SPEC<BCC> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760 		1-09363-715-0 01 1 0612-0703
48 HOSE; FLEX,PTO
PROVISIONAL PACKAGE SPEC<BCC> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=680 		1-09363-647-0 01 1 0704-0808
48 HOSE; FLEX,PTO
MIXER TRUCK<RA2> TRANSMISSION SIDE PTO WO/LEVER(SH5) L=680 		1-09363-647-0 01 1 0809-
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		9-09150-512-0 01 1 0511-0603
49 WASHER; LK,FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-512-0 01 1 0604-
50 NUT; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 0511-
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28680-825-0 02 1 0511-0512
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 02 1 0601-0611
57 BOLT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X25 FLANGE 		0-28650-825-0 01 1 0612-0703
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28680-820-0 01 1 0511-0512
60 BOLT; CLIP FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
62 CLIP; PIPE,AIR
TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 0511-
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 02 1 0511-0602
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0603-0611
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0612-0703
111 NUT; BRKT
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 02 1 0704-
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 01 1 0511-0602
162 NUT; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0603-
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47479-634-1 01 1 0511-0611
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-475-0 01 1 0612-0703
171 BRACKET; FLEX HOSE
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-47471-482-0 01 1 0704-
204 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0511-
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28680-830-0 01 1 0511-0512
208 BOLT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91150-108-0 01 1 0511-0602
209 NUT; BRKT,AIR PIPE
TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 0603-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0511-
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 0511-
303 BRACKET; CLIP
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 0511-
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=13 		1-87411-022-0 01 1 0511-0611

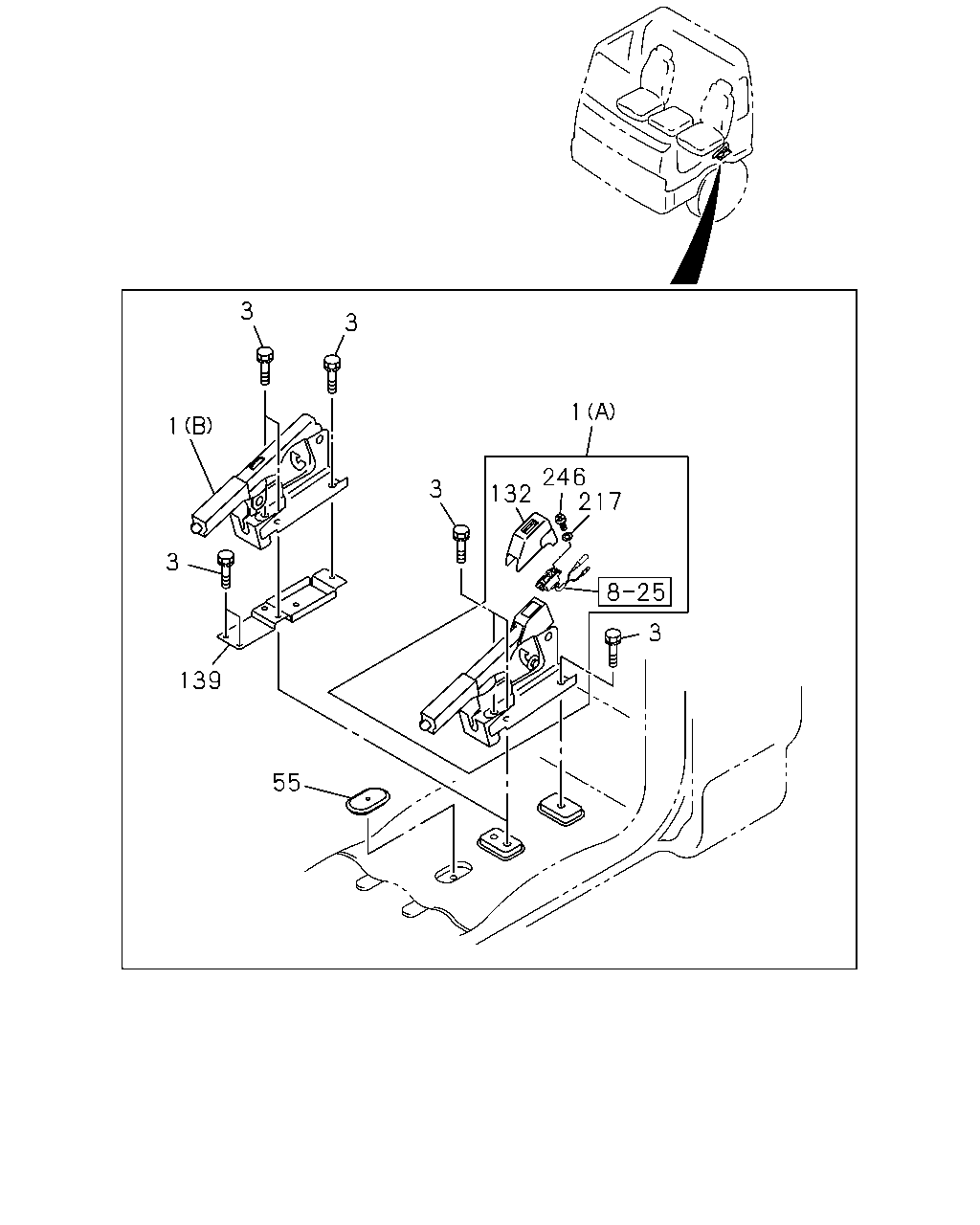

çizim 104219
3 3 1 1 246 217 3 132 3 3 139 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 0511-
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (B) 		1-79907-045-1 01 1 0511-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0511-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0511-
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 0511-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 0511-
139 BRACKET; CONT BOX
PTO CONTROL(SV6) 		1-79907-044-0 01 1 0511-
217 WASHER; PL
PTO CONTROL(SV6) ID=6.4 OD=14 		9-09160-606-0 02 1 0511-0605
217 WASHER; PL
PTO CONTROL(SV6) ID=6.4 		0-91610-606-0 02 1 0606-
217 WASHER; PL
PTO CONTROL(SV6) ID=10.5 OD=22 		9-09160-610-0 03 1 0511-0605
217 WASHER; PL
PTO CONTROL(SV6) ID=10.5 OD=22 T=1.6 		0-91610-610-0 03 1 0606-
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 0511-0603
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 0604-
