4-80 — ROAD WHEEL (#30751) — 88 parça

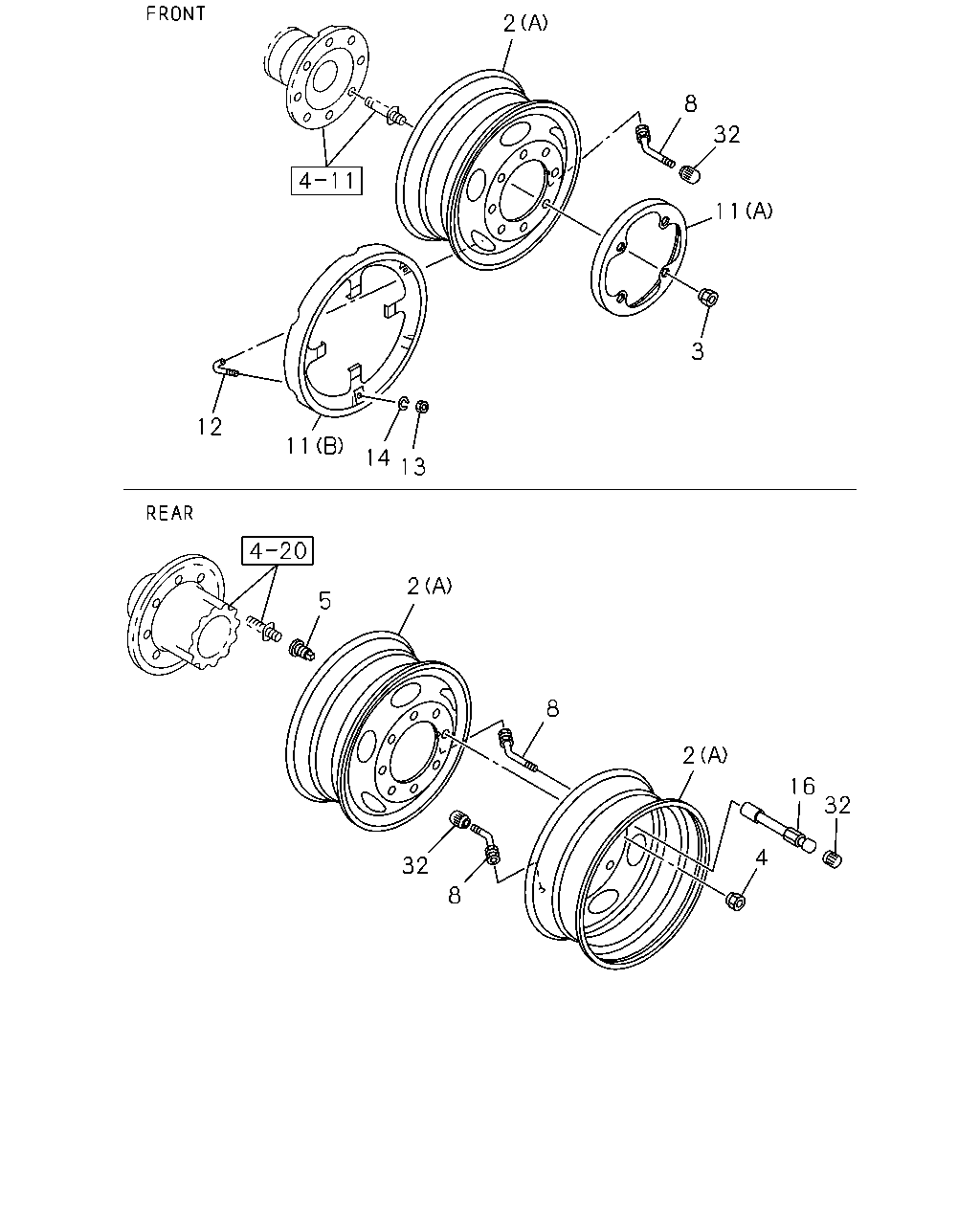

2 8 32 11 3 12 11 14 13 2 5 8 2 16 32 4 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) FRONT	1-42350-268-2	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) REAR	1-42350-268-2	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) FRONT	1-42350-478-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) REAR	1-42350-478-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT	1-42350-362-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR	1-42350-362-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT	1-42350-667-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR	1-42350-667-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
8	VALVE; TIRE DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> SPARE	1-42370-020-3	01	1	0407-
8	VALVE; TIRE SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	0407-
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> FRONT	1-42370-020-3	02	1	0407-
8	VALVE; TIRE WHEEL 8STUD 8.25X22.5 165-13TC<SKV> REAR	1-42370-020-3	08	1	0407-
11	STEP; DISC WHEEL SIDE (B) THA	1-43139-028-0	02	1	0407-0701
11	STEP; DISC WHEEL SIDE TIRE DELETE<P38> (A) THA	8-97916-040-0	02	1	0407-0609
12	U-BOLT; STEP DISC L=44 THA	9-43139-023-1	06	1	0407-0701
13	NUT; STEP DISC M10	9-09110-510-0	06	1	0407-0512
13	NUT; STEP DISC M10 THA	0-91110-510-0	06	1	0601-0701
14	WASHER; LK,STEP DISC ID=10.2	9-09150-510-0	06	1	0407-0603
14	WASHER; LK,STEP DISC ID=10.2	0-91510-510-0	06	1	0604-0701
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0407-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0407-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0407-

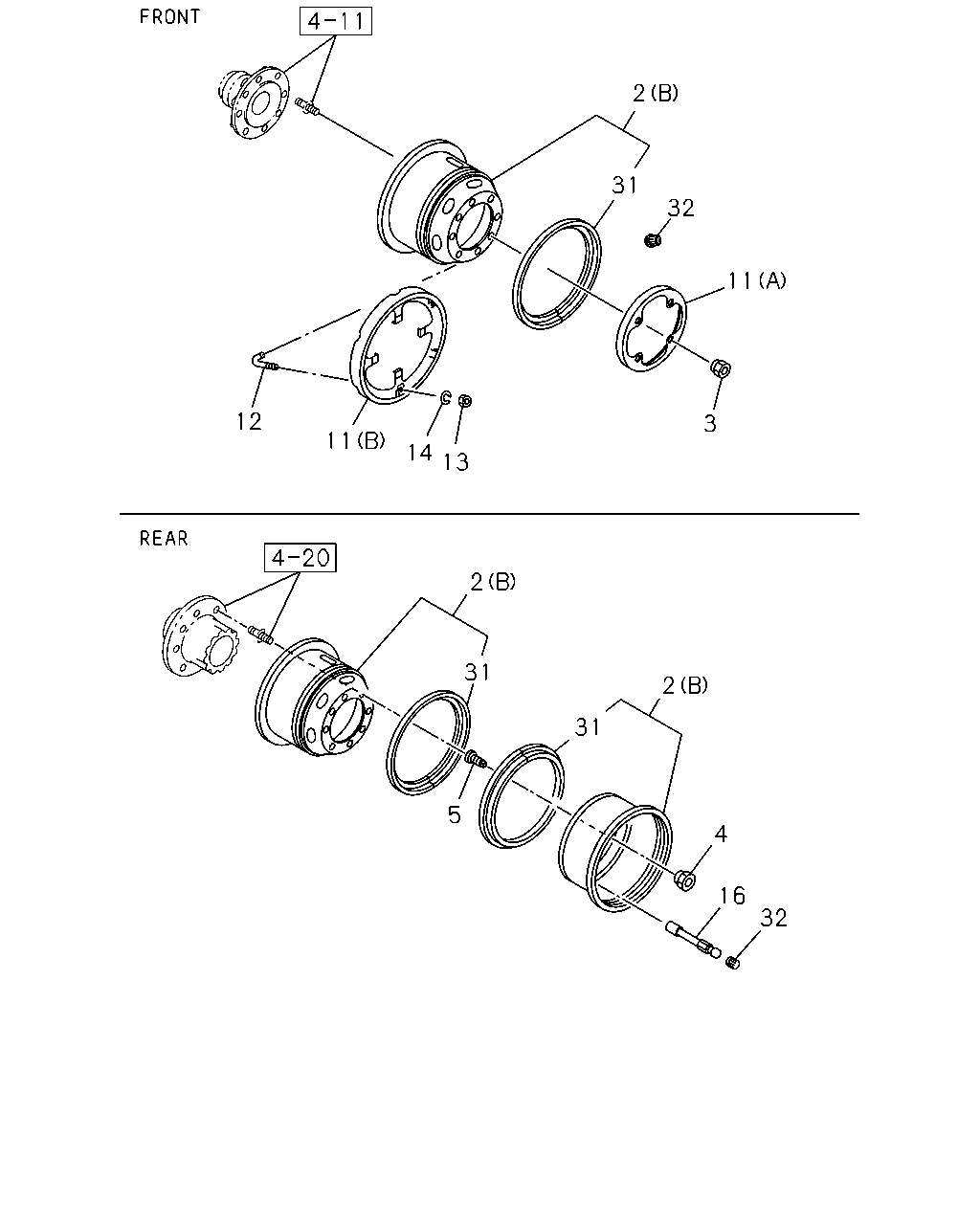

2 31 32 11 12 3 11 14 13 2 31 2 31 5 4 16 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-268-2	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-478-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE	1-42350-362-0	01	1	0407-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 8.25X22.5 165-13TC<SKV> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-667-0	01	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) FRONT	1-42350-268-2	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 6.50TX20 152-11<Q50> (B) REAR	1-42350-268-2	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) FRONT	1-42350-478-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.00TX20 162-12<Q54> (B) REAR	1-42350-478-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) FRONT	1-42350-362-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 7.50VX20 165-13<Q62> (B) REAR	1-42350-362-0	08	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) FRONT	1-42350-667-0	02	1	0407-
2	WHEEL; DISC WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) REAR	1-42350-667-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 THA	8-97916-063-0	08	1	0407-
3	NUT; WHEEL,FRT AXLE M24 LH THREAD THA	8-97916-064-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 THA	8-97916-066-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
4	NUT; WHEEL,RR AXLE M30 LH THREAD THA	8-97916-121-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 RH THREAD THA	8-97916-065-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
5	NUT; WHEEL,INNER,RR AXLE OUTER M30,INNER M20 LH THREAD THA	8-97916-676-0	08	1	0407-
11	STEP; DISC WHEEL SIDE (B) THA	1-43139-028-0	02	1	0407-0701
11	STEP; DISC WHEEL SIDE TIRE DELETE<P38> (A) THA	8-97916-040-0	02	1	0407-0609
12	U-BOLT; STEP DISC L=44 THA	9-43139-023-1	06	1	0407-0701
13	NUT; STEP DISC M10	9-09110-510-0	06	1	0407-0512
13	NUT; STEP DISC M10 THA	0-91110-510-0	06	1	0601-0701
14	WASHER; LK,STEP DISC ID=10.2	9-09150-510-0	06	1	0407-0603
14	WASHER; LK,STEP DISC ID=10.2	0-91510-510-0	06	1	0604-0701
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	04	1	0407-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE	1-42355-003-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-003-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> FRONT	1-42355-003-1	02	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.00TX20 162-12<Q54> REAR	1-42355-003-1	08	1	0407-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE	1-42355-012-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-012-1	01	1	0407-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE	1-42355-004-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-004-1	01	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50> FRONT	1-42355-012-1	02	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 6.50TX20 152-11<Q50> REAR	1-42355-012-1	08	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> FRONT	1-42355-004-1	02	1	0407-
31	RING; SIDE,DISC WHEEL WHEEL 8STUD 7.50VX20 165-13<Q62> REAR	1-42355-004-1	08	1	0407-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	07	1	0407-
32	CAP; VALVE EXC. SPARE TIRE & DISC WHEEL RR<R46> THA	1-42374-001-0	06	1	0407-
