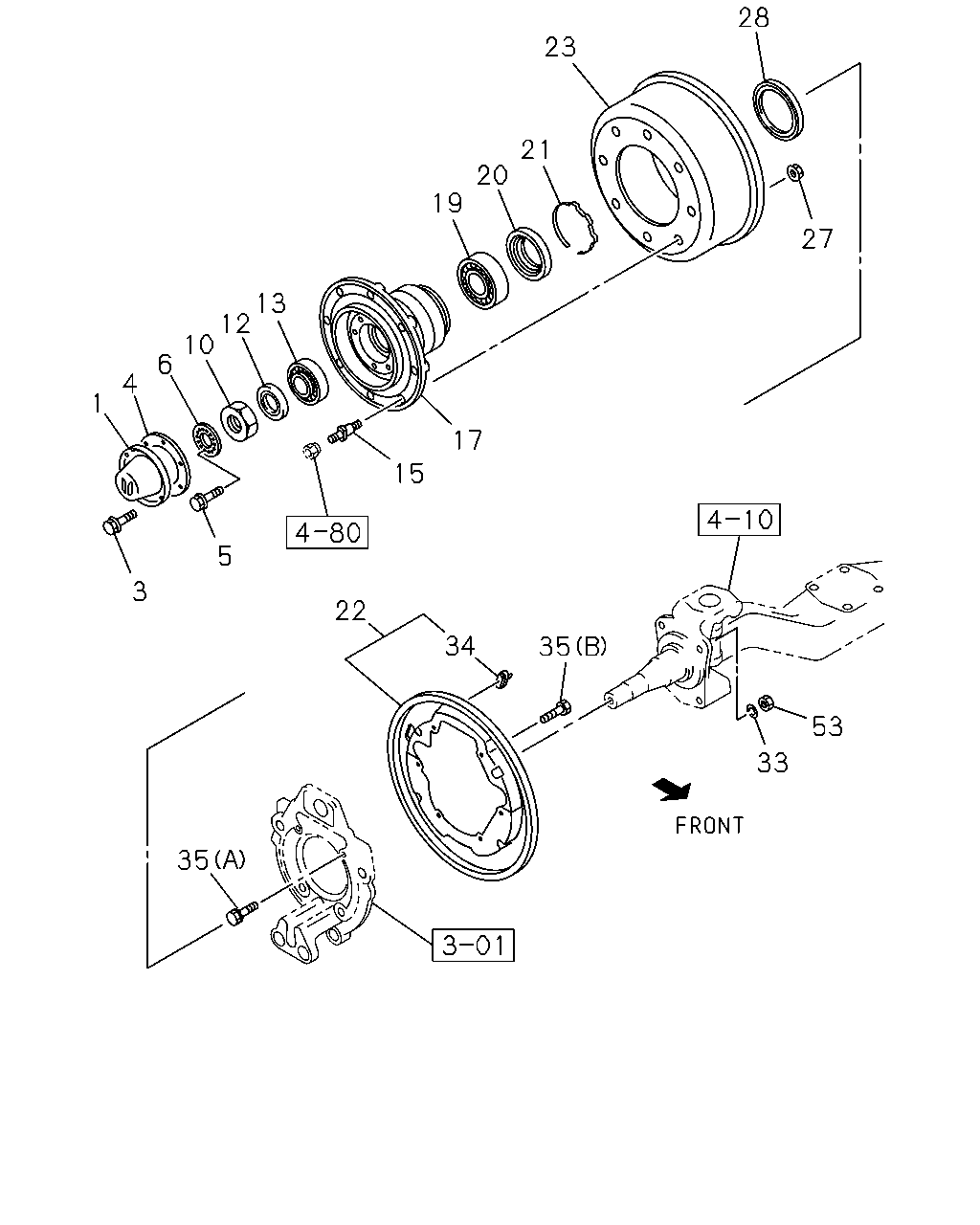

1 |
CAP; HUB,FRT AXLE
THA
|
8-97913-543-1 |
02 |
1 |
0407- |
| |
3 |
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
|
0-28080-812-0 |
12 |
1 |
0407- |
| |
4 |
GASKET; HUB CAP,FRT WHEEL
|
1-42319-185-1 |
02 |
1 |
0407- |
| |
5 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
04 |
1 |
0407- |
| |
6 |
WASHER; LK,FRT HUB
ID=48
THA
|
1-09533-012-1 |
02 |
1 |
0407-0707 |
| |
6 |
WASHER; LK,FRT HUB
ID=48
|
8-98084-561-0 |
02 |
1 |
0708- |
| |
10 |
NUT; FRT HUB BRG
M48
|
1-09840-012-5 |
02 |
1 |
0407- |
| |
12 |
WASHER; LK,FRT HUB BRG
ID=48
THA
|
1-09533-016-0 |
02 |
1 |
0407- |
| |
13 |
BEARING; HUB OUTER,FRT AXLE
KOYO
THA
|
1-09812-234-0 |
02 |
1 |
0407- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
THA
|
1-42331-109-0 |
08 |
1 |
0407-0610 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-150-1 |
08 |
1 |
0611-0701 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5,M22X57.5 RH THREAD
|
1-42331-109-1 |
08 |
1 |
0702- |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
THA
|
1-42332-109-0 |
08 |
1 |
0407-0610 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-150-1 |
08 |
1 |
0611-0701 |
| |
15 |
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X57.5 RH THREAD
|
1-42332-109-1 |
08 |
1 |
0702- |
| |
17 |
HUB; FRT AXLE
|
1-42312-128-2 |
02 |
1 |
0407- |
| |
19 |
BEARING; HUB INNER,FRT AXLE
KOYO
THA
|
1-09812-231-0 |
02 |
1 |
0407- |
| |
20 |
COVER; HUB BRG INNER
THA
|
1-42319-039-0 |
02 |
1 |
0407- |
| |
21 |
RING; SNAP,HUB
THA
|
1-09587-017-0 |
02 |
1 |
0407- |
| |
22 |
COVER SET; FRT BRK DRUM
THA
|
1-47151-458-1 |
02 |
1 |
0407- |
| |
23 |
DRUM; BRK,FRT
|
1-42315-355-0 |
02 |
1 |
0407- |
| |
27 |
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
THA
|
1-09440-065-0 |
16 |
1 |
0407- |
| |
28 |
SEAL; OIL,FRT HUB
OD=140
THA
|
1-09625-041-0 |
02 |
1 |
0407- |
| |
33 |
WASHER; LK,DRUM COVER
ID=16.2
|
9-09150-816-0 |
04 |
1 |
0407-0603 |
| |
33 |
WASHER; LK,DRUM COVER
ID=16.2
|
0-91510-816-0 |
04 |
1 |
0604- |
| |
34 |
COVER; CHECK HOLE,DRUM COVER
THA
|
1-09333-151-0 |
04 |
1 |
0407- |
| |
35 |
BOLT; DRUM COVER
(B)
M10X16 W/LK WASHER
|
0-50041-016-0 |
12 |
1 |
0407- |
| |
35 |
BOLT; DRUM COVER
(A)
M16X52
|
1-09044-001-2 |
04 |
1 |
0407-0805 |
| |
35 |
BOLT; DRUM COVER
(A)
M16X52
|
1-09044-120-0 |
04 |
1 |
0806- |
| |
53 |
NUT; DRUM COVER
M16
|
9-99110-416-0 |
04 |
1 |
0407-0512 |
| |
53 |
NUT; DRUM COVER
M16
THA
|
0-91110-516-0 |
04 |
1 |
0601- |
