3-78 — FIXING PARTS; AIR PIPING (#30733) — 99 parça

356 300 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0407-
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0407-
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0407-

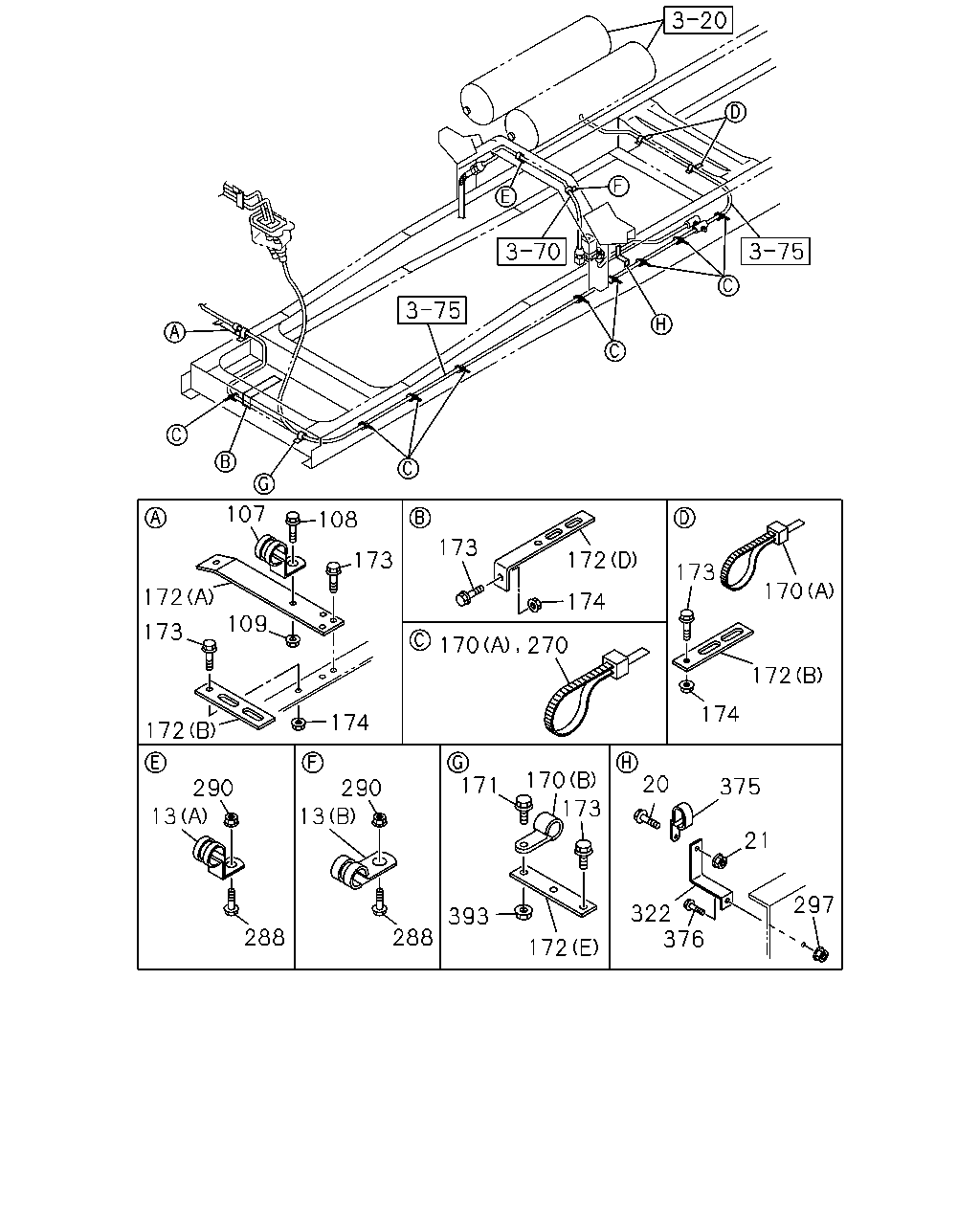

107 108 173 172 173 173 170 172 174 109 173 170 270 172 172 174 174 171 170 20 375 290 290 173 13 13 21 297 322 376 393 288 288 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21 THA	1-09700-916-0	01	1	0407-
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0407-0606
13	CLIP; AIR PIPE (B) ID=7 L=40	0-95234-675-0	01	1	0607-
20	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	01	1	0407-0512
20	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	01	1	0601-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
20	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
21	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0603-
107	CLIP; NYLON TUBE ID=27.5 H=23 L=24	1-09700-863-0	01	1	0407-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
108	BOLT; TUBE CLIP M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
109	NUT; TUBE CLIP M8 FLANGE THA	0-91180-108-0	01	1	0603-
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	26	1	0407-
170	CLIP; NYLON TUBE (B) ID=11 L=50	9-09525-085-0	01	1	0407-0606
170	CLIP; NYLON TUBE (B) ID=11 L=50	0-95235-085-0	01	1	0607-
171	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
171	BOLT; TUBE CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0407-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	0407-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	0407-
172	BRACKET; TUBE CLIP (C) L=150	1-47477-629-2	01	1	0407-
172	BRACKET; TUBE CLIP (D) L=225	1-47477-646-3	01	1	0407-
172	BRACKET; TUBE CLIP (E) L=117	1-47478-116-0	01	1	0407-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
173	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
270	CLIP; NYLON TUBE L=250	1-09707-126-0	05	1	0407-
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
288	BOLT; CLIP,AIR PIPE M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0602
290	NUT; CLIP,AIR PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602
297	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	0603-
322	BRACKET; CLIP	1-47479-248-0	01	1	0407-
375	CLIP; AIR PIPE ID=9	9-09524-825-0	01	1	0407-0606
375	CLIP; AIR PIPE ID=9 L=16	0-95234-825-0	01	1	0607-
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
376	BOLT; BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
393	NUT; UNION M8 FLANGE	0-91150-108-0	01	1	0407-0602
393	NUT; UNION M8 FLANGE THA	0-91180-108-0	01	1	0603-

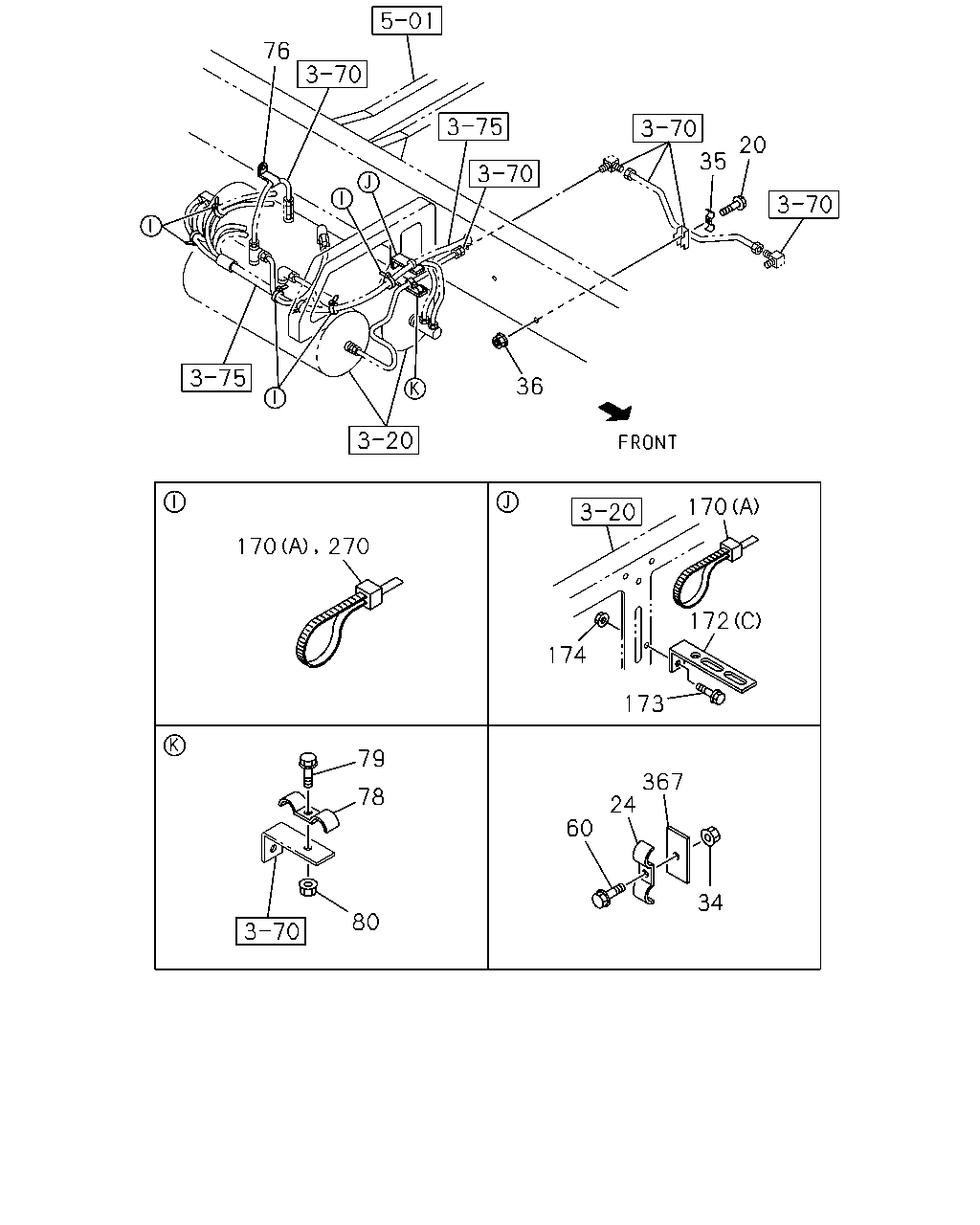

76 20 35 36 170 170 270 172 174 173 79 367 24 78 60 34 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	BOLT; CLIP M8X45 FLANGE	0-28080-845-0	01	1	0407-0512
20	BOLT; CLIP M8X45 FLANGE THA	0-28050-845-0	01	1	0601-
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
20	BOLT; CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
24	CLIP; PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0407-
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0407-0602
34	NUT; BRKT M8 FLANGE THA	0-91180-108-0	01	1	0603-
35	CLIP; AIR PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0407-
36	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0407-0602
36	NUT; CLIP M8 FLANGE THA	0-91180-108-0	01	1	0603-
60	BOLT; CLIP FIX M8X16 FLANGE	0-28080-816-0	01	1	0407-0512
60	BOLT; CLIP FIX M8X16 FLANGE THA	0-28050-816-0	01	1	0601-
76	CLIP; NYLON TUBE ID=13 H=50 L=25	1-09700-529-0	01	1	0407-
78	CLIP; AIR PIPE ID=16 & 7 L=21 & 17 THA	1-09700-675-0	01	1	0407-
79	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0407-0611
79	BOLT; PIPE CLIP M8X20 FLANGE THA	0-28650-820-0	01	1	0612-
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0602
80	NUT; CLIP,AIR PIPE M8 FLANGE THA	0-91180-108-0	01	1	0603-
170	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	26	1	0407-
170	CLIP; NYLON TUBE (B) ID=11 L=50	9-09525-085-0	01	1	0407-0606
170	CLIP; NYLON TUBE (B) ID=11 L=50	0-95235-085-0	01	1	0607-
172	BRACKET; TUBE CLIP (A)	1-47477-256-1	01	1	0407-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	0407-
172	BRACKET; TUBE CLIP (B)	1-47477-514-3	02	1	0407-
172	BRACKET; TUBE CLIP (C) L=150	1-47477-629-2	01	1	0407-
172	BRACKET; TUBE CLIP (D) L=225	1-47477-646-3	01	1	0407-
172	BRACKET; TUBE CLIP (E) L=117	1-47478-116-0	01	1	0407-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	01	1	0612-
173	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
173	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	01	1	0612-
173	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0407-0611
173	BOLT; CLIP BRKT M8X25 FLANGE THA	0-28650-825-0	02	1	0612-
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0602
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
174	NUT; CLIP BRKT M8 FLANGE THA	0-91180-108-0	03	1	0603-
270	CLIP; NYLON TUBE L=250	1-09707-126-0	05	1	0407-
367	BRACKET ASM L=50 THA	1-47475-299-2	01	1	0407-
