Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#30731) — 13 parça
◀

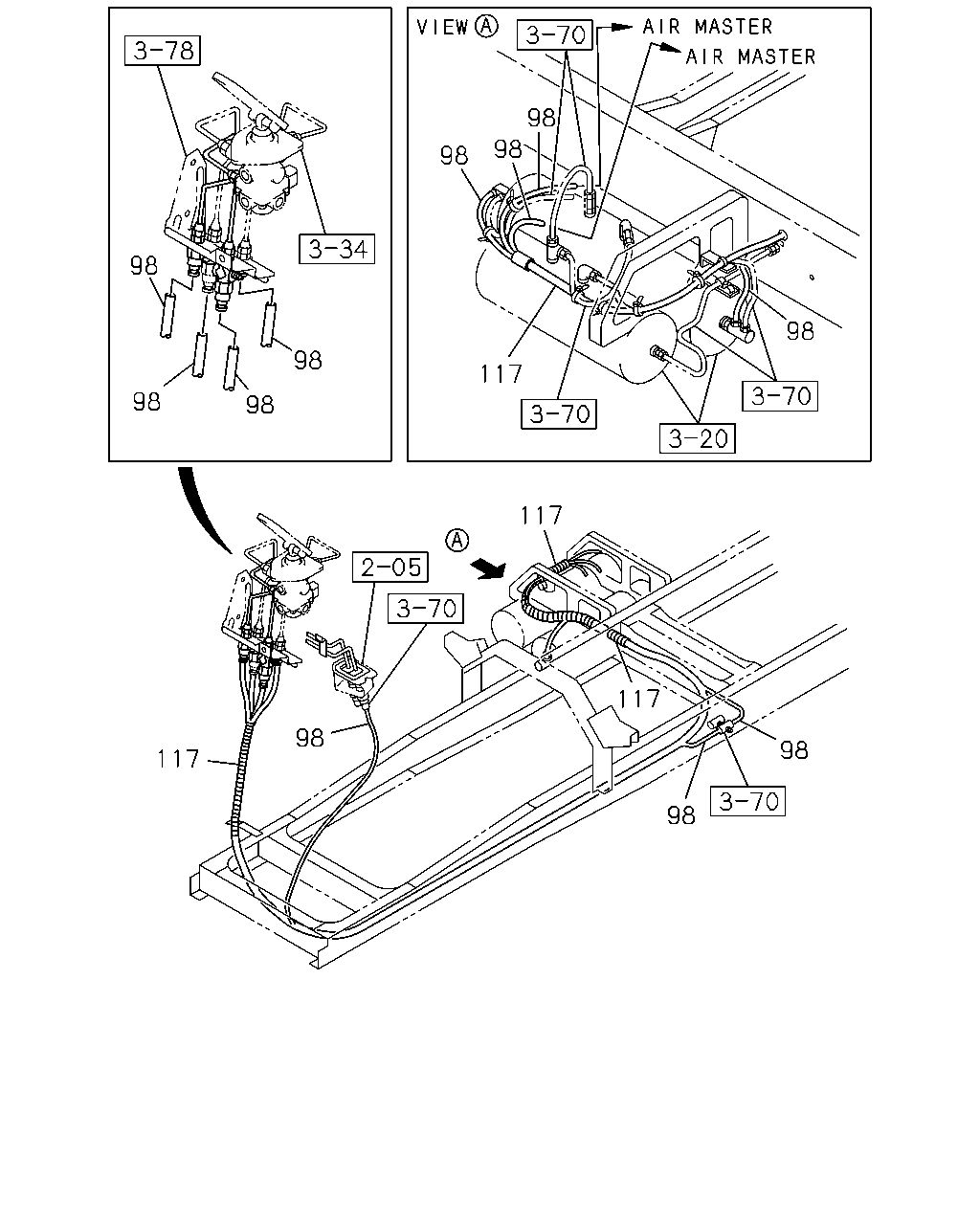

[375A] FRAME SIDE (5 parça)
[375A] CAB SIDE (8 parça)
▶
98
98
98
98
98
98
117
98
98
117
117
98
98
117
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
04
1
0407-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
02
1
0407-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
01
1
0407-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
03
1
0407-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87410-104-0
03
1
0407-
118
115
116
138
115
116
138
114
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
114
UNION; NYLON TUBE
1-09660-807-2
02
1
0407-
115
NUT; TUBE UNION
M16
9-99111-416-0
02
1
0407-0512
115
NUT; TUBE UNION
M16
0-91111-516-0
02
1
0601-
116
WASHER; LK,TUBE UNION
ID=16.2
9-09150-516-0
02
1
0407-0603
116
WASHER; LK,TUBE UNION
ID=16.2
0-91510-516-0
02
1
0604-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0407-
138
WASHER; PL,UNION
ID=17
9-09160-516-0
02
1
0407-0605
138
WASHER; PL,UNION
ID=17 OD=30
0-91610-516-0
02
1
0606-
