3-58 — FIXING PARTS; OIL PIPING (#30729) — 55 parça

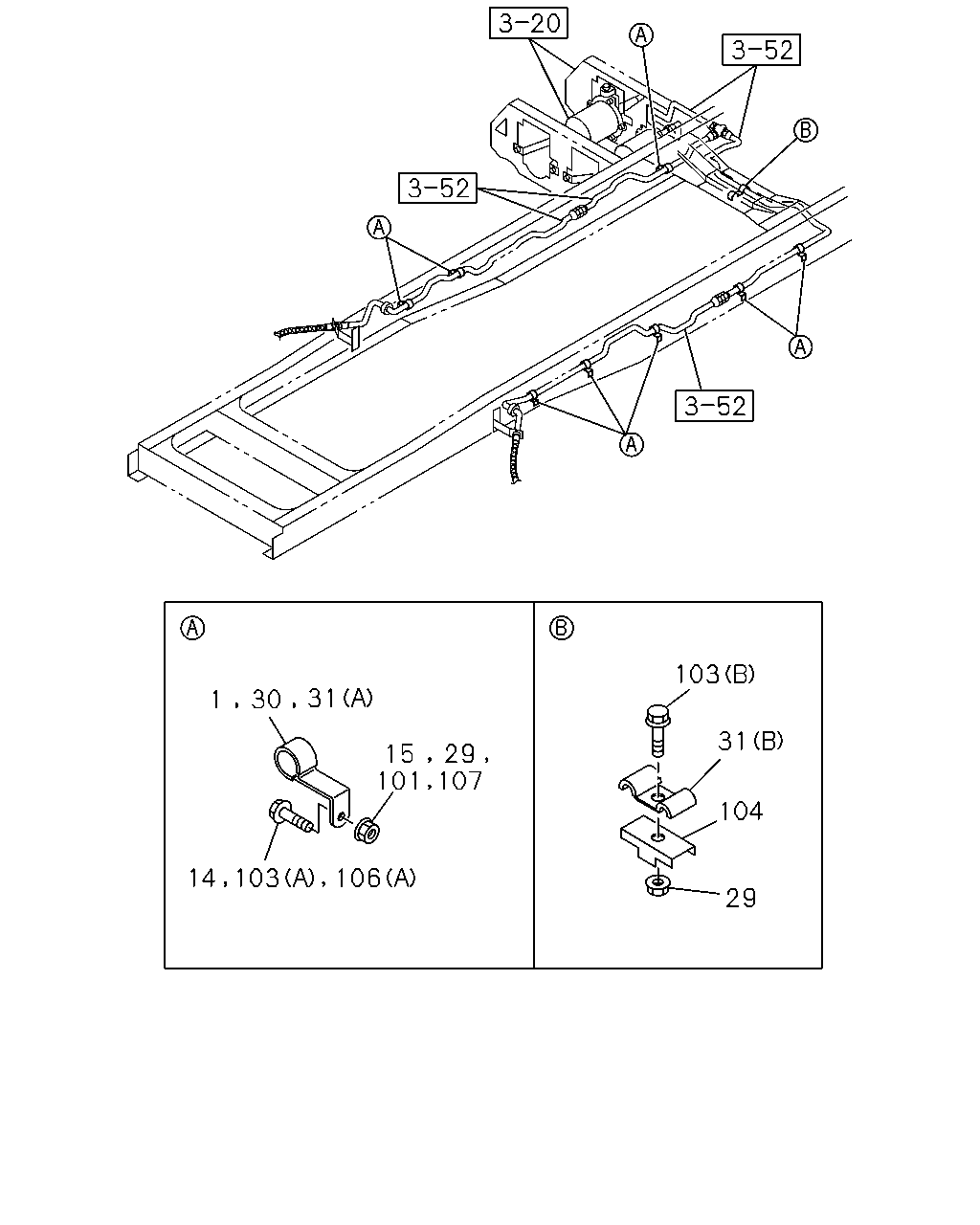

103 1 31 101 107 104 106 29 30 31 15 29 103 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20 THA	1-09700-603-0	01	1	0407-
1	CLIP; OIL PIPE TO BODY ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	01	1	0407-0611
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE THA	0-28650-835-0	01	1	0612-
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
14	BOLT; CLIP,OIL PIPE M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
15	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0407-0602
15	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	02	1	0603-
29	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0407-0602
29	NUT; CLIP M8 FLANGE THA	0-91180-108-0	03	1	0603-
30	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	03	1	0407-
31	CLIP; OIL PIPE ZF 9S75 DD M/T<Y1H> (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	02	1	0407-
31	CLIP; OIL PIPE FULLER FS8209HD DD M/T<Y3A> (A) ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-
31	CLIP; OIL PIPE (B) ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	01	1	0407-
101	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0602
101	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0603-
103	BOLT; CLIP,OIL PIPE FULLER FS8209HD DD M/T<Y3A> (A) M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
103	BOLT; CLIP,OIL PIPE FULLER FS8209HD DD M/T<Y3A> (A) M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
103	BOLT; CLIP,OIL PIPE ZF 9S75 DD M/T<Y1H> (B) M8X45 FLANGE	0-28080-845-0	02	1	0407-0512
103	BOLT; CLIP,OIL PIPE ZF 9S75 DD M/T<Y1H> (B) M8X45 FLANGE THA	0-28050-845-0	02	1	0601-
103	BOLT; CLIP,OIL PIPE (B) M8X40 FLANGE	0-28680-840-0	01	1	0407-0611
103	BOLT; CLIP,OIL PIPE (B) M8X40 FLANGE THA	0-28650-840-0	01	1	0612-
104	BRACKET; OIL PIPE ZF 9S75 DD M/T<Y1H>	1-47475-427-1	02	1	0407-
104	BRACKET; OIL PIPE	1-47475-427-1	01	1	0407-
106	BOLT; CLIP,OIL PIPE (A) M8X35 FLANGE	0-28680-835-0	03	1	0407-0611
106	BOLT; CLIP,OIL PIPE (A) M8X35 FLANGE THA	0-28650-835-0	03	1	0612-
106	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	0407-0611
106	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-
107	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	03	1	0407-0602
107	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	03	1	0603-

57 59 57 57 57 59 57 59 57 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	9-09524-635-0	07	1	0407-0606
57	CLIP; BRK PIPE,RR AXLE ID=7 L=20	0-95234-635-0	07	1	0607-
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE THA	0-28050-810-0	07	1	0601-
59	BOLT; BRK PIPE,RR AXLE M8X10 FLANGE	0-28080-810-0	07	1	0407-0512

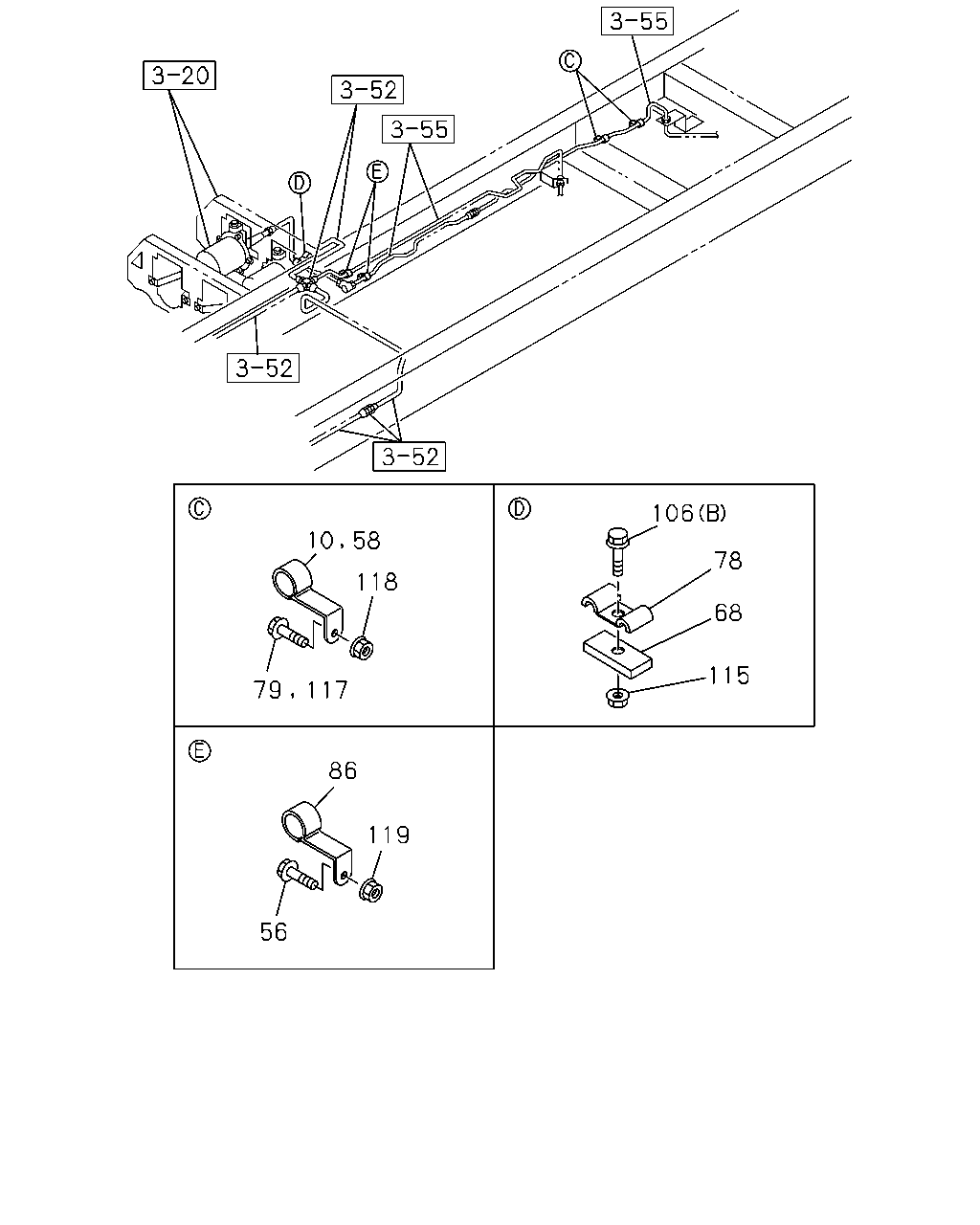

106 78 118 68 115 79 117 86 119 56 10 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	04	1	0407-
56	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
56	BOLT; CLIP M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
58	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	04	1	0407-
68	BRACKET; CLIP L=50 THA	1-47475-299-2	01	1	0407-
78	CLIP; OIL PIPE ID=7 & 9 L=17.5 & 17.5 THA	1-09700-746-0	01	1	0407-
79	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0407-0611
79	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	04	1	0612-
86	CLIP; OIL PIPE ID=6 H=20 L=20 THA	1-09700-603-0	02	1	0407-
106	BOLT; CLIP,OIL PIPE (A) M8X35 FLANGE	0-28680-835-0	03	1	0407-0611
106	BOLT; CLIP,OIL PIPE (A) M8X35 FLANGE THA	0-28650-835-0	03	1	0612-
106	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	0407-0611
106	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE THA	0-28050-816-0	01	1	0612-
115	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0407-0602
115	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	01	1	0603-
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	04	1	0407-0611
117	BOLT; CLIP,OIL PIPE M8X30 FLANGE THA	0-28650-830-0	04	1	0612-
118	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0407-0602
118	NUT; CLIP,OIL PIPE M8 FLANGE THA	0-91180-108-0	04	1	0603-
119	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0407-0602
119	NUT; CLIP M8 FLANGE THA	0-91180-108-0	02	1	0603-
