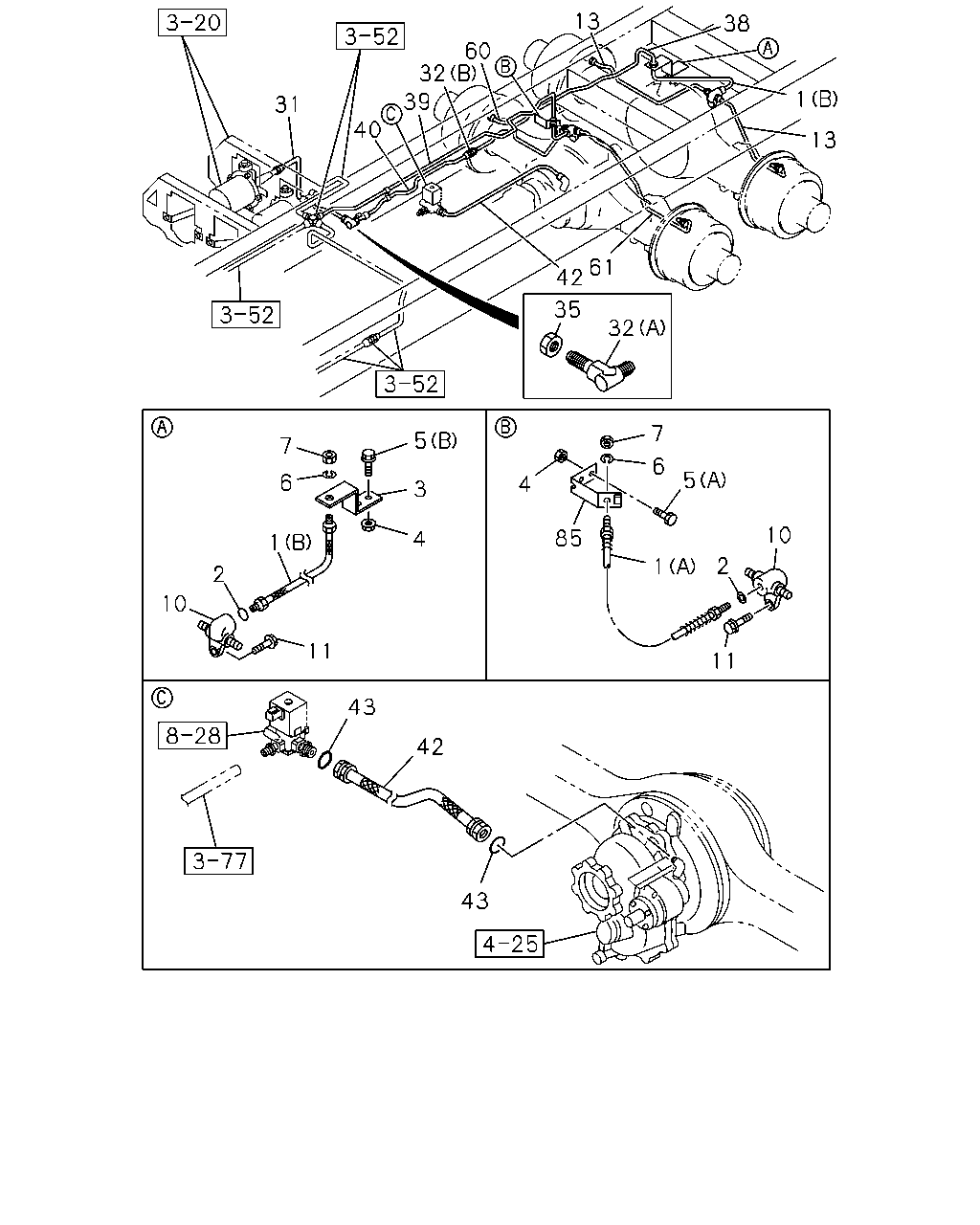

3-55 — BRAKE PIPING; OIL,REAR (#30728) — 38 parça

13 38 60 32 1 39 40 31 13 61 42 35 32 7 5 7 6 5 6 4 3 10 85 4 1 2 1 2 10 11 11 43 42 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK (B) L=600	0-05312-600-0	01	1	0407-
1	HOSE; FLEX,RR BRK (A) L=450	1-09364-188-0	01	1	0407-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0407-
3	BRACKET; FLEX HOSE,RR BRK	1-47465-608-0	01	1	0407-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0407-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0407-0602
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE THA	0-91180-108-0	02	1	0603-
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE THA	0-91180-108-0	02	1	0603-
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X30 FLANGE	0-28680-830-0	02	1	0407-0611
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X30 FLANGE THA	0-28650-830-0	02	1	0612-
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X35 FLANGE	0-28680-835-0	02	1	0407-0611
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X35 FLANGE THA	0-28650-835-0	02	1	0612-
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0407-0603
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0407-0603
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
6	WASHER; LK,FLEX HOSE ID=12.2	0-91510-512-0	01	1	0604-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0407-
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0407-
10	NIPPLE; RR AXLE CASE	9-09903-668-3	02	1	0407-
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	02	1	0407-0702
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50541-025-0	02	1	0703-
13	PIPE; BRK,RR AXLE THA	8-97917-460-0	01	1	0407-
13	PIPE; BRK,RR AXLE THA	8-97917-462-0	01	1	0407-
31	PIPE; OIL,AIR MASTER TO UNION THA	8-97917-626-0	01	1	0407-
32	UNION; OIL PIPE (B) M12 L=40	9-09223-006-1	01	1	0407-0607
32	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	01	1	0608-
32	UNION; OIL PIPE (A) M12 ELBOW	9-09225-206-1	01	1	0407-0607
32	UNION; OIL PIPE (A) M12 ELBOW	0-92125-206-0	01	1	0608-
35	NUT; UNION M12	9-09840-280-0	01	1	0407-
38	PIPE; OIL,UNION TO FLEX HOSE THA	8-97917-638-0	01	1	0407-
39	PIPE; OIL,UNION TO RR FLEX HOSE THA	8-97918-509-0	01	1	0407-
40	PIPE; BRK,UNION TO UNION THA	8-97917-627-0	01	1	0407-
42	HOSE; FLEX,DIFF LOCK	0-07151-610-0	01	1	0407-
43	GASKET; FLEX TUBE ID=11 OD=18	9-09572-510-0	02	1	0407-
60	PIPE ASM; BRK THA	8-97917-459-0	01	1	0407-
61	PIPE ASM; BRK THA	8-97917-968-0	01	1	0407-
85	BRACKET; FLEX HOSE,FWD RR	1-47475-357-2	01	1	0407-
