Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10944 - FVZ(THAI)EURO2
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

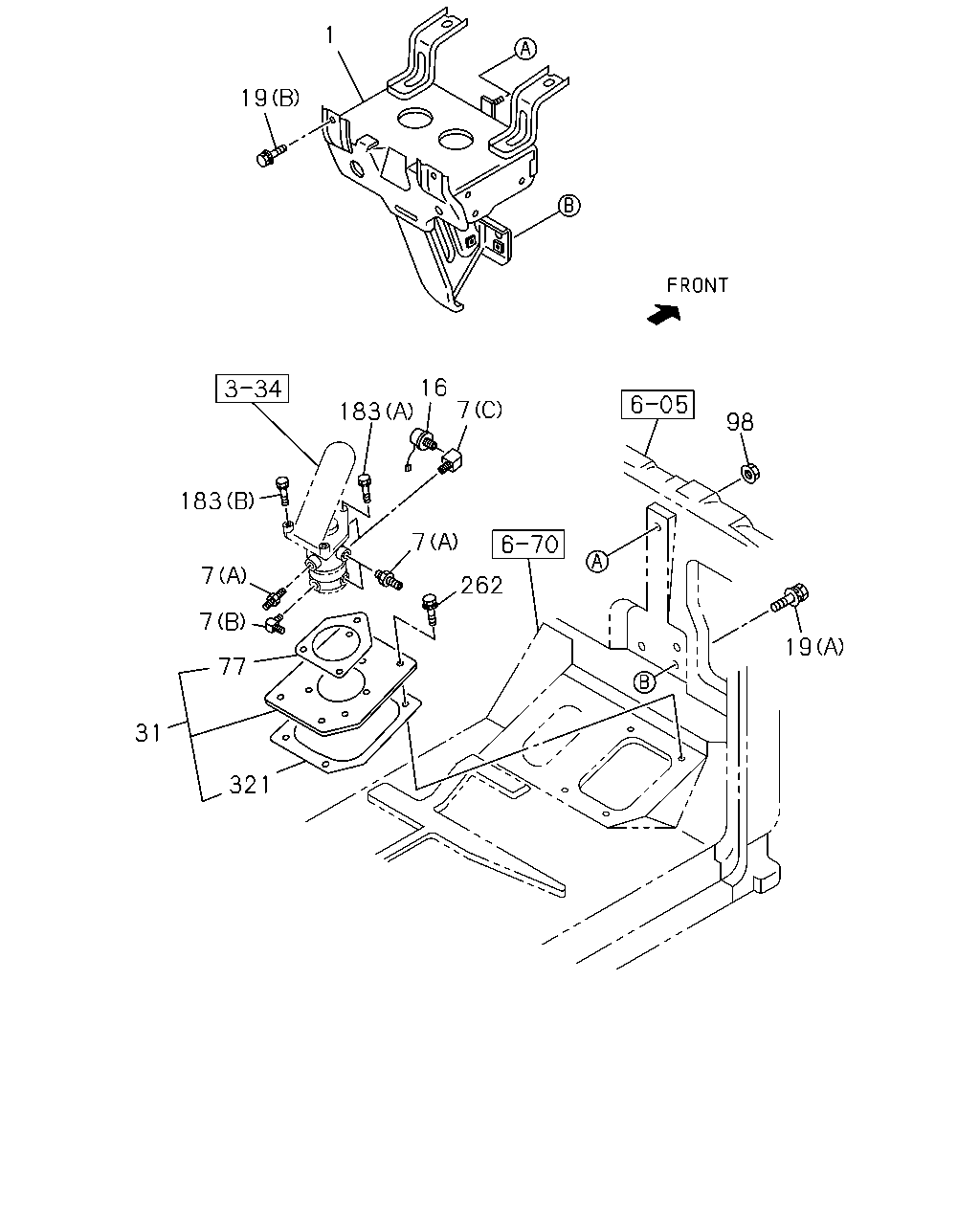

3-10 — BRAKE PEDAL AND CONTROL
(#30721) — 14 parça
1
19
16
7
183
98
183
7
7
262
7
19
77
31
321
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
THA
1-73908-244-5
01
1
0407-
7
CONNECTOR; BRK VALVE
(A) M16 & PT3/8 STRAIGHT
1-09650-179-1
03
1
0407-
7
CONNECTOR; BRK VALVE
(B) M16 & PT3/8 ELBOW
1-09650-438-0
01
1
0407-
7
CONNECTOR; BRK VALVE
(C) PT1/4 2WAY
1-09660-693-0
02
1
0407-
16
SWITCH; STOP LAMP
GREEN
1-82410-176-1
02
1
0407-
19
BOLT; BRKT
(A) M8X20 THA
1-79198-002-0
02
1
0407-
19
BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0407-
31
PLATE; MTG,BRKT VLV
1-73996-329-1
01
1
0407-
77
RUBBER; SEAL,BRK
1-73996-207-0
01
1
0407-
98
NUT; BRKT
M8 FLANGE W/RUBBER
1-09984-176-0
02
1
0407-
183
BOLT; BRK VLV
(A) M10X25 W/LK WASHER
1-09980-503-0
01
1
0407-
183
BOLT; BRK VLV
(B) M10X35 W/LK WASHER
1-09980-504-0
02
1
0407-
262
BOLT; PLATE
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0407-
321
SEAL; VALVE
1-73996-143-0
01
1
0407-
