◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#3072) — 84 parça

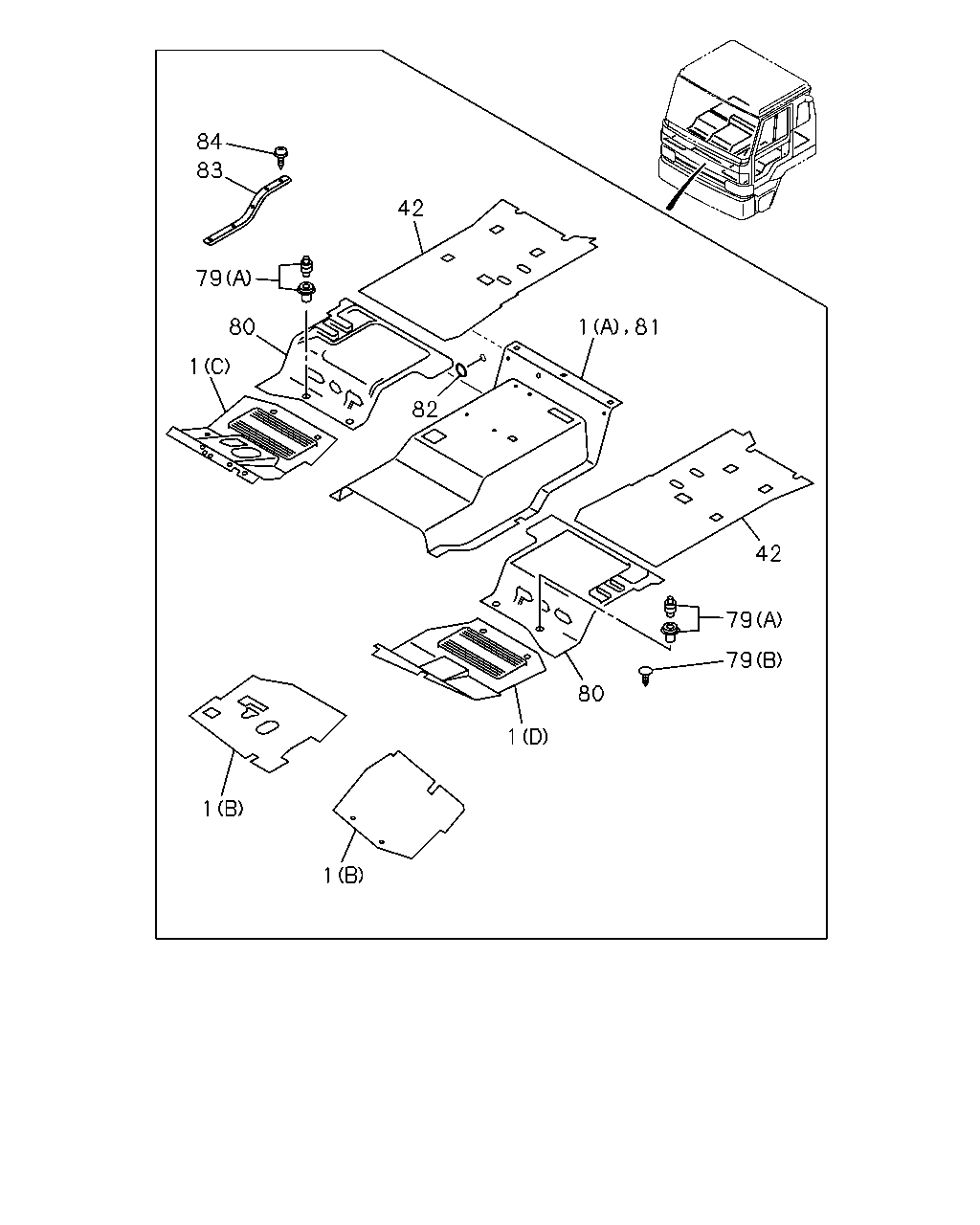

çizim 36631
1 1 1 80 79 79 42 1 81 42 84 83 79 80 1 82
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-240-0 01 1 9002-9106 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-183-0 01 1 9107-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-278-0 01 1 9307- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-241-0 01 1 9002-9106 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-166-1 01 1 9107-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-277-2 01 1 9307- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) PTO CONTROL(SV6) (A) 		1-73211-254-1 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (A) 		1-73211-348-1 01 1 9307- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. HONG KONG EQUIPMENT(PQ1) (A) 		1-73211-255-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) EXC. PTO CONTROL(SV6) (A) 		1-73211-255-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (D) 		1-73237-386-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (D) 		1-73237-404-0 01 1 9307- ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (C) 		1-73237-385-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (C) 		1-73237-403-1 01 1 9307- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-73211-239-2 01 1 9002-9306 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (A) 		1-73211-239-2 01 1 9002-9306 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> PARKING BRAKE TRANSMISSION REAR(PJ8),PARKING BRAKE TRANSFER REAR(WB5) (A) 		1-73211-359-0 01 1 9307- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8) (A) 		1-73211-256-1 01 1 9002-9306 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), PARKING BRAKE TRANSFER REAR(WB5) (A) 		1-73211-256-1 01 1 9002-9306 ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. PARKING BRAKE TRANSMISSION REAR(PJ8), PARKING BRAKE TRANSFER REAR(WB5) (A) 		1-73211-358-0 01 1 9307- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-244-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-353-0 01 1 9307- ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> TAIWAN EQUIPMENT(WW5) (B) 		1-73211-276-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> EXC. TAIWAN EQUIPMENT(WW5) (B) 		1-73211-243-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> (B) 		1-73211-354-0 01 1 9307- ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (C) 		1-73237-387-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (C) 		1-73237-419-0 01 1 9307- ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2>,TAIWAN EQUIPMENT(WW5) (D) 		1-73237-388-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
TAIWAN EQUIPMENT(WW5) EXC. DELUXE CARPET<BF2> (D) 		1-73237-389-0 01 1 9002-9306 ● ●
1 CARPET; FLOOR,FRT
EXC. DELUXE CARPET<BF2> (D) 		1-73237-420-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> 		1-73211-250-2 01 1 9002-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> 		1-73211-350-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4> PTO CONTROL(SV6) EXC. HONG KONG EQUIPMENT(PQ1) 		1-73211-247-1 01 1 9002-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4> EXC. HONG KONG EQUIPMENT(PQ1) 		1-73211-361-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) 		1-73211-248-0 01 1 9002-9008 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) 		1-73211-298-0 01 1 9009-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> HONG KONG EQUIPMENT(PQ1) 		1-73211-362-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> EXC. HONG KONG EQUIPMENT(PQ1),DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73211-246-0 01 1 9002-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> EXC. HONG KONG EQUIPMENT(PQ1),DUMP CONTROL LEVER<RC4> 		1-73211-360-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> 		1-73211-249-1 01 1 9002-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> 		1-73211-363-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4> PTO CONTROL(SV6) 		1-73211-252-0 01 1 9002-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> DUMP CONTROL LEVER<RC4> 		1-73211-365-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> PTO CONTROL(SV6) 		1-73211-365-0 01 1 9307- ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73211-251-0 01 1 9002-9306 ● ●
42 CARPET; FLOOR,RR
DELUXE CARPET<BF2> EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73211-364-0 01 1 9307- ●
79 HOOK; MALE
(B) D6X23 BLACK 		1-09987-114-0 01 1 9002- ● ● ● ●
79 HOOK; MALE
(A) 		8-94291-778-0 04 1 9002- ● ● ● ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-376-1 01 1 9002-9306 ● ●
80 MAT; FLOOR,RR 1-73237-428-2 01 1 9307-9308 ●
80 MAT; FLOOR,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-73237-428-2 01 1 9307-9308 ●
80 MAT; FLOOR,RR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2> 		1-73237-428-2 01 1 9309- ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2>,MIXER TRUCK<RA2>,DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6),PARKING BRAKE VALVE LEVER TYPE<W48> 		1-73237-372-0 01 1 9002-9308 ● ●
80 MAT; FLOOR,RR
DUMP CONTROL LEVER<RC4> PTO CONTROL(SV6) MIXER TRUCK<RA2> EXC. DELUXE CARPET<BF2>,PARKING BRAKE VALVE LEVER TYPE<W48> 		1-73237-373-0 01 1 9002-9306 ● ●
80 MAT; FLOOR,RR
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. DELUXE CARPET<BF2> 		1-73237-371-0 01 1 9002-9306 ● ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-407-1 01 1 9309-9412 ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-521-0 01 1 9501- ●
80 MAT; FLOOR,RR
HONG KONG EQUIPMENT(PQ1) 		1-73237-426-1 01 1 9307-9308 ●
80 MAT; FLOOR,RR
HONG KONG EQUIPMENT(PQ1) EXC. DELUXE CARPET<BF2> 		1-73237-426-1 01 1 9309-9410 ●
80 MAT; FLOOR,RR
HONG KONG EQUIPMENT(PQ1) EXC. DELUXE CARPET<BF2> 		1-73237-522-1 01 1 9411- ●
80 MAT; FLOOR,RR
EXC. HONG KONG EQUIPMENT(PQ1) 		1-73237-425-1 01 1 9307-9308 ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2>,HONG KONG EQUIPMENT(PQ1) 		1-73237-425-1 01 1 9309- ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-370-0 01 1 9002-9306 ● ●
80 MAT; FLOOR,RR 1-73237-421-2 01 1 9307-9308 ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2> 		1-73237-421-2 01 1 9309- ●
80 MAT; FLOOR,RR
EXC. DELUXE CARPET<BF2>,MIXER TRUCK<RA2>, CONCRETE PUMP<RA5>,DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-73237-374-0 01 1 9002-9306 ● ●
80 MAT; FLOOR,RR
MIXER TRUCK<RA2> EXC. DELUXE CARPET<BF2> 		1-73237-375-0 01 1 9002-9308 ● ●
80 MAT; FLOOR,RR
DUMP CONTROL LEVER<RC4> EXC. DELUXE CARPET<BF2> 		1-73237-375-0 01 1 9002-9308 ● ●
80 MAT; FLOOR,RR
PTO CONTROL(SV6) EXC. DELUXE CARPET<BF2> 		1-73237-375-0 01 1 9002-9308 ● ●
80 MAT; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-73237-427-2 01 1 9307-9308 ●
80 MAT; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,DUMP TRUCK<RA1> 		1-73237-427-2 01 1 9309- ●
80 MAT; FLOOR,RR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DUMP TRUCK<RA1> EXC. DELUXE CARPET<BF2> 		1-73237-506-0 01 1 9312- ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-381-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-490-1 01 1 9307- ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) CENTER SEAT DELETE<SP9> EXC. DELUXE CARPET<BF2> 		1-73237-383-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE<SP9> 		1-73237-382-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) CENTER SEAT DELETE<SP9> EXC. DELUXE CARPET<BF2> 		1-73237-378-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE<SP9> 		1-73237-380-1 01 1 9002-9306 ● ●
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2> 		1-73237-489-2 01 1 9307- ●
82 SEAL; BED PAN
OD=36 		5-76777-035-0 AR 1 9002- ● ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-019-3 01 1 9002- ● ● ● ●
83 PLATE; KICKING,FLOOR MAT 1-76797-018-3 01 1 9002- ● ● ● ●
84 SCREW; PLATE TO FLOOR
M6X24 W/PL WASHER 		1-09981-504-0 04 1 9002- ● ● ● ●
84 SCREW; PLATE TO FLOOR
M6X16 W/PL WASHER 		1-09981-505-0 06 1 9002- ● ● ● ●
