6-70 — FLOOR PANEL (#3071) — 46 parça

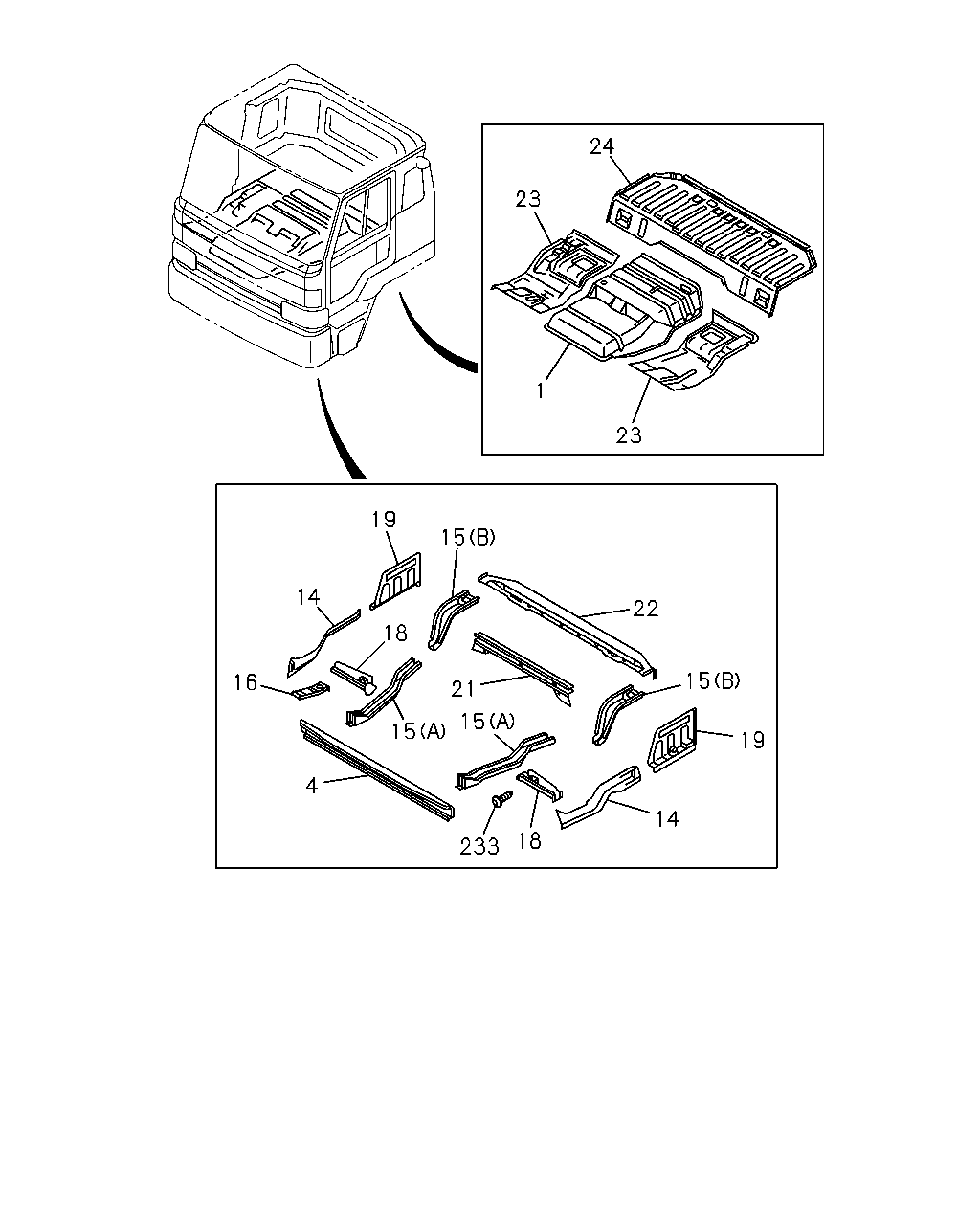

çizim 36564
14 18 233 15 21 15 4 16 18 14 19 15 22 15 19 23 1 23 24
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; FLOOR 1-62172-263-1 01 1 9002- ● ●
1 PANEL; FLOOR 1-62172-278-1 01 1 9002- ● ●
4 FRAME; FLOOR,FRT 1-62472-389-6 01 1 9002-9306 ● ●
4 FRAME; FLOOR,FRT
HONG KONG EQUIPMENT(PQ1) 		1-62472-623-2 01 1 9307- ●
4 FRAME; FLOOR,FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62472-389-8 01 1 9307- ●
4 FRAME; FLOOR,FRT 1-62472-382-5 01 1 9002- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62472-264-6 01 1 9002- ● ● ● ●
14 PANEL; FLOOR SIDE,FRT 1-62472-263-6 01 1 9002- ● ● ● ●
15 FRAME; UNDER
(A) 		1-62472-333-3 01 1 9002-9205 ● ● ● ●
15 FRAME; UNDER
(A) 		1-62472-556-0 01 1 9206- ● ● ● ●
15 FRAME; UNDER
(A) 		1-62472-332-3 01 1 9002- ● ● ● ●
15 FRAME; UNDER
(B) 		1-62472-209-6 01 1 9307- ● ● ● ●
15 FRAME; UNDER
(B) 		1-62472-208-7 01 1 9307- ● ● ● ●
16 PANEL; SUPPORT CHANNEL,FLOOR PANEL FRT 1-62482-297-2 01 1 9002- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-455-1 01 1 9002-9105 ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-551-1 01 1 9106- ● ● ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-311-1 01 1 9002- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-325-1 01 1 9002-9105 ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-566-0 01 1 9106- ● ● ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-106-7 01 1 9002- ● ● ● ●
21 FRAME; FLOOR CENTER
HONG KONG EQUIPMENT(PQ1) 		1-62472-370-1 01 1 9002-9002 ● ●
21 FRAME; FLOOR CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-62472-370-1 01 1 9002-9002 ● ●
21 FRAME; FLOOR CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62472-370-1 01 1 9002-9002 ● ●
21 FRAME; FLOOR CENTER
HONG KONG EQUIPMENT(PQ1) 		1-62472-370-1 01 1 9003-9101 ● ●
21 FRAME; FLOOR CENTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TAIWAN EQUIPMENT(WW5) 		1-62472-370-1 01 1 9003-9101 ● ●
21 FRAME; FLOOR CENTER
HONG KONG EQUIPMENT(PQ1) 		1-62472-370-1 01 1 9102-9105 ● ●
21 FRAME; FLOOR CENTER 1-62472-571-0 01 1 9106- ● ● ● ●
21 FRAME; FLOOR CENTER
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62472-340-1 01 1 9002-9105 ● ●
21 FRAME; FLOOR CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SAUDI ARABIA EQUIPMENT(WH1) 		1-62472-371-1 01 1 9002-9002 ● ●
21 FRAME; FLOOR CENTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. TAIWAN EQUIPMENT(WW5) 		1-62472-371-1 01 1 9003-9101 ● ●
21 FRAME; FLOOR CENTER
TAIWAN EQUIPMENT(WW5) 		1-62472-371-1 01 1 9003-9101 ● ●
21 FRAME; FLOOR CENTER 1-62472-371-1 01 1 9102-9105 ● ●
22 FRAME; FLOOR REAR 1-62472-338-3 01 1 9002-9012 ● ● ● ●
22 FRAME; FLOOR REAR 1-62472-543-4 01 1 9101- ● ● ● ●
23 PANEL; FLOOR,SIDE 1-62172-387-4 01 1 9002- ● ●
23 PANEL; FLOOR,SIDE
HONG KONG EQUIPMENT(PQ1) 		1-62172-367-7 01 1 9002- ● ●
23 PANEL; FLOOR,SIDE
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62172-386-4 01 1 9002- ● ●
23 PANEL; FLOOR,SIDE 1-62172-374-5 01 1 9002- ● ●
23 PANEL; FLOOR,SIDE 1-62172-368-5 01 1 9002- ● ●
24 PANEL; BED PAN
HONG KONG EQUIPMENT(PQ1) 		1-62172-309-9 01 1 9002-9312 ● ●
24 PANEL; BED PAN
HONG KONG EQUIPMENT(PQ1) 		1-62172-595-0 01 1 9401- ●
24 PANEL; BED PAN
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62172-453-1 01 1 9002- ● ●
24 PANEL; BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-62172-227-3 01 1 9002- ● ●
24 PANEL; BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-62172-344-5 01 1 9002- ● ●
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 04 1 9002-9107 ● ● ● ●
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 07 1 9108- ● ● ● ●
