◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CVR ▶ 10661 - CVR ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#3067) — 72 parça

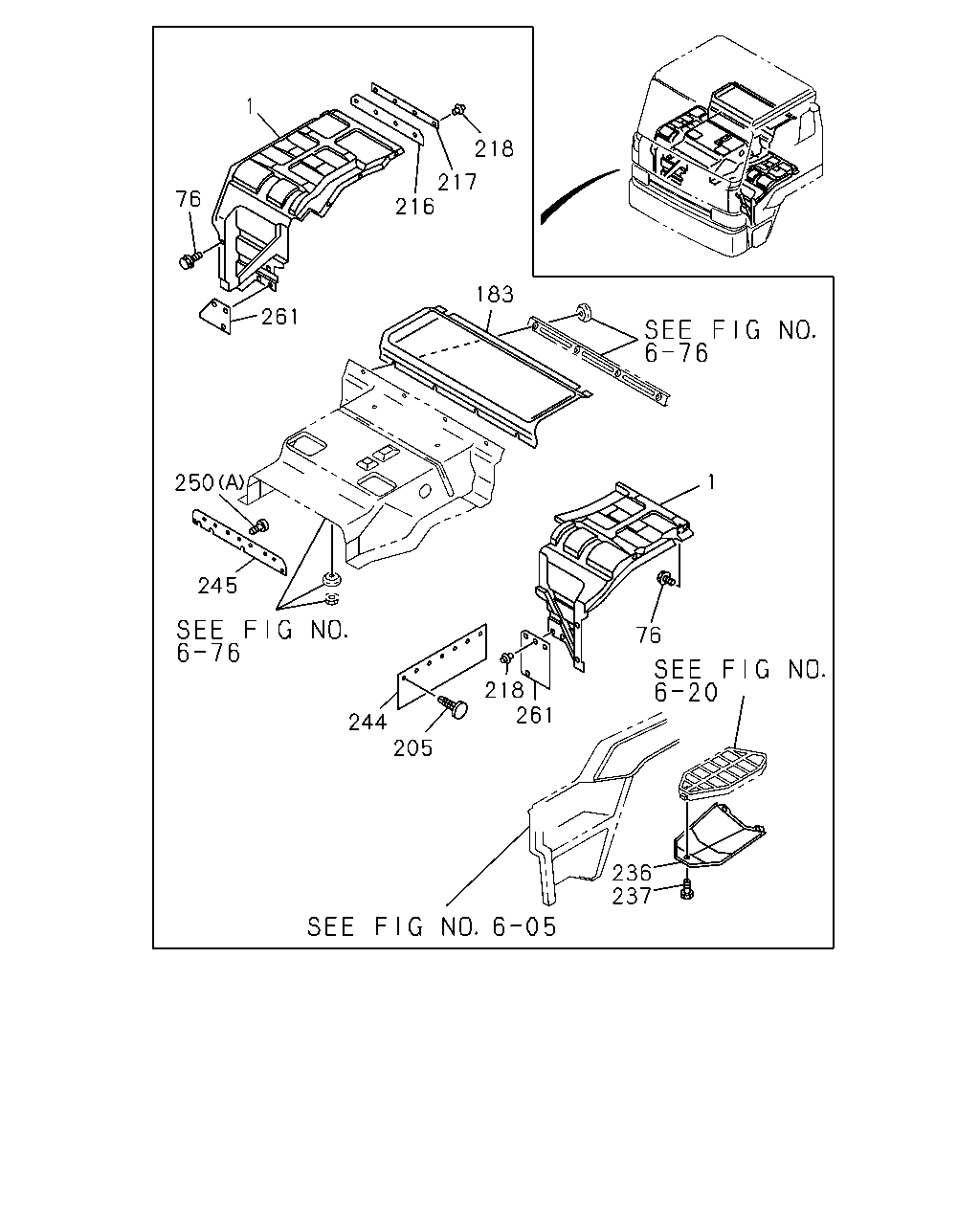

çizim 35461
237 236 261 218 205 244 76 1 245 250 183 261 76 1 216 217 218
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GUARD; MUD,FRT 1-79937-711-9 01 1 9002-9301 ● ● ● ●
1 GUARD; MUD,FRT 1-79937-923-0 01 1 9302- ● ● ● ●
1 GUARD; MUD,FRT 1-79937-710-9 01 1 9002- ● ● ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9002- ● ● ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ● ● ●
183 INSULATOR; HEAT,BED PAN
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-71997-486-4 01 1 9002-9004 ● ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-71997-486-4 01 1 9002-9004 ● ●
183 INSULATOR; HEAT,BED PAN
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-71997-486-5 01 1 9005- ● ●
183 INSULATOR; HEAT,BED PAN
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-71997-499-5 01 1 9002- ● ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-71907-027-3 01 1 9005- ● ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-71997-540-2 01 1 9002-9004 ● ●
183 INSULATOR; HEAT,BED PAN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-71997-539-5 01 1 9005- ● ●
205 FASTENER; MUD COVER
D6X23 BLACK 		1-09987-114-0 07 1 9002-9212 ● ● ● ●
205 FASTENER; MUD COVER 1-09987-189-0 07 1 9301- ● ● ● ●
216 RUBBER; RR,MUD GUARD FRT 1-79937-716-1 01 1 9002- ● ●
216 RUBBER; RR,MUD GUARD FRT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-716-1 01 1 9002- ● ●
217 RETAINER; RUBBER,MUD GUARD FRT 1-79937-717-1 01 1 9002- ● ●
217 RETAINER; RUBBER,MUD GUARD FRT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-79937-717-1 01 1 9002- ● ●
218 FASTENER; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 05 1 9002- ● ● ● ●
218 FASTENER; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 04 1 9002-9306 ● ● ● ●
218 FASTENER; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 04 1 9307- ● ●
218 FASTENER; RUBBER 5-09989-002-0 04 1 9307- ●
218 FASTENER; RUBBER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		5-09989-002-0 04 1 9307- ●
236 GUARD ASM; MUD 1ST STEP 1-79937-744-0 02 1 9002-9405 ● ● ● ●
236 GUARD ASM; MUD 1ST STEP
HONG KONG EQUIPMENT(PQ1) 		1-79937-744-0 02 1 9406- ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-497-0 06 1 9002-9307 ● ● ● ●
237 BOLT; MUD GUARD
M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9308-9405 ● ●
237 BOLT; MUD GUARD
HONG KONG EQUIPMENT(PQ1) M6X16 W/LK&PL WASHER 		1-09980-586-0 06 1 9406- ●
244 GUARD; MUD,SPLASH 1-79937-772-1 01 1 9002- ● ● ● ●
245 RUBBER; SHUTTER,RAD 1-79937-709-8 01 1 9002- ● ●
245 RUBBER; SHUTTER,RAD 1-79937-723-4 01 1 9002- ● ●
250 FASTENER; SHUTTER 1-09987-189-0 07 1 9002- ● ● ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-79937-742-0 01 1 9002- ● ● ● ●
261 RUBBER; FRT,MUD GUARD
AIR CONDITIONER MANUAL CONTROL(C60) (B) 		1-79937-774-1 01 1 9002- ● ● ● ●
261 RUBBER; FRT,MUD GUARD
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) 		1-79937-742-0 02 1 9002- ● ● ● ●
çizim 37089
73 94 265 74 76 253 225 94 86 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
71 RUBBER; SEAL
L=230 		1-79930-589-0 01 1 9002-9306 ● ●
71 RUBBER; SEAL
EXC. TAIWAN EQUIPMENT(WW5) L=230 		1-79930-589-0 01 1 9002-9306 ● ●
71 RUBBER; SEAL
L=345 		1-79930-588-1 01 1 9002-9306 ● ●
71 RUBBER; SEAL
EXC. TAIWAN EQUIPMENT(WW5) L=345 		1-79930-588-1 01 1 9002-9306 ● ●
71 RUBBER; SEAL
HONG KONG EQUIPMENT(PQ1) 470X230 		1-79930-645-1 01 1 9307- ●
71 RUBBER; SEAL
HONG KONG EQUIPMENT(PQ1) 470X320 		1-79930-644-1 01 1 9307- ●
71 RUBBER; SEAL
EXC. HONG KONG EQUIPMENT(PQ1) L=230 		1-79930-589-0 01 1 9307- ●
71 RUBBER; SEAL
L=230 		1-79930-589-0 01 1 9307- ●
71 RUBBER; SEAL
EXC. HONG KONG EQUIPMENT(PQ1) L=345 		1-79930-588-1 01 1 9307- ●
71 RUBBER; SEAL
L=345 		1-79930-588-1 01 1 9307- ●
71 RUBBER; SEAL
TAIWAN EQUIPMENT(WW5) 470X230 		1-79930-645-1 01 1 9002-9306 ● ●
71 RUBBER; SEAL
TAIWAN EQUIPMENT(WW5) 470X320 		1-79930-644-1 01 1 9002-9306 ● ●
73 BOLT; MUD COVER BRKT
M8X16 W/LK&PL WASHER 		9-01960-816-0 04 1 9002-9204 ● ● ● ●
73 BOLT; MUD COVER BRKT
M8X16 W/LK&PL WASHER 		9-01960-816-0 06 1 9002-9204 ● ● ● ●
73 BOLT; MUD COVER BRKT
M8X16 W/LK&PL WASHER 		0-50140-816-0 06 1 9205-9306 ● ● ● ●
73 BOLT; MUD COVER BRKT
M8X16 W/LK&PL WASHER 		0-50140-816-0 12 1 9307- ● ●
74 NUT
M8 		9-09110-408-0 04 1 9002-9306 ● ● ● ●
74 NUT
M8 		9-09110-408-0 08 1 9307- ● ●
76 BOLT; MUD GUARD
M10X20 W/LK WASHER 		0-50041-020-0 08 1 9002- ● ● ● ●
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 9002- ● ● ● ●
86 CLIP; MUD GUARD 5-09987-033-0 07 1 9002-9306 ● ● ● ●
86 CLIP; MUD GUARD 5-09987-033-0 14 1 9307- ● ●
94 RETAINER; FLAP RUBBER
(B) 		1-79930-341-0 01 1 9002-9105 ● ● ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-870-1 01 1 9106-9108 ● ● ● ●
94 RETAINER; FLAP RUBBER
(A) 		1-79930-888-1 01 1 9109- ● ● ● ●
94 RETAINER; FLAP RUBBER
(A) 		8-94300-800-2 01 1 9002- ● ● ● ●
225 NUT; MUD GUARD
M10 FLANGE 		5-09440-006-0 08 1 9002- ● ● ● ●
253 GUARD; MUD 1-79930-733-0 01 1 9002-9006 ● ● ● ●
253 GUARD; MUD 1-79930-851-2 01 1 9007-9106 ● ● ● ●
253 GUARD; MUD 1-79930-887-1 01 1 9107- ● ● ● ●
253 GUARD; MUD 1-79930-740-0 01 1 9002-9006 ● ● ● ●
253 GUARD; MUD 1-79930-850-2 01 1 9007-9106 ● ● ● ●
253 GUARD; MUD 1-79930-886-1 01 1 9107- ● ● ● ●
265 RUBBER; FLAP,REAR 1-79930-343-1 01 1 9002-9011 ● ● ● ●
265 RUBBER; FLAP,REAR 1-79930-798-0 01 1 9012-9105 ● ● ● ●
265 RUBBER; FLAP,REAR 1-79930-869-0 01 1 9106- ● ● ● ●
265 RUBBER; FLAP,REAR 1-79930-544-0 01 1 9002- ● ● ● ●
