Isuzu WW
▶
TRUCKS
▶
GTR
▶
10936 - GTR(INDONESIA)
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#30653) — 16 parça
◀

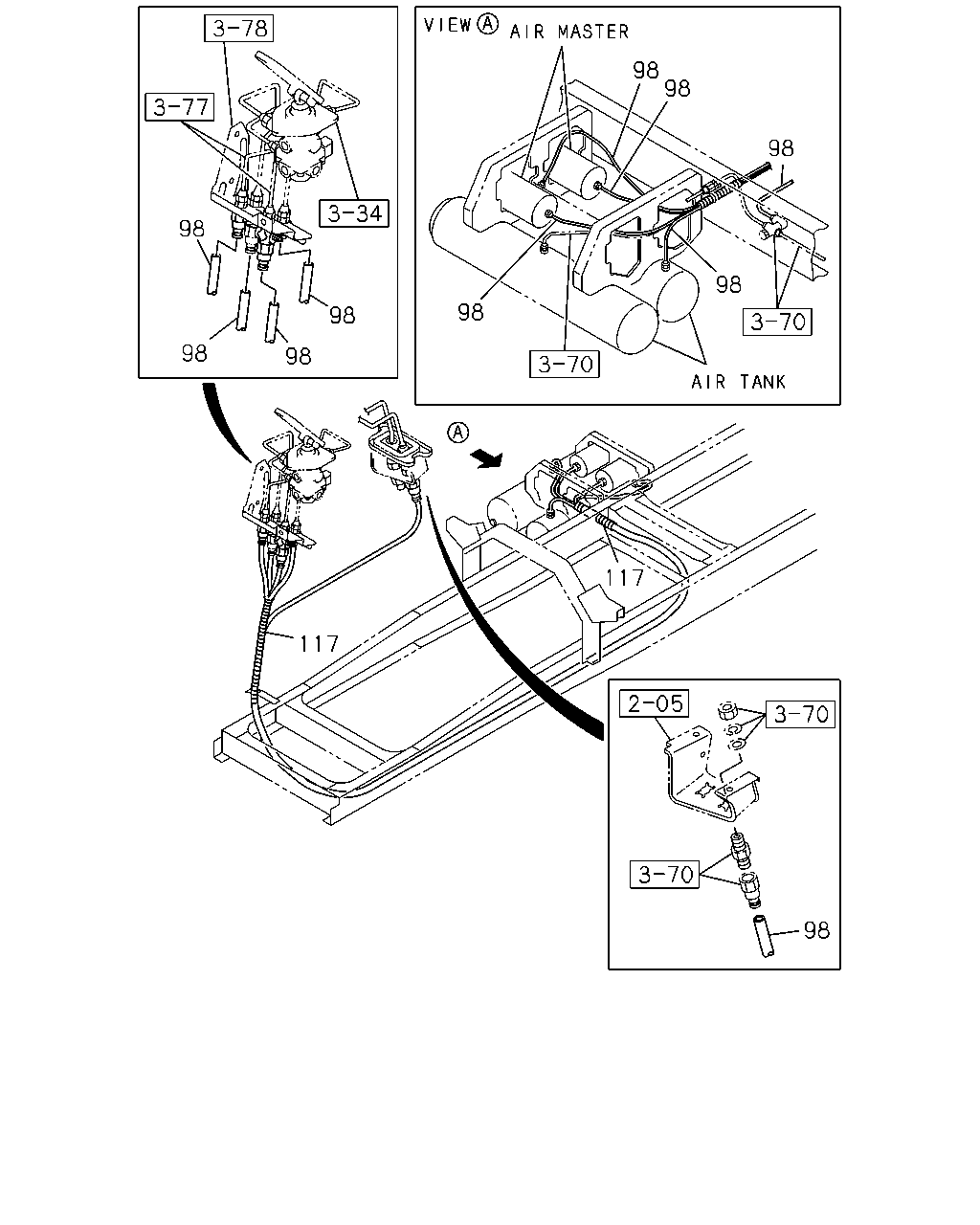

[375A] NO.1 (7 parça)

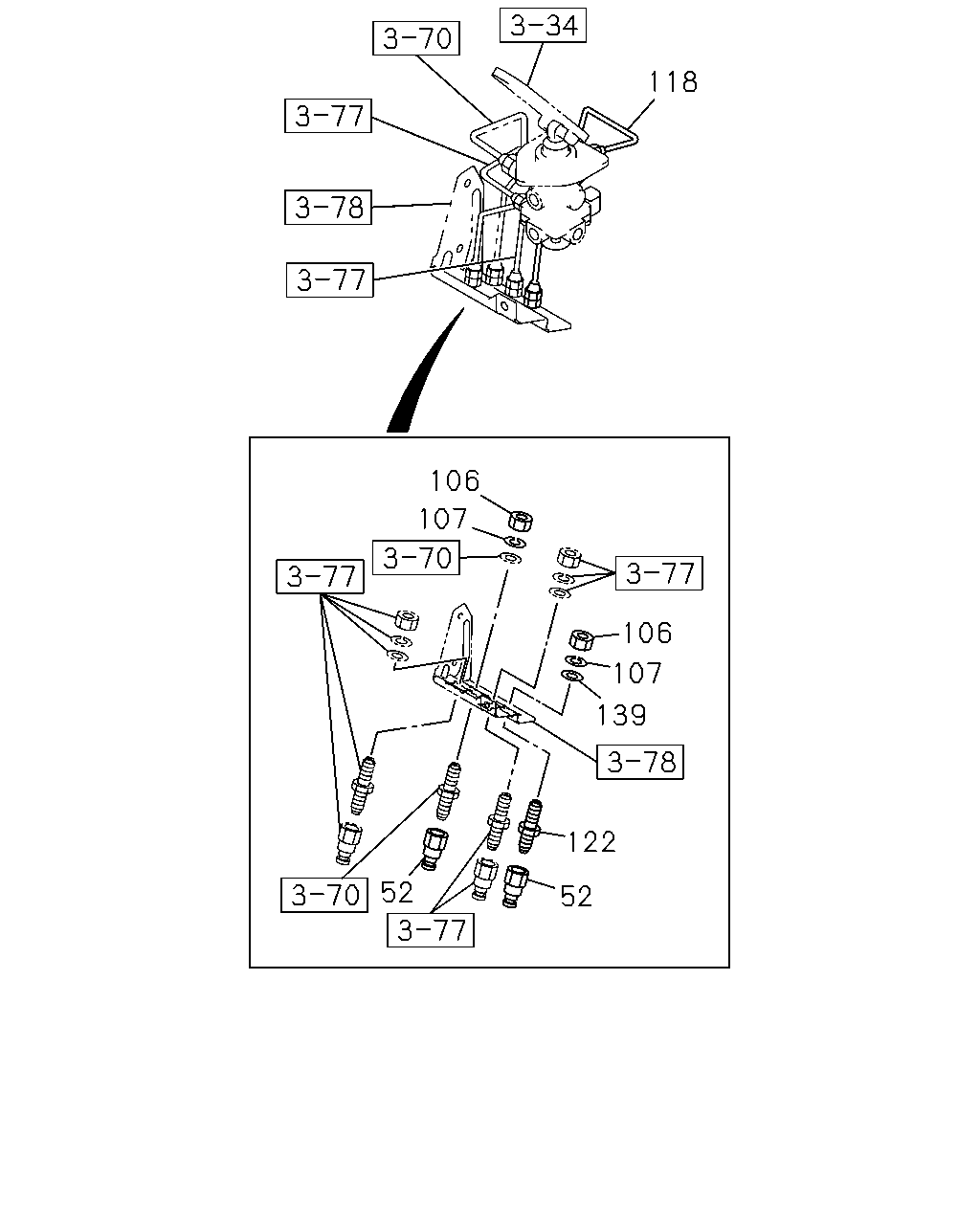

[375A] NO.2 (9 parça)
▶
98
98
98
98
98
98
98
98
98
117
117
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
03
1
0311-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
01
1
0311-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
04
1
0311-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
02
1
0311-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
01
1
0311-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
02
1
0311-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
02
1
0311-
118
106
107
106
107
139
122
52
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0311-
106
NUT; FLEX HOSE
M16
9-99111-416-0
02
1
0311-0512
106
NUT; FLEX HOSE
M16 IDN
0-91111-516-0
02
1
0601-
107
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0311-0603
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0604-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=417
1-49118-722-0
01
1
0311-
122
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0311-
139
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0311-0605
139
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-
