3-70 — BRAKE PIPING; AIR,AIR MASTER (#30652) — 73 parça

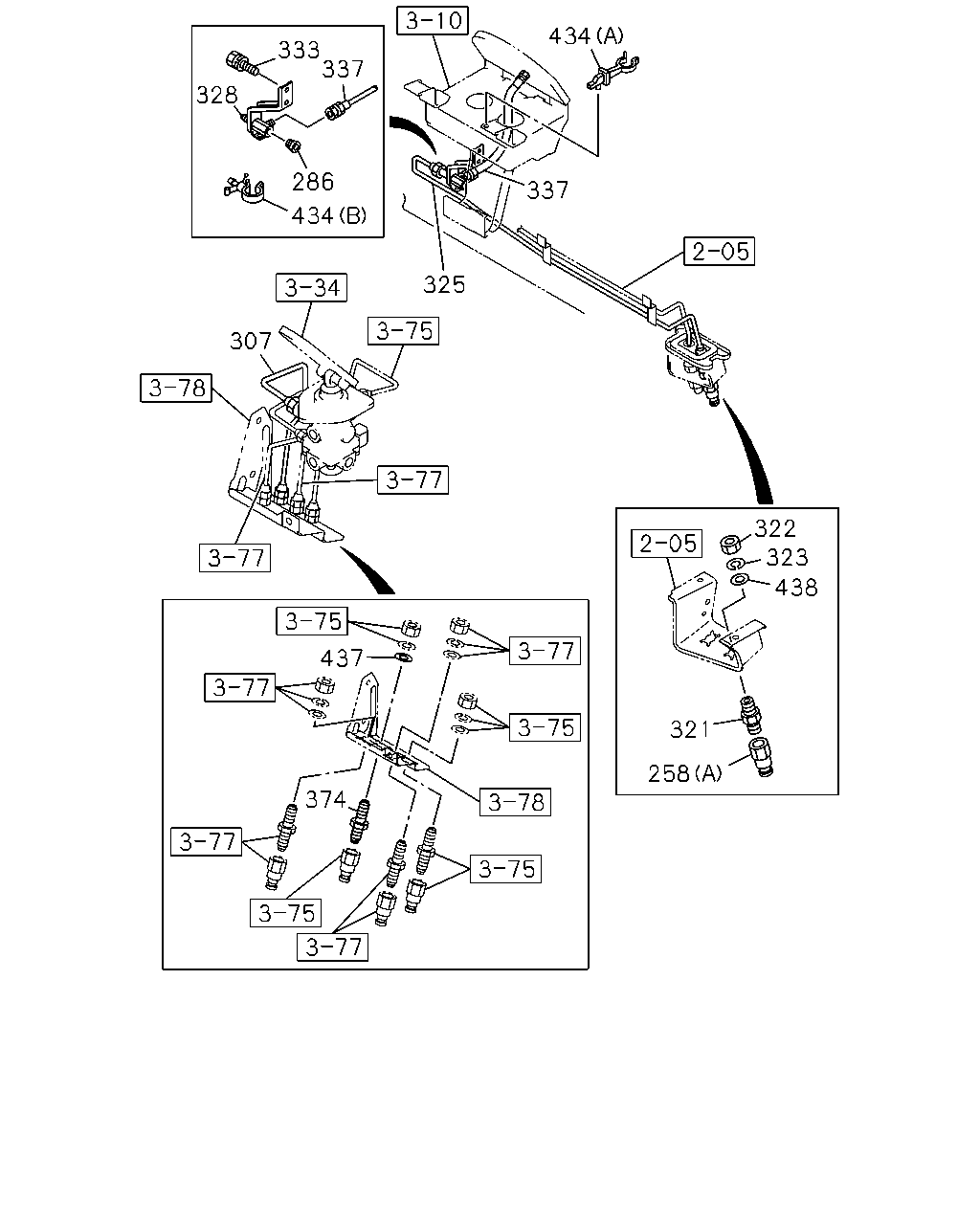

çizim 85631
434 333 337 328 286 337 434 325 307 322 323 438 437 321 258 374
BalonParca AdiParca NoAdetTipApplied Date
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0311-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0311-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0311-
286 PLUG; AIR PIPE 9-09204-510-0 01 1 0311-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=414 		1-49121-497-0 01 1 0311-
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0311-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0311-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0311-0603
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0311-
328 UNION; AIR PIPE 1-47470-362-2 01 1 0311-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0311-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0311-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 0311-
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0311-
434 CLIP
(B) 		8-94297-486-0 02 1 0311-
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0311-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0311-

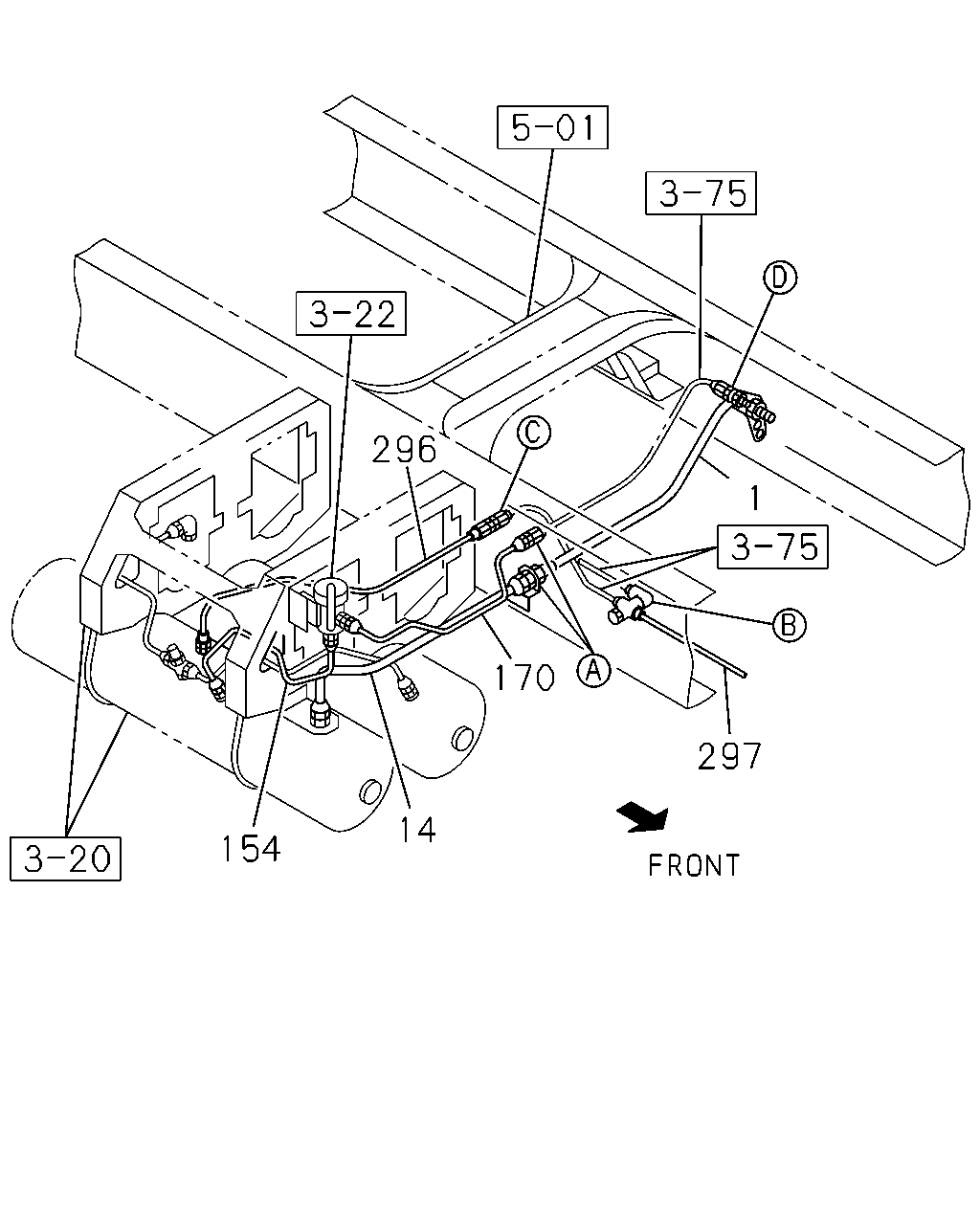

çizim 85634
296 1 170 297 14 154
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1400 		0-17716-140-0 01 1 0311-0605
1 HOSE; FLEX,AIR TANK
L=1400 		0-77716-140-0 01 1 0606-
14 PIPE; AIR,FLEX HOSE TO AIR TANK
L=551 		1-49123-697-0 01 1 0311-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49123-849-0 01 1 0311-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49123-699-0 01 1 0311-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0311-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0311-

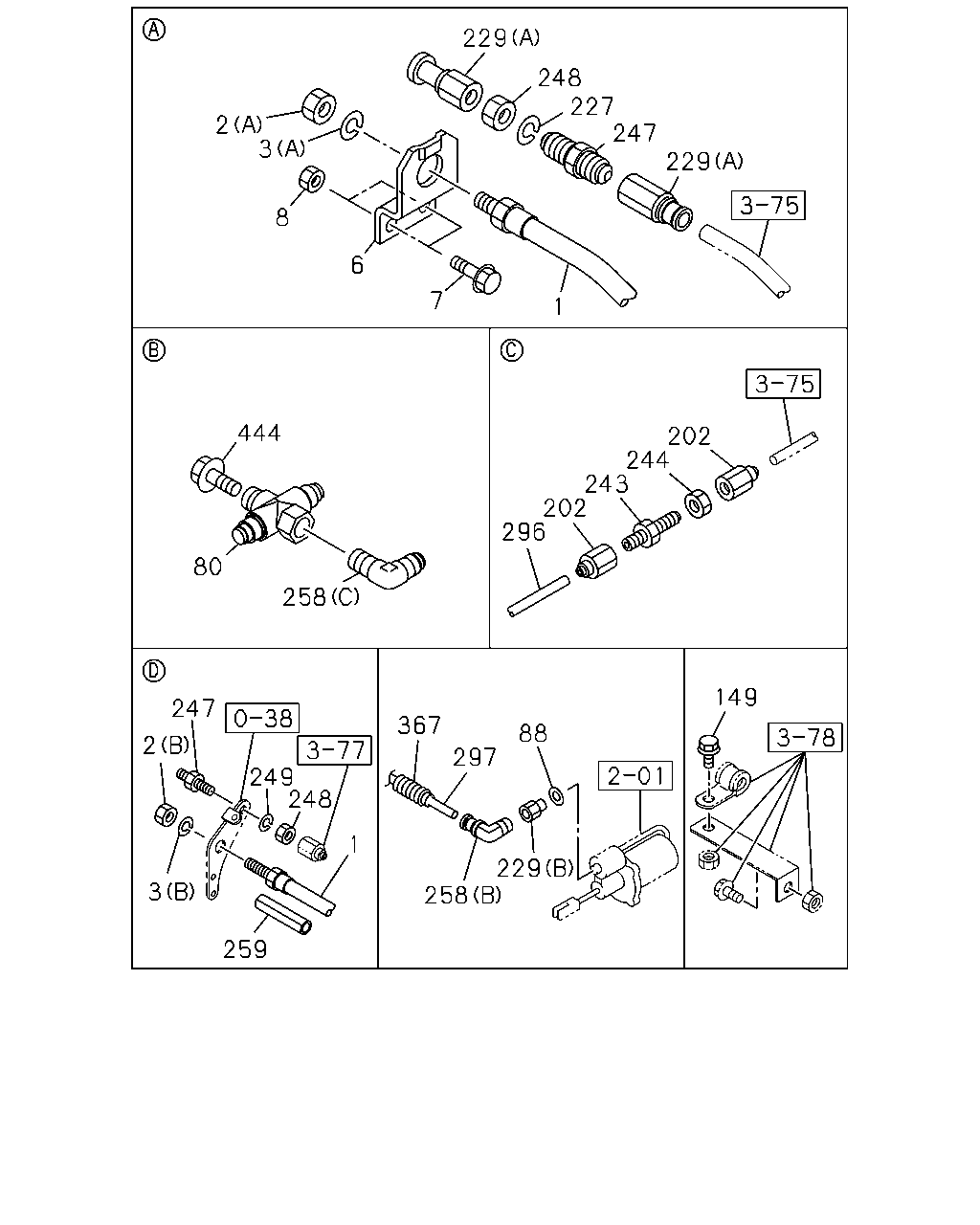

çizim 87234
229 248 227 247 229 2 3 8 6 7 1 444 202 244 243 202 296 80 258 149 247 367 88 2 297 249 248 1 229 258 3 259
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=1400 		0-17716-140-0 01 1 0311-0605
1 HOSE; FLEX,AIR TANK
L=1400 		0-77716-140-0 01 1 0606-
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		9-09111-422-0 01 1 0311-0512
2 NUT; FLEX HOSE,AIR TANK
(A) M22 		0-91111-522-0 01 1 0601-
2 NUT; FLEX HOSE,AIR TANK
(B) M20 		9-99111-420-0 01 1 0311-0512
2 NUT; FLEX HOSE,AIR TANK
(B) M20 		0-91111-520-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
(B) ID=20.2 		9-09150-520-0 01 1 0311-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
(B) ID=20.2 		0-91510-520-0 01 1 0604-
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		9-09150-522-0 01 1 0311-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
(A) ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47476-693-2 01 1 0311-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 0311-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0311-0602
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 0603-
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0311-
88 GASKET; NYLON TUBE
ID=14.2 OD=23.0 IDN 		9-09572-014-0 01 1 0311-
149 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0311-0512
149 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
202 ADAPTER
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0311-
227 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0311-0603
227 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0604-
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 		9-48319-149-0 01 1 0311-0403
229 ADAPTER; NYLON TUBE
(B) M14 & PT1/4 STRAIGHT 		1-09669-130-0 01 1 0404-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0311-
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0311-
243 UNION; AIR PIPE
M12 3WAY 		9-09228-906-1 01 1 0311-0607
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0608-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0311-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0311-0607
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0311-0607
247 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0608-
247 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0311-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0311-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0311-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0311-
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0311-
258 CONNECTOR; NYLON TUBE
(C) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0311-
259 SLEEVE; RUBBER,NYLON TUBE
ID=23 OD=27 L=40 		1-09337-015-0 01 1 0311-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0311-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0311-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 0311-
444 BOLT; UNION
M8X25 FLANGE 		0-28080-825-0 01 1 0311-0512
444 BOLT; UNION
M8X25 FLANGE 		0-28050-825-0 01 1 0601-
