3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶

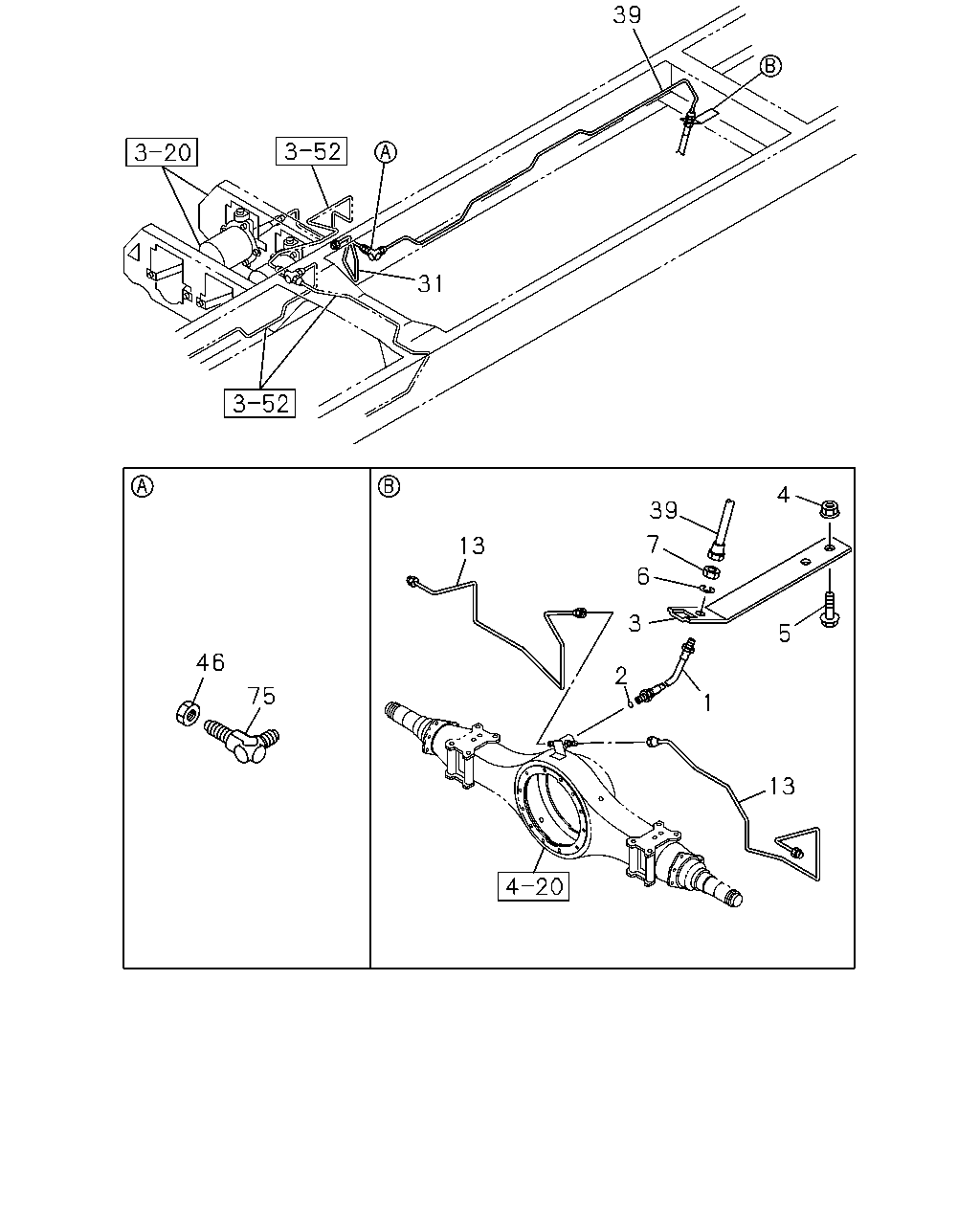

3-55 — BRAKE PIPING; OIL,REAR
(#30650) — 17 parça
39
31
4
39
7
13
6
3
5
46
2
75
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=550
0-05312-550-0
01
1
0311-
2
GASKET; FLEX HOSE,RR BRK
ID=9 OD=17
9-09920-472-0
01
1
0311-
3
BRACKET; FLEX HOSE,RR BRK
1-47476-573-1
01
1
0311-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91150-108-0
02
1
0311-0602
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
0603-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28680-830-0
02
1
0311-0512
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
0601-
6
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0311-0603
6
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0604-
7
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0311-
13
PIPE; BRK,RR AXLE
L=938
1-47428-958-0
01
1
0311-
13
PIPE; BRK,RR AXLE
L=1215
1-47428-959-0
01
1
0311-
31
PIPE; OIL,AIR MASTER TO UNION
L=405
1-49161-102-0
01
1
0311-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1735 SERVICED BY L=1820
1-47426-358-0
01
1
0311-
46
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
0311-
75
UNION; OIL PIPE
M12 ELBOW
9-09225-206-1
01
1
0311-0607
75
UNION; OIL PIPE
M12 ELBOW
0-92125-206-0
01
1
0608-
