3-20 — AIR TANK (#30645) — 101 parça

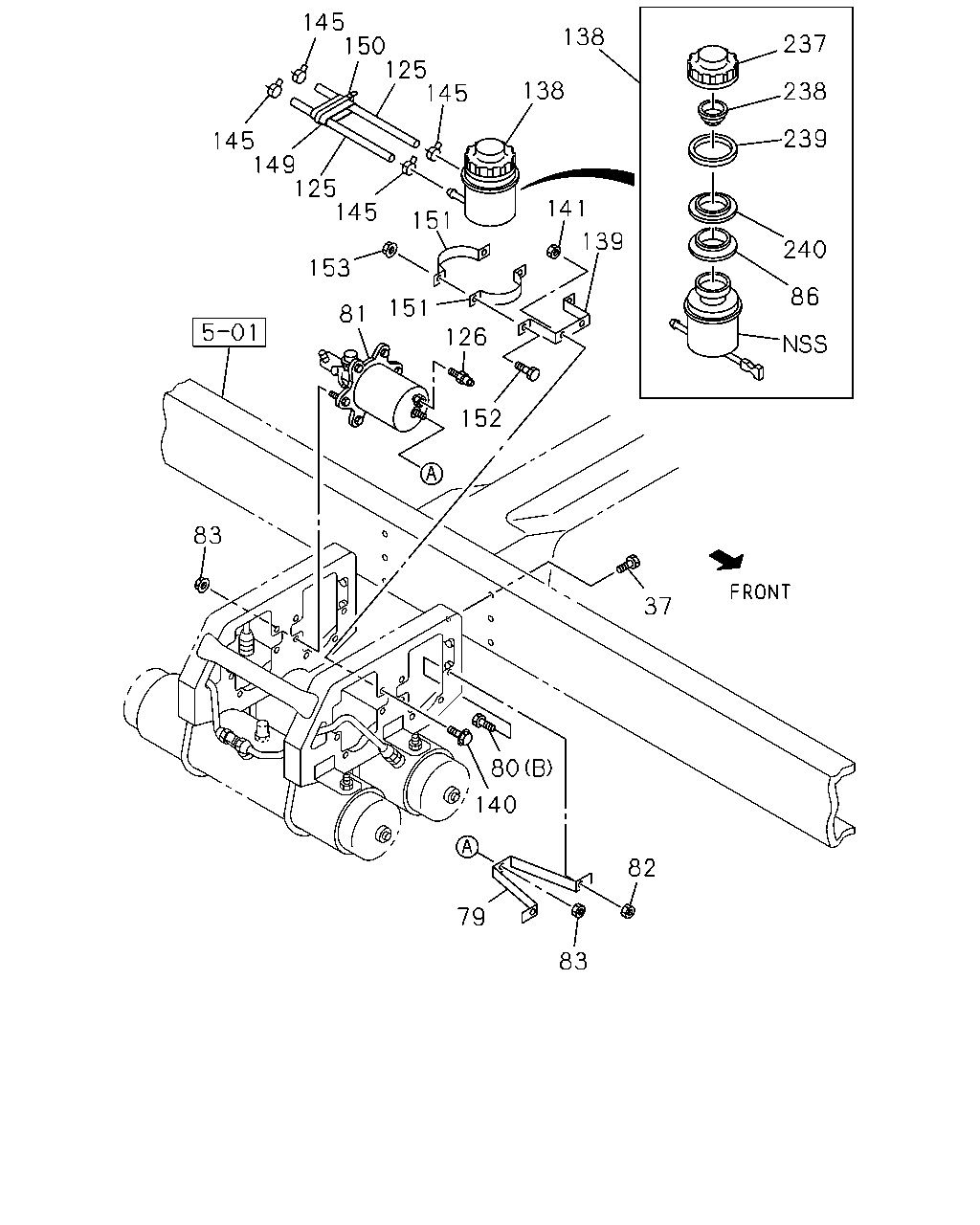

145 150 125 145 138 237 138 238 239 145 149 125 145 141 151 139 240 153 86 151 81 126 152 83 37 80 140 82 79 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK M12X40 FLANGE	0-28681-240-0	06	1	0311-0512
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	06	1	0601-
79	STAY; AIR MASTER TO BRKT	1-53318-347-0	02	1	0311-0805
79	STAY; AIR MASTER TO BRKT	8-98120-254-0	02	1	0806-
80	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	04	1	0311-0512
80	BOLT; BRKT (A) M10X25 FLANGE	0-28051-025-0	04	1	0601-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	0311-0512
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. PRIMARY	1-47800-663-1	01	1	0311-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. SECONDARY	1-47800-664-2	01	1	0311-
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0311-0602
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
83	NUT; AIR MASTER M10 FLANGE	0-91150-210-0	10	1	0311-0602
83	NUT; AIR MASTER M10 FLANGE	0-91180-210-0	10	1	0603-
86	SEAL; DUST	1-47529-019-0	01	1	0311-
125	HOSE; OIL TANK TO AIR MASTER L=270 SERVICED BY L=1800	1-09360-320-0	02	1	0311-
126	CONNECTOR; ELBOW DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0311-
138	TANK ASM; OIL,AIR MASTER	1-47530-185-1	01	1	0311-
139	BRACKET; OIL TANK	1-47537-081-2	01	1	0311-
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE	0-28681-025-0	02	1	0311-0512
140	BOLT; OIL TANK TO BRKT M10X25 FLANGE IDN	0-28651-025-0	02	1	0601-
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91150-210-0	02	1	0311-0602
141	NUT; OIL TANK TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
145	CLIP; OIL TANK TO AIR MASTER HOSE ID=14 IDN	1-09704-102-0	04	1	0311-
149	SLEEVE; RUBBER,HOSE ID=23 OD=27 L=40	1-09337-015-0	01	1	0311-
150	CLIP; BAND,RUBBER SLEEVE L=140 IDN	5-09707-031-1	01	1	0311-
151	BAND; OIL TANK,AIR MASTER	1-47537-056-2	02	1	0311-
152	BOLT; OIL TANK TO BAND M8X20 FLANGE	0-28680-820-0	02	1	0311-0512
152	BOLT; OIL TANK TO BAND M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-
153	NUT; OIL TANK TO BAND M8	9-09110-408-0	02	1	0311-0512
153	NUT; OIL TANK TO BAND M8 IDN	0-91110-508-0	02	1	0601-
237	CAP; OIL TANK	1-47525-030-0	01	1	0311-
238	PLATE; BAFFLE	1-47529-022-0	01	1	0311-
239	FILTER; DUST	1-47529-017-0	01	1	0311-
240	HOLDER; FILTER	1-47529-018-0	01	1	0311-

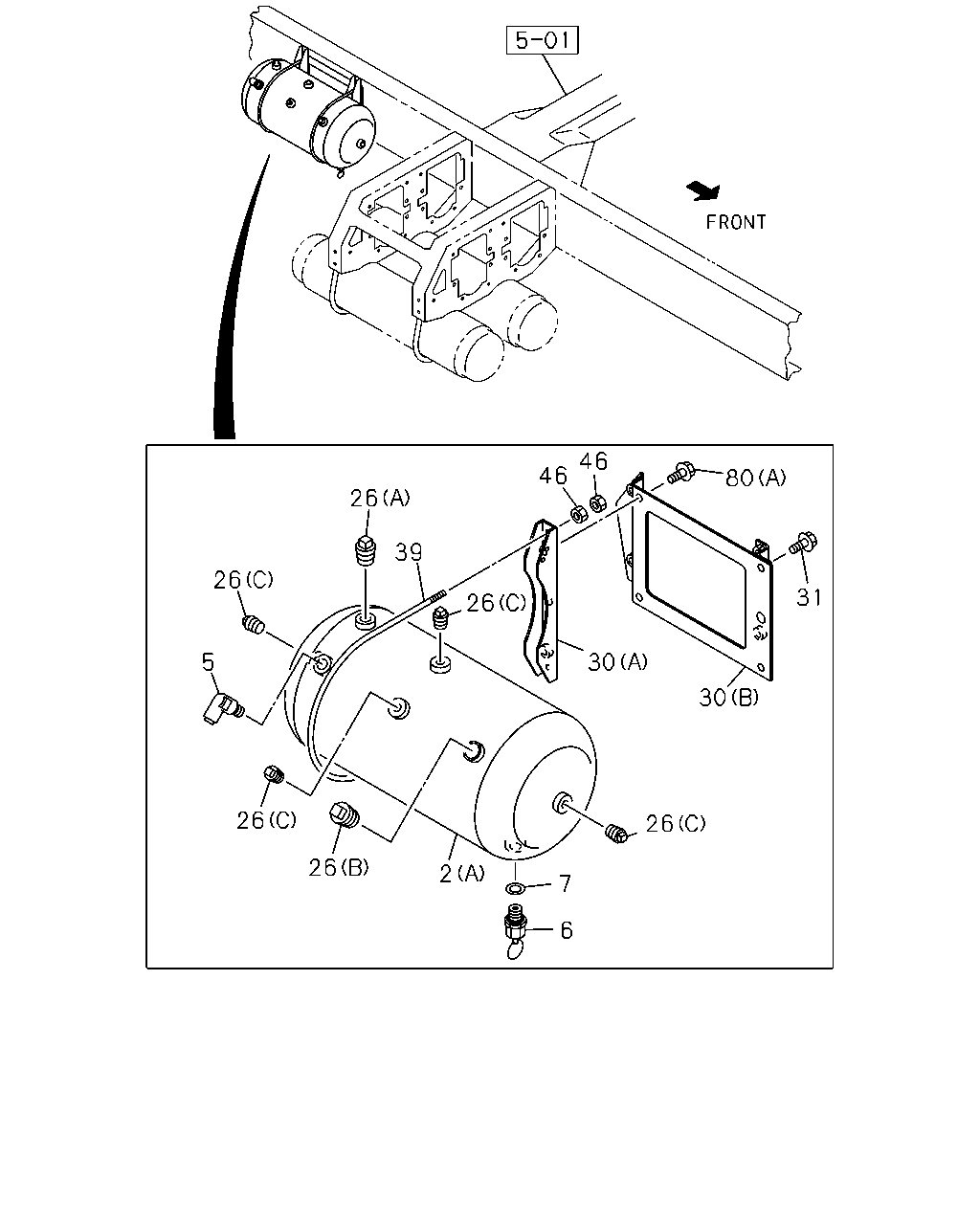

46 46 80 26 39 26 31 26 5 30 30 26 26 26 2 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	TANK; AIR (A)	1-48370-210-1	01	1	0311-
2	TANK; AIR (B)	1-48370-512-2	01	1	0311-
5	UNION; AIR TANK DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0311-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0311-
26	PLUG; SUB AIR TANK (A) PT3/8	9-09204-517-0	01	1	0311-
26	PLUG; SUB AIR TANK (B) PT3/4	9-09204-526-0	01	1	0311-
26	PLUG; SUB AIR TANK (C) PT1/4	9-99204-513-0	04	1	0311-
30	BRACKET; AIR TANK,SUB (A)	1-48317-287-2	02	1	0311-
30	BRACKET; AIR TANK,SUB (B)	1-48317-699-0	01	1	0311-
31	BOLT; BRKT TO FRAME M10X25 FLANGE	0-28681-025-0	04	1	0311-0512
31	BOLT; BRKT TO FRAME M10X25 FLANGE IDN	0-28651-025-0	04	1	0601-
39	U-BOLT; AIR TANK	1-48317-289-0	02	1	0311-
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0311-0512
46	NUT; U-BOLT M8 IDN	0-91110-508-0	08	1	0601-
80	BOLT; BRKT (A) M10X25 FLANGE	0-28081-025-0	04	1	0311-0512
80	BOLT; BRKT (A) M10X25 FLANGE	0-28051-025-0	04	1	0601-
80	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	0311-0512
80	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	04	1	0601-

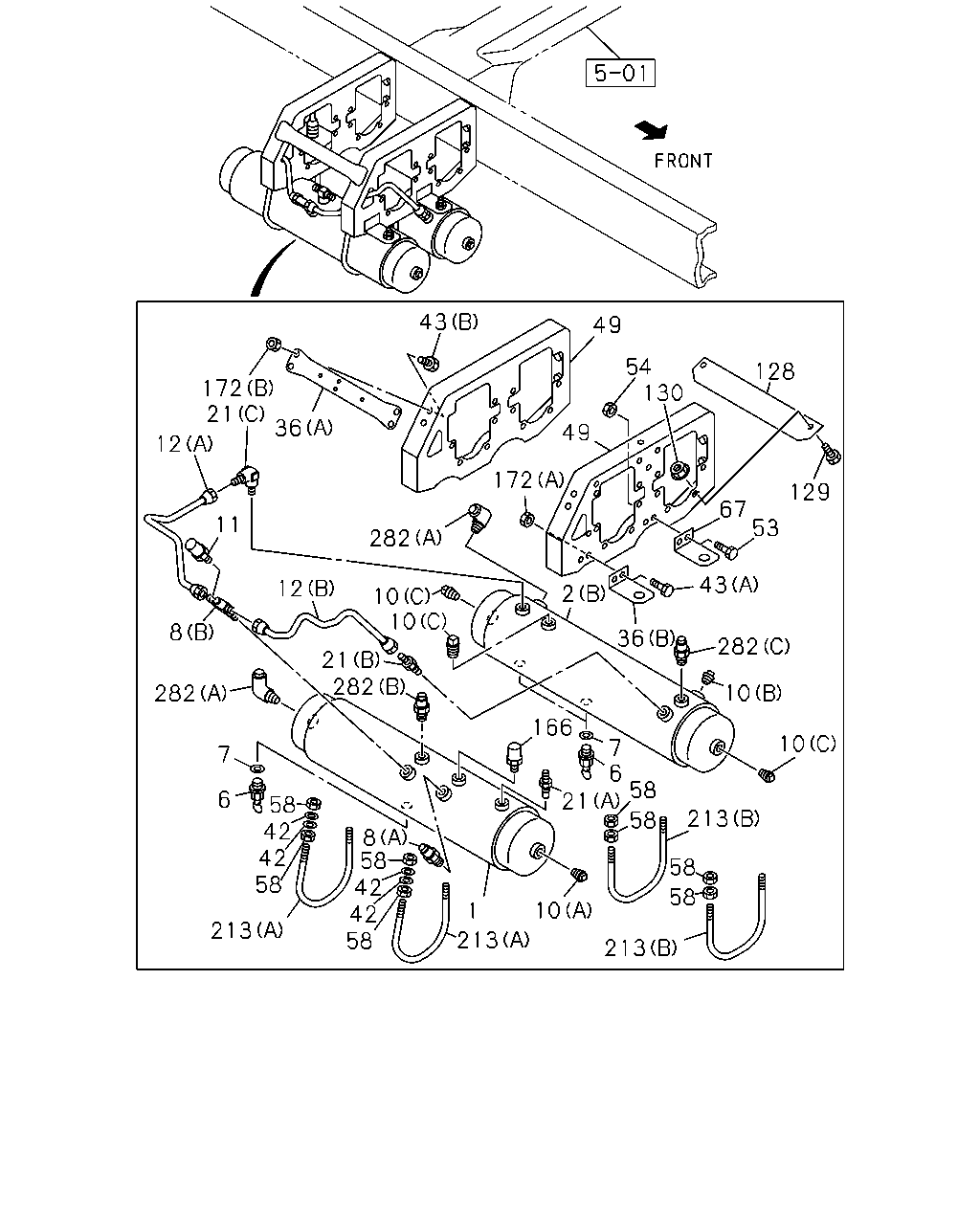

43 49 54 130 128 172 21 36 49 12 172 129 67 53 11 282 2 43 12 10 10 8 36 282 21 282 10 282 166 10 7 6 58 21 7 6 58 42 42 58 213 58 8 58 42 42 58 58 58 10 1 213 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR	1-48370-513-0	01	1	0311-
2	TANK; AIR (A)	1-48370-210-1	01	1	0311-
2	TANK; AIR (B)	1-48370-512-2	01	1	0311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	0311-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	0311-
8	CONNECTOR; AIR TANK (A)	1-09650-283-1	01	1	0311-
8	CONNECTOR; AIR TANK (B)	1-09656-699-0	01	1	0311-
10	PLUG; AIR TANK (A) PT3/8	9-09204-517-0	01	1	0311-
10	PLUG; AIR TANK (B) PT3/4	9-09204-526-0	01	1	0311-
10	PLUG; AIR TANK (C) PT1/4	9-99204-513-0	03	1	0311-
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0311-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (A)	1-47497-011-0	01	1	0311-
12	PIPE ASM; AIR,AIR TANK TO AIR TANK (B)	1-47497-012-0	01	1	0311-
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0311-
21	VALVE; CHECK,AIR TANK (B)	1-48410-182-3	01	1	0311-
21	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0311-
36	STAY; MAIN TANK (A)	1-53318-293-1	01	1	0311-
36	STAY; MAIN TANK (B)	8-94301-490-0	01	1	0311-
42	WASHER; PL ID=8.4 OD=18	9-09160-608-0	04	1	0311-0605
42	WASHER; PL ID=8.4 OD=18	0-91610-608-0	04	1	0606-
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE	0-28680-820-0	02	1	0311-0512
43	BOLT; STAY,AIR TANK,MAIN (A) M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE	0-28681-025-0	04	1	0311-0512
43	BOLT; STAY,AIR TANK,MAIN (B) M10X25 FLANGE IDN	0-28651-025-0	04	1	0601-
49	BRACKET; AIR TANK	1-53318-338-6	02	1	0311-
53	BOLT; STAY,AIR TANK M8X20 FLANGE	0-28680-820-0	02	1	0311-0512
53	BOLT; STAY,AIR TANK M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-
54	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0311-0602
54	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-
58	NUT; BAND,AIR TANK M8	9-09110-408-0	16	1	0311-0512
58	NUT; BAND,AIR TANK M8 IDN	0-91110-508-0	16	1	0601-
67	STAY; SUB TANK	1-48317-349-0	01	1	0311-
128	PROTECTOR	1-53319-018-0	01	1	0311-
129	BOLT; PROTECTOR FIX M8X25 FLANGE IDN	0-28680-825-0	02	1	0311-0512
129	BOLT; PROTECTOR FIX M8X25 FLANGE IDN	0-28650-825-0	02	1	0601-
130	NUT; PROTECTOR FIX M8 FLANGE	0-91150-108-0	02	1	0311-0602
130	NUT; PROTECTOR FIX M8 FLANGE	0-91180-108-0	02	1	0603-
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0311-
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91150-108-0	02	1	0311-0602
172	NUT; STAY,AIR TANK,MAIN (A) M8 FLANGE	0-91180-108-0	02	1	0603-
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91150-210-0	04	1	0311-0602
172	NUT; STAY,AIR TANK,MAIN (B) M10 FLANGE	0-91180-210-0	04	1	0603-
213	BOLT; U AIR TANK (A) L=97.5 IDN	1-48317-323-1	02	1	0311-
213	BOLT; U AIR TANK (B) L=195 IDN	1-48317-367-2	02	1	0311-
282	UNION; 2 WAY (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0311-
282	UNION; 2 WAY (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0311-
282	UNION; 2 WAY (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0311-
