2-30 — GEAR SHIFTER AND QUADRANT BOX (#30642) — 107 parça

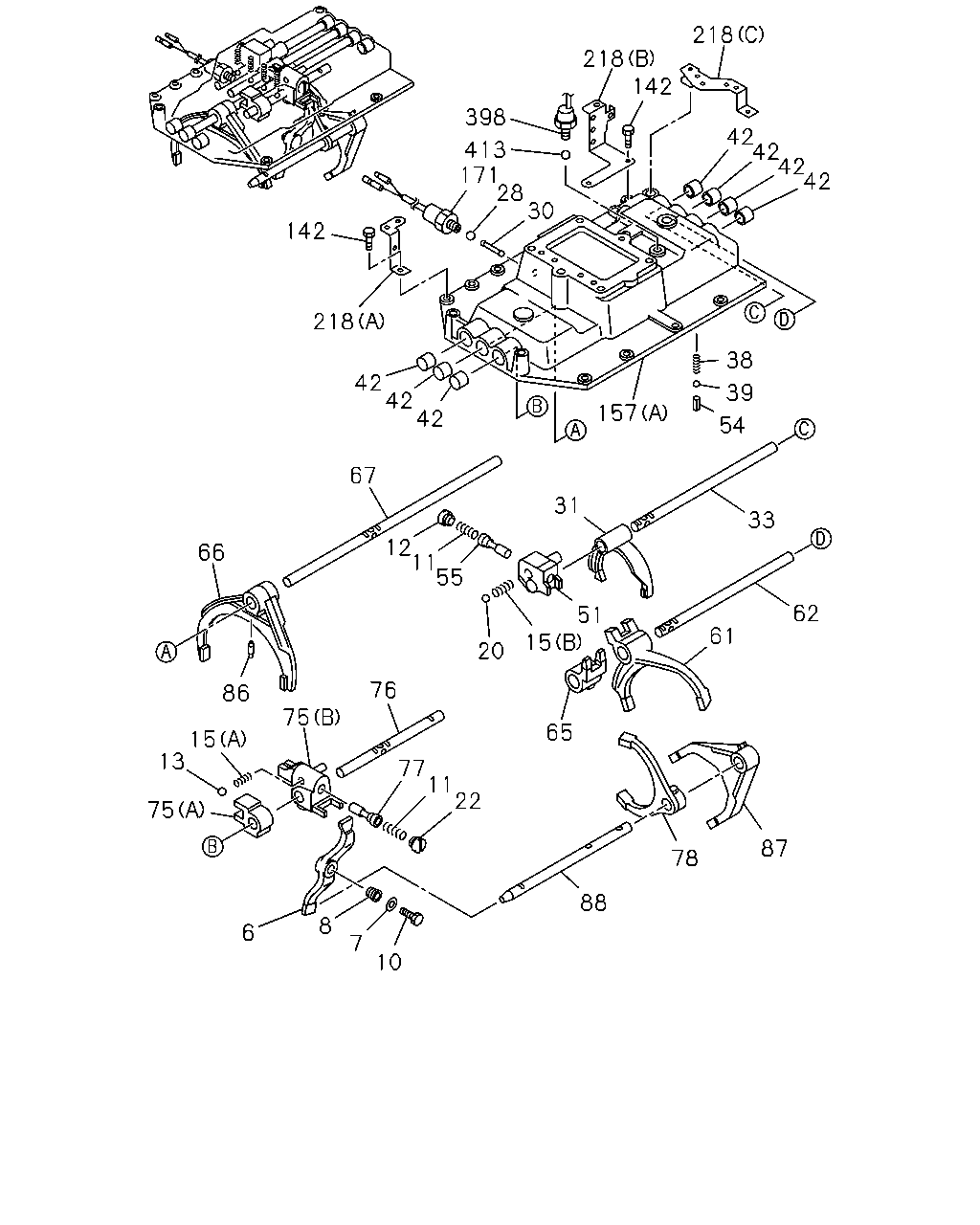

218 218 142 398 42 42 42 42 413 171 28 30 142 218 38 42 42 42 39 157 54 67 31 33 12 11 55 66 62 51 15 61 20 76 86 75 65 15 13 77 11 22 75 87 78 88 8 6 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY	1-33511-009-1	01	1	0107-
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0107-
8	SPINDLE; REV & 7TH	9-33513-022-1	01	1	0107-
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0107-
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	02	1	0107-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	0107-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0107-
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-440-0	01	1	0107-
15	SPRING; LK,SHIFT SLEEVE (A)	1-09580-553-0	01	1	0107-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0107-
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0107-
28	BALL; INTER LK	9-00097-501-0	04	1	0107-
30	PIN; INTER LK	9-33534-003-0	03	1	0107-
31	ARM; SHIFT,LOW & 2ND	1-33511-426-0	01	1	0107-
33	ROD; SHIFT,LOW & 2ND	1-33531-246-2	01	1	0107-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-577-0	01	1	1203-
38	SPRING; DETENT	1-09580-379-0	04	1	0107-
39	BALL; DETENT	1-09843-012-0	04	1	0107-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0107-
51	BLOCK; SHIFT,1ST & 2ND	1-33511-311-2	01	1	0107-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0107-
55	SLEEVE; 1ST & 2ND	1-33516-025-0	01	1	0107-
61	ARM; SHIFT,3RD & 4TH	1-33511-491-2	01	1	0107-
62	ROD; SHIFT,3RD & 4TH	1-33531-247-0	01	1	0107-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-585-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-331-3	01	1	0107-
66	ARM; SHIFT,5TH & 6TH	1-33511-489-1	01	1	0107-
67	ROD; SHIFT,5TH & 6TH L=407	1-33531-248-0	01	1	0107-1202
67	ROD; SHIFT,5TH & 6TH L=407	8-98207-588-0	01	1	1203-
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-202-3	01	1	0107-
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-309-1	01	1	0107-
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-249-0	01	1	0107-1202
76	ROD; SHIFT,REV & 7TH BLOCK	8-98207-591-0	01	1	1203-
77	SLEEVE; REV & 7TH	1-33516-025-0	01	1	0107-
78	ARM; SHIFT,REV	1-33511-232-5	01	1	0107-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	09	1	0107-
87	ARM; SHIFT,7TH	1-33511-229-4	01	1	0107-
88	ROD; SHIFT,REV & 7TH ARM	1-33531-250-0	01	1	0107-1202
88	ROD; SHIFT,REV & 7TH ARM	8-98207-592-0	01	1	1203-
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	12	1	0107-0805
142	BOLT; QUAD BOX M10X28 FLANGE	8-98044-944-0	12	1	0806-
142	BOLT; QUAD BOX M10X60 FLANGE	0-28181-060-0	03	1	0107-0512
142	BOLT; QUAD BOX M10X60 FLANGE	0-28151-060-0	03	1	0601-
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-0805
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	8-97365-375-0	02	1	0806-
142	BOLT; QUAD BOX M10X20,M10X60 L=90	1-09049-020-0	01	1	0107-
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0107-
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	0107-
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0107-0702
171	SWITCH; NEUTRAL	8-98072-777-0	01	1	0703-0801
171	SWITCH; NEUTRAL	8-98108-345-0	01	1	0802-1104
171	SWITCH; NEUTRAL	8-98166-989-0	01	1	1105-1109
171	SWITCH; NEUTRAL	8-97640-725-0	01	1	1110-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	0107-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-663-1	01	1	0107-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-733-0	01	1	0107-
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0107-0602
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	0107-

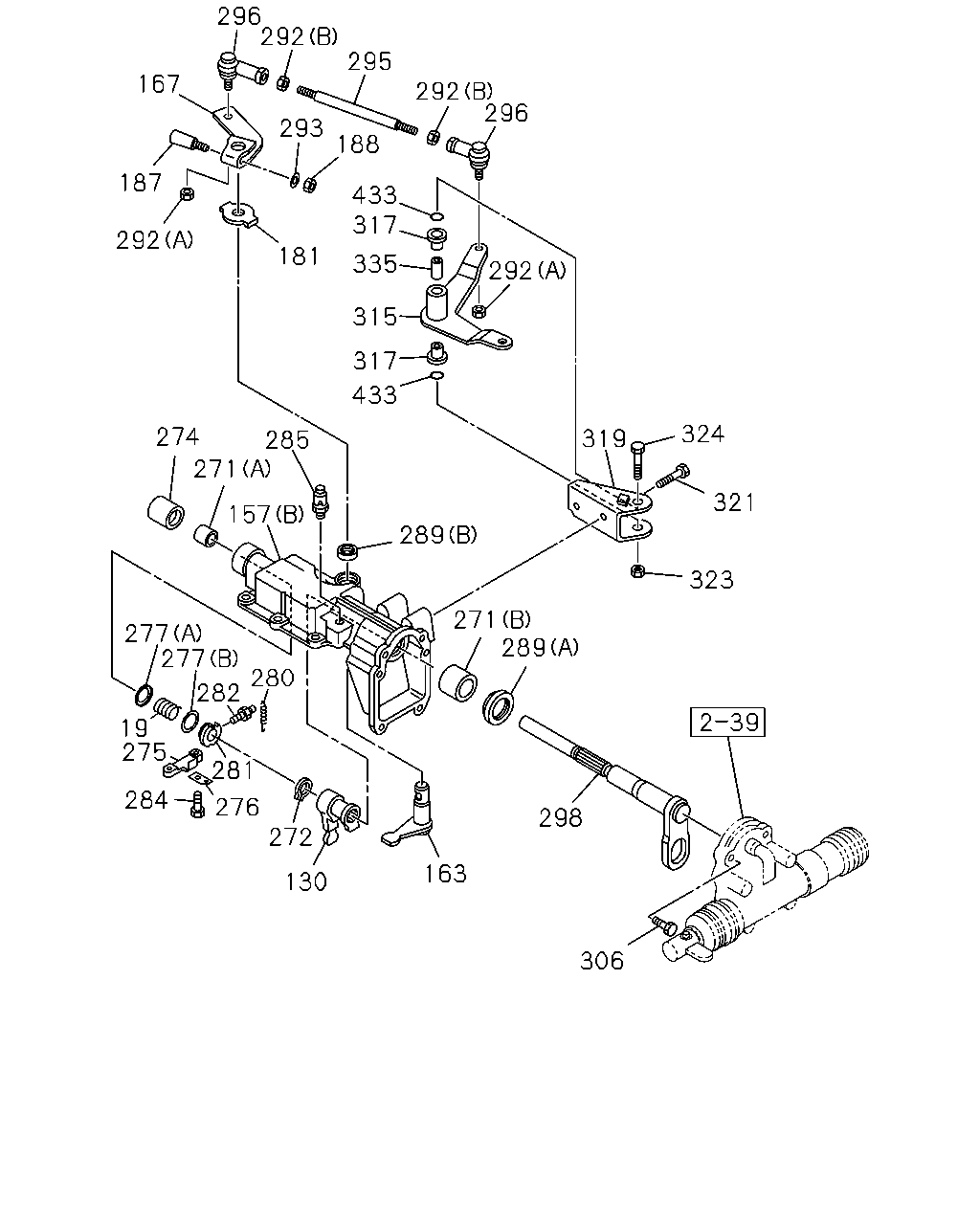

296 292 295 167 292 296 293 188 187 433 317 292 292 181 335 315 317 433 324 274 319 285 271 321 157 289 323 271 289 277 277 280 282 19 275 281 284 276 272 298 163 130 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	SPRING; COIL COMP	1-09580-531-0	01	1	0107-
130	LEVER; SHIFT,INTERNAL	1-33521-146-0	01	1	0107-
157	BOX; QUAD,TRANS (B)	1-33541-451-0	01	1	0107-
157	BOX; QUAD,TRANS (A)	1-33541-482-0	01	1	0107-
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0107-
167	LEVER; SELECT,EXTERNAL	1-33521-064-1	01	1	0107-
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0107-
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0107-
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0107-
271	BUSHING; QUAD BOX (A) ID=20 OD=23	1-33549-016-0	01	1	0107-
271	BUSHING; QUAD BOX (B) ID=28 OD=32	1-33549-104-0	01	1	0107-
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0107-
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0107-
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-063-0	01	1	0107-
276	PLATE; SPRING RET	1-33529-010-0	01	1	0107-
277	PLATE; SPRING SEAT (B)	1-09503-198-0	01	1	0107-
277	PLATE; SPRING SEAT (A)	1-33529-061-0	01	1	0107-
280	SPRING; COIL TENSION	1-09583-227-0	01	1	0107-
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-060-0	01	1	0107-
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	0107-
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	0107-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0107-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0107-0307
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0107-
292	NUT; LINK ROD (A) M8 FLANGE	1-09440-062-1	02	1	0107-
292	NUT; LINK ROD (B) M8	9-09111-408-0	02	1	0107-0512
292	NUT; LINK ROD (B) M8	0-91111-508-0	02	1	0601-
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0107-0605
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-
295	ROD; LINK,RELAY LEVER L=222	9-08400-818-0	01	1	0107-
296	ROD END L=48	1-09760-038-1	02	1	0107-0309
296	ROD END L=45.5	1-09760-118-1	02	1	0310-
298	SHAFT; SHIFT LEVER	1-33522-136-0	01	1	0107-0307
298	SHAFT; SHIFT LEVER	1-33522-188-0	01	1	0308-
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0107-0512
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28181-070-0	04	1	0107-0512
306	BOLT; SHIFT ASSISTOR M10X70 FLANGE	0-28151-070-0	04	1	0601-
315	LEVER; SELECT	1-33651-640-1	01	1	0107-
317	BUSHING; LEVER	1-09330-119-0	02	1	0107-
319	BRACKET; SELECT LEVER	1-33657-603-0	01	1	0107-
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0107-
323	NUT; LK,SELECT LEVER M10 FLANGE	0-91150-110-0	01	1	0107-
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0107-
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-192-0	01	1	0107-
433	GASKET; BUSHING	1-09623-594-0	02	1	0107-
