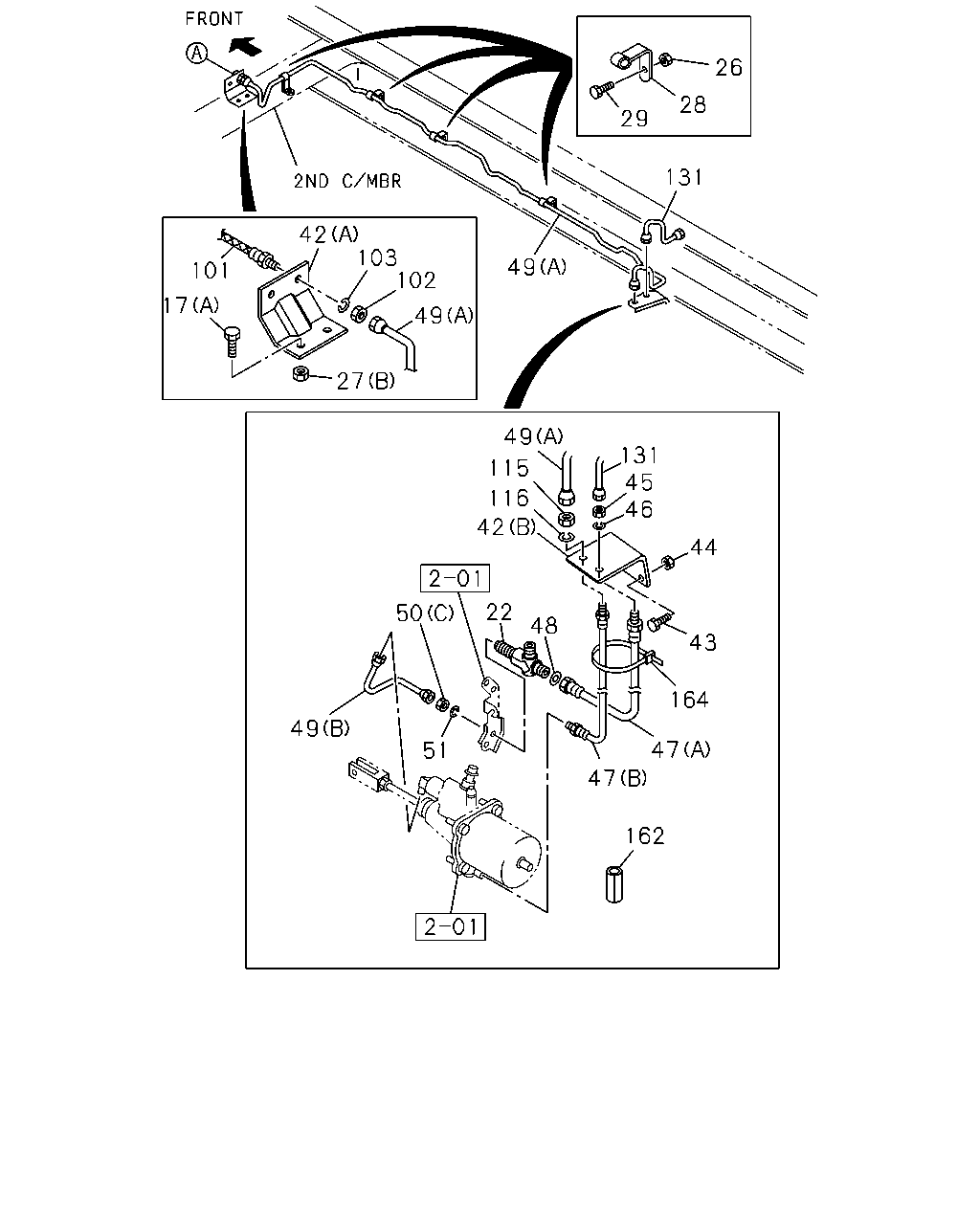

17 |
BOLT; BRKT
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
0107-0512 |
| |
17 |
BOLT; BRKT
(A)
M8X20 FLANGE
|
0-28650-820-0 |
02 |
1 |
0601- |
| |
17 |
BOLT; BRKT
(B)
M6X19.5 W/LK&PL WASHER
|
8-94279-201-0 |
02 |
1 |
0107- |
| |
22 |
UNION; CLU PIPE
M12 3WAY
|
9-09228-706-1 |
01 |
1 |
0107-0607 |
| |
22 |
UNION; CLU PIPE
M12 3WAY
|
0-92138-706-0 |
01 |
1 |
0608- |
| |
26 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0107-0602 |
| |
26 |
NUT; CLIP,OIL PIPE
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
| |
27 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
| |
27 |
NUT; BRKT
(B)
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
27 |
NUT; BRKT
(A)
M6 FLANGE W/RUBBER
|
1-09984-180-0 |
02 |
1 |
0107- |
| |
28 |
CLIP; OIL PIPE
ID=8 H=20 L=20
|
1-09700-604-0 |
05 |
1 |
0107- |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0107-0512 |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0107-0512 |
| |
29 |
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
| |
42 |
BRACKET; FLEX HOSE,CLU CONT
(A)
|
1-47476-781-0 |
01 |
1 |
0107- |
| |
42 |
BRACKET; FLEX HOSE,CLU CONT
(B)
|
1-47477-944-0 |
01 |
1 |
0107- |
| |
43 |
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
0107-0512 |
| |
43 |
BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE
|
0-28650-830-0 |
02 |
1 |
0601- |
| |
44 |
NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0107-0602 |
| |
44 |
NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
| |
45 |
NUT; FLEX HOSE,CLU CONT
M12
|
9-09840-280-0 |
01 |
1 |
0107- |
| |
46 |
WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2
|
9-09150-512-0 |
01 |
1 |
0107-0603 |
| |
46 |
WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0604- |
| |
47 |
HOSE; FLEX,CLU CONT
(A)
L=420
|
1-09363-633-0 |
01 |
1 |
0107- |
| |
47 |
HOSE; FLEX,CLU CONT
(B)
L=415
|
1-09364-490-0 |
01 |
1 |
0107- |
| |
48 |
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
|
9-09571-410-0 |
01 |
1 |
0107- |
| |
49 |
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(A)
L=3035
SERVICED BY L=3300
|
1-47426-398-0 |
01 |
1 |
0107-0107 |
| |
49 |
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(A)
L=2973
SERVICED BY L=3000
|
1-47426-397-0 |
01 |
1 |
0108- |
| |
49 |
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
(B)
L=204
|
1-49117-400-0 |
01 |
1 |
0107- |
| |
50 |
NUT; UNION
(A)
M8 CUTTING NUT W/FLANGE
|
1-09985-340-0 |
03 |
1 |
0107- |
| |
50 |
NUT; UNION
(C)
M12
|
9-09840-280-0 |
01 |
1 |
0107- |
| |
50 |
NUT; UNION
(B)
M14
|
9-99111-414-0 |
01 |
1 |
0107-0512 |
| |
50 |
NUT; UNION
(B)
M14
|
0-91111-514-0 |
01 |
1 |
0601- |
| |
51 |
WASHER; LK
ID=12.2
|
9-09150-512-0 |
01 |
1 |
0107-0603 |
| |
51 |
WASHER; LK
ID=12.2
|
0-91510-512-0 |
01 |
1 |
0604- |
| |

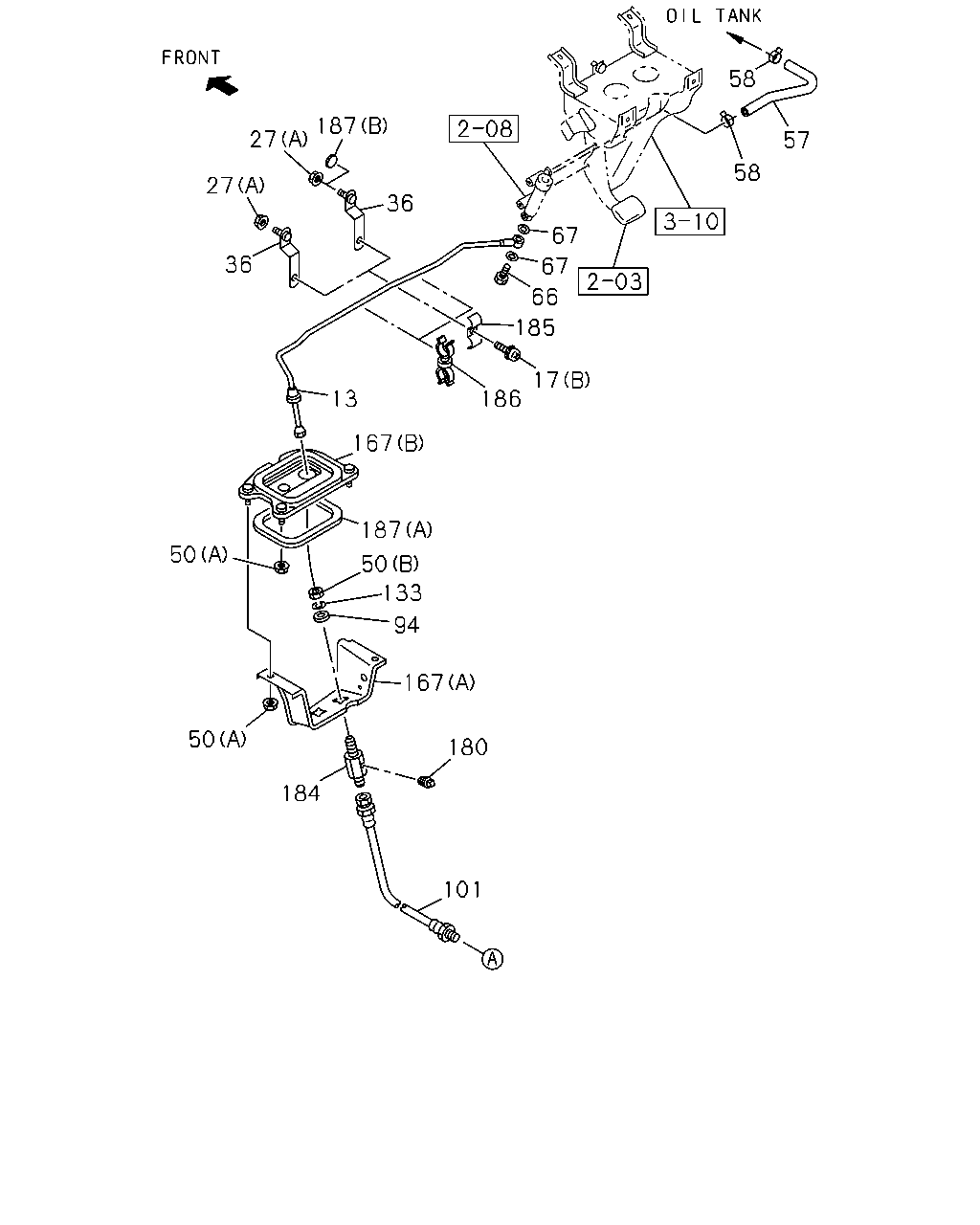

101 |
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=460
|
1-09365-070-1 |
01 |
1 |
0107-0703 |
| |
101 |
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=460
|
8-98072-345-0 |
01 |
1 |
0704- |
| |
102 |
NUT; FLEX HOSE,CLU CONT
M14
|
9-99111-414-0 |
01 |
1 |
0107-0512 |
| |
102 |
NUT; FLEX HOSE,CLU CONT
M14
|
0-91111-514-0 |
01 |
1 |
0601- |
| |
103 |
WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2
|
9-09150-514-0 |
01 |
1 |
0107-0603 |
| |
103 |
WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2
|
0-91510-514-0 |
01 |
1 |
0604- |
| |
115 |
NUT; FLEX HOSE,CLU CONT
M14
|
9-99111-414-0 |
01 |
1 |
0107-0512 |
| |
115 |
NUT; FLEX HOSE,CLU CONT
M14
|
0-91111-514-0 |
01 |
1 |
0601- |
| |
116 |
WASHER; FLEX HOSE,CLU CONT
ID=14.2
|
9-09150-514-0 |
01 |
1 |
0107-0603 |
| |
116 |
WASHER; FLEX HOSE,CLU CONT
ID=14.2
|
0-91510-514-0 |
01 |
1 |
0604- |
| |
131 |
PIPE; AIR,UNION TO FLEX HOSE
|
1-49119-462-0 |
01 |
1 |
0107- |
| |
162 |
COVER; RUBBER,FLEX HOSE
ID=17 OD=21 L=40
|
1-09337-012-0 |
01 |
1 |
0107- |
| |
162 |
COVER; RUBBER,FLEX HOSE
ID=9.5 OD=14.5 L=120
|
9-09913-202-1 |
01 |
1 |
0107- |
| |
164 |
CLIP; BAND,FLEX HOSE
L=140
|
5-09707-031-1 |
01 |
1 |
0107- |
