1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#30631) — 64 parça
◀

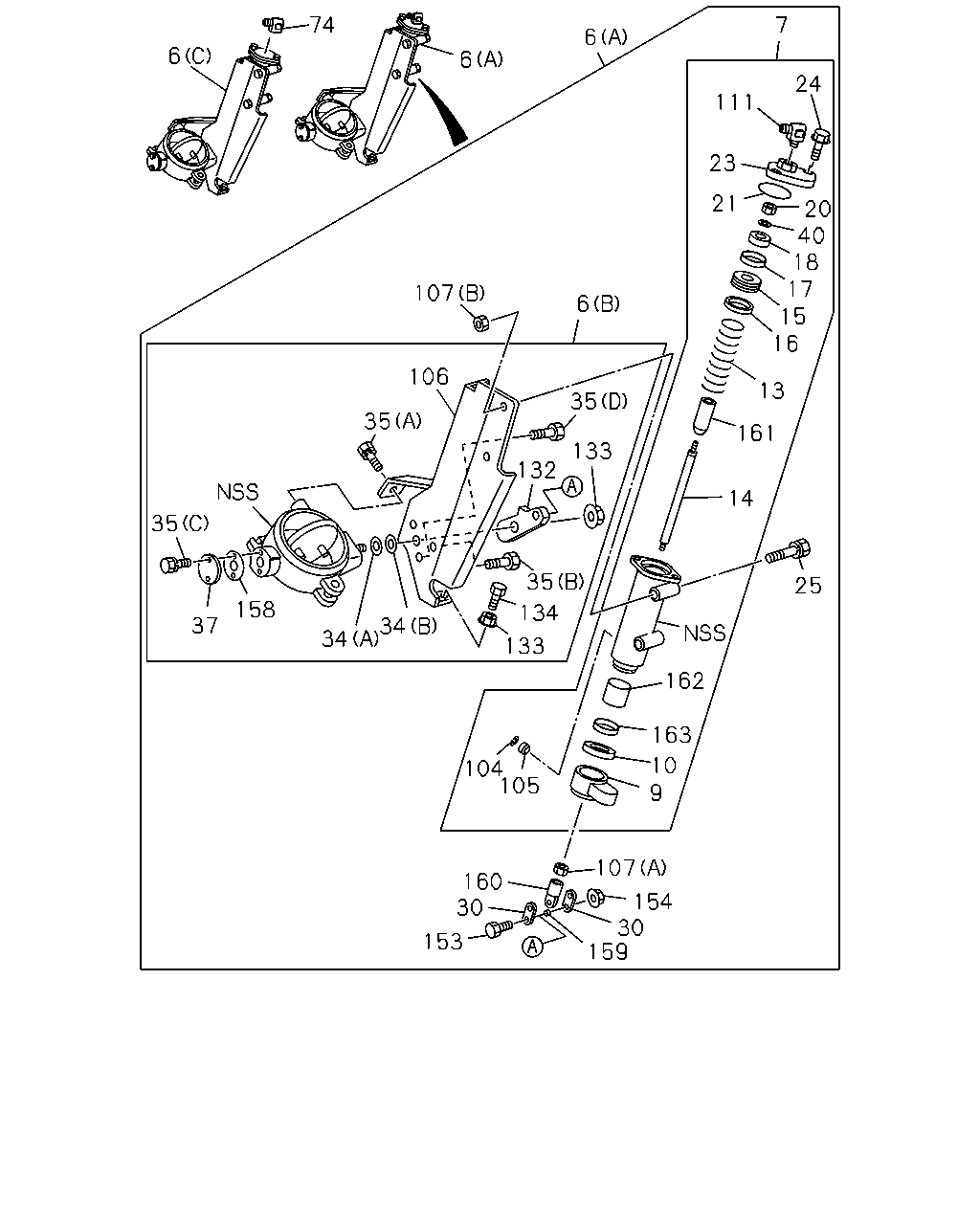

[155A] COMPONENT OF VALVE ASM (44 parça)

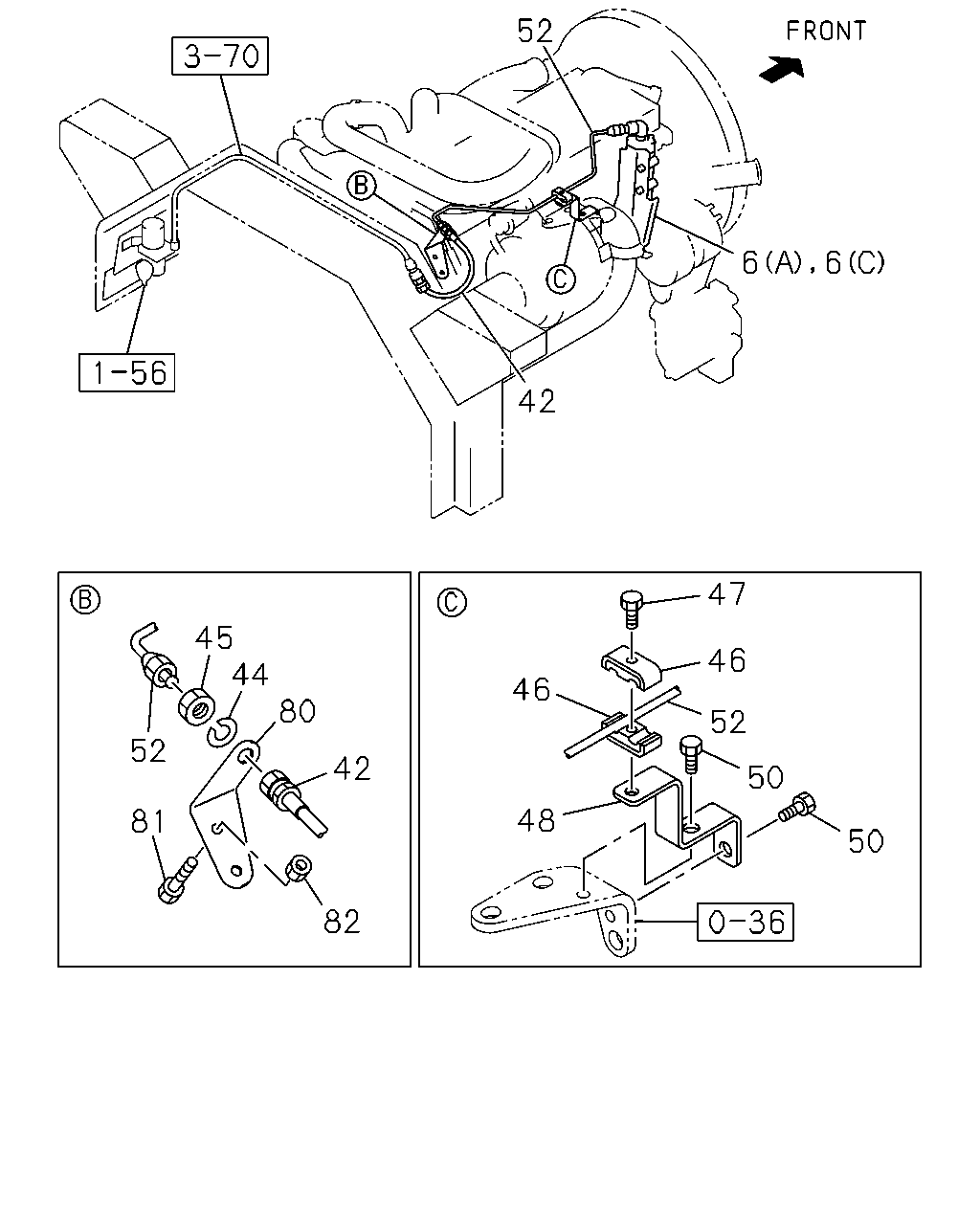

[155A] OTHER PARTS (20 parça)
▶
74
7
6
6
6
24
111
23
21
20
40
18
17
15
16
107
6
106
13
35
35
161
133
132
14
35
35
25
158
134
37
34
34
133
162
163
10
9
104
105
107
160
30
154
30
159
153
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(B)
1-22181-134-0
01
1
0107-0211
6
VALVE; EXH BRAKE
(A)
8-94395-246-2
01
1
0107-0211
6
VALVE; EXH BRAKE
(C)
8-97602-527-1
01
1
0212-
7
CYLINDER ASM; CONT
1-22190-632-0
01
1
0107-0211
9
COVER; CYL
1-22199-070-0
01
1
0107-0211
10
SEAL; DUST,CONT
1-22199-071-0
01
1
0107-0211
13
SPRING; CONT CYL
1-09580-517-0
01
1
0107-0211
14
SHAFT; CONT CYL
1-22199-158-0
01
1
0107-0211
15
PLATE; CONT CYL
1-22199-156-0
01
1
0107-0211
16
RING; WEAR,CONT CYL
1-22189-161-0
01
1
0107-0211
17
GASKET; CONT CYL
1-22199-103-0
01
1
0107-0211
18
RETAINER; CONT CYL
9-88510-324-0
01
1
0107-0211
20
NUT; CONT CYL
9-83315-085-0
01
1
0107-0211
21
GASKET; COVER
1-22199-072-0
01
1
0107-0211
23
COVER; CONT CYL
1-22199-066-0
01
1
0107-0211
24
BOLT; COVER
1-22199-155-0
02
1
0107-0211
25
BOLT; CONT CYL
M10X60 FLANGE
0-28081-060-0
02
1
0107-0211
30
ROD; LINK,CONT CYL
1-22199-124-0
02
1
0107-0211
34
RING; SEAL
(A) ID=15
8-94397-184-0
02
1
0107-0211
34
RING; SEAL
(B) ID=13.7
9-22189-124-0
02
1
0107-0211
35
BOLT; PLATE FIX
(A) M10X20
0-28021-020-0
01
1
0107-0211
35
BOLT; PLATE FIX
(C) M8X16 W/LK WASHER
0-50040-816-0
02
1
0107-0211
35
BOLT; PLATE FIX
(D)
1-22199-174-0
02
1
0107-0211
35
BOLT; PLATE FIX
(B)
1-22199-188-0
01
1
0107-0211
37
COVER; BODY
1-22189-327-0
01
1
0107-0211
40
WASHER; LK,COVER
ID=8.2
9-09150-508-0
01
1
0107-0211
74
CONNECTOR; EXH BRK VLV
M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0212-
104
RING; RET
9-88510-331-0
01
1
0107-0211
105
FILTER; CONT CYL
9-88510-330-0
01
1
0107-0211
106
BRACKET; CONT CYL
8-94395-578-0
01
1
0107-0211
107
NUT; CONT CYL
(B) M10 FLANGE
0-91150-110-0
02
1
0107-0211
107
NUT; CONT CYL
(A)
9-83315-085-0
01
1
0107-0211
111
ELBOW; CONT CYL
1-09650-358-1
01
1
0107-0211
132
LEVER; BRK VLV
1-22196-342-0
01
1
0107-0211
133
NUT; LK
M8 FLANGE
0-91150-108-0
03
1
0107-0211
134
BOLT; STOPPER
M8X30
1-09000-112-1
02
1
0107-0211
153
BOLT; CLEVIS,CONT CYL
1-33739-200-0
02
1
0107-0211
154
NUT; CLEVIS,CONT CYL
M8 FLANGE
0-91150-108-0
02
1
0107-0211
158
GASKET; COVER
1-22189-286-0
01
1
0107-0211
159
COLLAR; CONT CYL
1-22199-138-0
02
1
0107-0211
160
JOINT; CONT CYL
1-22199-137-0
01
1
0107-0211
161
PROTECTOR; CONT CYL
1-22199-146-0
01
1
0107-0211
162
GUIDE; CONT CYL
1-22199-147-0
01
1
0107-0211
163
WASHER; CONT CYL
1-22199-148-0
01
1
0107-0211
52
6
6
42
47
45
44
80
46
46
52
52
42
50
48
81
50
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
VALVE; EXH BRAKE
(B)
1-22181-134-0
01
1
0107-0211
6
VALVE; EXH BRAKE
(A)
8-94395-246-2
01
1
0107-0211
6
VALVE; EXH BRAKE
(C)
8-97602-527-1
01
1
0212-
42
HOSE; FLEX,EXH BRK
L=350
1-09363-651-0
01
1
0107-
44
WASHER; LK,FLEX HOSE
ID=12.2
9-09150-512-0
01
1
0107-0603
44
WASHER; LK,FLEX HOSE
ID=12.2
0-91510-512-0
01
1
0604-
45
NUT; FLEX HOSE
M12
9-09840-280-0
01
1
0107-
46
CLIP; AIR PIPE
1-09701-240-0
02
1
0107-
47
BOLT; CLIP
M6X35 FLANGE
0-28680-635-0
01
1
0107-0512
47
BOLT; CLIP
M6X35 FLANGE
0-28650-635-0
01
1
0601-
48
BRACKET; AIR PIPE
8-97600-122-1
01
1
0107-
50
BOLT; BRKT
M8X16 FLANGE
0-28080-816-0
02
1
0107-0512
50
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
02
1
0601-
52
PIPE ASM; AIR FLEX HOSE
8-97601-725-0
01
1
0107-0206
52
PIPE ASM; AIR FLEX HOSE
8-97602-612-0
01
1
0207-
80
BRACKET; FLEX HOSE
1-47476-880-1
01
1
0107-
81
BOLT; HOSE BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0107-0512
81
BOLT; HOSE BRKT
M8X20 FLANGE
0-28650-820-0
02
1
0601-
82
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
0107-0602
82
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
