1-50 — EXHAUST PIPE AND SILENCER (#30630) — 98 parça

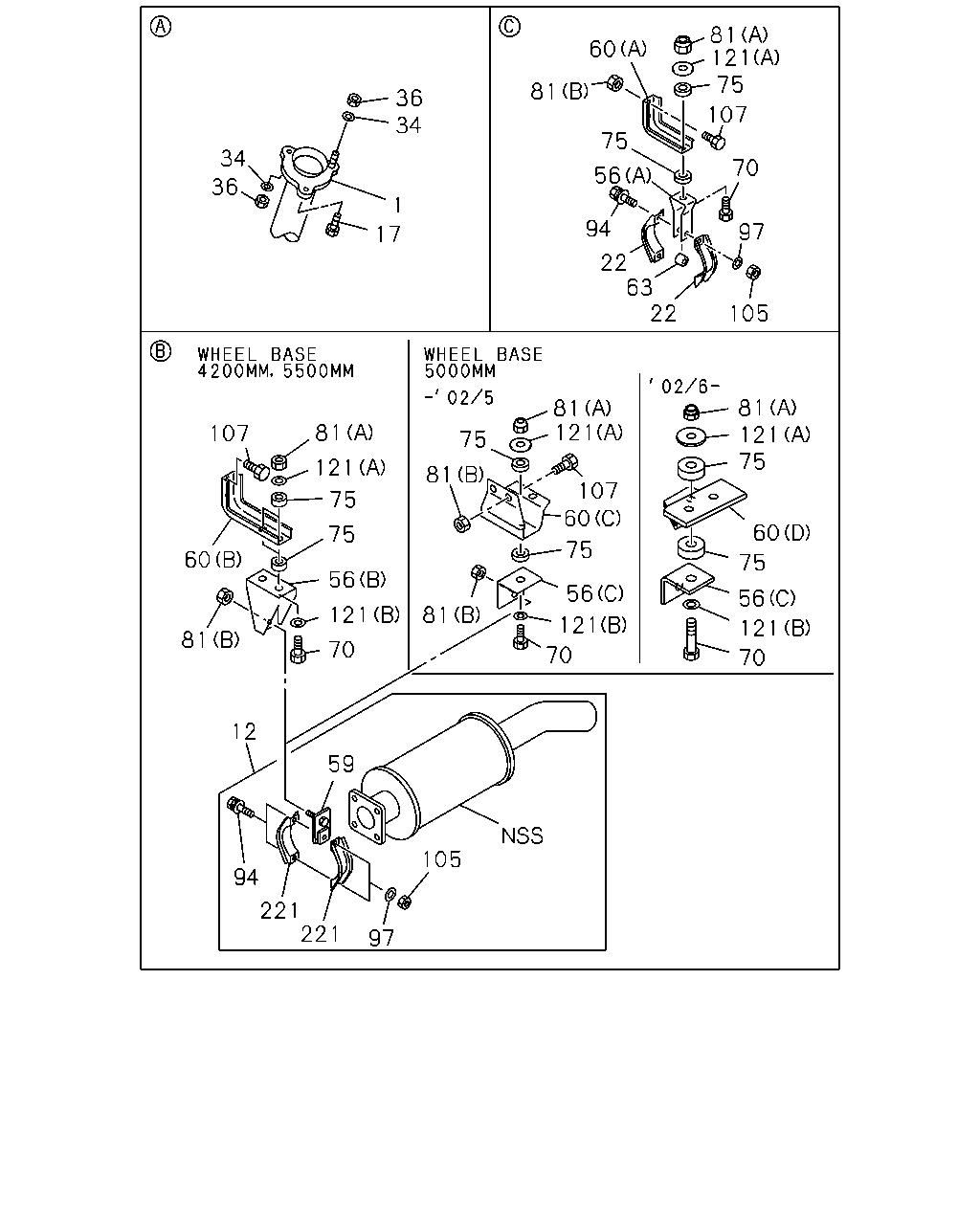

81 121 75 60 81 36 34 107 75 34 70 56 36 1 94 97 17 22 63 22 105 81 121 75 81 121 81 107 75 121 81 107 60 75 60 75 75 60 75 56 56 56 121 81 121 121 81 70 70 70 12 59 105 94 221 221 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH	1-22123-397-0	01	1	0107-0305
1	PIPE; EXH	1-22123-710-2	01	1	0306-
12	SILENCER ASM; EXH	1-22140-846-4	01	1	0107-
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	0107-0112
22	CLAMP; EXH PIPE ID=94-98	1-22133-237-0	02	1	0107-
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0107-0410
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0107-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-082-0	01	1	0107-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B)	1-22139-114-1	01	1	0107-0205
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B)	1-22139-197-0	01	1	0206-
56	BRACKET; CLAMP,EXH PIPE WHEEL BASE 5000MM(50W) (C)	1-22139-118-0	01	1	0107-
59	BRACKET; EXH SILENCER,FRT	1-22139-098-0	01	1	0107-
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-3	01	1	0107-
60	BRACKET; FRAME TO BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B)	1-22151-747-1	01	1	0107-
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (C)	1-22151-534-3	01	1	0107-0205
60	BRACKET; FRAME TO BRKT WHEEL BASE 5000MM(50W) (D)	1-22152-002-0	01	1	0206-
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	0107-
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X50	0-10806-050-0	02	1	0107-0512
70	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X50	0-10856-050-0	02	1	0601-
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X50	0-10806-050-0	01	1	0107-0512
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0107-0512
70	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X50	0-10856-050-0	01	1	0601-
70	BOLT; BRKT M10X50	0-10856-050-0	01	1	0601-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) OD=30	1-22159-106-1	04	1	0107-
75	RUBBER; SUPPORT,BRKT WHEEL BASE 5000MM(50W) OD=30	1-22159-106-1	02	1	0107-
75	RUBBER; SUPPORT,BRKT OD=30	1-22159-106-1	02	1	0107-
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0107-0602
81	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	04	1	0603-
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	0206-0602
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	0603-
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) M10 LOCK NUT	9-09131-510-0	02	1	0107-0603
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) M10 LOCK NUT	0-91370-010-0	02	1	0604-
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	01	1	0206-0602
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	0107-0205
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	0107-0205
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	02	1	0206-0602
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91180-210-0	02	1	0603-
81	NUT; BRKT WHEEL BASE 5000MM(50W) (A) M10 LOCK NUT	9-09131-510-0	01	1	0107-0603
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	0107-0603
81	NUT; BRKT WHEEL BASE 5000MM(50W) (A) M10 LOCK NUT	0-91370-010-0	01	1	0604-
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0604-
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0107-0110
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0111-0805
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-
94	BOLT; CLAMP M10X40 FLANGE	0-28681-040-0	02	1	0111-0512
94	BOLT; CLAMP M10X40 FLANGE	0-28651-040-0	02	1	0601-
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0107-0110
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	02	1	0111-
105	NUT; CLAMP M10	9-09110-510-0	04	1	0107-0110
105	NUT; CLAMP M10	9-09110-510-0	02	1	0111-0512
105	NUT; CLAMP M10	0-91110-510-0	02	1	0601-
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	02	1	0111-0602
105	NUT; CLAMP M10 FLANGE	0-91180-210-0	02	1	0603-
107	BOLT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) M10X30 FLANGE	0-28681-030-0	02	1	0107-0205
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0107-0205
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0206-0512
107	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-
107	BOLT; BRKT WHEEL BASE 5000MM(50W) M10X30 FLANGE	0-28681-030-0	03	1	0107-0205
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	0107-0205
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) (A) ID=10.5 OD=32	9-09164-810-0	01	1	0206-0605
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	01	1	0206-0605
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) (A) ID=10.5 OD=32	0-91614-810-0	01	1	0606-
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	0-91614-810-0	01	1	0606-
121	WASHER; PL,BRKT (A) ID=10.5 OD=32	9-09164-810-0	02	1	0107-0205
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) ID=10.5 OD=18	9-09160-510-0	02	1	0107-0205
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) ID=10.5 OD=32	9-09164-810-0	02	1	0206-0605
121	WASHER; PL,BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) ID=10.5 OD=32	0-91614-810-0	02	1	0606-
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) (B) ID=10.5 OD=18	9-09160-510-0	01	1	0107-0408
121	WASHER; PL,BRKT WHEEL BASE 5000MM(50W) (B) ID=10.5	9-09164-510-0	01	1	0409-
221	CLAMP; EXH SILENCER ID=80-84	1-22133-233-0	02	1	0107-

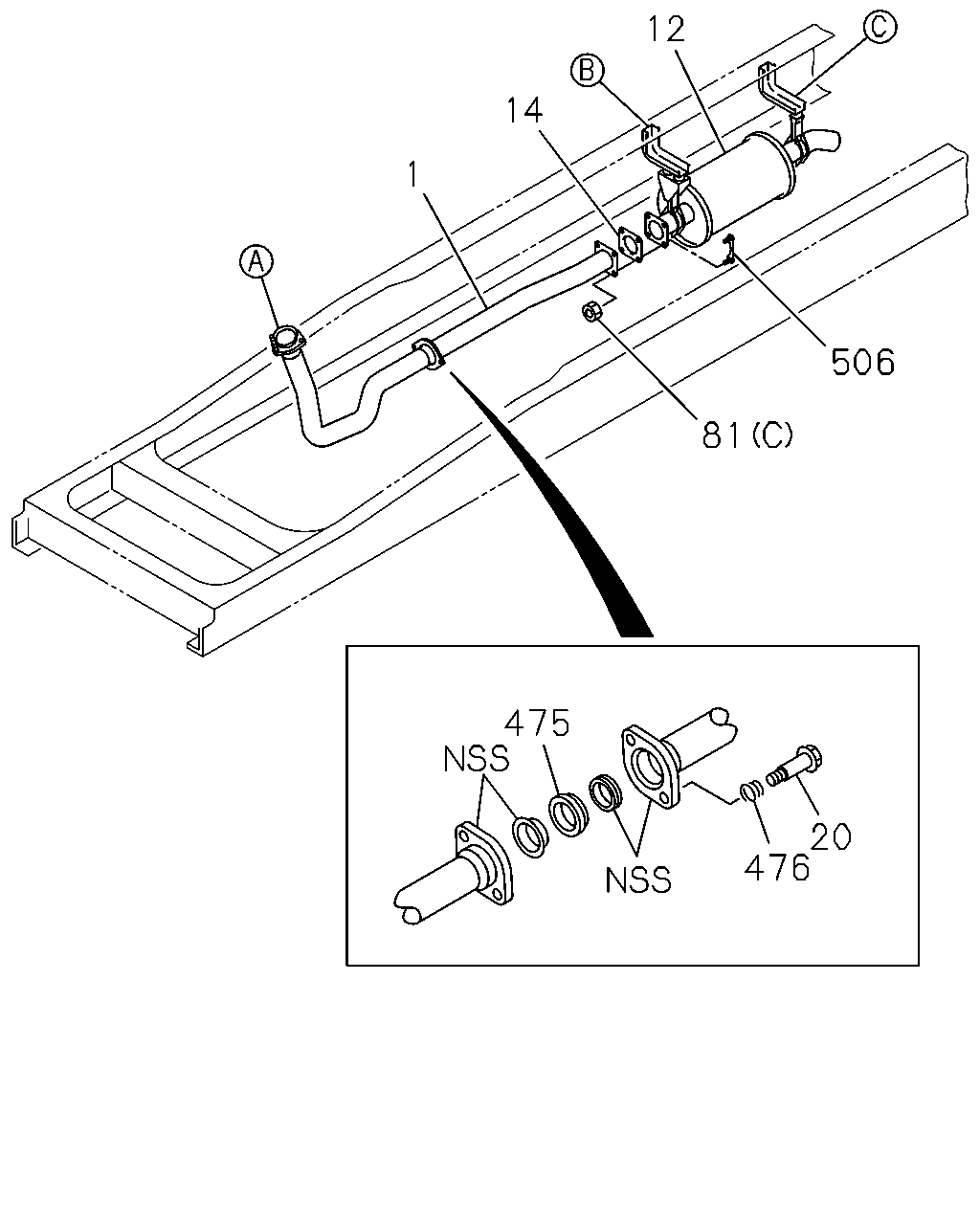

12 14 1 506 81 475 20 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH	1-22123-397-0	01	1	0107-0305
1	PIPE; EXH	1-22123-710-2	01	1	0306-
12	SILENCER ASM; EXH	1-22140-846-4	01	1	0107-
14	GASKET; SILENCER TO EXH PIPE	8-94394-391-0	01	1	0107-
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0306-0412
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	0501-
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0107-0602
81	NUT; BRKT (C) M12 FLANGE	0-91180-212-0	04	1	0603-
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	0206-0602
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	03	1	0603-
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) M10 LOCK NUT	9-09131-510-0	02	1	0107-0603
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (A) M10 LOCK NUT	0-91370-010-0	02	1	0604-
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91150-210-0	01	1	0206-0602
81	NUT; BRKT WHEEL BASE 4200MM(42W),WHEEL BASE 5500MM(55W) (B) M10 FLANGE	0-91180-210-0	01	1	0603-
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	03	1	0107-0205
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	03	1	0107-0205
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91150-210-0	02	1	0206-0602
81	NUT; BRKT WHEEL BASE 5000MM(50W) (B) M10 FLANGE	0-91180-210-0	02	1	0603-
81	NUT; BRKT WHEEL BASE 5000MM(50W) (A) M10 LOCK NUT	9-09131-510-0	01	1	0107-0603
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	0107-0603
81	NUT; BRKT WHEEL BASE 5000MM(50W) (A) M10 LOCK NUT	0-91370-010-0	01	1	0604-
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	01	1	0604-
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-1	01	1	0402-
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0402-
506	BRACKET; STUD	1-22131-788-0	02	1	0107-0206
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0207-
